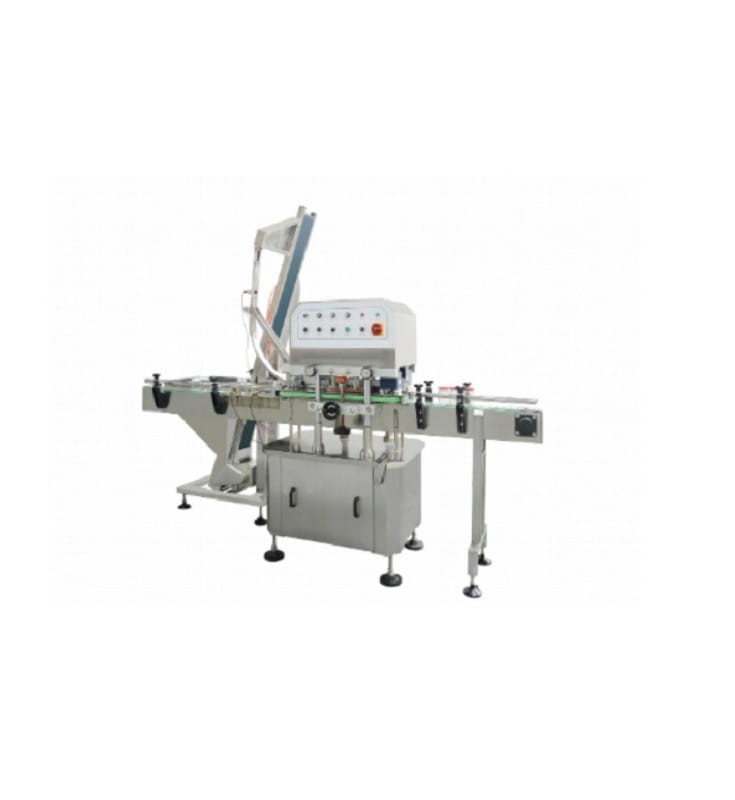

AUTOMATIC METAL LID CAPPING MACHINE BX-680

Application:

Automatic closing machine for glass jars with a metal screw cap.

The screwdriver can handle jars and nuts of one diameter / shape.

The machine can be intended for contact with art. food.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

The parts can be cleaned before each use. All surfaces in contact with the product have a smooth and corrosion resistant surface.

The construction of the machine excludes penetration of the substance into the product.

It is used in the food and non-food industry.

Functions:

Stable and reliable mechanical properties ensure a long process of use.

The device is equipped with a magnetic feeder, improving work.

The speed control allows you to adjust the performance to your needs.

The device has its own conveyor belt, jars are fed under the head, closed there and then fed.

The closing machine can be easily integrated into the production line.

Innovative, constructed and built based on the progress in foreign technology.

Has an advanced structure.

It is characterized by simple operation, smooth operation, safety, easy maintenance, high efficiency, compact design, excellent control system, high degree of automation, precision, closing speed.

Technical data:

Power: 2.8 kW

Power supply: 230 V / 50 Hz  US 110 V

Pressure: 0.7 MPa

Jar height: 40 - 110 mm  US 1,6-4,3"

Nut diameter: 38 - 100 mm  US 1,5-4"

Capacity: 2000-3500 pcs / h

External dimensions [L x W x H]: 2600 x 1100 x 1950 mm  US 102" x 43" x 77"

Weight: 600 kg  US 1322 lb

Extra paid options:

Additional head

Feeder for other nuts
