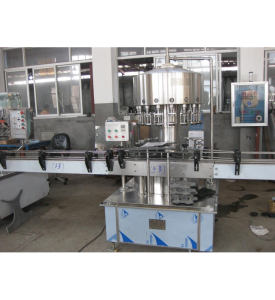

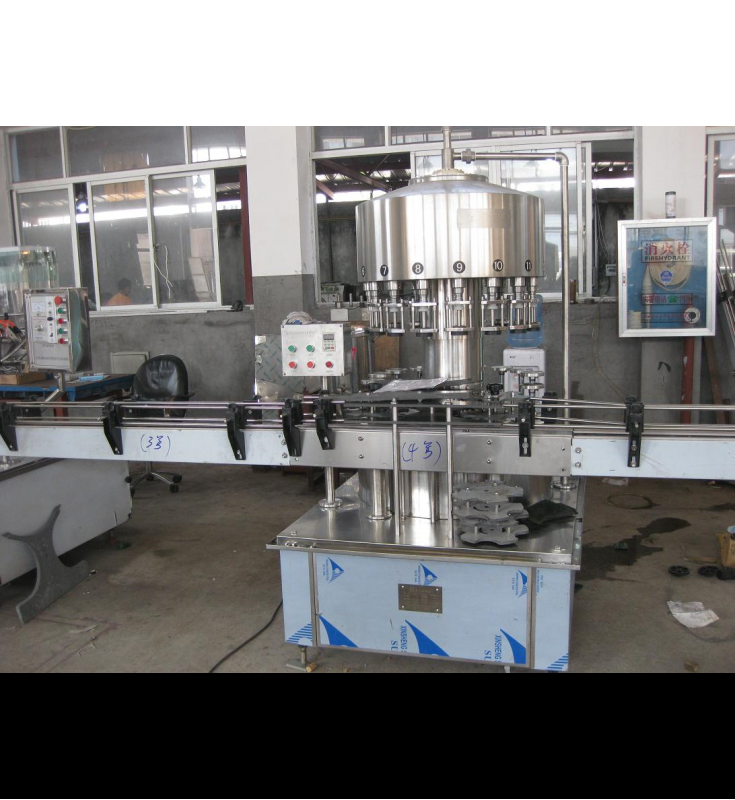

AUTOMATIC FILLING MACHINE ZFG-12

Application:

Automatic filling machine for filling plastic and glass bottles with liquids based on alcohol.

The device pours the product under pressure, thus preventing foaming.

The device has its own conveyor belt, thanks to which it can be easily integrated into the production line with a capping machine, labeling machine, etc., but it can also be a separate workplace.

The filler has adjustable nozzle height, allowing it to be adapted to many types of bottles.

Functions:

Adjusting the dosing rate and capacity.

The service is done through a simple to use panel.

The device is very efficient.

The machine is made of stainless steel.

Explosion-proof system - ATEX included

Technical data:

Number of nozzles: 12 nozzles

Capacity ： 1000-3000 pcs / h

Bottle height: 150-320 mm

Bottle diameter: 50-100 mm

Power: 0.75 kW

Weight: 500 kg

Dimensions: 1400 x 1400 x 2100 mm

It is possible to upload the menu in Polish or other language.
