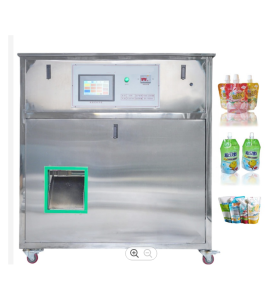

AUTOMATIC FILLING AND CAPPING MACHINE HL-ZLD-CD2

Application:

Device designed for filling and closing doypack packaging with a cap.

The machine is designed especially for dense products, eg. cheese, yogurt, purees.

Functions:

Easy-to-use interface, solid construction.

The machine fills individual bags, puts on and tightens the cap and discharges the finished product.

Doypacks for filling are served manually.

The entire pouring and closing cycle is computer controlled to prevent product loss.

The device can be controlled by one operator.

Technical parameters:

Power: 1.2 kW

Power supply: 230 V / 50 Hz or 380 V / 50 Hz  US 110 V

Production: 1500 bags / hr (according to 250ml)

Filling Range: 50-500ml(customized)

Air pressure: min. 0.8 MPa

Air consumption: 0.35 m³ / min.  US 0.35 CBM / min.

External dimensions [L x W x H]: 1000 x 750 x 1200 mm  US 39 x 29 x 47"

Weight: 250 kg  US 551 Ib
