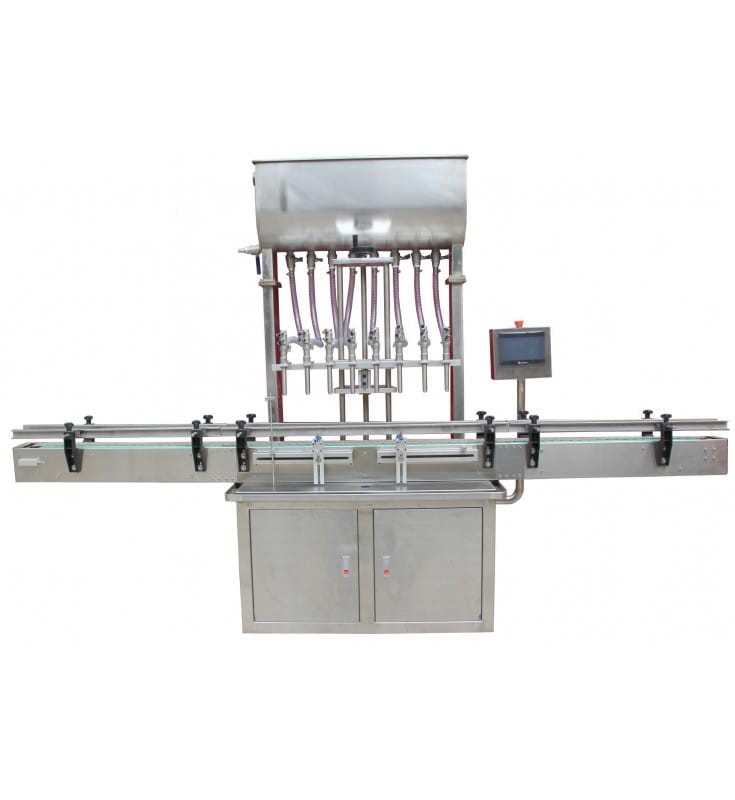

AUTOMATIC GRAVITY FILLING MACHINE ZL-6

Application:
Automatic filling machine designed for filling plastic and glass bottles with low-foaming liquids, eg mineral water, window-cleaner.
The device has its own belt conveyor, thanks to which it can be easily integrated into a production line with a cap machine, labeling machine, etc., but it can also be a separate work station.
The fillers are adapted to the customer's requirements (bottle dimensions, dose size), if interested, please contact us - we will be happy to prepare an individual offer.
Functions:
The machine is entirely made of stainless steel.
The service takes place via a simple to use panel.
The device is very efficient and reliable.
A given machine can dispense a product in one of the specified ranges.
If we want the range to be wider it will be necessary to double dosing into one bottle.
Example: we want to dose in the 50-500ml range.
However, the device offers the possibility of dispensing 50-250ml or 100-500ml - in this case it is necessary to use 2 separate machines or one with a range of 50-250ml and double dosing.
In the case of volumes exceeding 250ml, for example for a 500ml dose, we set 250ml and pour the product into each container 2 times.
Technical data:
Power: 0,5 kW
Power supply: 230V / 50Hz
Air consumption: 0.4-0.6 MPa
Dosage range to choose from: 200-5000 ml
The number of nozzles: 6
Filling time: 1-30000 milisecond
Accuracy: 50 - 1000 ml ≤ 1%

Dimension: 2000 x 800 x 1900 mm

Weight: 200 kg

Extra payd options:

Anti-foaming system

Tank

ATEX
