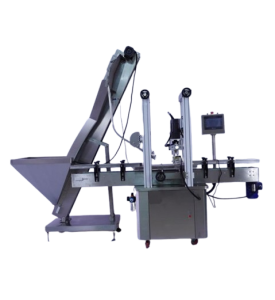

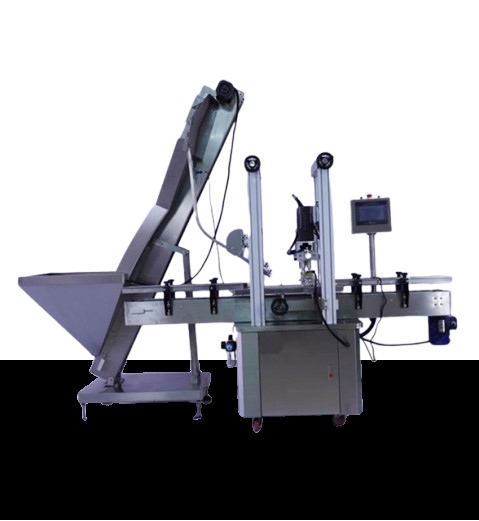

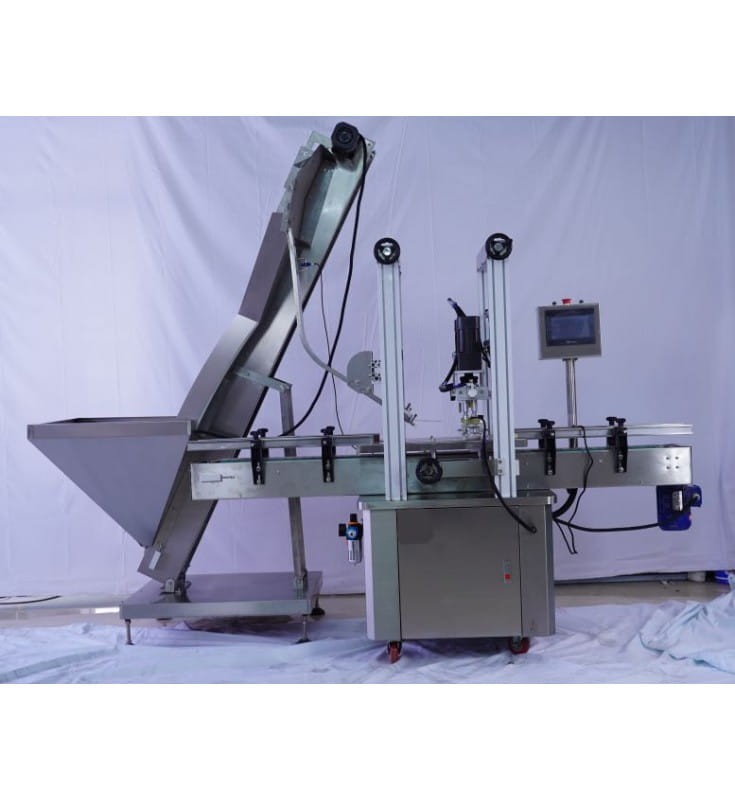

CDXGZ-1 AUTOMATIC CAPPING MACHINE WITH A CAP FEEDER

Application:

Fully automatic capping machine with a conveyor belt and a cap feeder.

It is used in many industries m.in food, cosmetics and chemicals.

The parts can be cleaned before each use.

Functions:

The machine is designed for PET caps.

Easy to use.

Simple maintenance.

The capping machine is usually used as part of a production line with filling machine, labeling machine, but it can also be a separate workstation.

Requires connection of a compressed air source with a capacity of 0.4 MPa

Technical data:

Power Source: 220V/50 Hz

Diameter of cap: 20-50 mm (can be customized 20-100 mm; 70-130 mm)

Diameter of bottle: 20-115 mm (The maximum bottle diameter of the widened model is 150 mm)

Bottle height: 60-250 mm

Compressed air: 0.4 MPa

Capping speed: 1500-3000 bottles / hour
