AUTOMATIC CAPPING MACHINE WITH FEEDER XGZG-1

Application:

Automatic screwing machine for bottles, plastic cans that have a large PET cap with safety ring.

A screwdriver is usually used as part of a production line with a filler, a labeling machine, etc., but it can also be a separate workplace.

All elements in contact with the product have a smooth surface or are made of 304 steel, resistant to corrosion.

Functions:

The device is efficient, reliable and easy to use.

The PLC ensures stable operation.

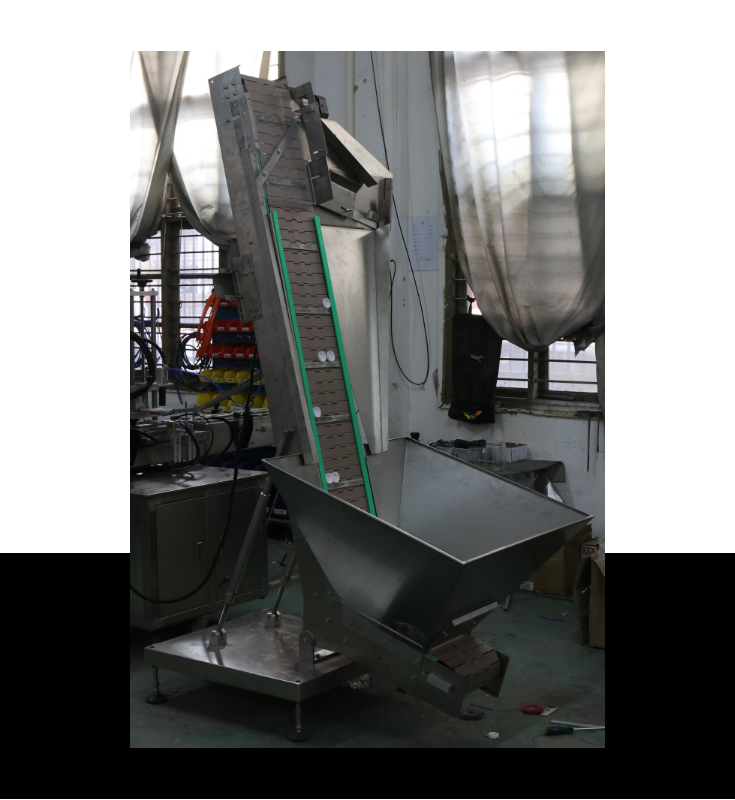

The screwdriver is equipped with a feeder and a nut orienter.

Technical data:

Power supply: 230 V / 50 Hz

Power: 1.5 kW

Requires compressor connection.

Air consumption: 250 L/min

Capacity: 1000 bottles/hour

Capping heads: 1 head

Bottle diameter: 40-100 mm

Bottle cap: 20-60 mm

Bottle height: 80-280 mm

Number of capping heads: 1

dimensions (L x W x H): 3000 x 1300 x 2400 mm

Attention:

On video and photo there is 2-head capping machine.

The price is given for 1-head capping machine.
