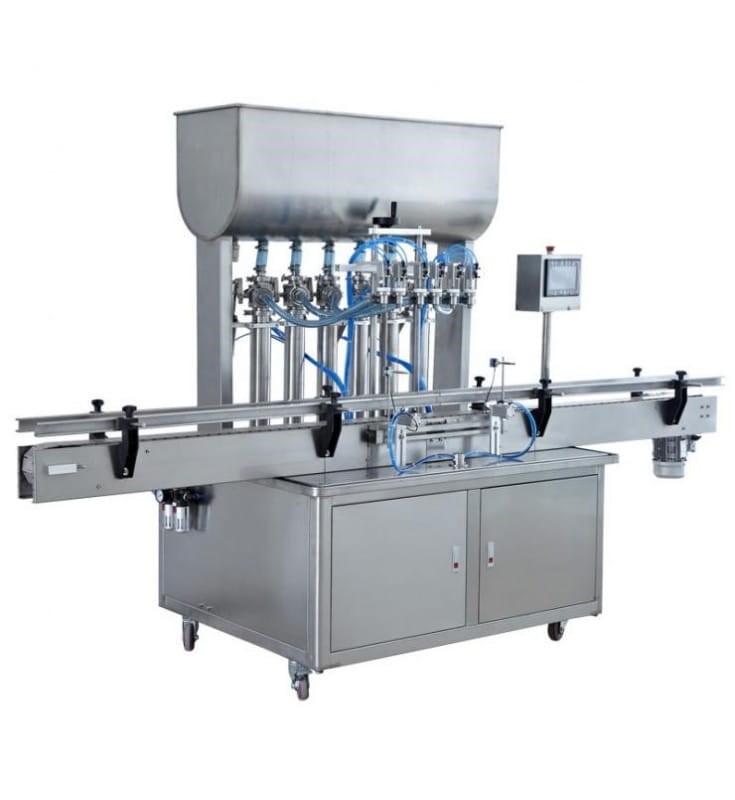

FILLER YT-12

Application:
Automatic filling machine YT-12 designed for filling plastic and glass bottles with low-foaming liquids, eg mineral water, window-cleaner.
The device has its own belt conveyor, thanks to which it can be easily integrated into a production line with a cap machine, labeling machine, etc., but it can also be a separate work station.
The fillers are adapted to the customer's requirements (bottle dimensions, dose size), if interested, please contact us - we will be happy to prepare an individual offer.

Functions:
The service takes place via a simple to use panel.
The device is very efficient and reliable.

The parts contact the materials are made of stainless steel.
A given machine can dispense a product in one of the specified ranges.
If we want the range to be wider it will be necessary to double dosing into one bottle.
Example: we want to dose in the 50-500ml range.
However, the device offers the possibility of dispensing 50-250ml or 100-500ml - in this case it is necessary to use 2 separate machines or one with a range of 50-250ml and double dosing.
In the case of volumes exceeding 250ml, for example for a 500ml dose, we set 250ml and pour the product into each container 2 times.

Requires compressor connection.

Technical data:

Power: 1 kW
Power supply: 220V / 50Hz

Air consumption: 900 l/min

Air pressure: 0.5-0.7 MPa
Dosage range: 1000-5000 ml
The number of nozzles: 12
Capacity: 16-24 bottles/min
Accuracy: <1%

Dimensions (L x W x H): 4000 x 1200 x 2200 mm

Included:

Tank

Extra paid options:

Version with elements in contact with the product made of 316 steel

Filling system for foaming products
