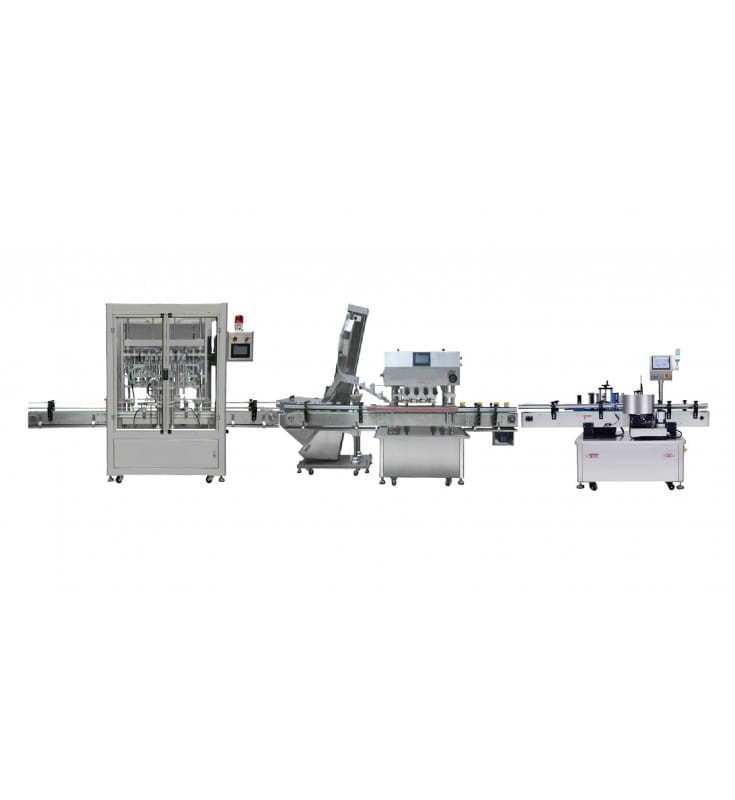

AUTOMATIC BOTTLE FILLING, CAPPING AND LABELLING LINE

Application:

A fully automatic line designed for filling, capping and labeling.

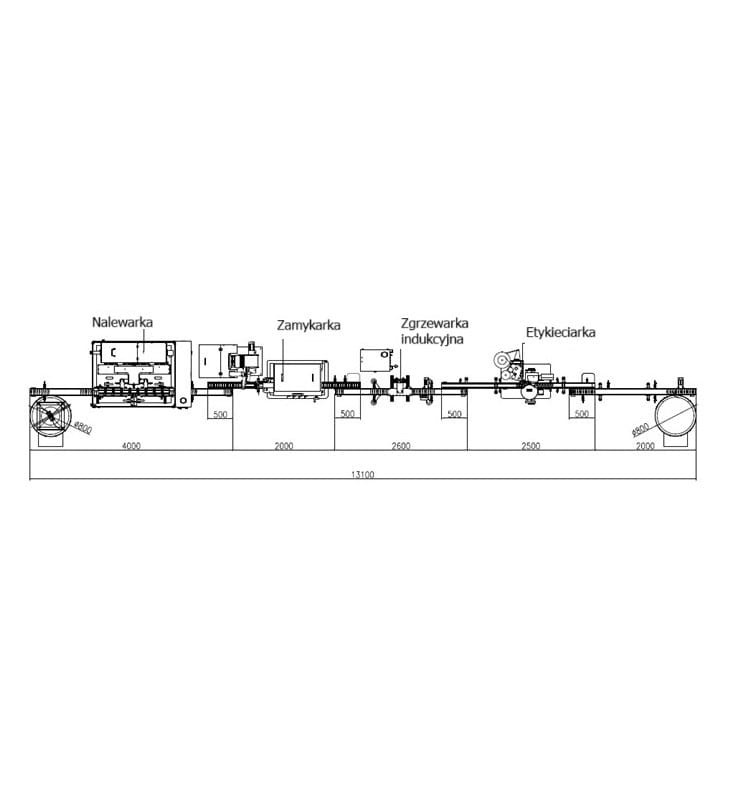

The line includes a feeding table, a filling machine, an induction sealer, a labeling machine and a receiving table.

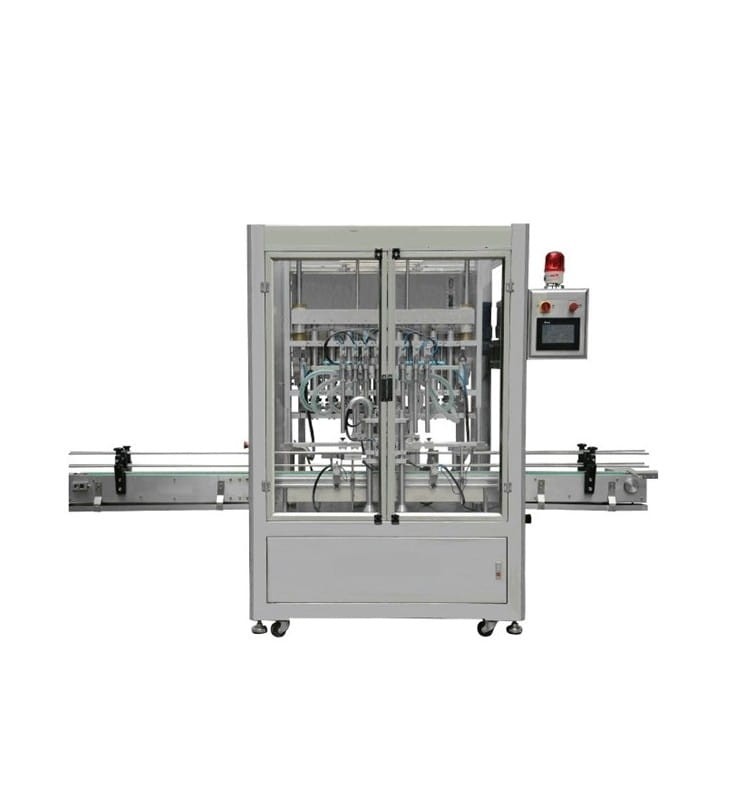

8 HEAD SERVO FILLING MACHINE

Designed for filling plastic and glass bottles with thick liquids (dish soaps, creams, yoghurts).

Technical data:

Power supply: 220 V / 50 Hz

Number of nozzles: 8

Dosage range: 500-1000 ml

Accuracy: ≤1%

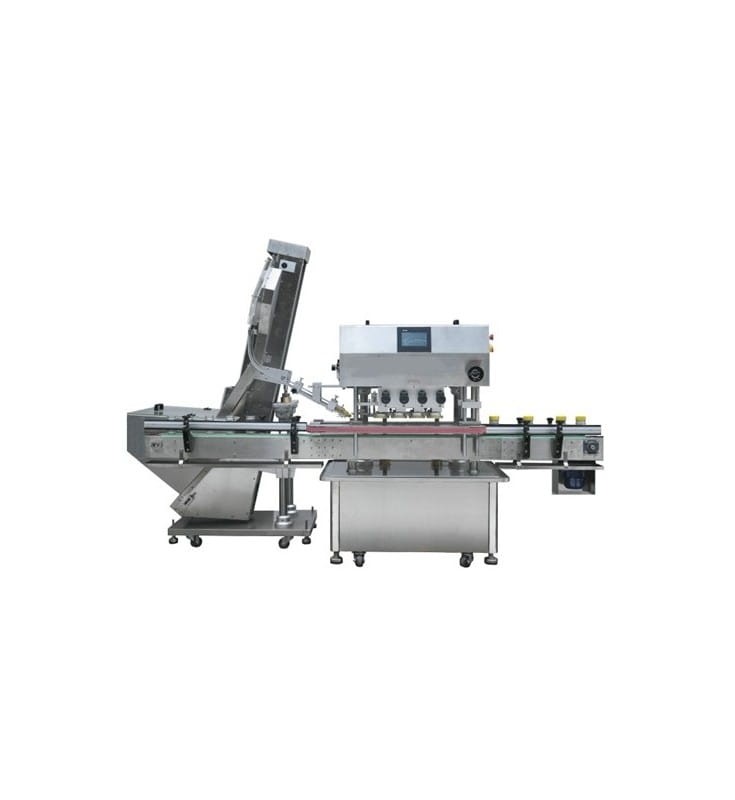

HLXG-120-8 AUTOMATIC FREQUENCY CONVERSION HIGH-SPEED CAPPING MACHINE

Capping machine equipped with a cap feeder.

The jars move along a conveyor belt between two rows of rotating capping rollers.

Technical data:

Power: 2.5 KW

Power supply: 380 V / 50 Hz

Air pressure: 0.4 – 0.6 MPa

Cap diameter: 19 - 100 mm

Bottle diameter: 20 - 150 mm

Bottle height: 45 - 320 mm

Capacity: 30-80 pcs/min

Dimensions [L x W x H]: 1060 x 560 x 2300 mm

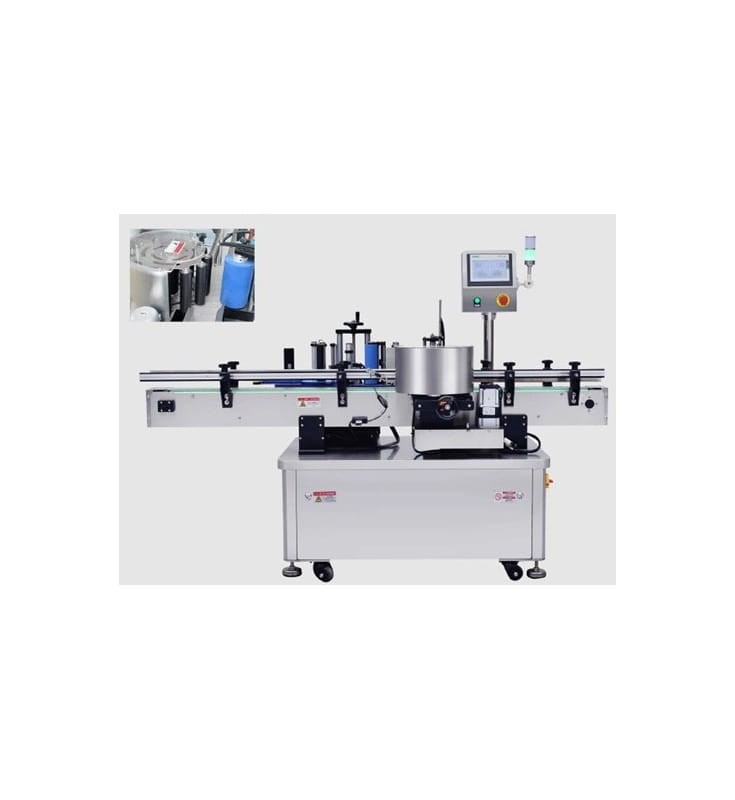

HLSF-3042 AUTOMATIC ROUND BOTTLE POSITIONING LABELING MACHINE

Designed for automatic labeling of round bottles.

It is suitable for labeling round bottles with a label all around.

For bottles made of plastic or glass.

Technical data:

Power supply: 220 V / 50 Hz

Labeling speed: 30-80 pcs/min

Labeling accuracy: +/-1 mm

Bottle diameter: 40-110 mm

Label width: 10-130 mm

Label length: 15-300 mm

Label roll outer diameter: 100-350 mm

Label roll inner diameter: 76 mm

Dimensions [L x W x H]: 2000 x 815 x 1456 mm
