AUTOMATIC PACKING SYSTEM VPX620

Application:

Complete line for packaging granular products such as: vegetables, ice cubes and similar products, in formed foil sachets

It is used in companies with extensive production.

The device is made of high quality components of the company: Mitsubishi, Delta, Panasonic, Omron, Banner, Schneider.

Functions:

Simple to use interface

Solid construction

Possible line equipment in: time stamp, adventuring, a tube forming a sachet

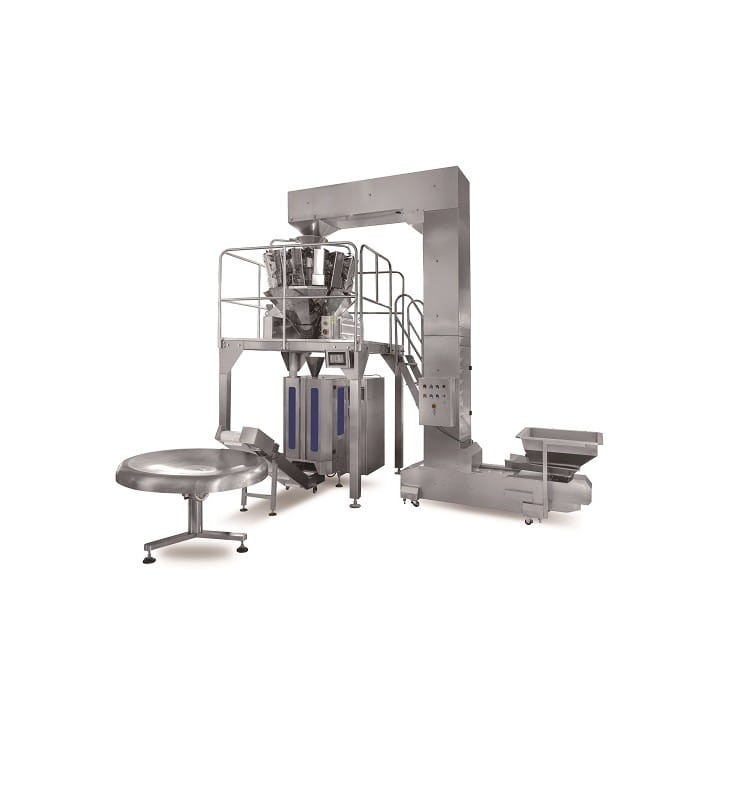

The line includes:

VPX620 packaging machine

Bucket lift TOPY-AC1

14-head weighter

Support platform

Conveyor

The dimensions of the entire line: 4500 x 4607,4 x 4464,3 mm/ 177" x 181" x 176"

Packaging machine VPX620

Packs previously weighed granular product for sachets.

The device is adapted to work with a food product.

A compressor is needed to operate the device.

Technical data:

Power supply: 230 V / 50 Hz US 110V

Power: 4.5 kW

Air consumption: 0.6 MPa 0.7 m3 / min

Foil width: 340-800 mm US 13-31"

Efficiency: 10-30 pcs./min

Maximum dose: 2.5 kg

Length of the sachet: 100-500 mm US 4-20"

The width of the sachet: 110-300 mm US 4-12"

Dimensions: 1600 x 1500 x 2050 mm US 63" x 59" x 80"

Bucket conveyor TOPY-AC1

Ideal for a wide range of granular products.

Bucket conveyor is used to transport products to the weighing machine.

Technical data:

The width of the conveyor belt: 300 mm US 12"

Capacity 4-6.5 m3 / h

Power supply: 230 V / 50 Hz US 110 V

Power: 0.75 kW

Dimensions: 2065 x 1406 x 1140 mm US 81" x 55" x 44"

14-head weighter

The multi-head dispenser allows precise measuring of the product's weight.

It is equipped with a load level sensor.

The machine is designed to be easy to clean and maintain.

Support platform

A compatible, stable and secure platform.

Extremely helpful when replacing the product feeder.

Conveyor

Used to receive and transport packed product bags.
