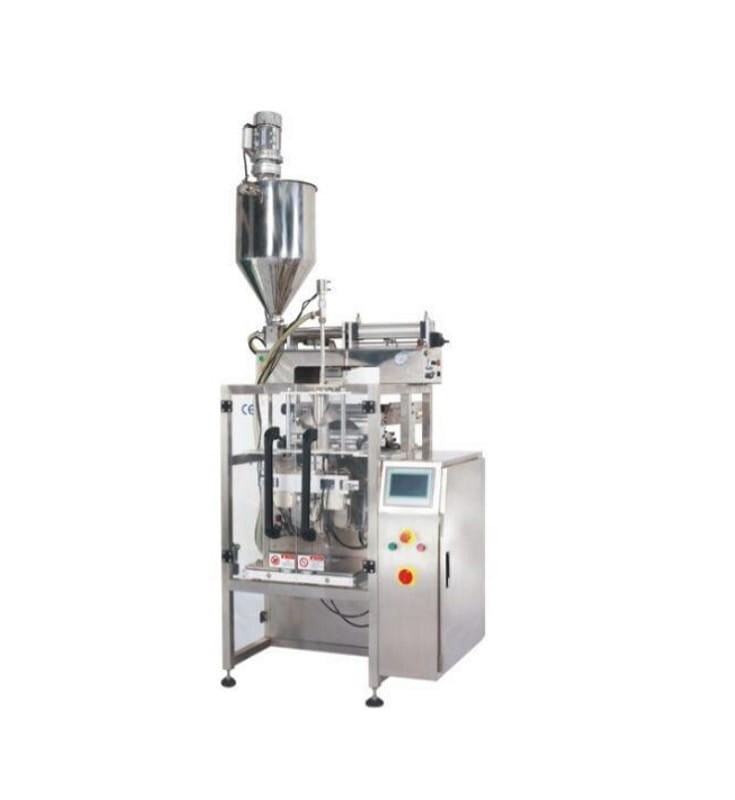

VERTICAL PACKING MACHINE HTL 420Y

A complete line for packaging liquid, eg ketchup in sachets, bags.

The line consists of a dispensing machine dispensing liquid, a packaging machine that forms bags from a web (VFFS system).

Devices created with the use of high-quality production components, among others Japanese and French.

The machine may be intended for contact with foodstuffs.

It has been designed in such a way as to avoid the risk of infection, illness, infection.

The elements can be easily cleaned before each use.

All surfaces in contact with the product have a smooth surface or are made of corrosion-resistant stainless steel.

The construction of the machine precludes the penetration of the substance into the product.

Application:

The device is used in the food and non-food industry.

Functions:

Equipped with automatic product feeding and the creation of sachets

Has a date stamp that allows printing the date on the product

The photocell placed in the device allows you to work with the printed film

Easy to use touch screen

Easy to use and reliable

Equipped with auotmatic trimming of the finished sachets, terebki

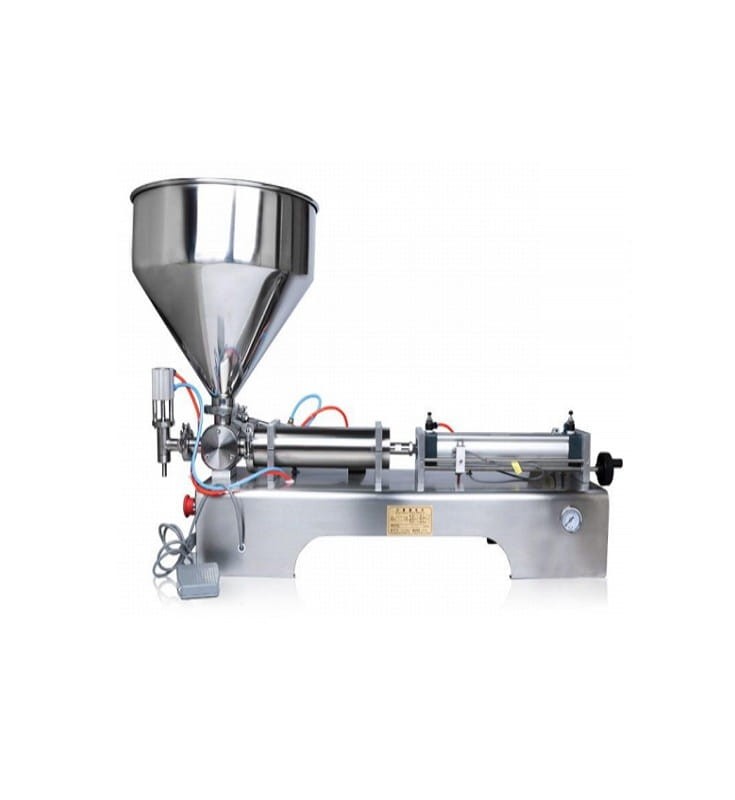

The filling machine is used to dispense liquefied and semi-liquid products, such as ketchup, honey, water, oil, juice or detergents, requiring to be poured and sifted.

Made in such a way that the power pour the product to different packaging.

Features a precisely adjustable dose and simple adjustment.

It is necessary to connect a compressor to operate the device.

It has a heated tank that can mix the product in the tank at the same time.

Technical data:

Pouring range: 100-1000 ml

Tank capacity: 30L

Precision: = / - 1%

Air pressure: 0.4-0.6 MPa

Air consumption: 0.1 m3 / min

Capacity: 20-50 cycles / min

Dimensions of the machine: 1010 x 330 x 760 x 410 x 500 mm US 40" x 13" x 30" x 16" x 20"

Weight: 45 kg US 99 lb

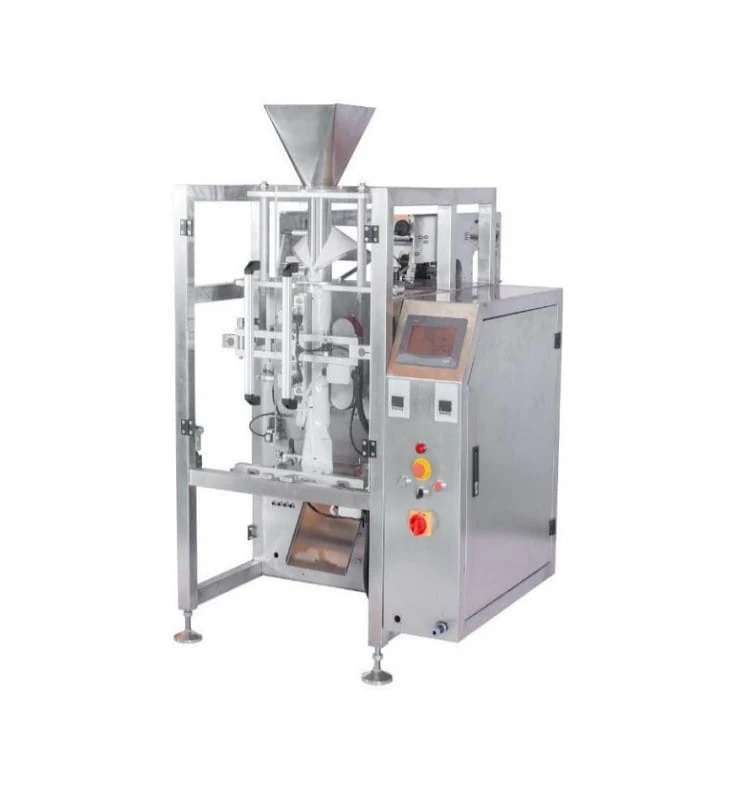

VFFS packaging machine created to make sachets.

Driven by a servo motor.

It has a smooth adjustment of the welding temperature, which allows you to work with a wide range of foils.

The teorebka length is smoothly adjusted using a simple PLC panel.

Prints the date or serial number on a cooked package.

Operation of the device requires connecting the compressor.

Technical data:

Power supply: 230 V / 50 Hz US 110 V

Power: 3.8 kW

Capacity: 20-60 bags / minute

Dimensions of the bag:

Length: 80-300 mm US 3-12"

Width: 80-200 mm US 3-8"

Film width: 180-420 mm US 7-16"

Film thickness: 0.04-0.08 mm US  0,0015-0,0031"

Air consumption: 0.36m3 US min 0.6MPa

Dimensions: 1055 x 1408 x 1650 mm US 41" x 55" x 65"

Weight: 500 kg US 1102 lb
