CARTESIAN ARM BRTIRUS 30T-250T

Cartesian arms were created to streamline and automate the production process.

They are often also called a mechanical arm.

It is a kind of manipulative industrial robot.

It can be automatically controlled, programmable and multi-tasking.

Manipulative or locomotion properties depending on the model.

Application:

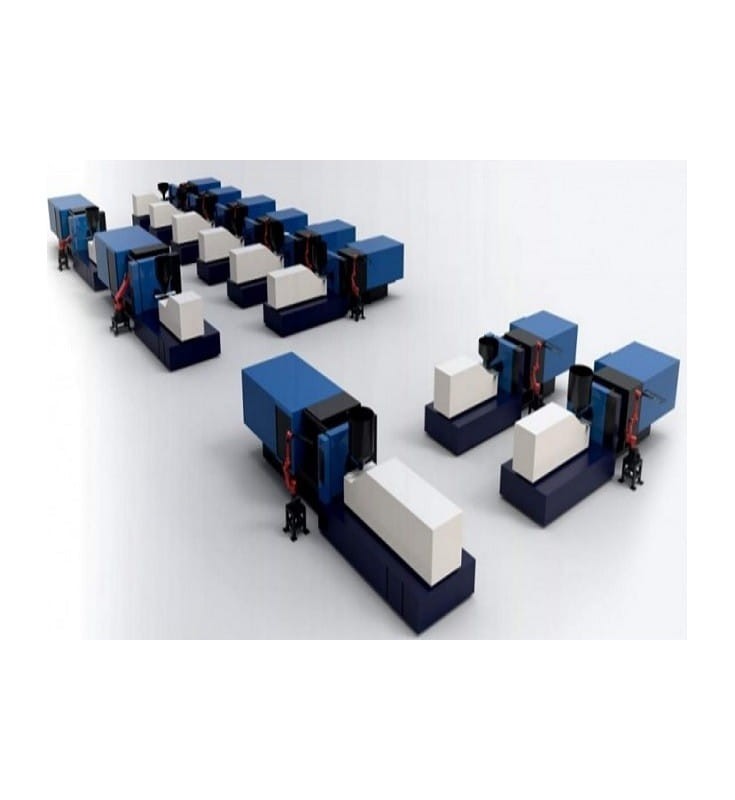

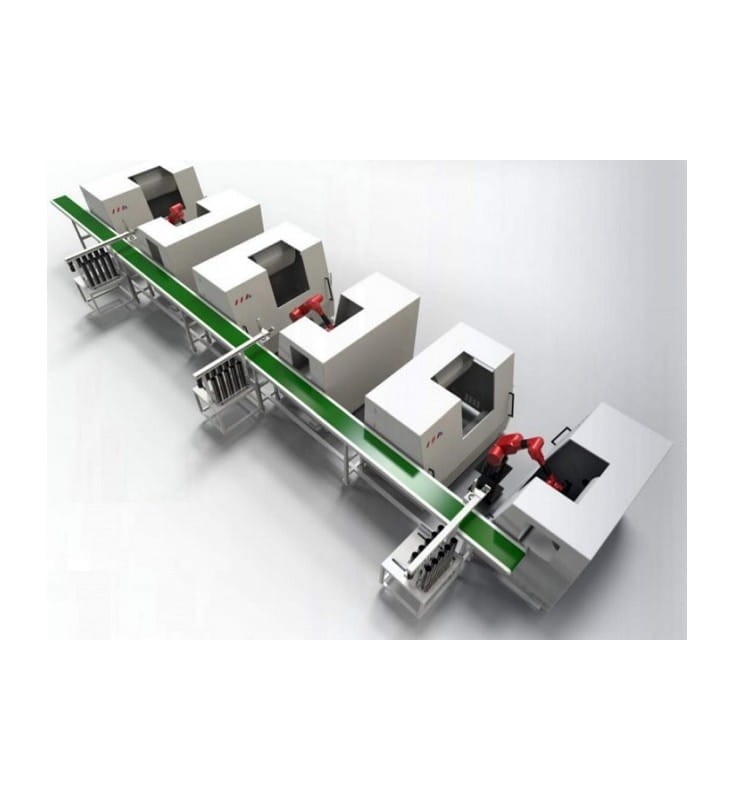

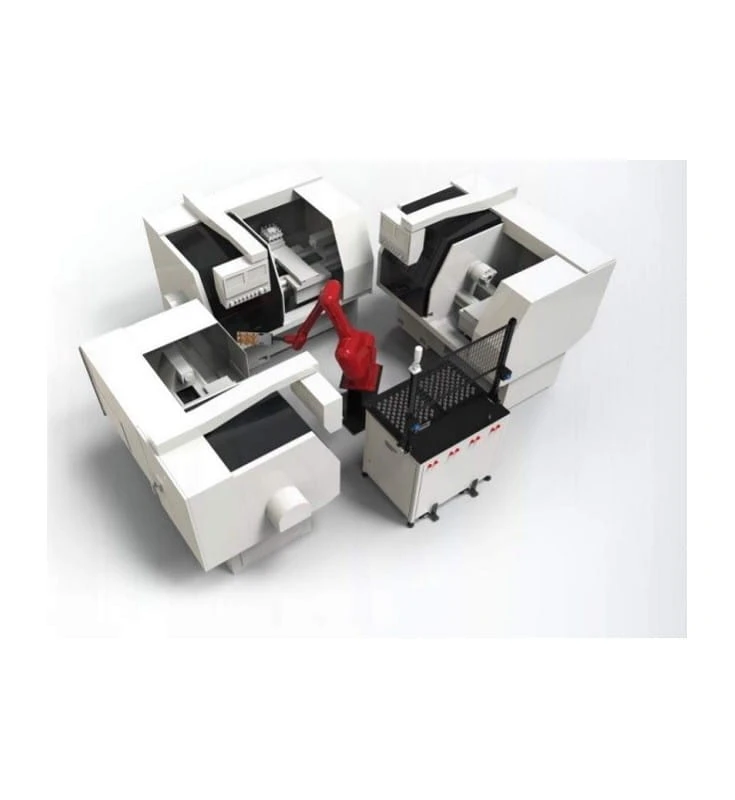

They are used in large industries, e.g. automotive, food, chemical, heavy.

Functions:

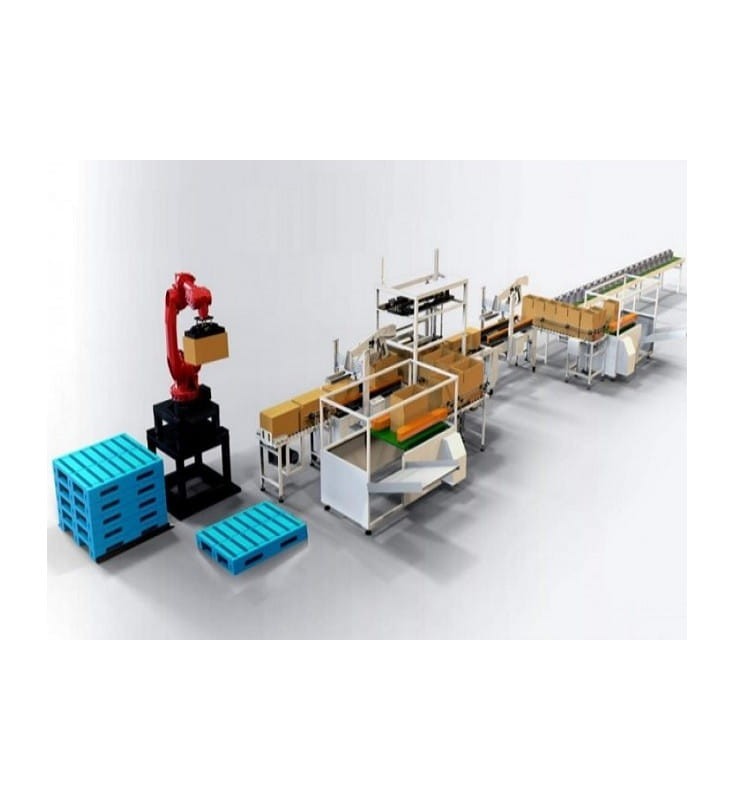

It can remove packaging from the production line and place it in cartons

An important element of the robot is the software that allows quick configuration and memorization of the machine's trajectory

It works based on simple commands

It has an intuitive interface, thanks to which learning to use the keypad is quick and simple

Streamlines the production process

Technical data:

Number of axles: 6

Axis speed 1: 180 degrees / sec

Axis speed 2: 120 degrees / sec

Axis speed 3: 150 degrees / sec

Axis speed 4: 225 degrees / s

Axis speed 5: 270 degrees / s

Axis speed 6: 270 degrees / s

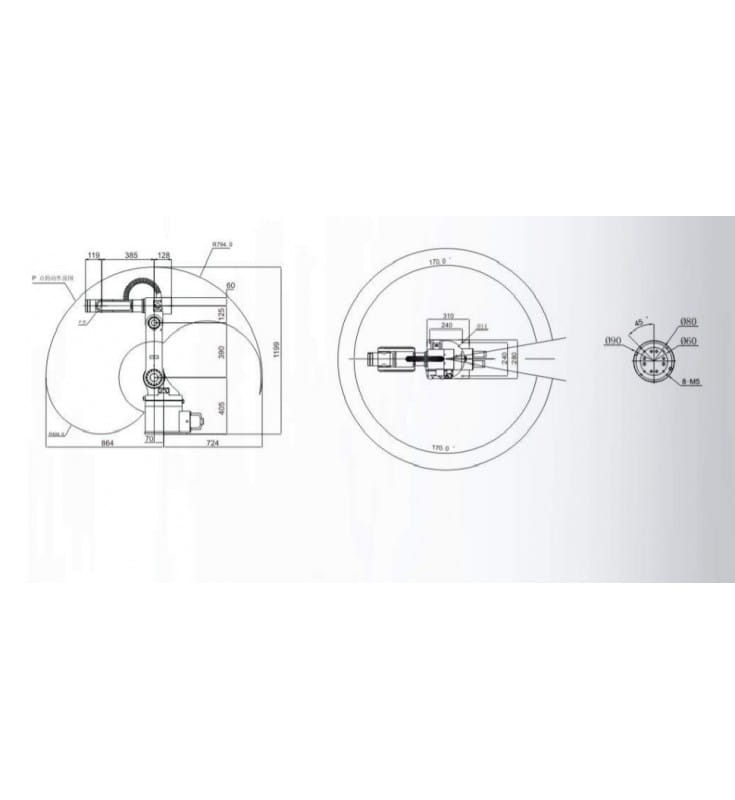

Maximum axis movement 1: 170 degrees

Maximum axis 2: 90 degrees

Maximum axis 3: 70-90 degrees

Maximum axis movement 4: 90 degrees

Maximum axis movement 5: 90 degrees

Maximum arm length: 940 mm US 37"

Axle motor power 1: 750 W

Axle motor power 2: 750 W

Axle motor power 3: 400 W

Axle motor power 4: 400 W

Axle motor power 5: 200 W

Axle motor power 6: 100 W

Weight: 73 kg US 161 lb

Maximum load: 5 kg US 11 lb
