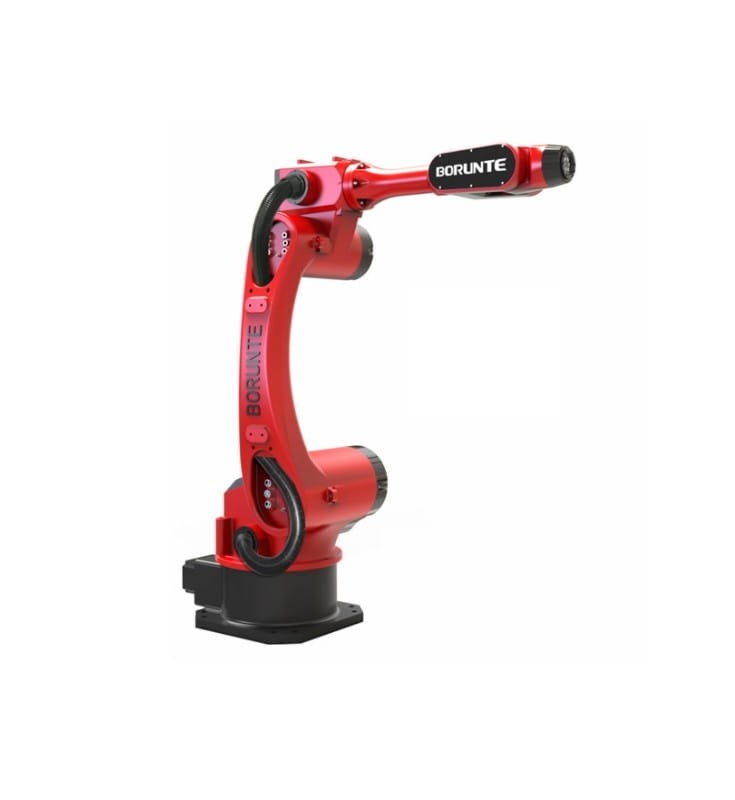

CARTESIAN ARM BRTIRUS 200T-600T

Cartesian arms were created to streamline and automate the production process.

They are often also called a mechanical arm.

It is a kind of manipulative industrial robot.

It can be automatically controlled, programmable and multi-tasking.

Manipulative or locomotion properties depending on the model.

Application:

They are used in large industries, e.g. automotive, food, chemical, heavy.

Functions:

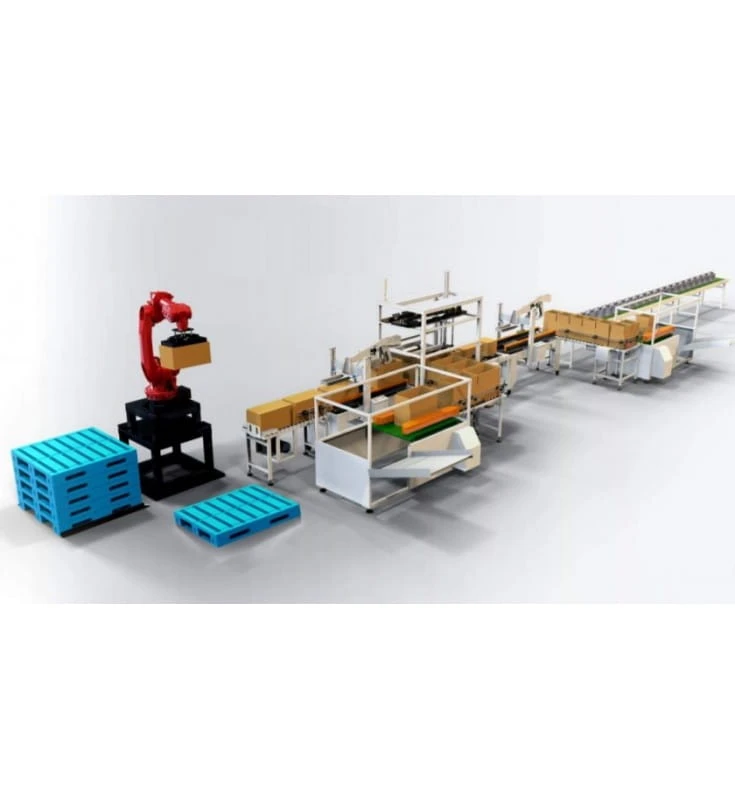

It can remove packaging from the production line and place it in cartons

An important element of the robot is the software that allows quick configuration and memorization of the machine's trajectory

It works based on simple commands

It has an intuitive interface, thanks to which learning to use the keypad is quick and simple

Streamlines the production process

Technical data:

Number of axles: 6

Axis speed 1: 125 degrees / s

Axis speed 2: 125 degrees / sec

Axis speed 3: 250 degrees / sec

Axis speed 4: 375 degrees / s

Axis speed 5: 300 degrees / sec

Axis speed 6: 450 degrees / s

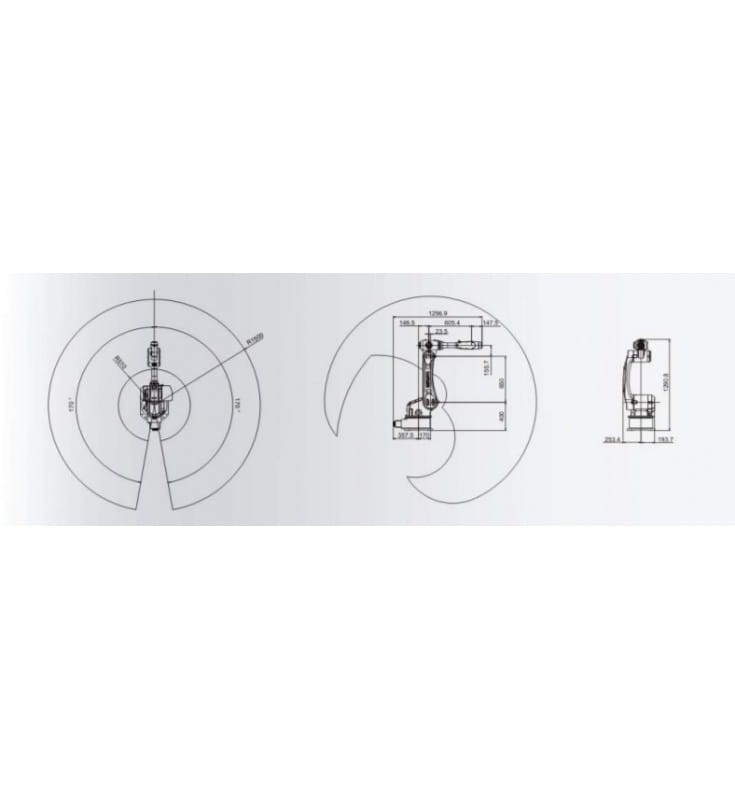

Maximum axis movement 1: 170 degrees

Maximum axis movement 2: 90-155 degrees

Maximum axis 3: 85-130 degrees

Maximum axis movement 4: 180 degrees

Maximum axis movement 5: 120 degrees

Maximum axis movement 6: 360 degrees

Maximum arm length 1: 400 mm  US 15,7"

Maximum arm length 3: 650 mm  US  25,5"

Maximum arm length 5: 650 mm  US 25,5"

Maximum arm length 6: 147.5 mm  US 5,8"

Arm length: 1500 mm  US 59"

Maximum load: 10 kg  US 22 lb
