CARTESIAN ARM BRTIRUS 500T-1300T

Cartesian arms were created to streamline and automate the production process.

They are often also called a mechanical arm.

It is a kind of manipulative industrial robot.

It can be automatically controlled, programmable and multi-tasking.

Manipulative or locomotion properties depending on the model.

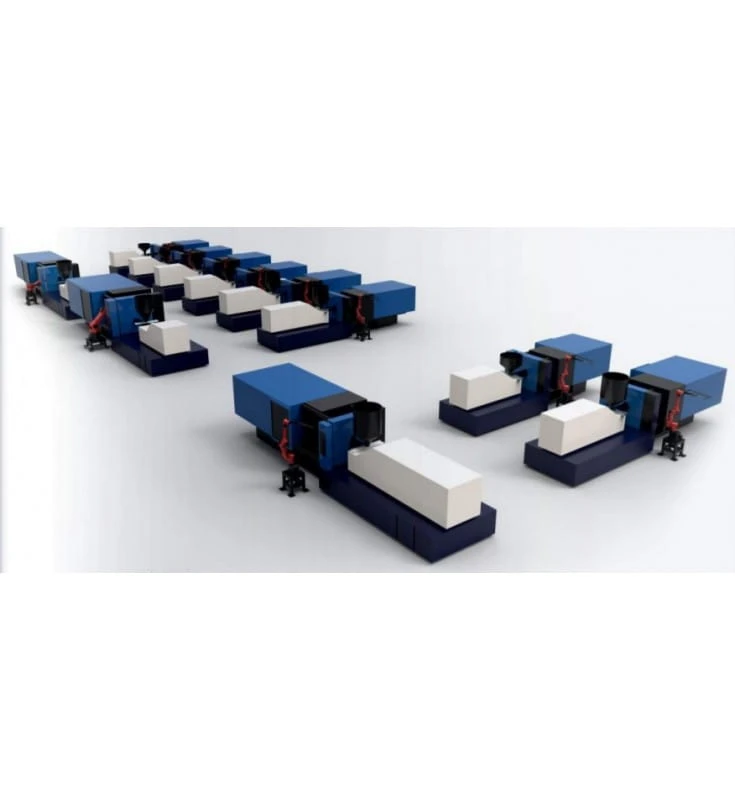

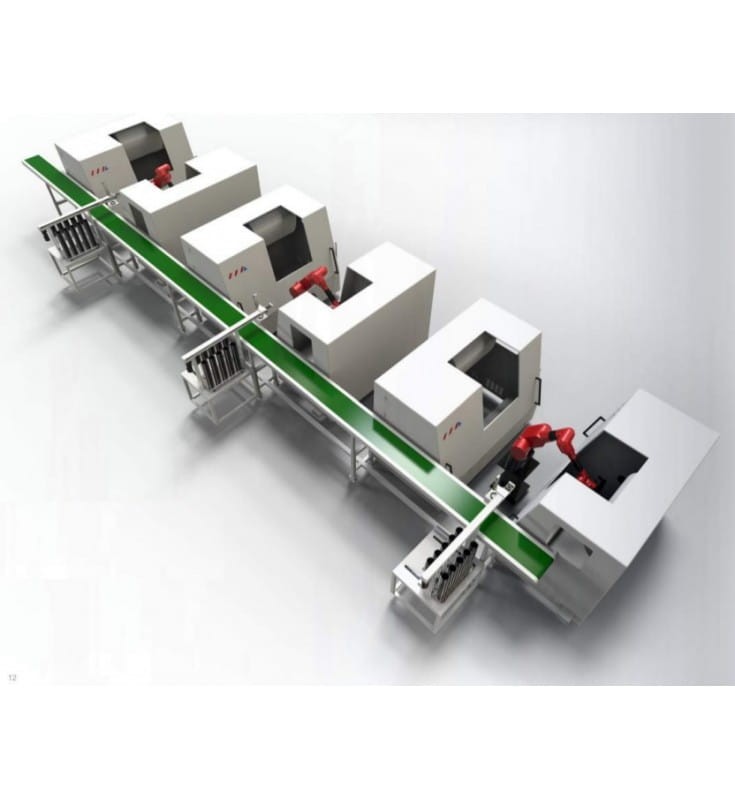

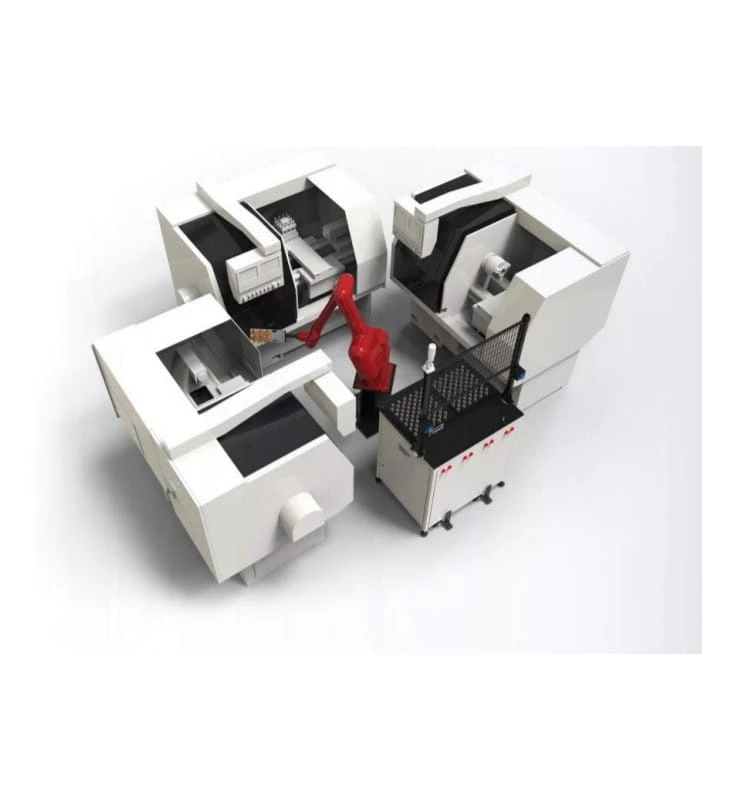

Application:

They are used in large industries, e.g. automotive, food, chemical, heavy.

Functions:

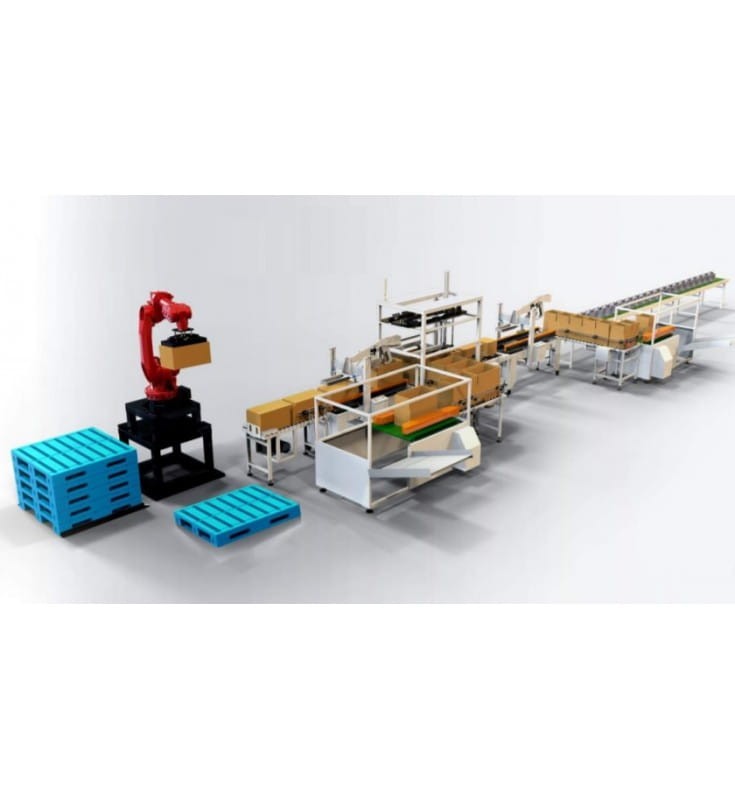

It can remove packaging from the production line and place it in cartons

An important element of the robot is the software that allows quick configuration and memorization of the machine's trajectory

It works based on simple commands

It has an intuitive interface, thanks to which learning to use the keypad is quick and simple

Streamlines the production process

Technical data:

Number of axles: 6

Axis speed 1: 81 degrees / s

Axis speed 2: 100 degrees / sec

Axis speed 3: 100 degrees / sec

Axis speed 4: 311 degrees / s

Axis speed 5: 240 degrees / sec

Axis speed 6: 480 degrees / s

Maximum axis movement 1: 165 degrees

Maximum axis movement 2: 60-135 degrees

Maximum axis 3: 65-135 degrees

Maximum axis movement 4: 180 degrees

Maximum axis movement 5: 100 degrees

Maximum axis movement 6: 360 degrees

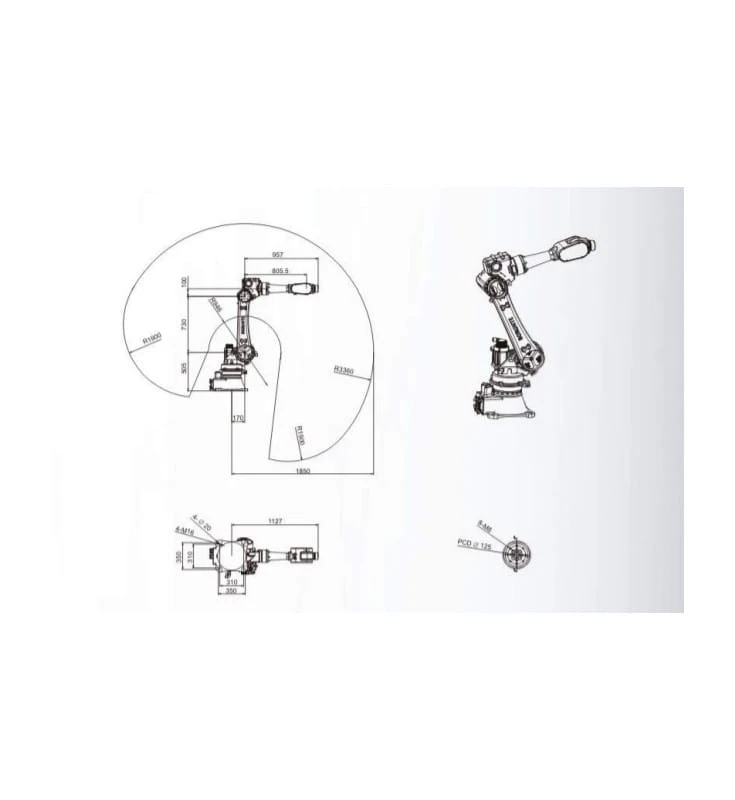

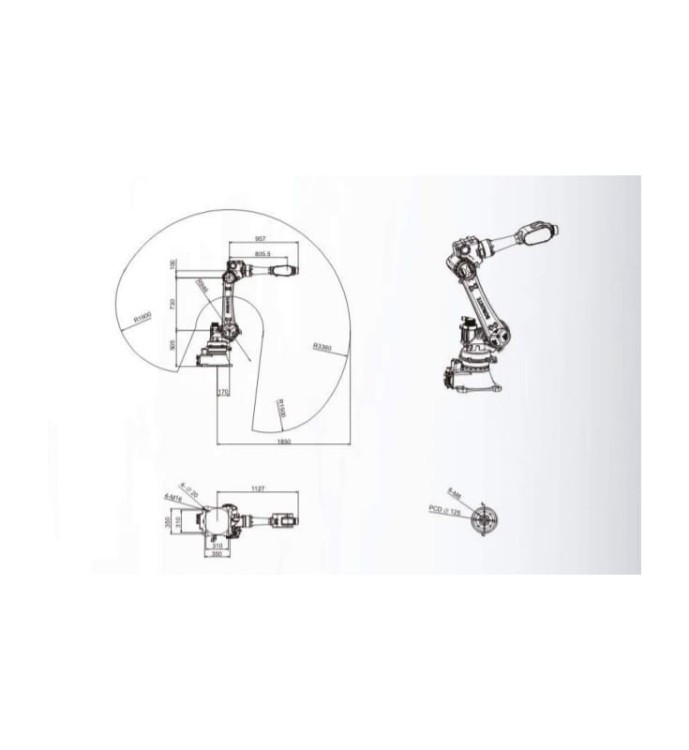

Maximum arm length 1: 495 mm  US 19,4"

Maximum arm length 3: 730 mm  US 28,7"

Maximum arm length 5: 806 mm  US 31,7"

Maximum arm length 6: 151 mm  US 5,9"

Arm length: 1800 mm US 70,8"

Maximum load: 20 kg US 44 lb

Power supply: 3.7 kW

Machine weight: 220 kg  US 485 lb
