CARTESIAN ARM BRTIRUS 1000T-2400T

Cartesian arms were created to streamline and automate the production process.

They are often also called a mechanical arm.

It is a kind of manipulative industrial robot.

It can be automatically controlled, programmable and multi-tasking.

Manipulative or locomotion properties depending on the model.

Application:

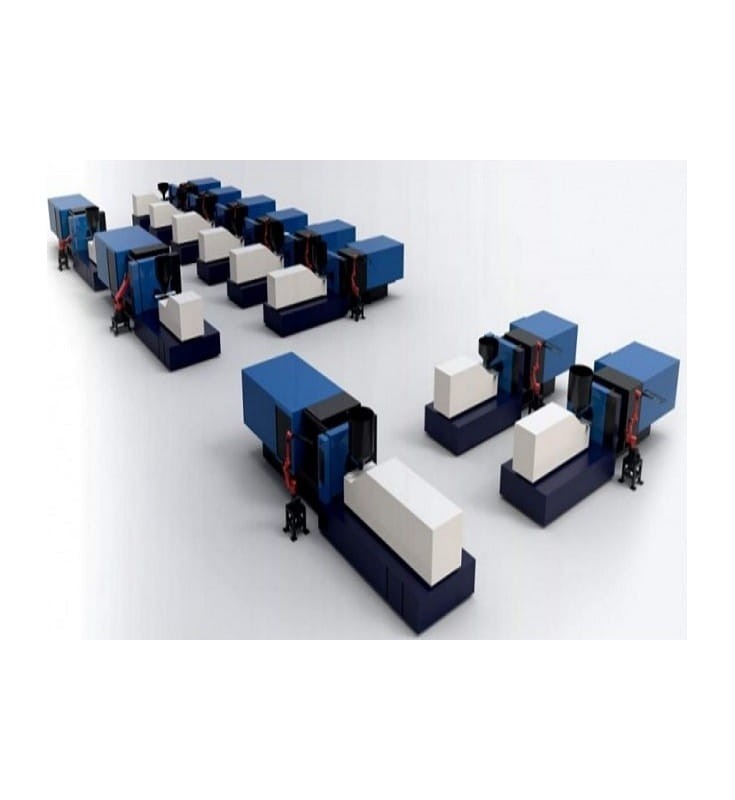

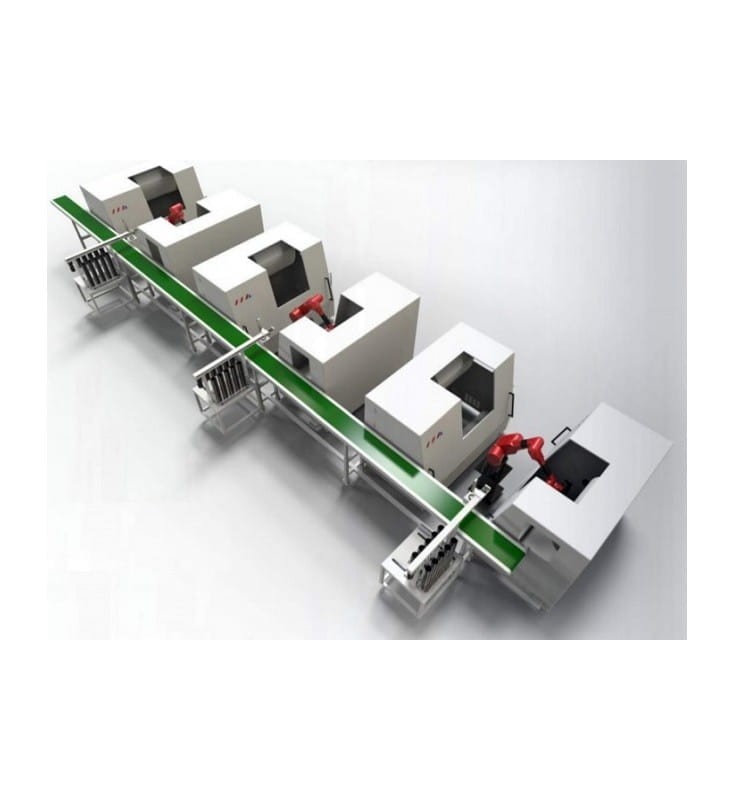

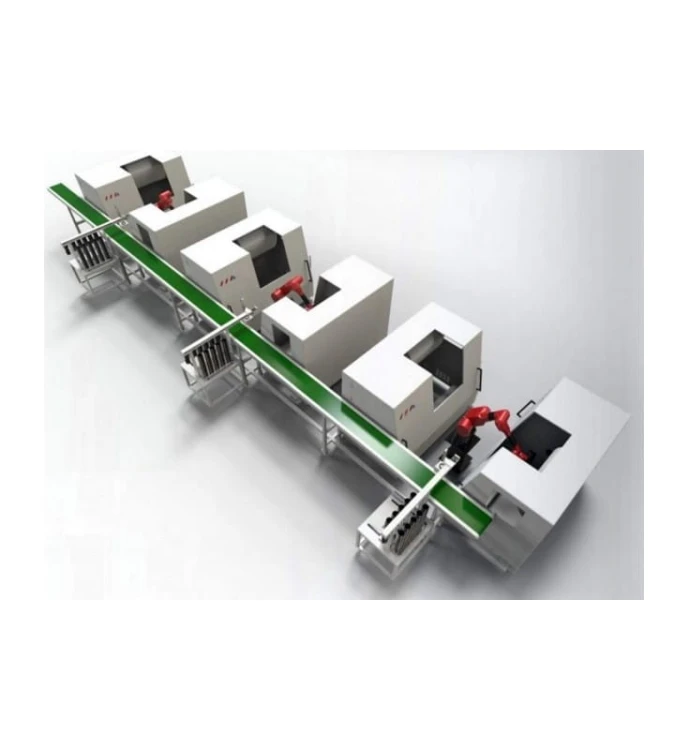

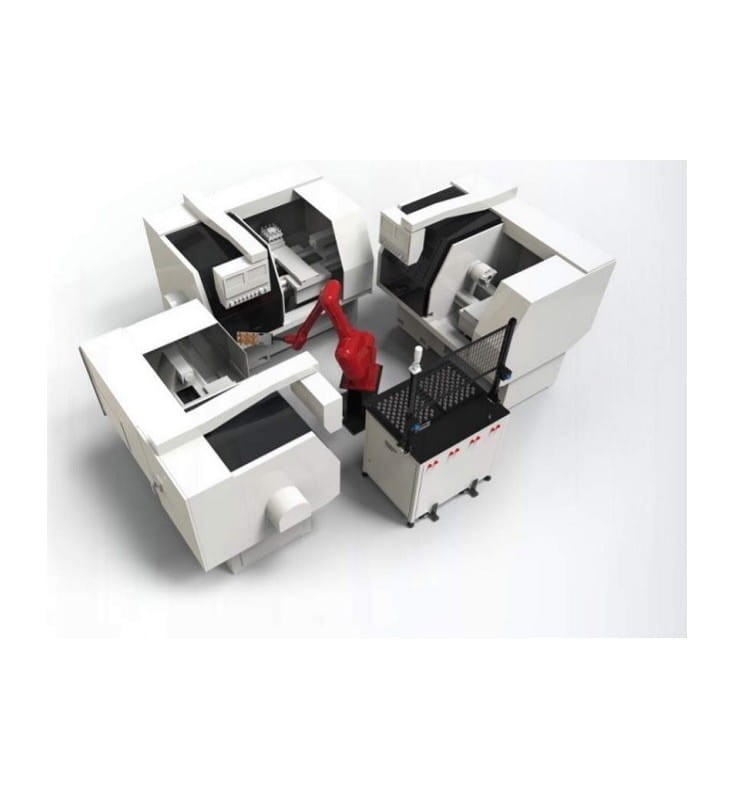

They are used in large industries, e.g. automotive, food, chemical, heavy.

Functions:

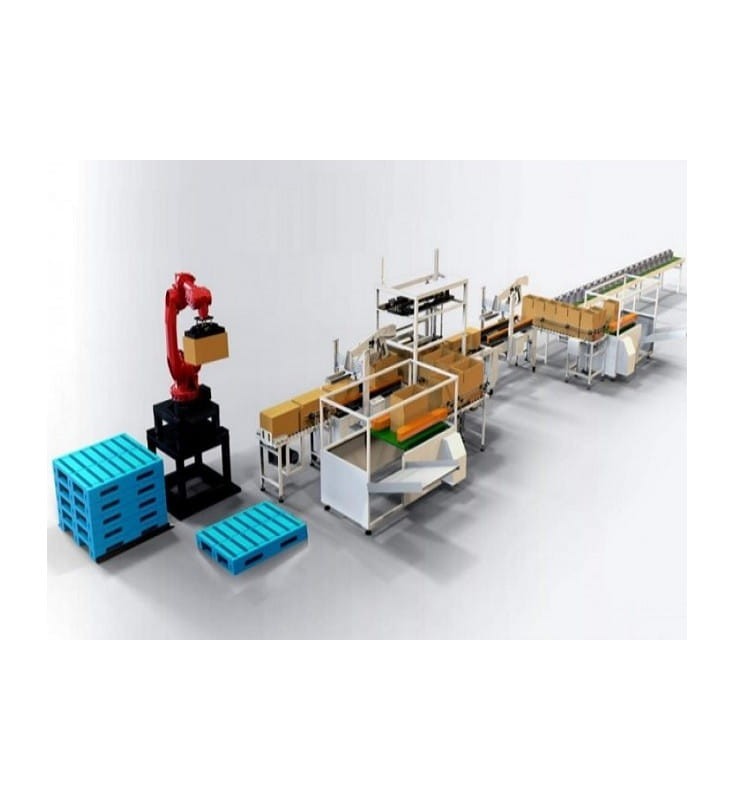

It can remove packaging from the production line and place it in cartons

An important element of the robot is the software that allows quick configuration and memorization of the machine's trajectory

It works based on simple commands

It has an intuitive interface, thanks to which learning to use the keypad is quick and simple

Streamlines the production process

Technical data:

Number of axles: 6

Axis speed 1: 85 degrees / s

Axis speed 2: 70 degrees / sec

Axis speed 3: 70 degrees / sec

Axis speed 4: 218 degrees / s

Axis speed 5: 280 degrees / sec

Axis speed 6: 198 degrees / s

Maximum axis movement 1: 165 degrees

Maximum axis 2 movement: 65-85 degrees

Maximum axis 3: 65-180 degrees

Maximum axis movement 4: 180 degrees

Maximum axis movement 5: 125 degrees

Maximum axis movement 6: 360 degrees

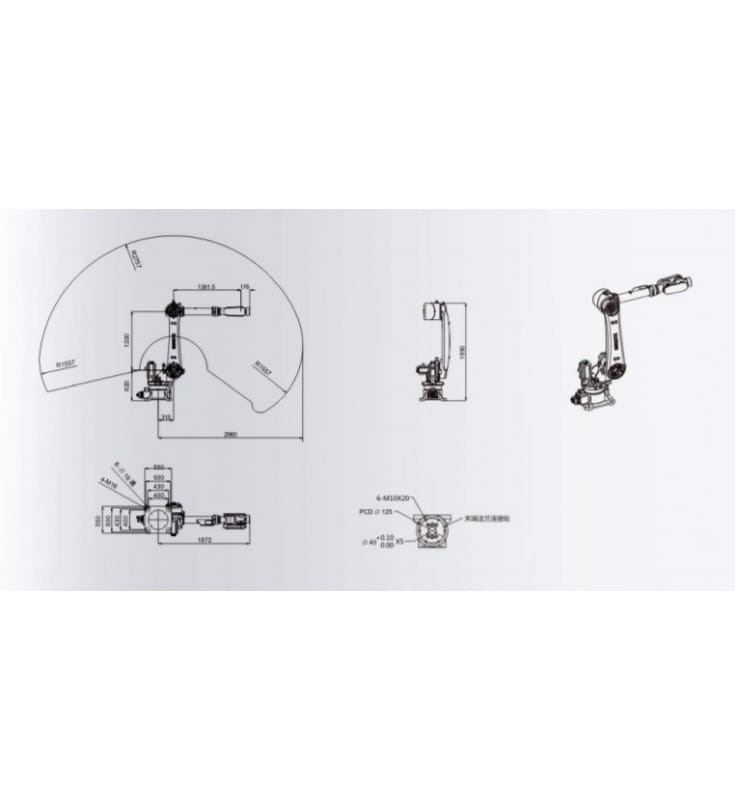

Maximum arm length 1: 620 mm US 24,4"

Maximum arm length 3: 1200 mm US 47,2"

Maximum arm length 5: 1381 mm US 54,3"

Maximum arm length 6: 176 mm US 6,9"

Arm length: 3000 mm US 118"

Maximum load: 50 kg US 110 lb

Power supply: 12.7 kW

Machine weight: 650 kg US 1433 lb
