CARTESIAN ARM BRTIRUS 2400T-3200T

Cartesian arms were created to streamline and automate the production process.

They are often also called a mechanical arm.

It is a kind of manipulative industrial robot.

It can be automatically controlled, programmable and multi-tasking.

Manipulative or locomotion properties depending on the model.

Application:

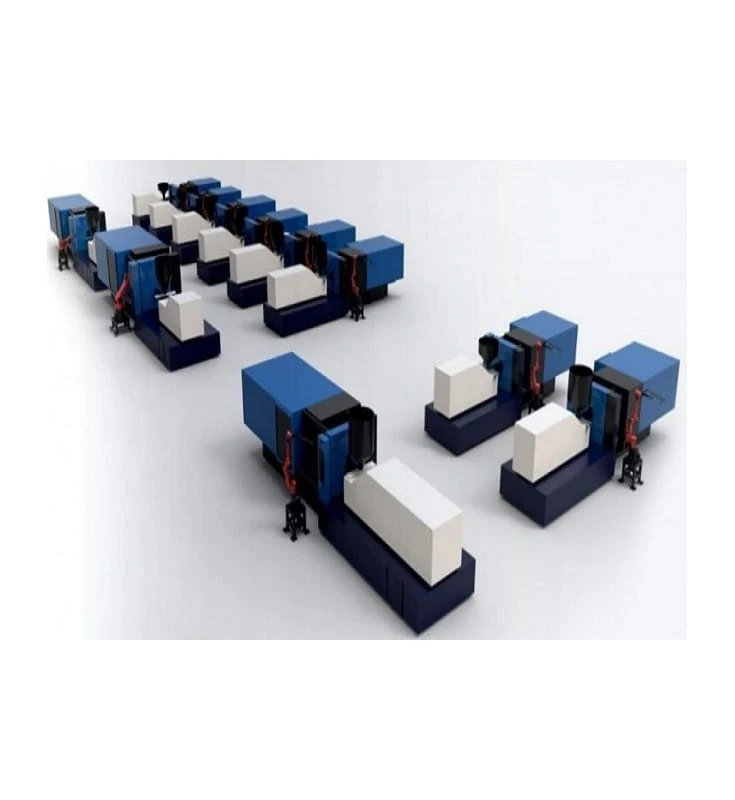

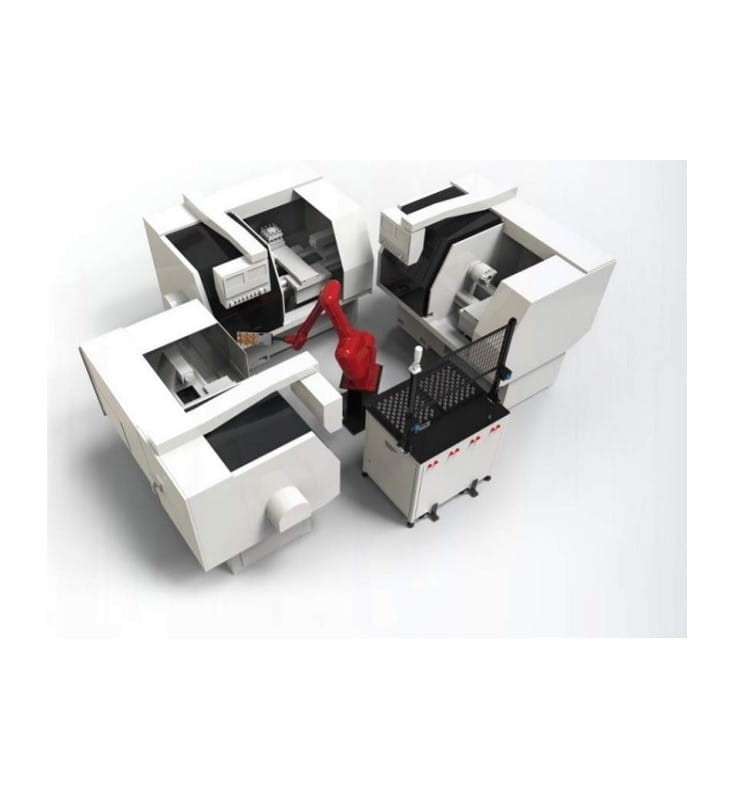

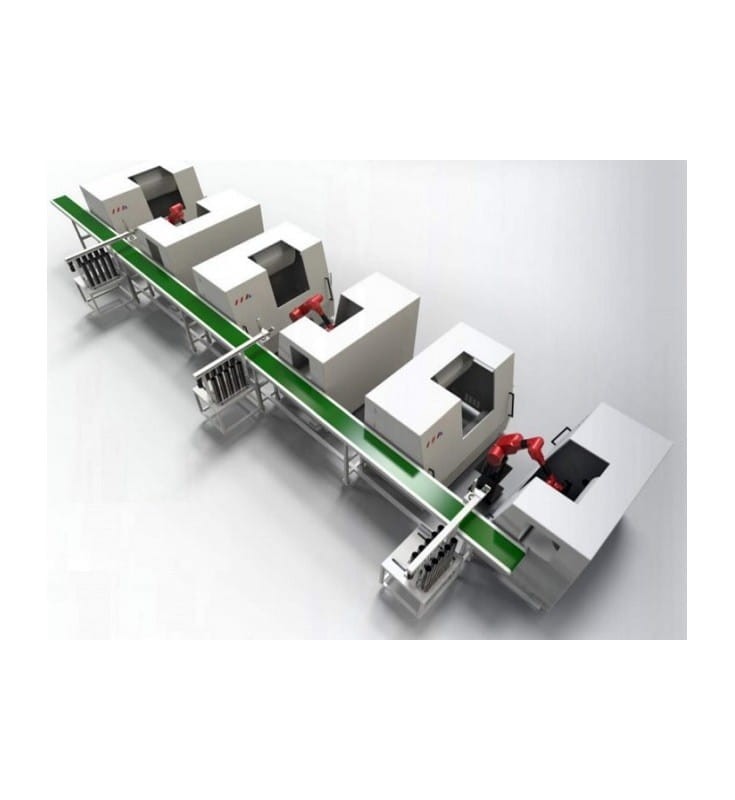

They are used in large industries, e.g. automotive, food, chemical, heavy.

Functions:

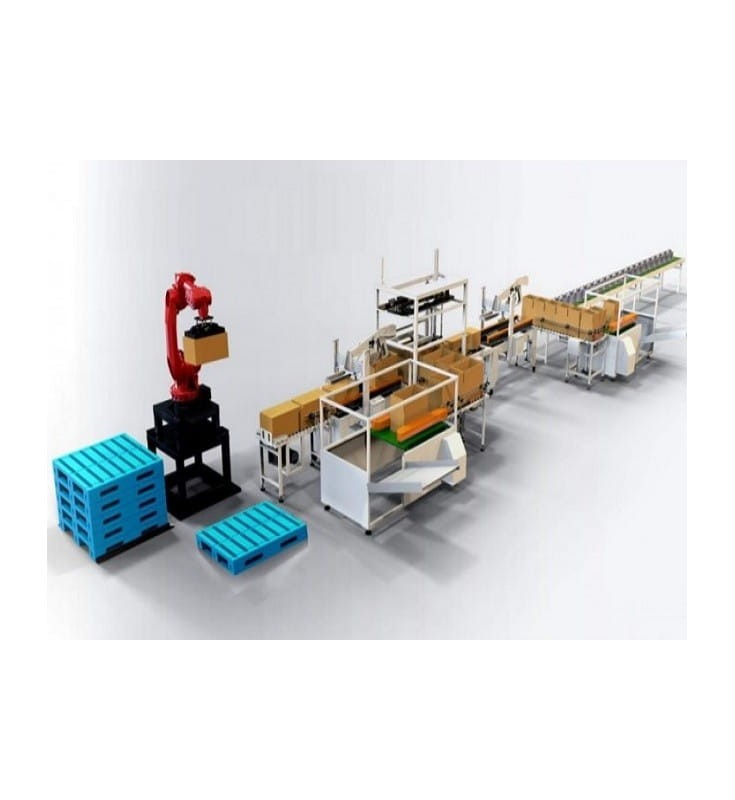

It can remove packaging from the production line and place it in cartons

An important element of the robot is the software that allows quick configuration and memorization of the machine's trajectory

It works based on simple commands

It has an intuitive interface, thanks to which learning to use the keypad is quick and simple

Streamlines the production process

Technical data:

Number of axles: 6

Axis speed 1: 70 degrees / s

Axis speed 2: 70 degrees / sec

Axis speed 3: 70 degrees / sec

Axis speed 4: 109 degrees / s

Axis speed 5: 148 degrees / s

Axis speed 6: 210 degrees / s

Maximum axis movement 1: 165 degrees

Maximum axis 2 movement: 60-75 degrees

Maximum axis 3: 70-100 degrees

Maximum axis movement 4: 180 degrees

Maximum axis movement 5: 125 degrees

Maximum axis movement 6: 360 degrees

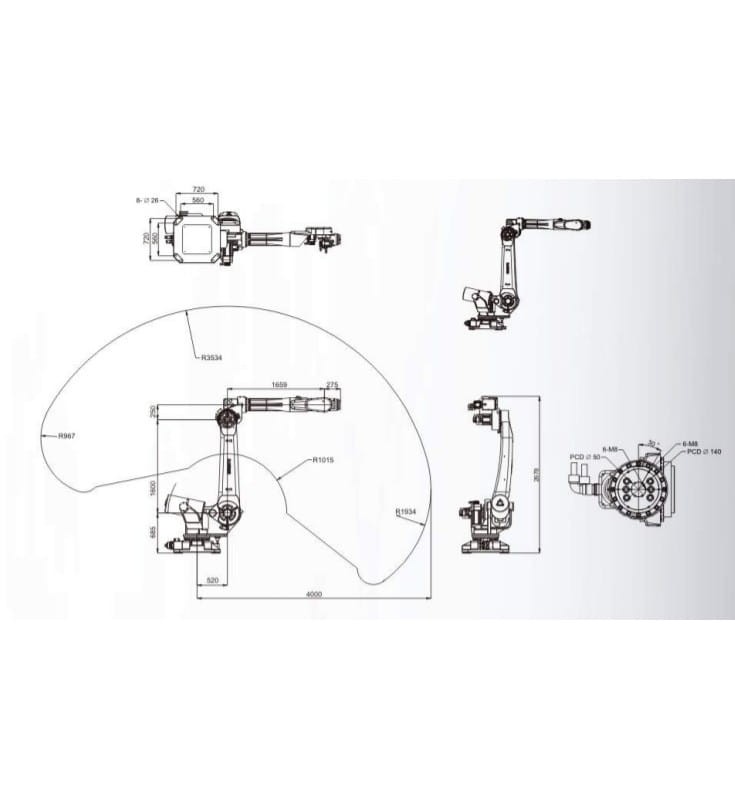

Maximum arm length 1: 685 mm  US 27"

Maximum arm length 3: 1600 mm  US 63"

Maximum arm length 5: 1659 mm  US 65,3"

Maximum arm length 6: 275 mm  US 10,8"

Arm length: 4000 mm  US 157"

Maximum load: 100 kg  US 220 lb

Power supply: 30 kW

Machine weight: 1900 kg US 4188 lb
