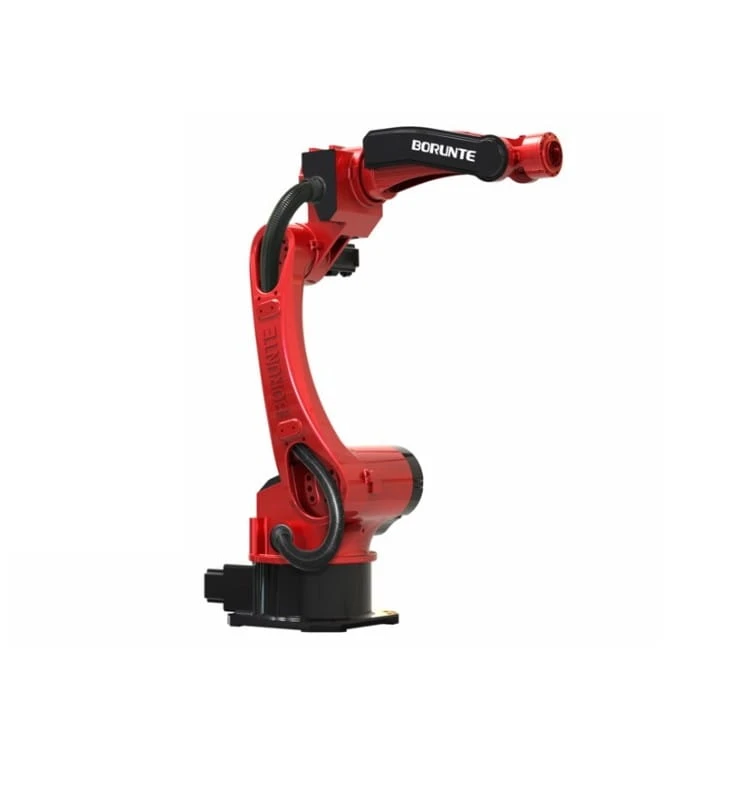

CARTESIAN ARM BRTIRWD

Cartesian arms were created to streamline and automate the production process.

They are often also called a mechanical arm.

It is a kind of manipulative industrial robot.

It can be automatically controlled, programmable and multi-tasking.

Manipulative or locomotion properties depending on the model.

Application:

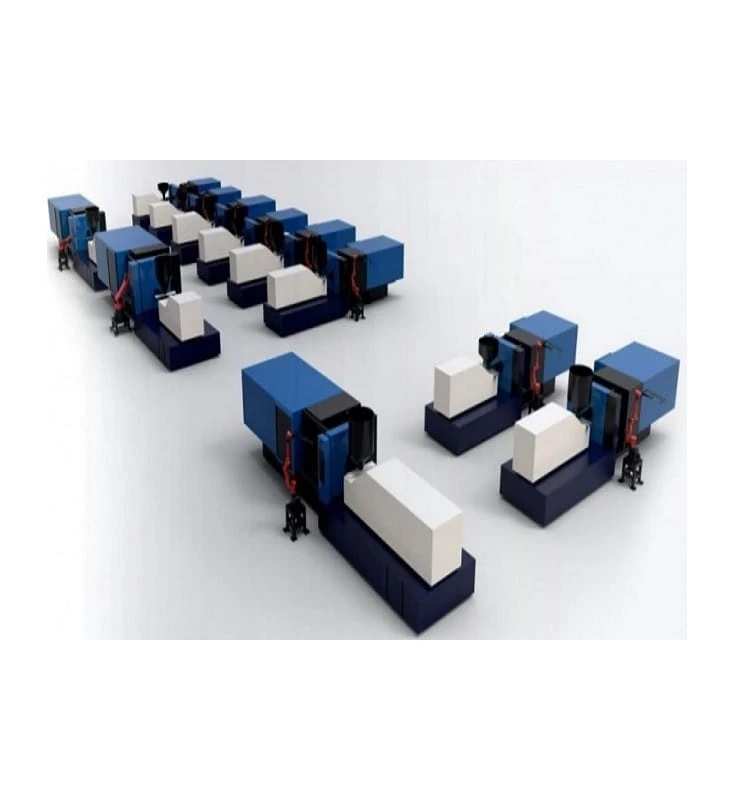

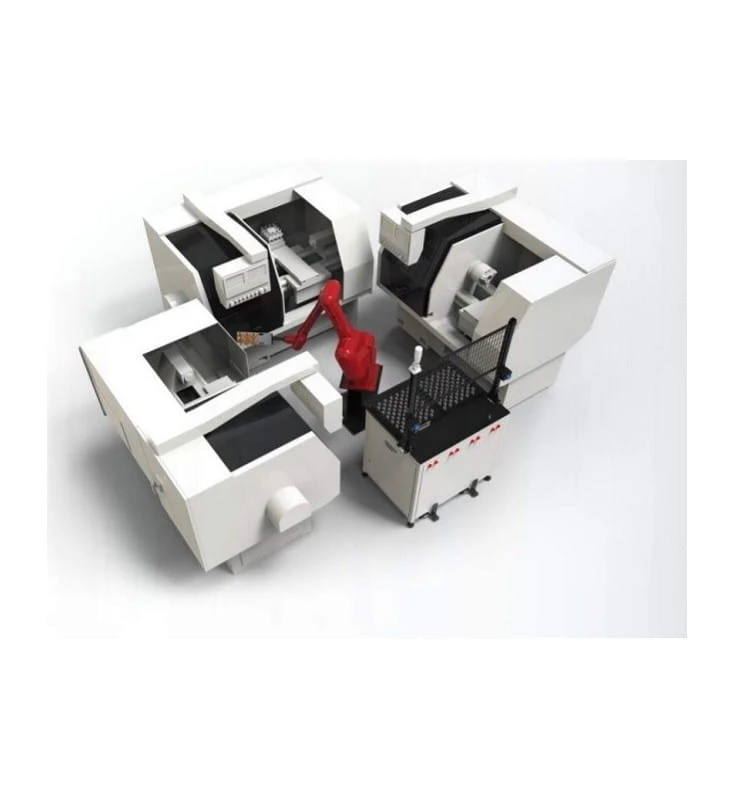

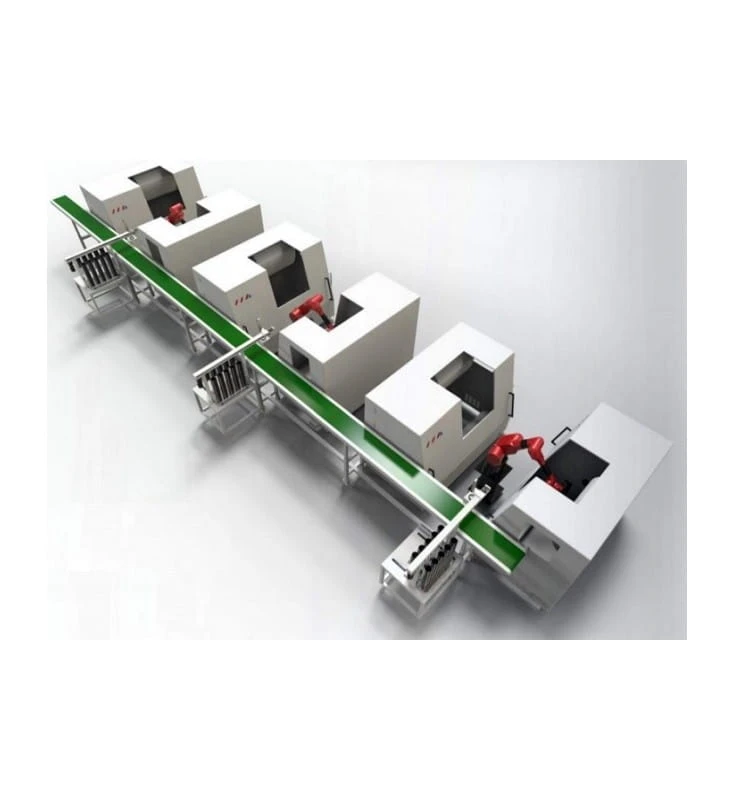

They are used in large industries, e.g. automotive, food, chemical, heavy.

Functions:

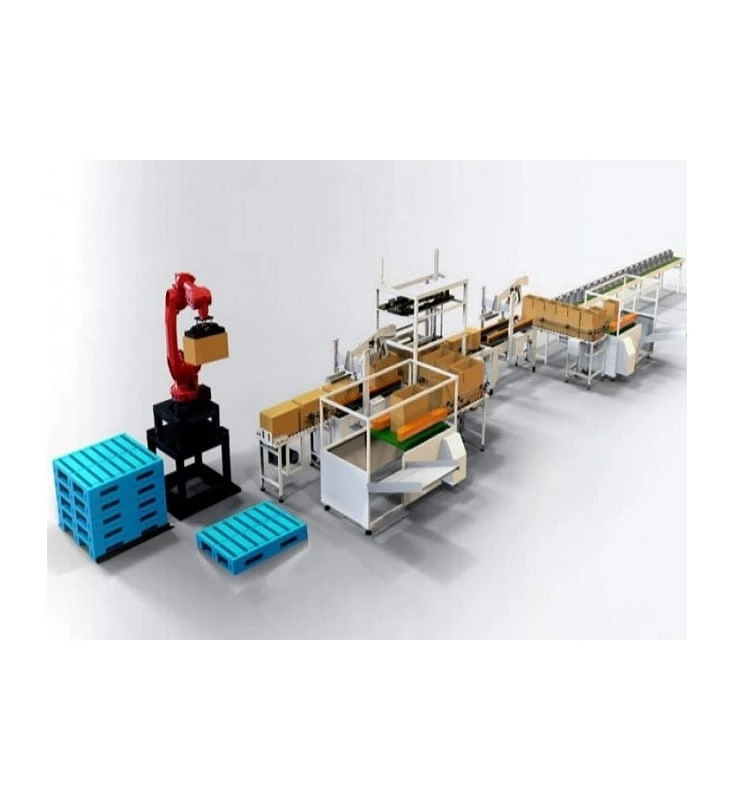

It can remove packaging from the production line and place it in cartons

An important element of the robot is the software that allows quick configuration and memorization of the machine's trajectory

It works based on simple commands

It has an intuitive interface, thanks to which learning to use the keypad is quick and simple

Streamlines the production process

Technical data:

Number of axles: 6

Axis speed 1: 75 degrees / s

Axis speed 2: 74 degrees / s

Axis speed 3: 75 degrees / s

Axis speed 4: 222 degrees / s

Axis speed 5: 180 degrees / sec

Axis speed 6: 630 degrees / s

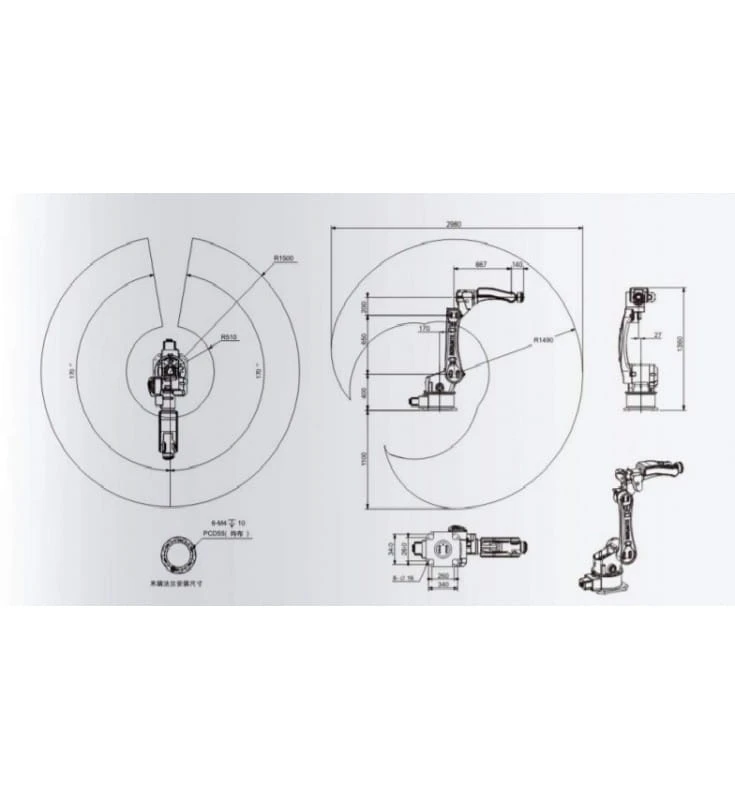

Maximum axis movement 1: 170 degrees

Maximum axis movement 2: 90-155 degrees

Maximum axis 3: 175-240 degrees

Maximum axis movement 4: 150 degrees

Maximum axis movement 5: 122 degrees

Maximum axis movement 6: 330 degrees

Maximum arm length 1: 400 mm US 15,7"

Maximum arm length 3: 650 mm US 25,5"

Maximum arm length 5: 667 mm US 26"

Maximum arm length 6: 140 mm US 5,5"

Arm length: 1500 mm US 59"

Maximum load: 10 kg US 22 lb

Power supply: 1.5 kW

Machine weight: 175 kg US 385,8 lb
