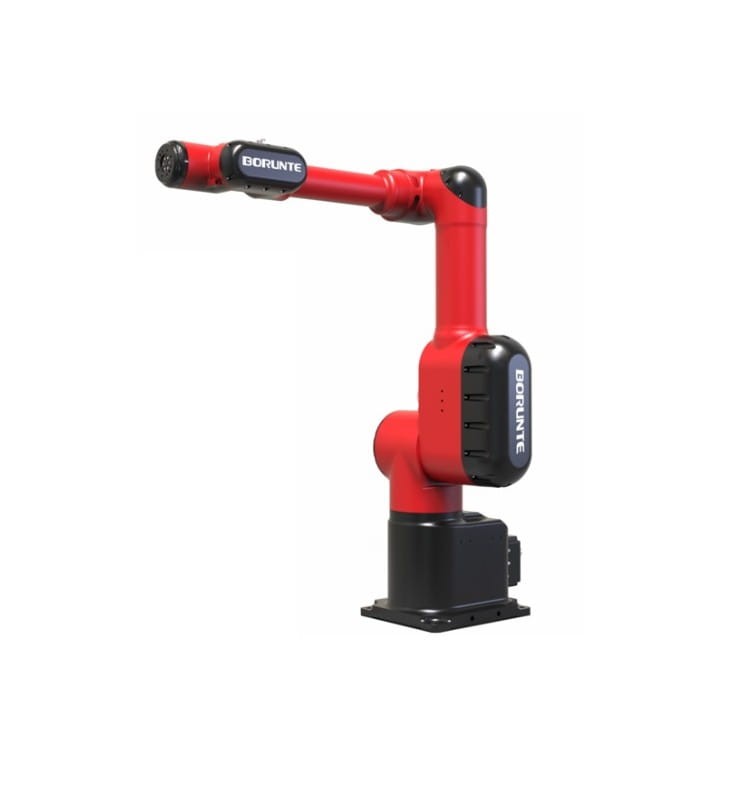

CARTESIAN ARM BRTIRSE

Cartesian arms were created to streamline and automate the production process.

They are often also called a mechanical arm.

It is a kind of manipulative industrial robot.

It can be automatically controlled, programmable and multi-tasking.

Manipulative or locomotion properties depending on the model.

Application:

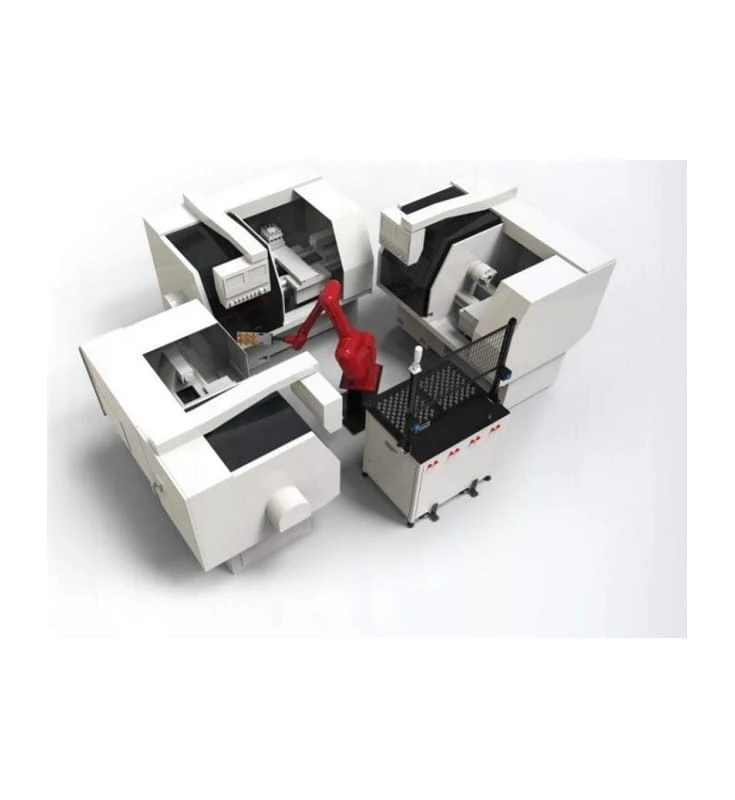

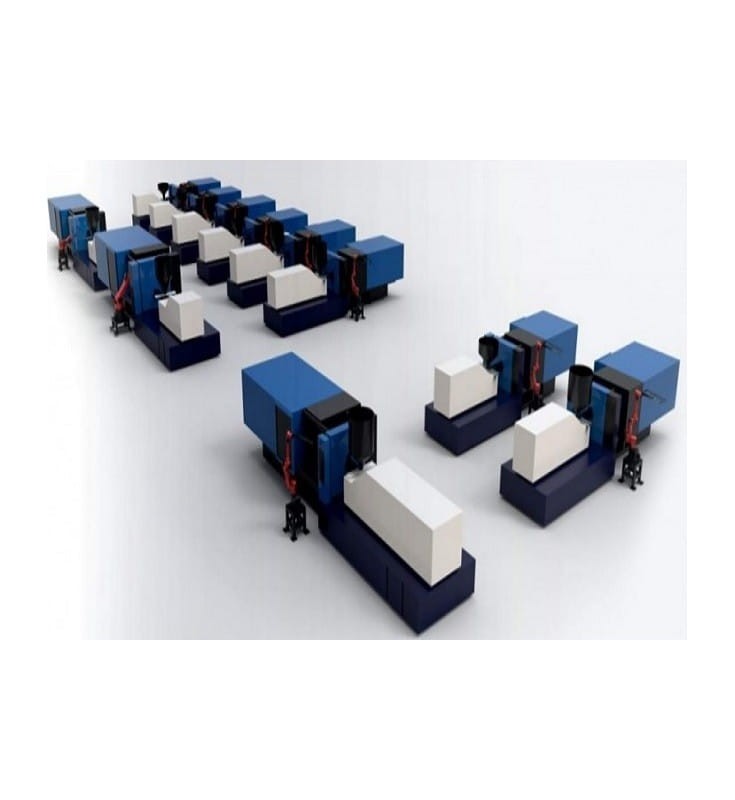

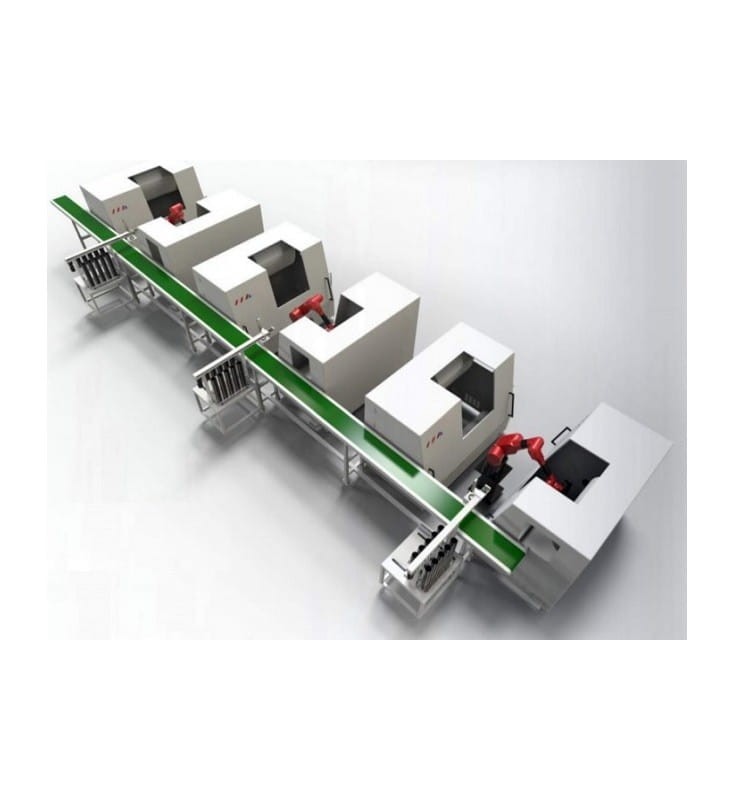

They are used in large industries, e.g. automotive, food, chemical, heavy.

Functions:

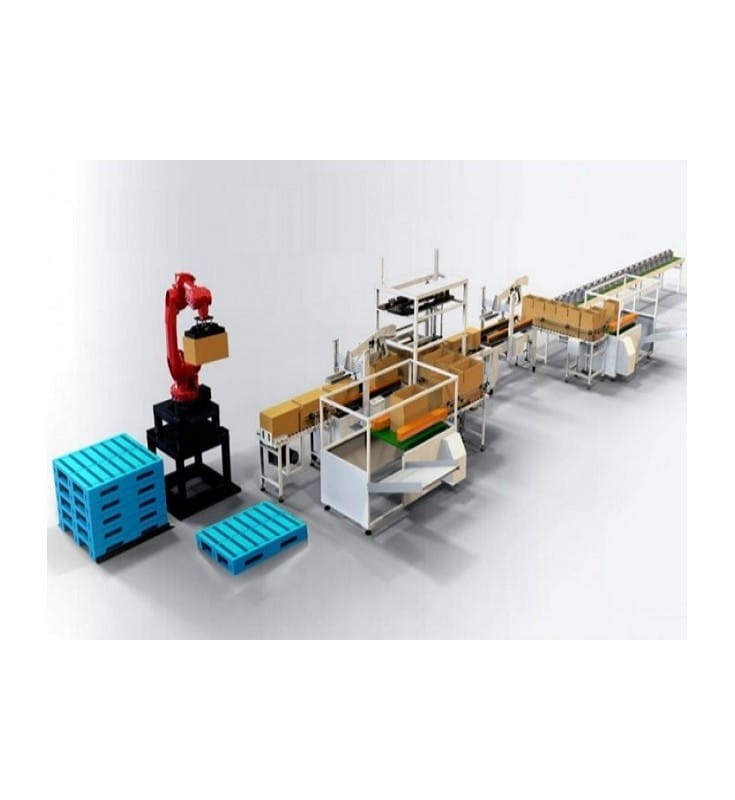

It can remove packaging from the production line and place it in cartons

An important element of the robot is the software that allows quick configuration and memorization of the machine's trajectory

It works based on simple commands

It has an intuitive interface, thanks to which learning to use the keypad is quick and simple

Streamlines the production process

Technical data:

Number of axles: 6

Axis speed 1: 150 degrees / sec

Axis speed 2: 150 degrees / sec

Axis speed 3: 250 degrees / sec

Axis speed 4: 450 degrees / s

Axis speed 5: 360 degrees / s

Axis speed 6: 450 degrees / s

Maximum axis movement 1: 180 degrees

Maximum axis movement 2: 95 degrees

Maximum axis 3: 70-250 degrees

Maximum axis movement 4: 180 degrees

Maximum axis movement 5: 120 degrees

Maximum axis movement 6: 360 degrees

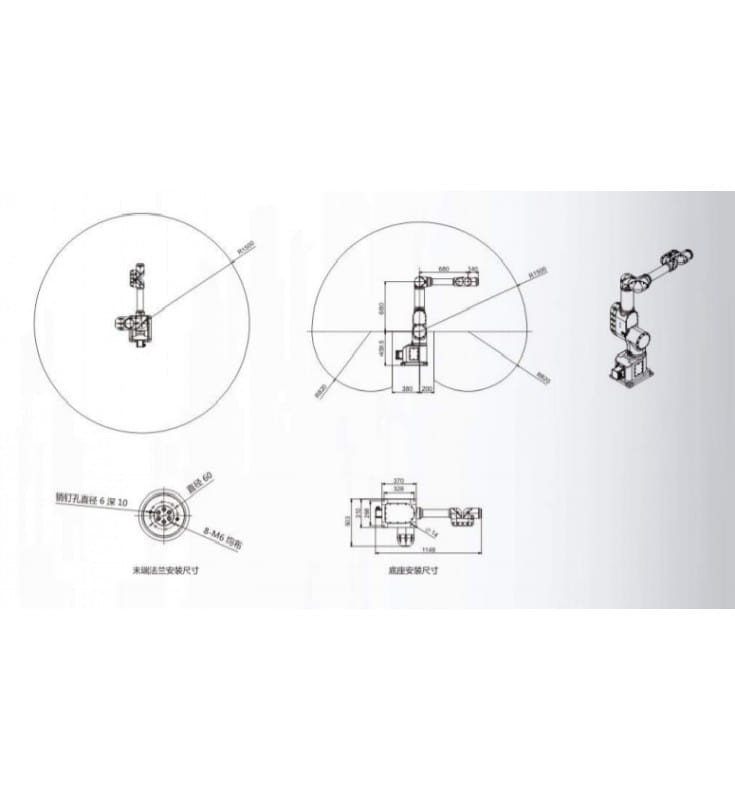

Maximum arm length 1: 474.5 mm US 18,6"

Maximum arm length 3: 680 mm  US 26,7"

Maximum arm length 5: 680 mm  US 26,7"

Maximum arm length 6: 140 mm  US 5,5"

Arm length: 1500 mm  US 59"

Maximum load: 6 kg  US 13,2 lb
