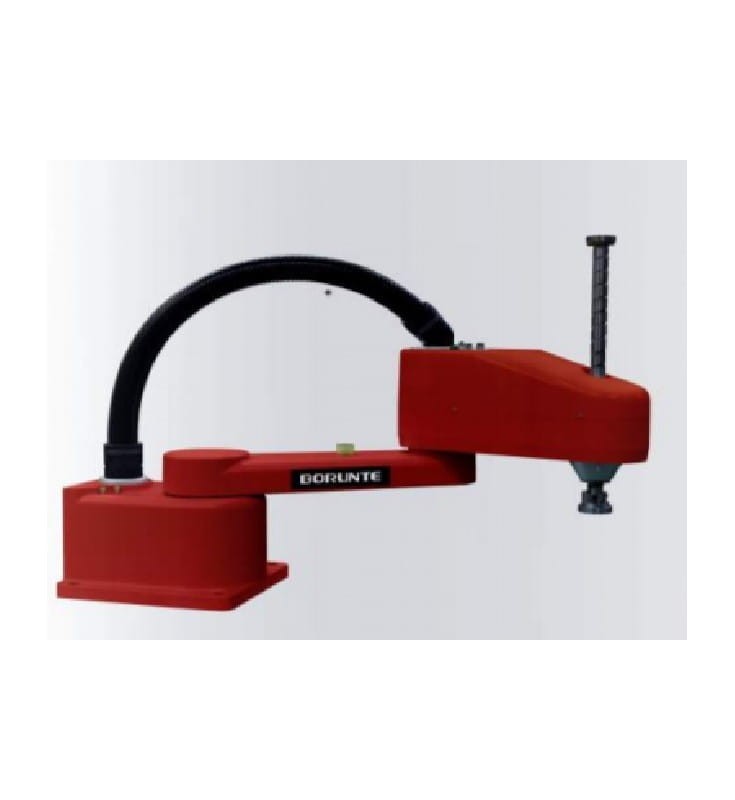

CARTESIAN ARM BRTIRSC 0403A

Cartesian arms were created to streamline and automate the production process.

They are often also called a mechanical arm.

It is a kind of manipulative industrial robot.

It can be automatically controlled, programmable and multi-tasking.

Manipulative or locomotion properties depending on the model.

Application:

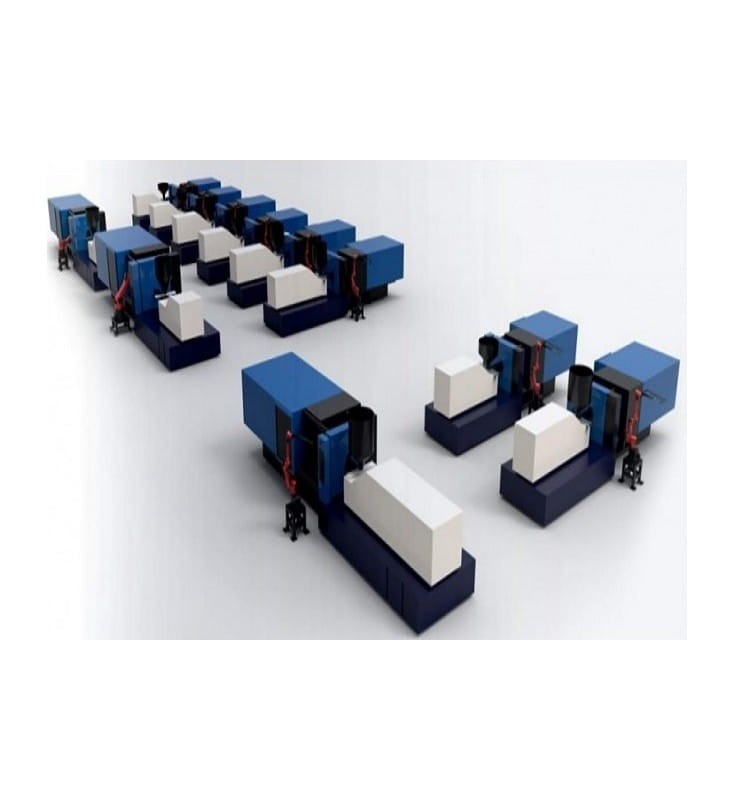

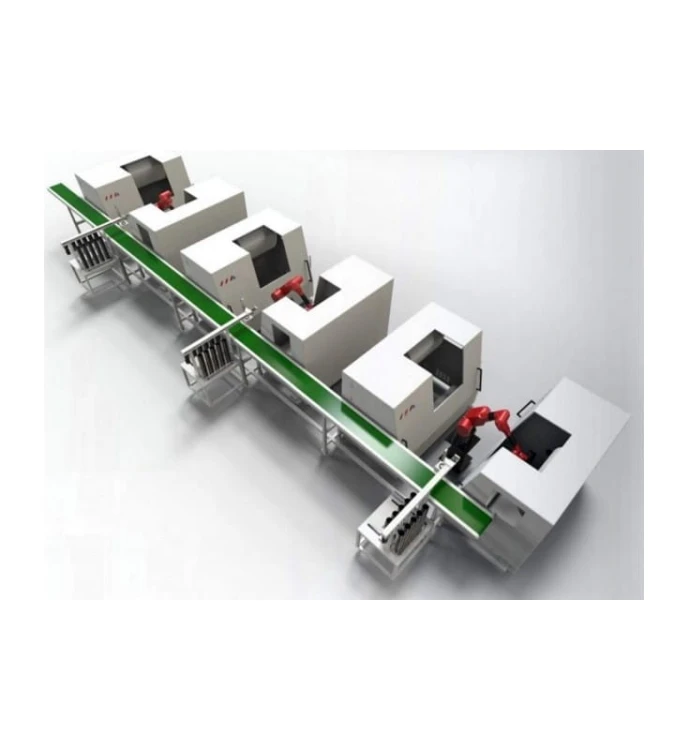

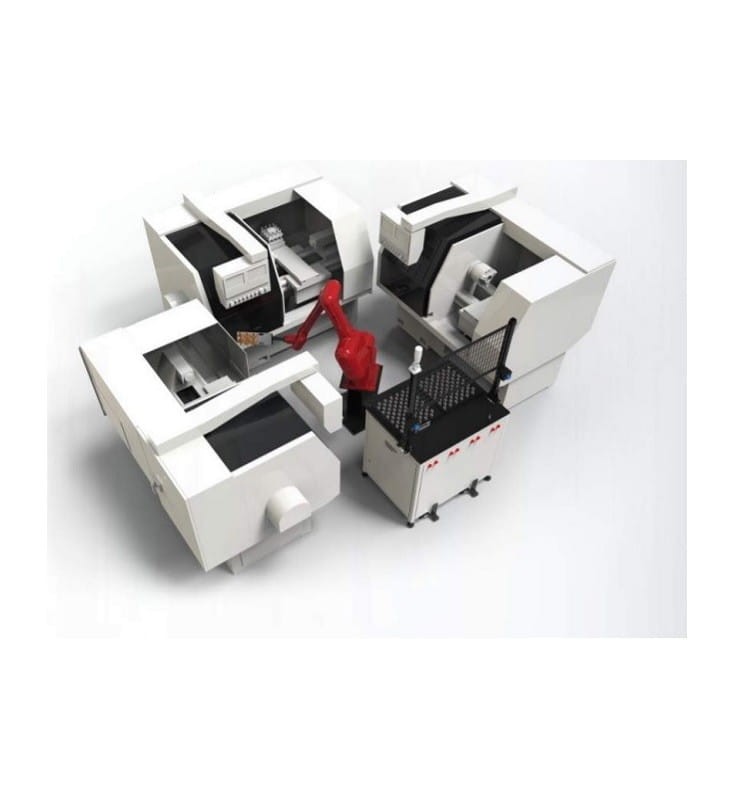

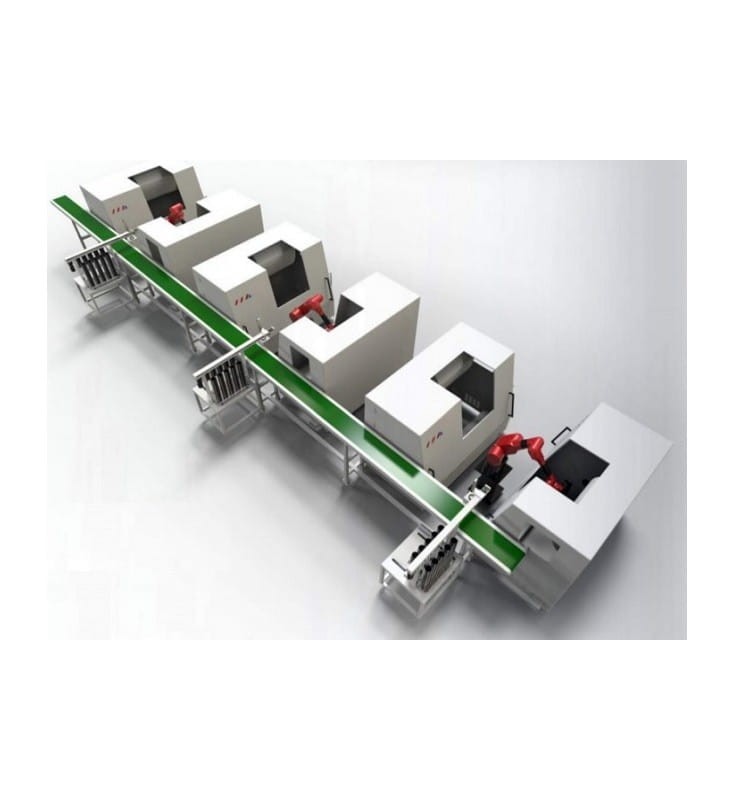

They are used in large industries, e.g. automotive, food, chemical, heavy.

Functions:

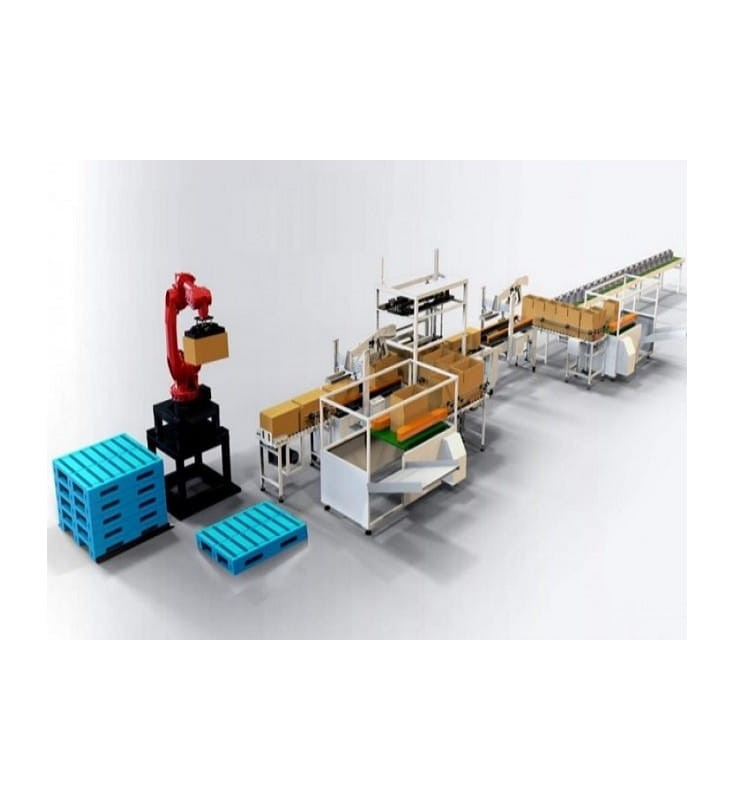

It can remove packaging from the production line and place it in cartons

An important element of the robot is the software that allows quick configuration and memorization of the machine's trajectory

It works based on simple commands

It has an intuitive interface, thanks to which learning to use the keypad is quick and simple

Streamlines the production process

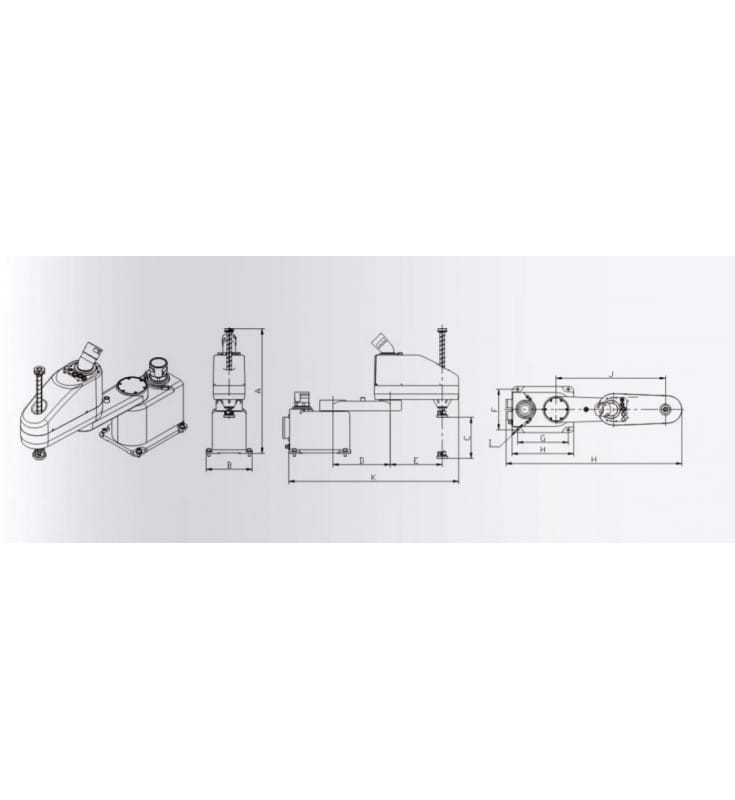

Technical data:

Number of axles: 4

Axis speed 1 and 2: 6000 mm / s  US 236"

Axis speed 3: 1200 mm / s US 47"

Axis speed 4: 2200 mm / s US 86,6"

Maximum axis movement 1: 125 degrees

Maximum axis movement 2: 138 degrees

Maximum axis movement 3: 150 degrees

Maximum axis movement 4: 360 degrees

Repeatability: 0.015 mm US 0,00059"

Power: 600 W

Arm length: 400 mm US 16"

Maximum load: 3 kg US 6,6 lb

Weight: 21 kg US 46 lb
