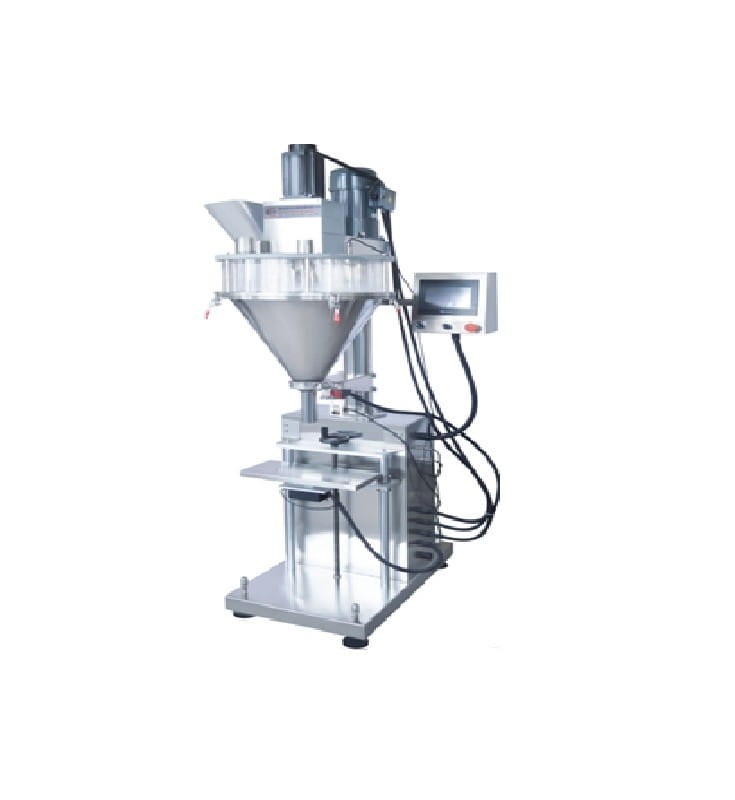

HZF-B SEMI-AUTOMATIC POWDER FILLING MACHINE

Application:

Powder dispenser with very high accuracy.

It is intended mainly for fine powder, coal powder, dry powder, fire extinguisher and other fine powder, powder that requires high packaging accuracy.

It is used in small and medium production companies.

Functions:

Stable work.

Wide adjustment range.

Controlled by a simple to use panel.

It is characterized by high efficiency.

European components - Weintec, Siemens, Panasonic etc.

The elements in contact with the product are made of stainless steel or have a smooth surface.

Technical data:

Model: HZF-B

PLC panel: AELTA brand

Touch panel: Weinview

Power: 0.4 kW

Engine speed: 20 NM

Tank capacity: 25 l  US 5.7 dr gal

Dosage range:

10-100 g  US 0.35-3.5 oz (nozzle diameter 25 mm  US 0,9")

100-2500 g  US 3.5-88.3 oz (nozzle diameter: 45 mm  US 1,7")

2500-5000 g  US 88.2-176.4 oz (nozzle diameter: 50 mm  US 1,9")

Bottle diameter: 20-150 mm US 0,8-5,9"

Bottle height: 60-300 mm US 2,3-12"

Dispensing speed: 1-30 bottles / min.

Possibility to upload the menu in other language.
