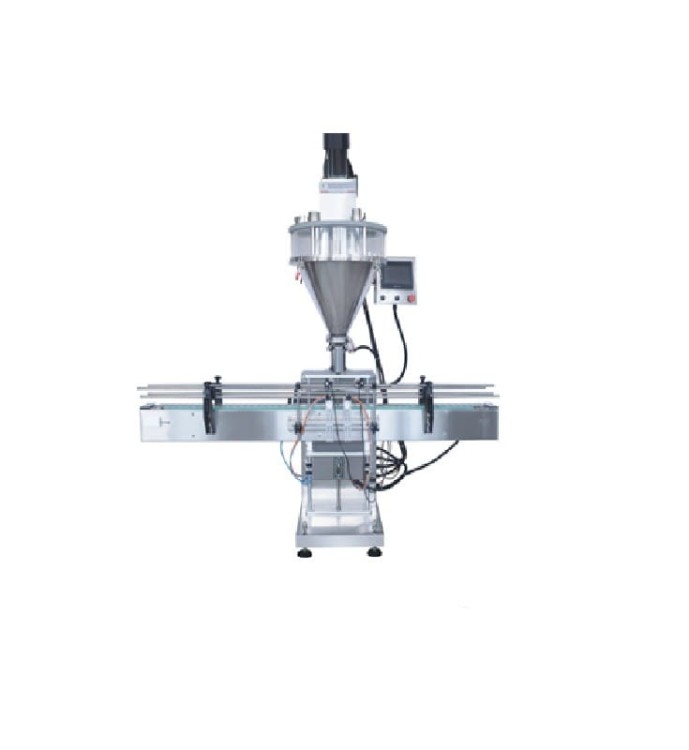

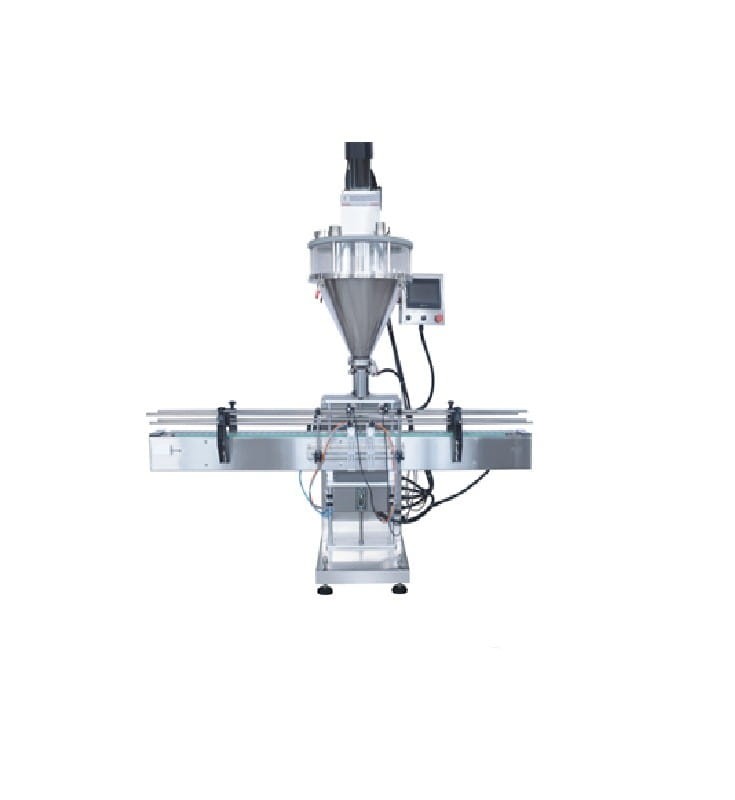

HZF-C SEMI-AUTOMATIC POWDER FILLING MACHINE

Application:

Powder dispenser with very high accuracy.

It is intended mainly for fine powder, coal powder, dry powder, fire extinguisher and other fine powder, powder that requires high packaging accuracy.

It is used in medium and large production companies.

Functions:

Stable work.

Wide adjustment range.

Controlled by a simple to use panel.

It is characterized by high efficiency.

Equipped with a conveyor belt that streamlines work.

European components - Weintec, Siemens, Panasonic etc.

The elements in contact with the product are made of stainless steel or have a smooth surface.

Technical data:

Model: HZF-C

PLC panel: AELTA

Touch screen: Weinview

Power: 0.4 kW

Engine speed: 20 NM

Tank capacity: 25 l  US 5.7 dr gal

Dosage range:

10-100 g  US 0.35-3.5 oz nozzle diameter: 25 mm  US 0.9"

100-2500 g  US 3.5-88.2 oz nozzle diameter: 45 mm  US 1.7"

2500-5000 g  US 88.2-176.4 oz nozzle diameter: 50 mm  US 1.9"

Bottle diameter: 20-150 mm  US 0.8-5.9"

Bottle height: 60-300 mm  US 2.3-11.8"

Capacity: 1-30 bottles / min.

Conveyor length: 2000 mm  US 78.7"

Possibility to upload the menu in other language.
