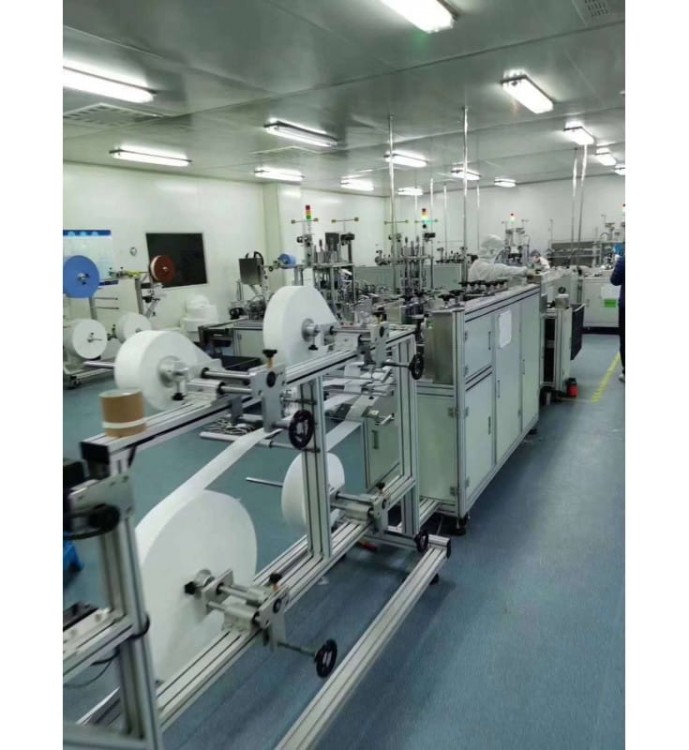

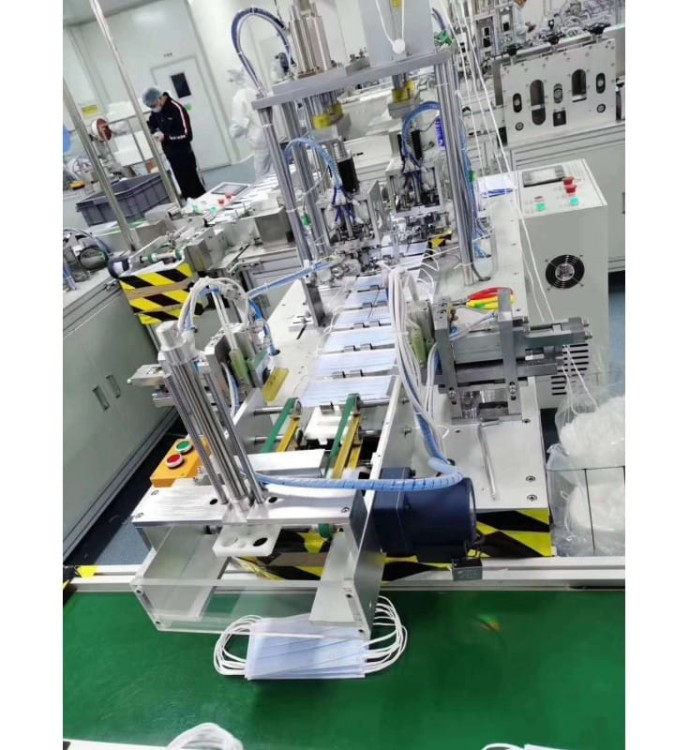

FACE MASK PRODUCTION LINE FFP2

Application:

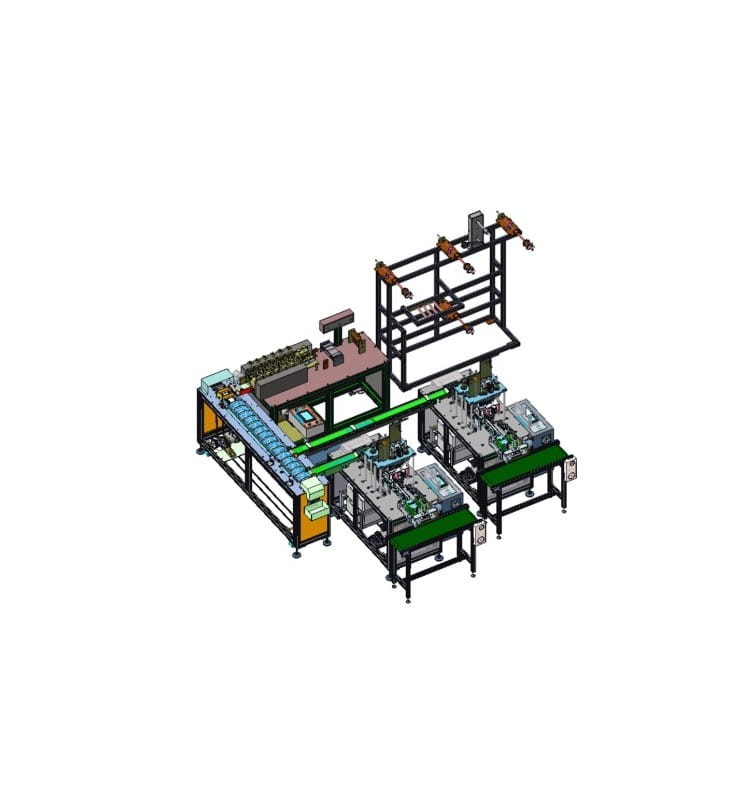

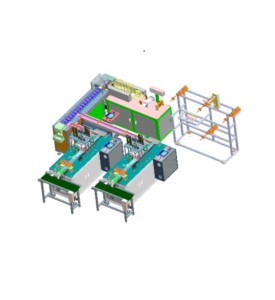

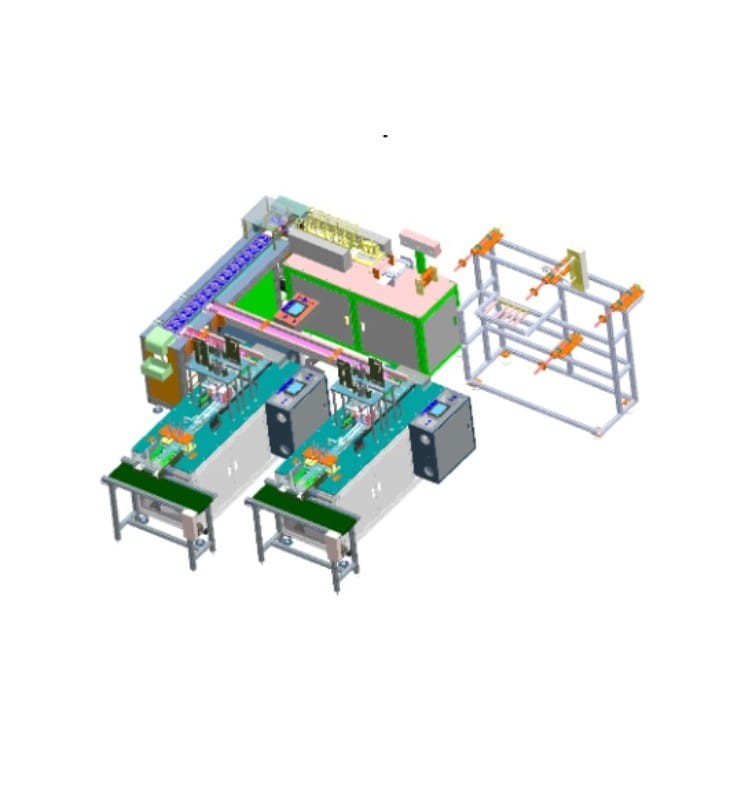

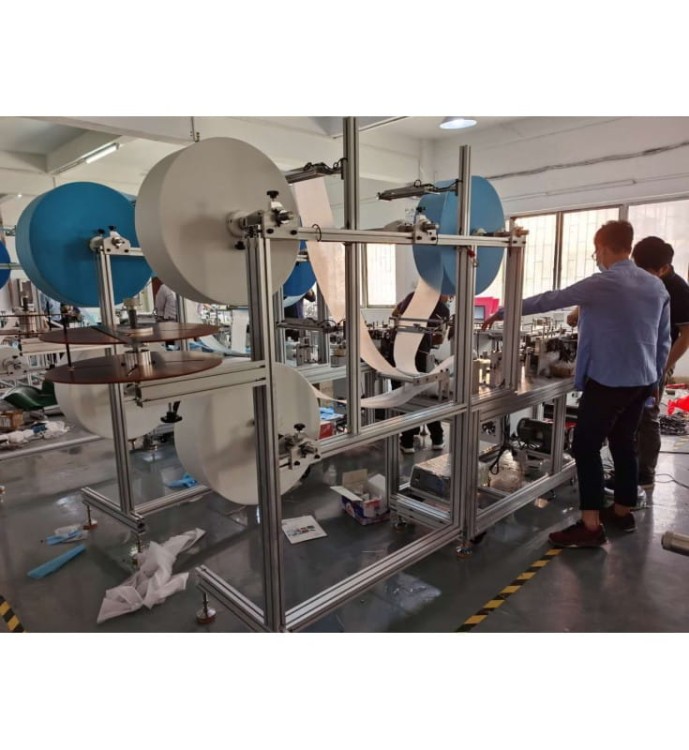

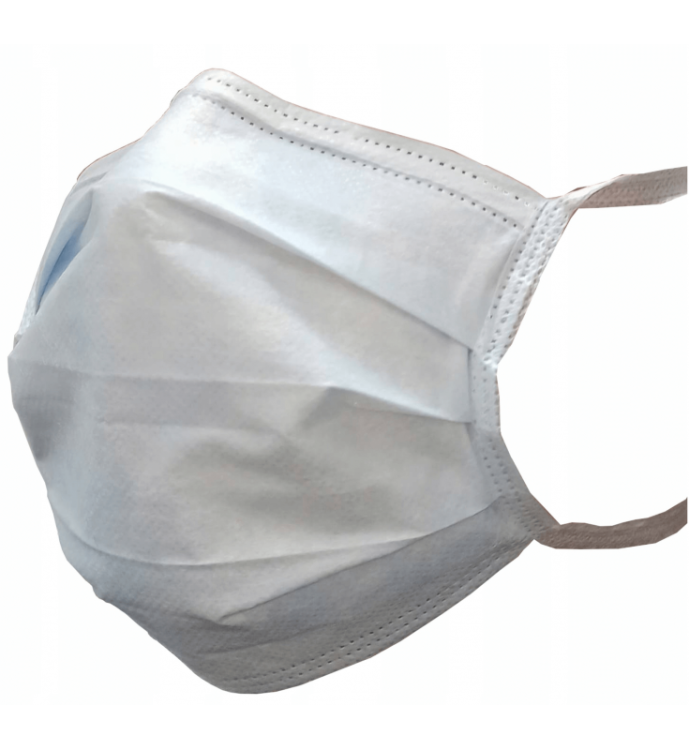

Fully automatic production line for creating masks. The masks have tabs and straps to put on the ears.

The whole process is carried out automatically, masks for subsequent processes are transferred by means of transporters.

The masks are formed from rolls of tissue paper, after cutting, folding and gluing to the mask, the strips are attached with cylindrical pressure.

The line can be equipped with a packaging machine.

Depending on the customer's needs, some forms can be changed to obtain a mask with different specifications, e.g. smooth fabric mask, gauze mask, activated carbon mask.

Functions:

Touch screen control

Easy control of the entire process

Adjustable conveyor speed

Low failure rate

Photoelectric detection of raw materials to avoid errors and reduce waste

Ultrasonic welding

Equipped with servo and stepper motors

Has a photocell counting the number of masks or batches produced

Technical data of the line:

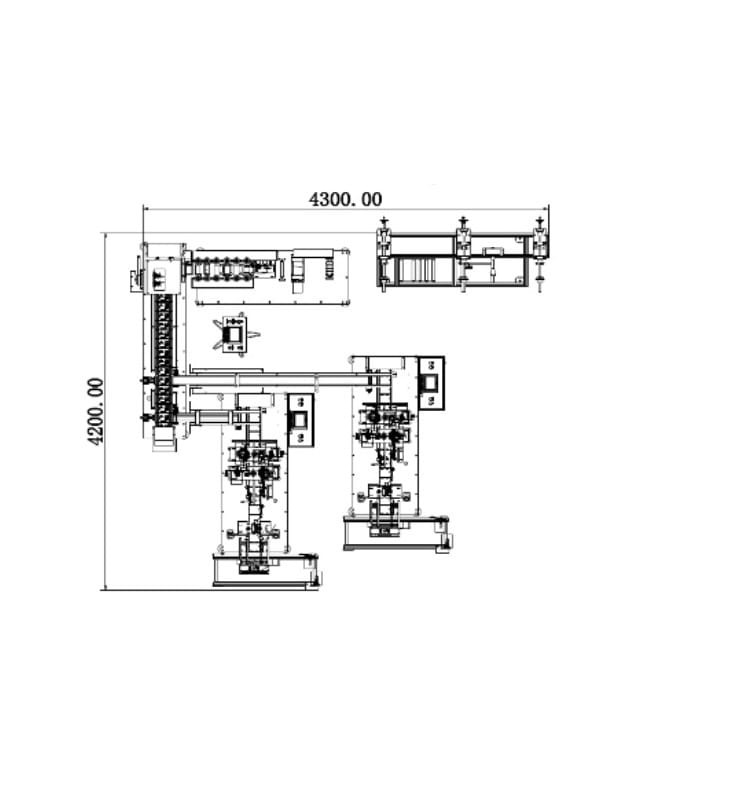

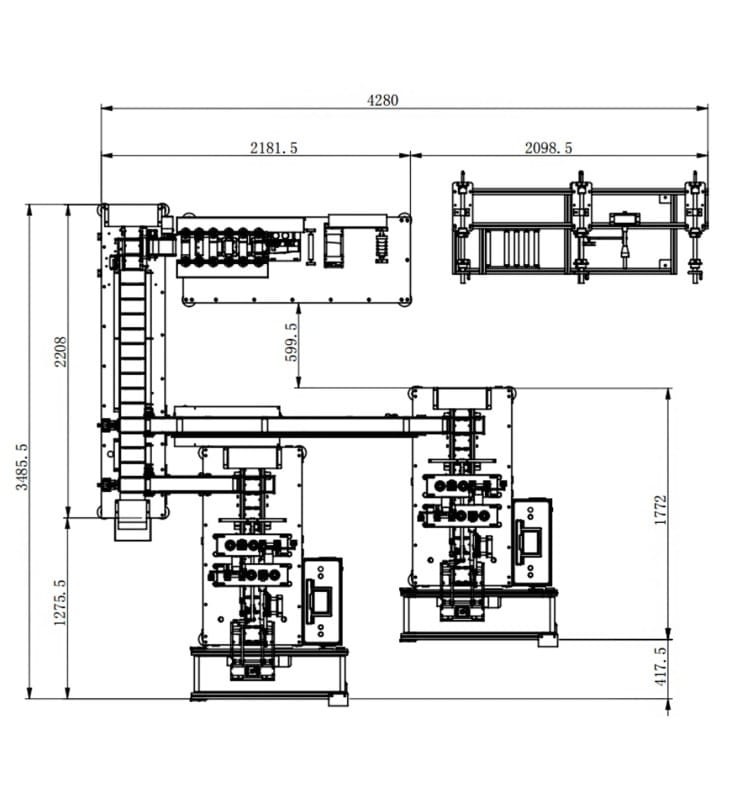

Dimensions: 4300 mm × 4200 mm × 1850 mm; US 169 x 165 x 72"

Power supply: 230 V / 50 Hz US 110 V

Mask size error: +/- 1 mm

Capacity: 90-100 masks / min

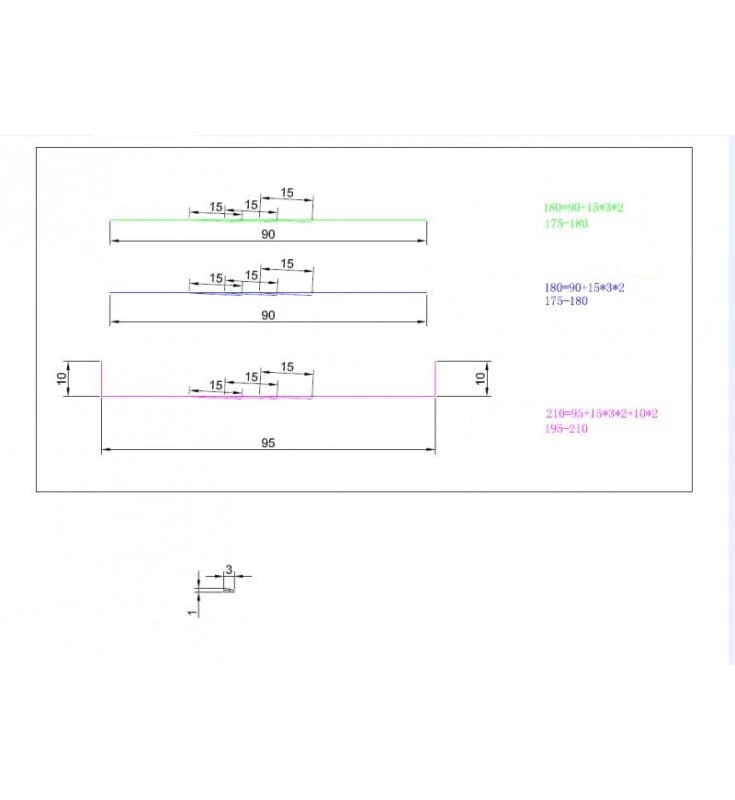

Nonwoven width for the outer layer: 178-180 mm US 7-7,08"

The width of the nonwoven fabric for the middle layer: 175-180 mm US 6,8-7"

The width of the nonwoven fabric for the inner layer: 195-210 mm  US 7,6-8,2"

Power: 8.5 kW

Air consumption: 0.88 m3 / min

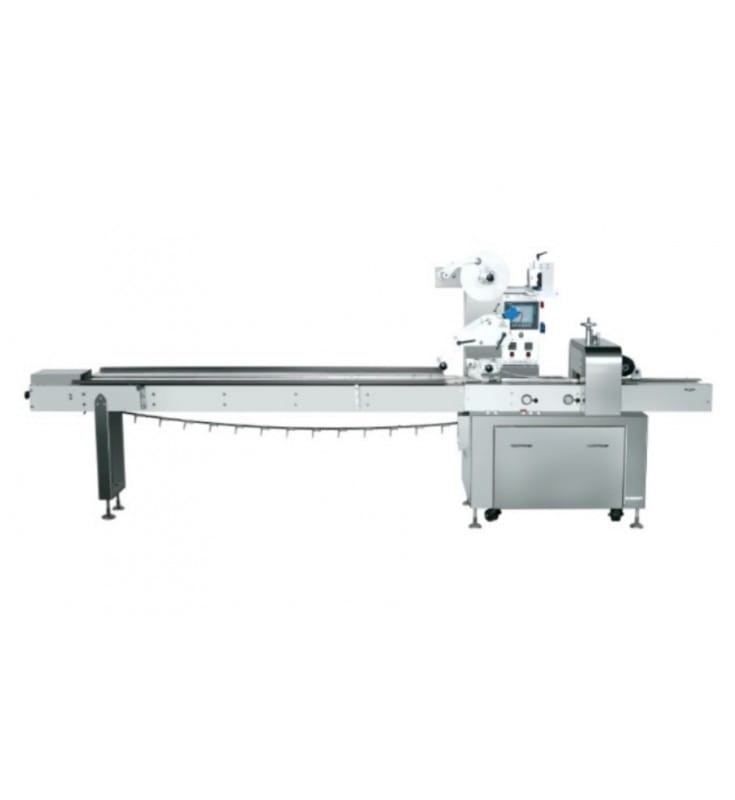

Packing machine

The device is intended for packing masks individually or collectively.

Technical data:

Capacity: 50-250 pcs / min

Foil width: max. 280 mm US 11"

Package length: 90-220 / 15-330 mm US 3,5-8,6 / 0,6-12,9"

Package width: 50-140 mm US 1,9-5,5"

Package height: 40 mm US  1,6"

Power: 2.5 kW

Engine power: 0.75 kW

Weight: 650 kg  US

Dimensions: 4000 x 950 x 1450 mm US 157" x 37" x 57"

Power supply: 230 V / 50 Hz US 110 V

Foil: OPP, PE, PVC, OPP / CPP, PT / PE, KOP / CPP
