AUTOMATIC INSERT MACHINE FOR DISCCANT GZ-1-GSP

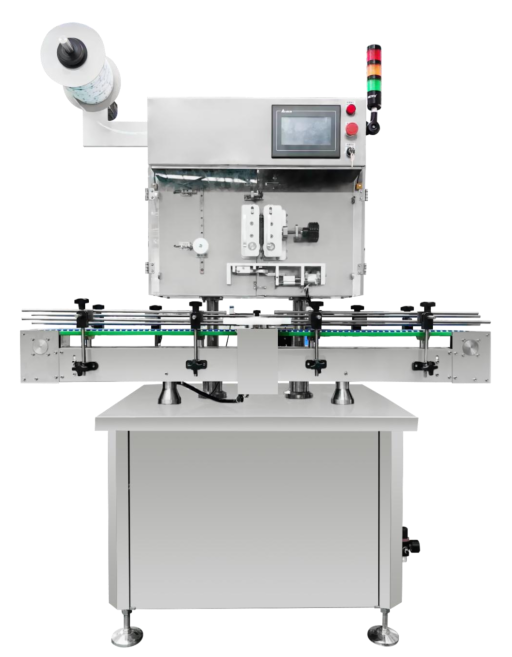

Single-head High-speed Desiccant Bag Dispenser – Model GZ-1-GSP
(Compact automatic desiccant inserter for bottle packaging)

Product Description

The single-head desiccant bag dispenser GZ-1-GSP is a compact, high-efficiency machine designed to insert desiccant sachets into bottles automatically. Ideal for pharmaceutical, dietary supplement, and food packaging applications, it provides precise, consistent operation while minimizing manual handling.

The system uses a stepper motor to drive the desiccant belt, pulling and cutting the sachet based on color mark detection. Each sachet is cut cleanly and placed accurately into the bottle mouth. Bottles are automatically fed, positioned, and transferred after filling, ensuring seamless production flow.

Key Features

• High compatibility – suitable for round, oblate, square, and flat bottles of various materials.
• Supports disc-type desiccant bags – with or without color labels.
• Stable belt feeding system – ensures even transmission and precise bag-length control.
• Adaptive bag placement design – automatically adjusts for sachet thickness to prevent tearing.
• High-precision cutting – durable blades ensure clean and accurate cuts.
• Integrated detection and alarm functions – includes no-bottle detection, empty bag detection, fault self-diagnosis, and missed insertion alarms for continuous and safe operation.
• Fully automated operation – integrates with upstream and downstream equipment; no constant operator supervision needed.
• Upgraded version features – redesigned material tray, fine adjustment of color mark sensor (X and Z axis), improved empty-bag detection, closed-loop leak prevention, and optimized scissors design.

Technical Specifications

Model: GZ-1-GSP
Production capacity: 85–90 bottles/min
Bottle size: up to 100 mm in diameter and 160 mm in height
Desiccant bag size: 0.5 g – 1 g
Power supply: AC 220 V / 50 Hz
Power: 0.5 kW
Air pressure: 0.6 MPa
Dimensions: 1700 × 900 × 2100 mm
Net weight: 310 kg
Gross weight: 431 kg

Main Components

Photoelectric sensor – Kanping Optoelectronics / SICK, Germany
Main control system – Delta Electronics, Taiwan
Switching power supply – Mingwei, Taiwan
Desiccant conveyor motor – Changfeng Motor
Pneumatic components – AirTAC, Taiwan
Air switch – Schneider, France
Conveyor belt and lifting motors – Maili Motor
HMI screen – Delta Electronics, Taiwan
Emergency stop switch – Schneider, France
Main drive motor – Maili Motor

Operating Principle

The system automatically stops each bottle in position for filling. The desiccant feeding mechanism moves the belt to the cutting zone, where the color mark sensor detects the correct cutting point. The sachet is cleanly cut and inserted into the bottle, which is then automatically moved along the conveyor to the next process. The operation is fast, stable, and precise, ensuring efficient desiccant dispensing.

Applications

• Pharmaceutical production – inserting desiccant sachets into containers with tablets, capsules, and other solid dosage forms.
• Food manufacturing – ensuring moisture control in sensitive packaged products.
• Cosmetic and chemical industries – protecting formulations from humidity and maintaining product stability.
