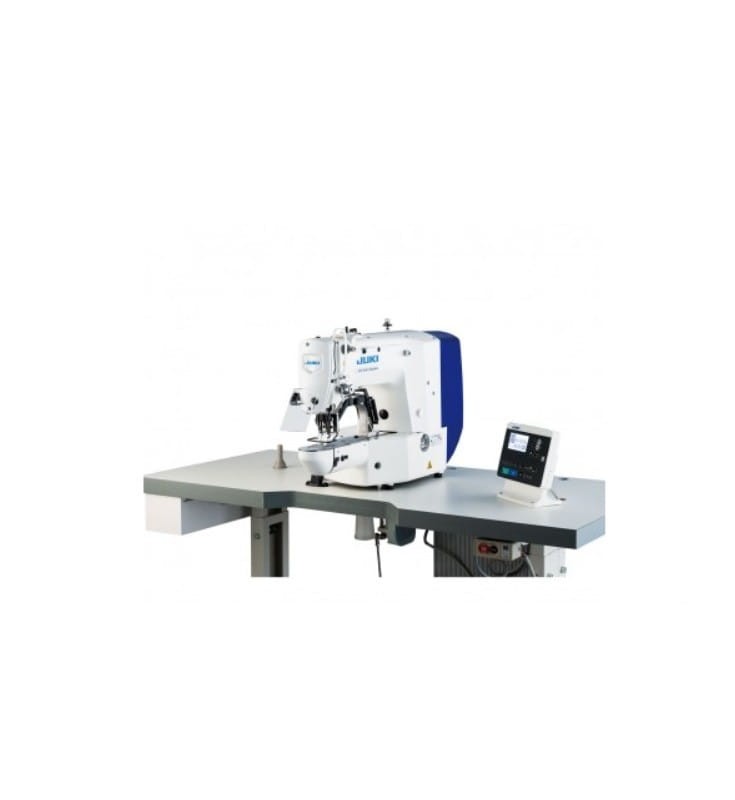

HEAVY DUTY SEVING MACHINE JUKI LK-1900BNHS

Application:

Electronic 2-thread bartacking machine, designed for sewing heavier materials, such as jeans, denim, etc., equipped with an energy-saving servo motor built into the machine head (direct drive system) and stepper motors that separately control individual machine mechanisms.

Functions:

As a standard, depending on the subclass of the machine and the equipment used, it is possible to make a large number of types of bolts or simple patterns. The machine has 50 pre-programmed own stitch patterns. The size of the machine memory allows you to enter 200 patterns (50 standard + 150 own). Smooth regulation of the length and width of the bolts.

All functions are programmed on an easy-to-use and legible control panel with a graphic display, among others possibility of programming the cycle of bolts of various types.

Technical parameters:

Sewing speed 3200 s.p.m.

Working area: 30mm x 40mm

Stitch length 0.1 - 10mm

Needle bar stroke 41.2mm

DPx17 needles (# 21)

Motor power 450W

Power supply 230V
