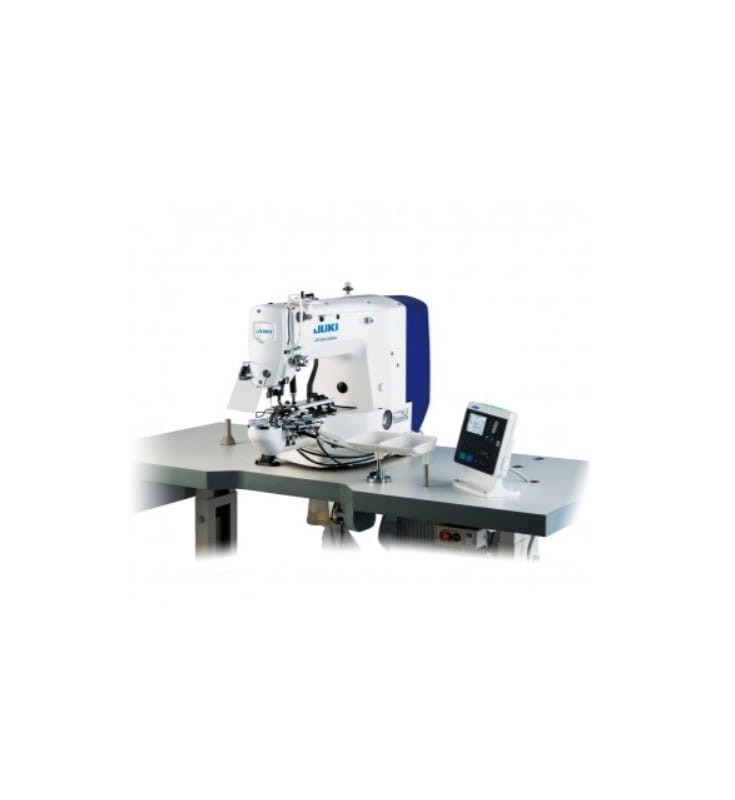

BOTTOM HOLE MAKING MACHINE JUKI LK-1903BN

Application:

Electronically controlled 2-thread button sewing machine sewing with a lockstitch stitch. Based on the LK-1900BSS series machine.

Functions:

Smooth adjustment of the distance between the holes of the button, 50 available programs - types and patterns of stitching (the shape of the seam and the number of stitches in the seam).

All parameters are set on a clear and easy-to-use control panel. It is possible to order additional, non-standard sewing patterns for the machine (eg "crow's feet" and others on request). The panel is equipped with a USB connector for connecting a portable memory or a memory card reader.

The electronically controlled needle thread tensioner ensures perfect stitching on various materials. The machine is driven by an energy-saving, quiet servo motor mounted in the machine head (DirectDrive).

Technical parameters:

Sewing speed 2,700 s.p.m.

Button diameter 8-32 mm

45.7 mm needle bar stroke

Presser foot lift 13 mm

Internal memory of 20,000 stitches

Power supply: 230V
