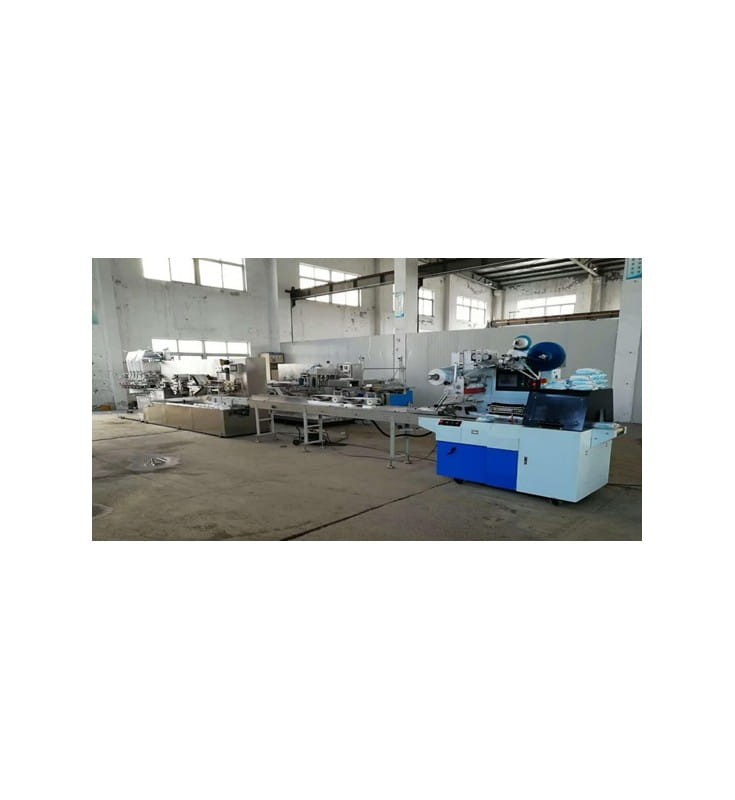

WET TISSURE PRODUCTION LINE JL-Z280

Application:

A production line designed to create and pack wet wipes.

The device cuts individual wipes from the roll, arranges them, and then packs them into sachets and seals them.

The operator manually places an opening to prevent it from drying out.

Modern technology ensures the highest achievable level of efficiency.

The electronic control system synchronizes the operation of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allow for convenient use.

It was designed in such a way as to avoid the risk of infection, disease and contagion.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

The construction of the machine excludes the penetration of substances into the product.

The wipes on the roll are dry, the machine includes a wipes spray system.

The wipes are used in the cosmetics, hopeful and medical industries.

Functions:

Machine working system: automatic feeding → automatic cutting → automatic folding → automatic spotting → automatic stacking → automatic counting

 → automatic feeding → automatic packing.

Simple operation

High precision

Automatic machines: creates, folds, drips and cuts wipes, then creates a package.

The length of the sachet is adjustable via a simple control panel.

It is equipped with two 1.2 m long cutting knives that can raise and lower automatically to adjust the product cutting width.

The device may also be sprinkled with disinfectant.

Simple to use PLC screen

Equipped with a fault self-diagnosis system.

Equipped with a photocell.

Technical data:

Capacity: 20-50 packs / min

Weight of paper / non-woven fabric: 15-70 gsm

Fleece roll diameter: 1200 mm

Core diameter: 76.2 mm

Wipe length: 100-200 mm

Wipe width: 100-200 mm

Power supply: 380 V

Power: 17.5 kW

Compressed air source: 0.6-0.8 MPA

Air consumption: 350 L / min

The dimensions of the whole line: 14800 x 4000 x 2300 mm

Weight: 5000 kg

Spotter efficiency: 1800-2800 pcs / min

Power supply: 380 V

Power: 11 kW

Spotter dimensions: 6000 x 4000 x 2300 mm

Packing machine efficiency: 20-65 packs / min

Package dimensions:

Length: 100-400 mm

Width: 50-120 mm

Height: 10-65 mm

Power: 5.4 kW

Packaging machine dimensions: 3800 x 1100 x 2200 mm

Weight: 1500 kg
