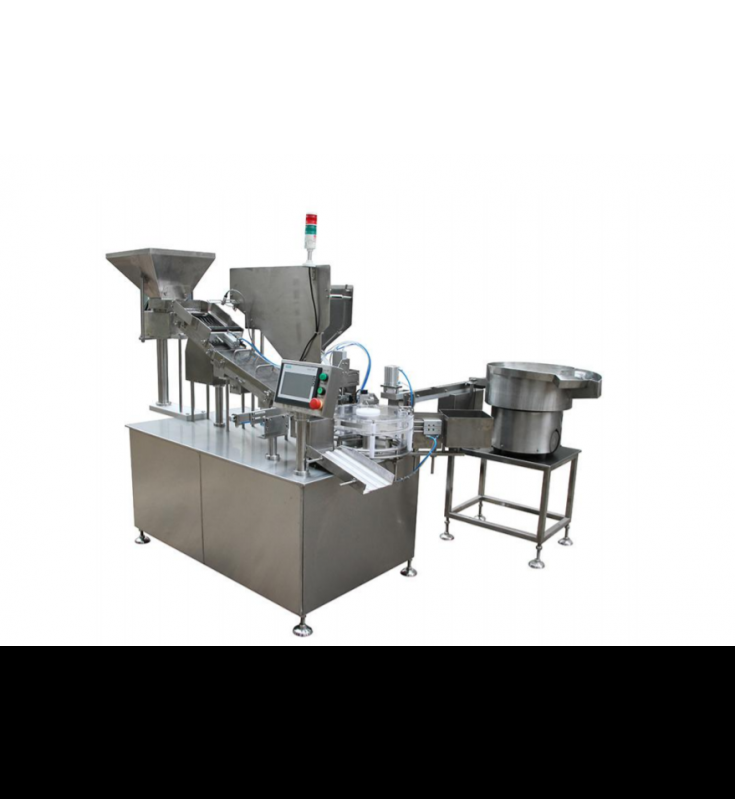

MACHINE COUNTING AND FILLING MACHINE TWL-40

Application:

The machine automatically feeds, counts and packs tablets into tubes, closing them last.

The device is widely used for effervescent tablets.

Modern technology ensures the highest achievable level of efficiency.

The electronic control system synchronizes the operation of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allow for convenient use.

It was designed in such a way as to avoid the risk of infection, disease and contagion.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

The construction of the machine excludes the penetration of substances into the product.

Functions:

Simple operation

High precision

Simple to use PLC screen

Equipped with a fault self-diagnosis system.

Equipped with a photocell.

The device has no product> no work functions

Siemens PLC components, AirTac cylinders, Panasonic photocells were used.

Technical data:

Max. capacity: 40 pcs / min

Max load: 20 items / tube

Air consumption: 0.5-0.6 MPa

Dosage: 0.28 m3 / min

Power: 0.8 kW

Dimensions: 1800 x 1600 x 1500 mm  US 71 x 63 x 59"

Weight: 400 kg  US 881 lb
