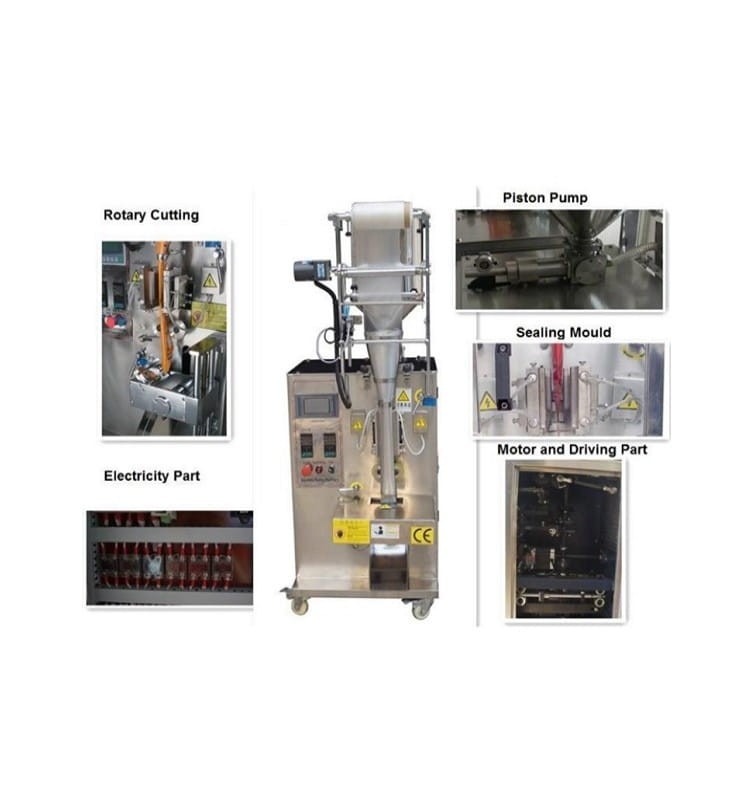

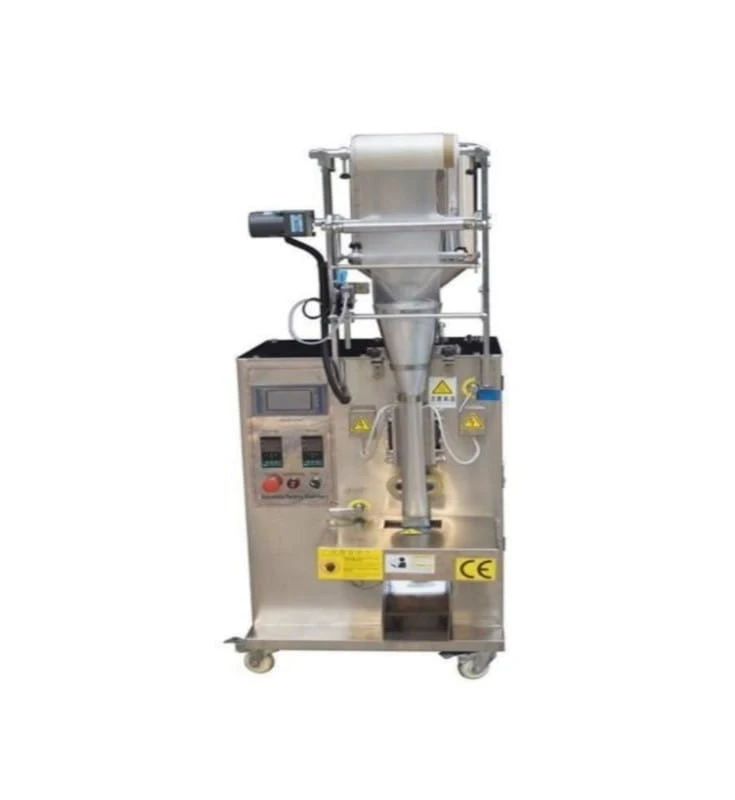

MACHINE FOR PACKING A LIQUID INTO A HYDROSUBLE FILM UN-240BY

Application:

The device is used in the pharmaceutical, cosmetics, etc.

Designed for packing liquids of various consistency, such as e.g. cream, shampoo, ointments, butter, oil, water, chemicals, washing agents, etc.

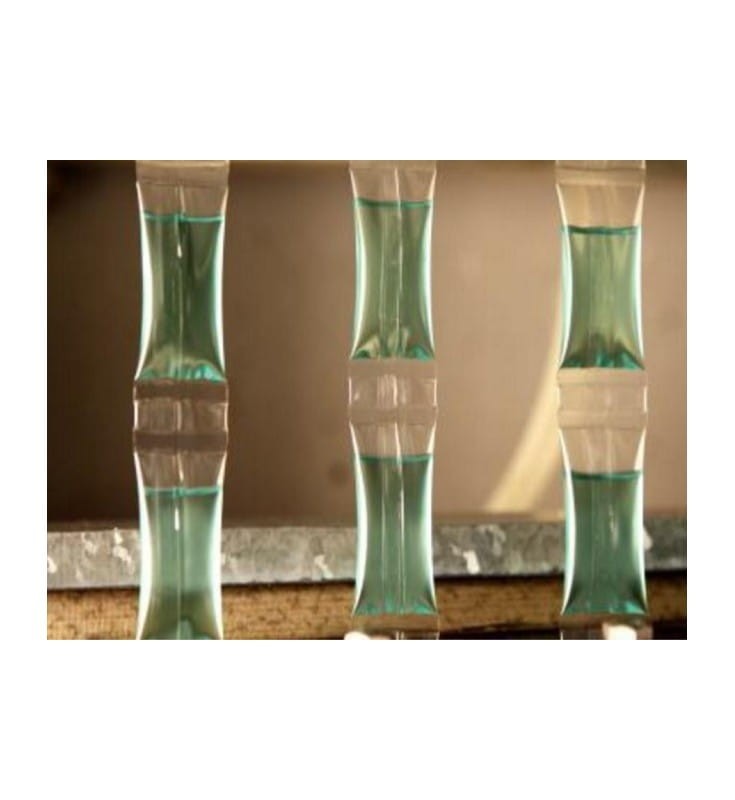

Most often it is used in the production of washing capsules with the use of water-soluble foil, as well as for packaging detergents and plant protection products.

Functions:

The device creates sachets by measuring the product, dosing it and packing it in a sachet made with the use of foil in a roll.

Machine speed can be adjusted.

Temperature control system.

Modern technology ensures the highest achievable level of efficiency.

Reliability, ergonomic design and easy cleaning allow for convenient use.

It has been designed in such a way as to avoid the risk of infection, disease and contagion.

All surfaces in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion.

The construction of the machine excludes the penetration of substances into the product.

The sachet machine is not a universal device, a given machine allows you to create sachets of one width (the length is adjustable).

Technical data:

Power: 1.1 kW

Power supply: 230 V / 50 Hz

Capacity: 15-20 items / 1 min .; 900-1200 pcs / 1h (depending on the size of the dose and the sachet)

Dosage: 10-50 ml US 0,34  - 1,69 oz

Sachet length: 30-160 mm US 1,18 - 6,3 in

The width of the sachet: 15-110 mm US 0,59 - 4,33 in

Machine dimensions: 600 x 600 x 1600 mm US 23,6 x 23,6 x 63 in

Weight: 195 kg US 430 Ib

Material: SS 304

Additional options:

Easy opening notch

Stirrer

Stamp

Tube for a different width of the sachet

Heated tank
