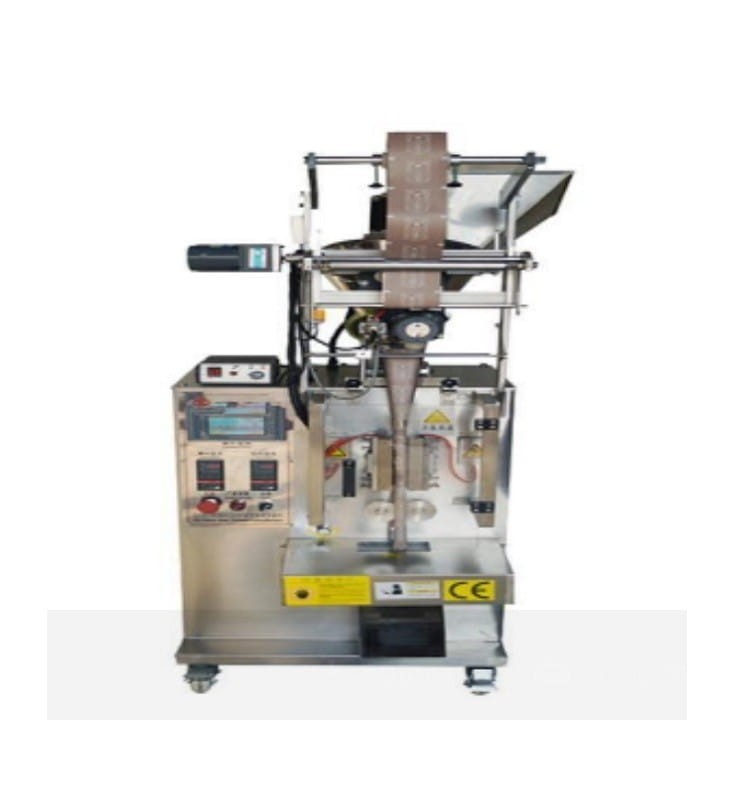

AUTOMATIC WATER SOLUABLE PVA FILM GRANULE PACKING MACHINE UN-50KB

Application:

The device is used in the pharmaceutical, cosmetic and chemical industries.

Designed for packing granules of various forms such as e.g. agricultural pesticides, settlement agents in the form of flakes, granules, etc.

Most often it is used in the production of sachets with pesticides using a water-soluble film.

Functions:

The device creates sachets by weighing the product, dosing it and packing it into a sachet using foil on a roll.

Temperature controller.

A photocell that allows you to work with foil with an applied marker.

Stable PLC controller.

Modern technology together with reliability, ergonomic design and easy cleaning allow for convenient use.

It has been designed in such a way as to avoid the risk of infection, disease and contagion.

All surfaces in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion.

The construction of the machine excludes the penetration of substances into the product.

Technical data:

Dosing: bucket

Dose range:

1-3 g  US 0,0022-0,0066 lb

3-6 g  US  0,0066-0,01 lb

6-10 g  US  0,013-0,022 lb

10-15 g  US 0,0022 -0,033 lb

15-20 g  US 0,0033-0,044 lb

20-25 g  US 0,044 - 0,055 lb

30-50 g  US 0,055-0,11 lb

Sachet length: 20-160 mm  US 0,7-6,2"

Sachet width: 15-110 mm  US 0,6-4,3"

Speed: 30-75 sachets / min

Material: SS 304

Power: 1.2 kW

Power supply: 230 V / 50 Hz  US 110 V

Weight: 220 kg  US 485 lb

Dimensions: 700 x 600 x 1700 mm  US 27,5 x 23,6 x 67"

Film parameters: PVA, 60-70 microns

Additional options:

Easy opening notch

Stamp

Tube for a different width of the sachet
