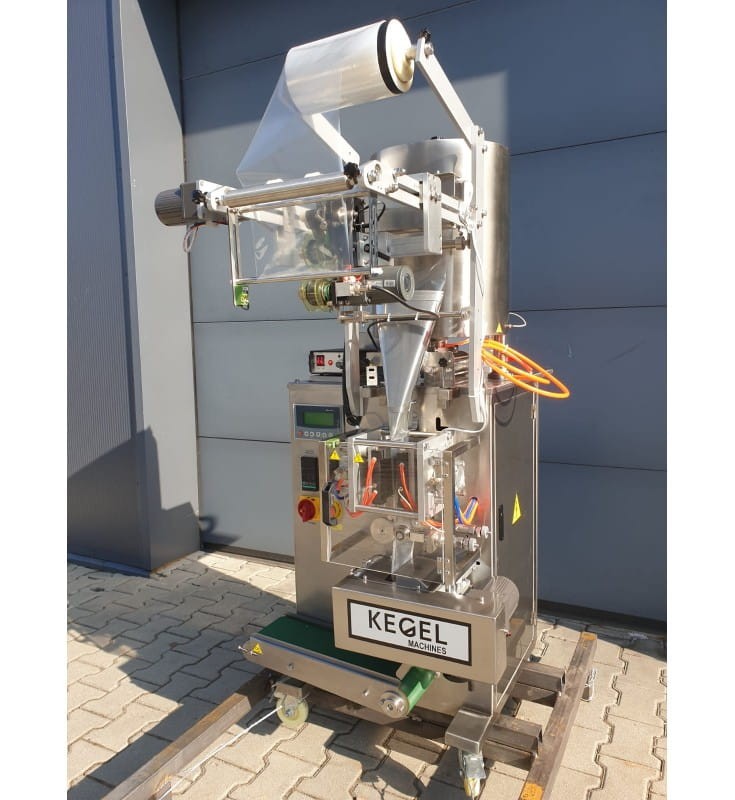

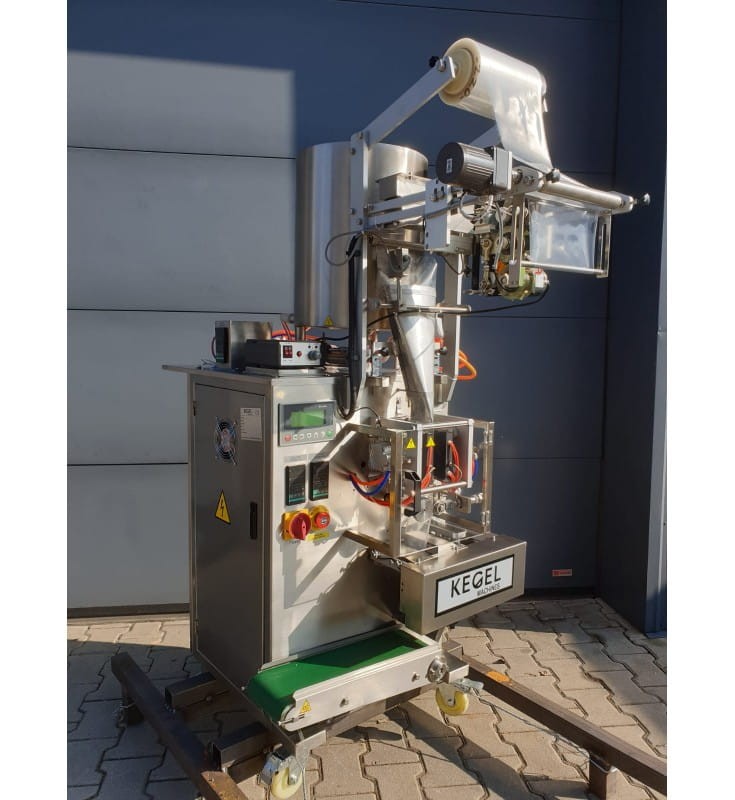

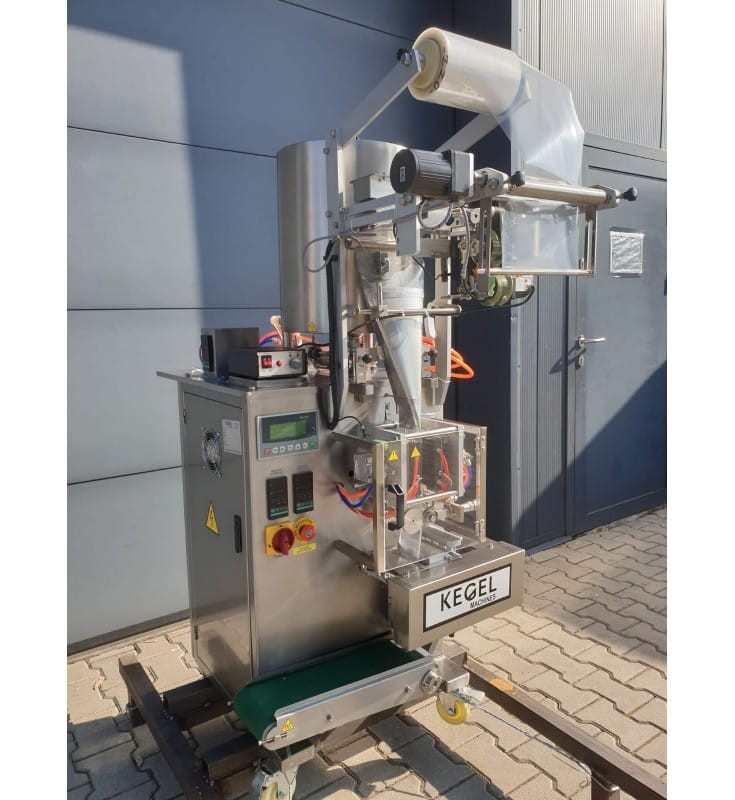

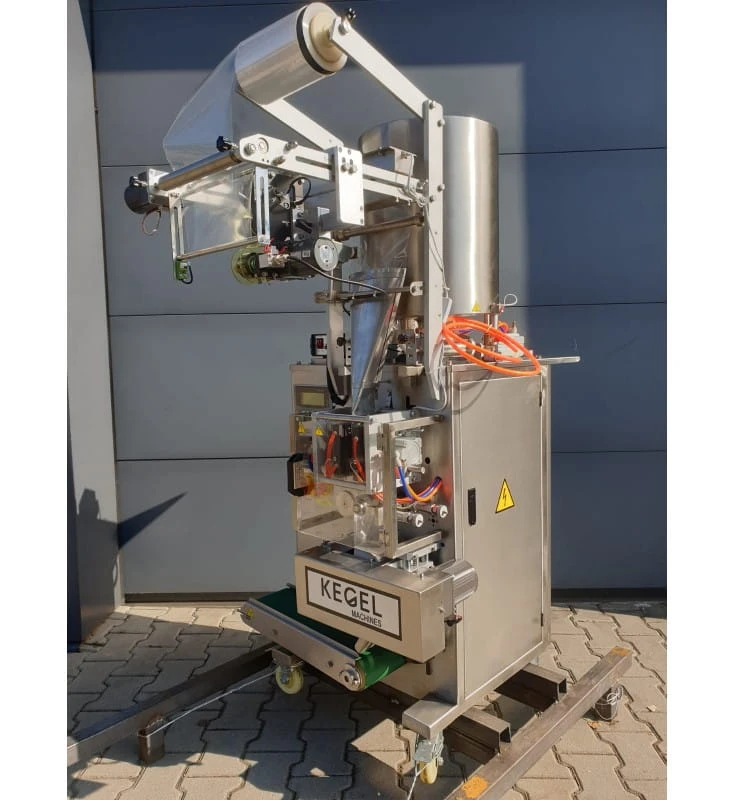

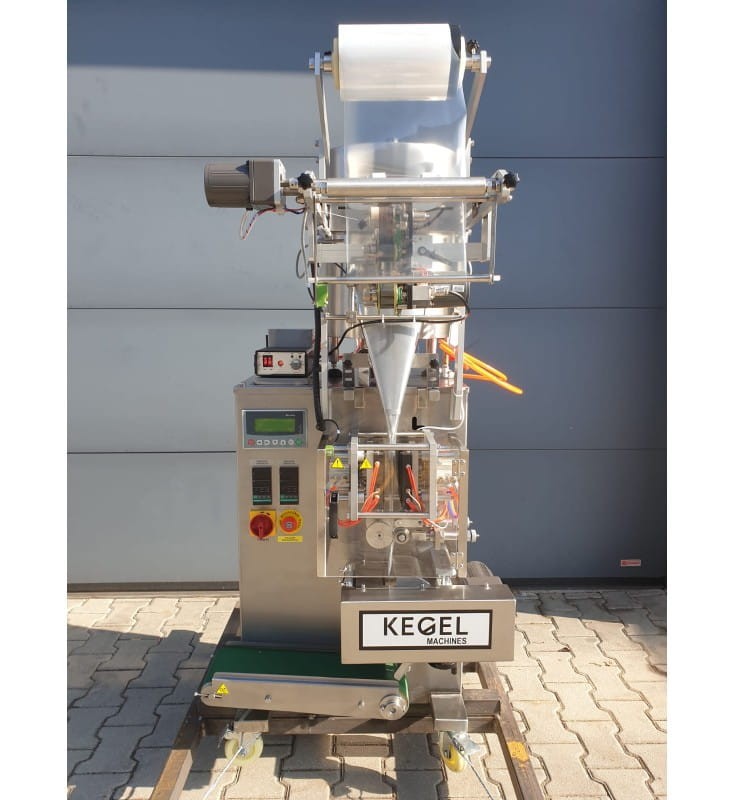

LIQUID PACKING MACHINE DXD 50Y

A volumetric sachet machine designed for packing liquids.

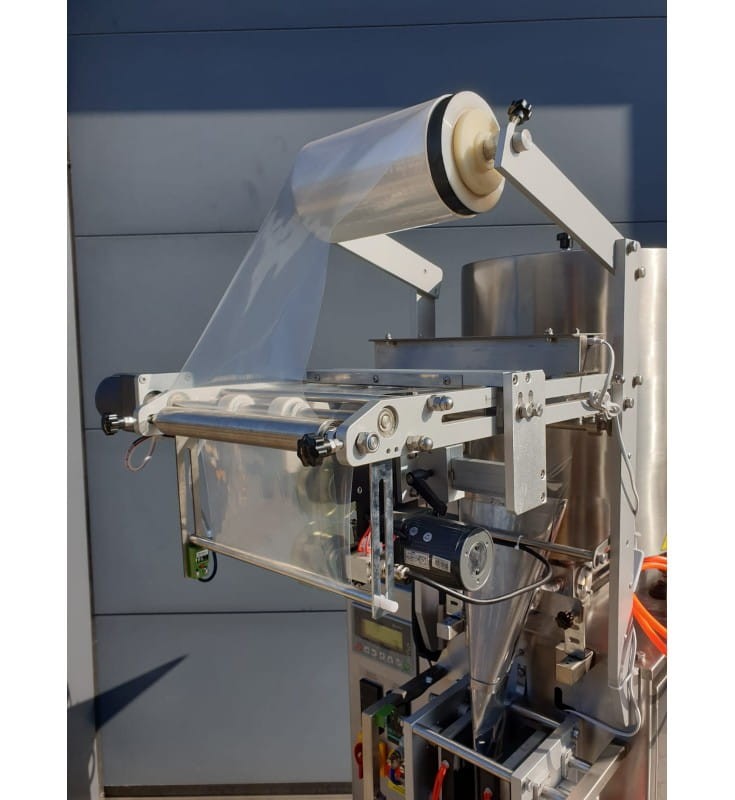

The device forms foil bags in the form of a web.

It can work on various types of composite foil: foil + aluminum, foil + paper, nylon, BOPP + PE.

A modern technologist with reliability, ergonomic design and easy cleaning allows for convenient use.

The electronic control system synchronizes the work of the machine.

The machine may be intended to come into contact with Art. food.

It has been designed in such a way as to avoid the risk of infection, disease and contagion.

The construction of the machine excludes the penetration of substances into the product.

All surfaces in contact with the product are smooth or are made of corrosion-resistant stainless steel.

The device requires a compressor connection.

Application:

The device is used in the following industries: food, chemical, cosmetic, pharmaceutical.

The machine may be intended to come into contact with Art. food. It has been designed in such a way as to avoid the risk of infection, disease and contagion. All surfaces in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion. The construction of the machine excludes the penetration of substances into the product. The sachet machine is not a universal device, a given machine allows you to create sachets of one width (the length is adjustable). Creating sachets of different widths with one device requires the purchase of additional modules forming the sachet.

Functions:

Simple operation

High precision

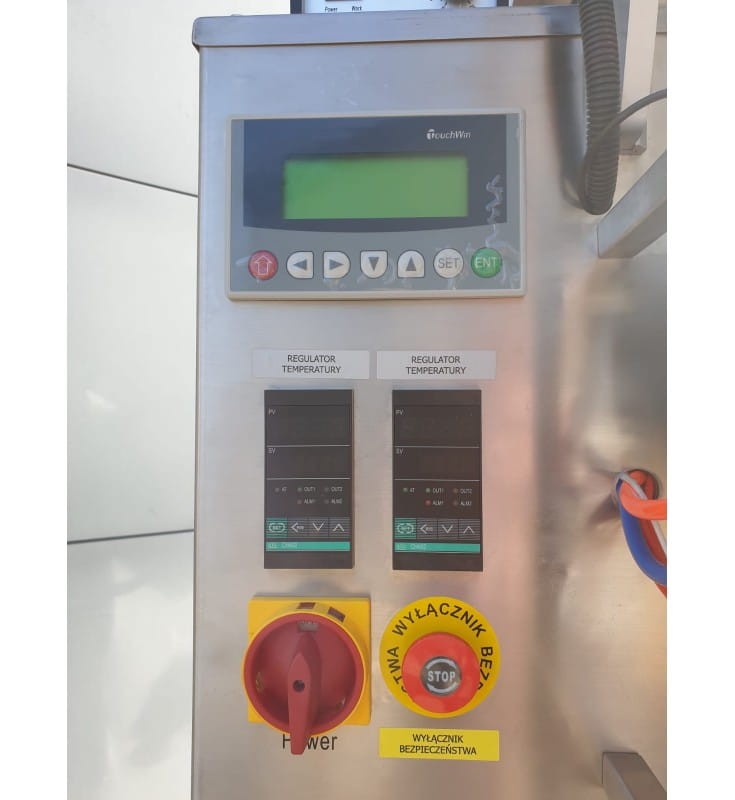

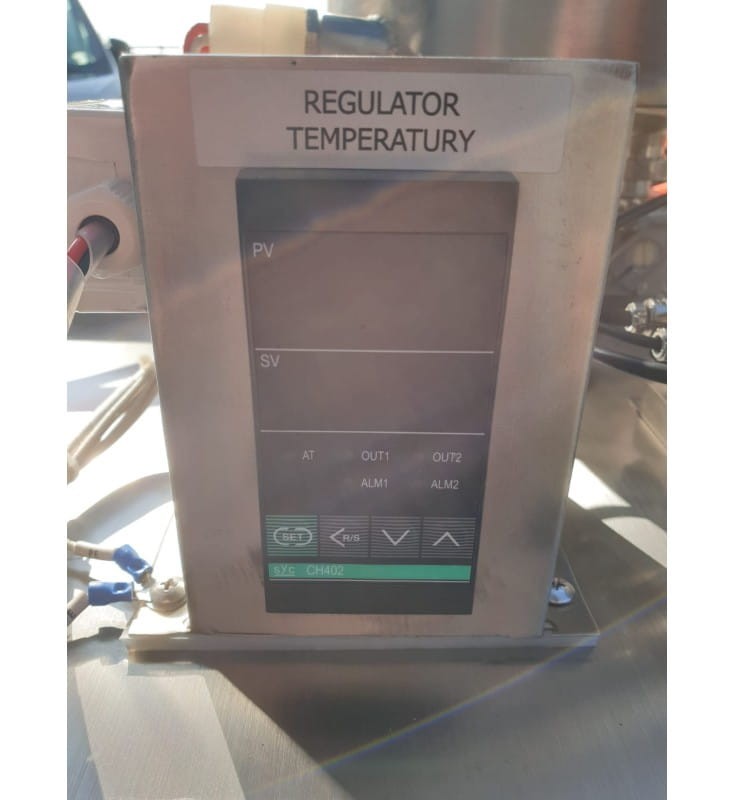

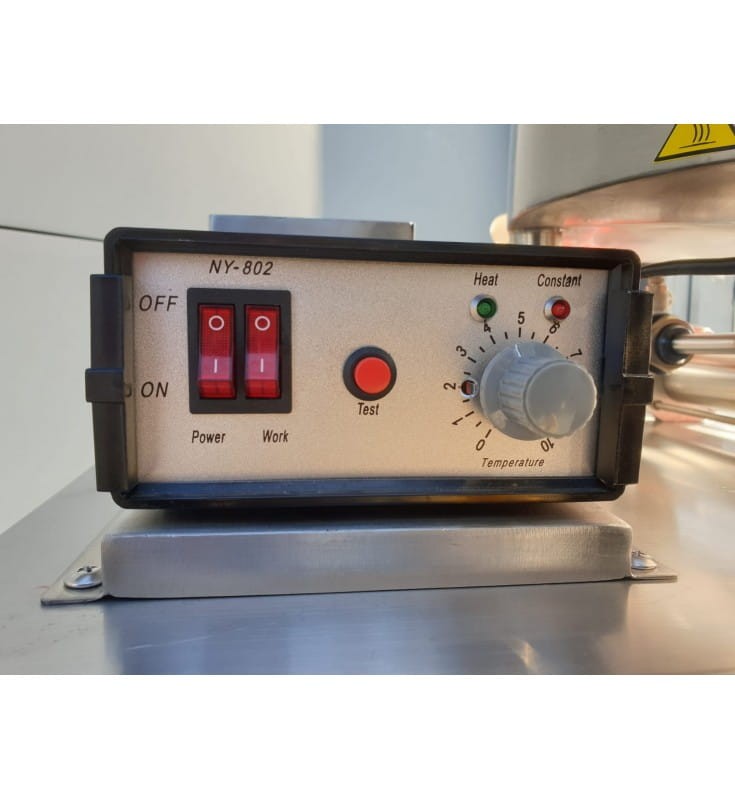

Independent temperature control

The length of the sachet is adjustable

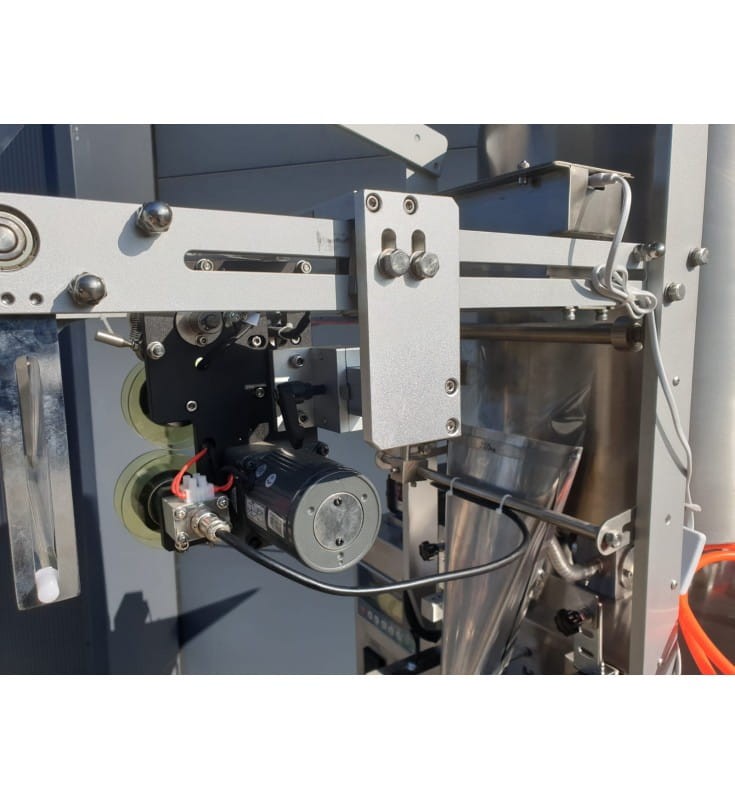

The device is equipped with a photocell that allows you to create sachets from smooth and printed foil.

Technical data:

Dosage: 21/25 ml, 42 ml

Sachet width: 100-150 mm

Length: 50-100 mm

Capacity: 25-40 pcs / min

Power: 1.5 kW

Power supply: 230 V

Dimensions: 800 x 800 x 1700 mm

Weight: 200 kg
