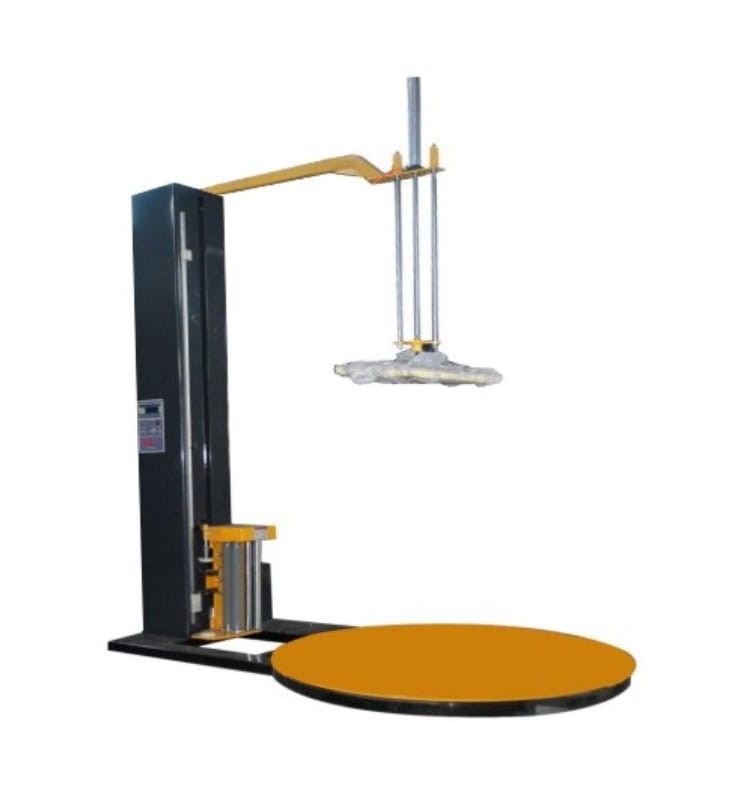

AUTOMATIC PALLET WRAPPING MACHINE TP1650CS

Application:

Foil wrapping machine designed to stretch loaded pallets. The model is intended for high packages. It is equipped with a plate that presses the load from above, preventing it from tipping during wrapping. The device widely used in the chemical, food, paper, construction, etc.

Functions:

Simple to use

With top clamp

Technical data:

Power supply: 220 V / 50 Hz

Wrapping size: L: 500-110mm; W: 500-1200mm

Wrapping height: 500-2000mm

Turntable speed: 1-12rpm

Turntable diameter: 1650 mm

Turntable height: 85 mm

Turntable loading (max): 2000 kg

Machine dimensions: 2650 x 1650 x 2400 mm

Weight: 700 kg
