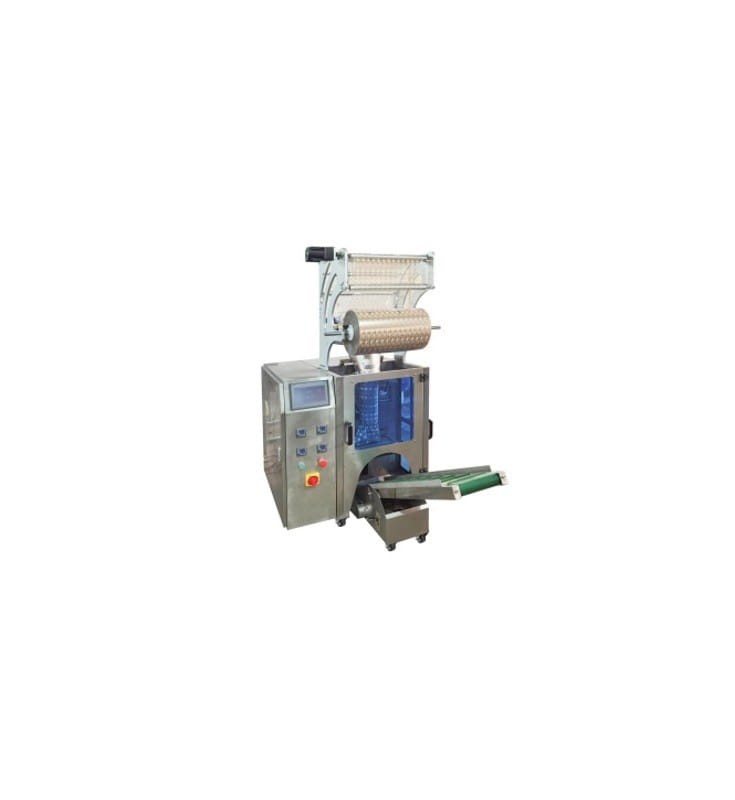

SASCHET PACKING MACHINE TCLB-420T

Vertical packing machine designed for packing larger items, e.g. jar caps or metal furniture fittings.

Bags are made of foil in the form of a ribbon.

High-quality components, including German production, guarantee high precision and reliability of the device.

The sachet machine is equipped with a photocell and enables the creation of sachets from smooth or printed foil.

The device will make sachets of various types of foil "PE, laminate + aluminum, foil + paper, nylon, BOPP

The sachet machine seals the sachets on 3 sides - top, bottom and lengthwise.

The device can be individually adapted to a given product.

Modern technology ensures the highest achievable level of efficiency.

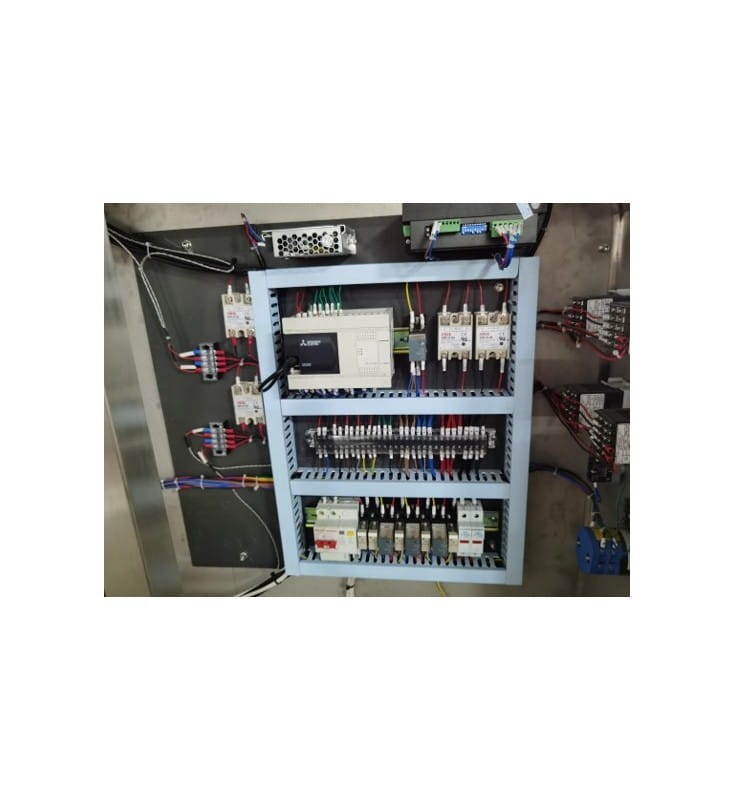

The electronic control system synchronizes the operation of the machine.

It has been designed in such a way as to avoid the risk of infection, disease and contagion.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

The construction of the machine excludes the penetration of substances into the product.

Requires connection of a compressor.

Application:

The device is ideal for packing solid products.

Functions:

Simple operation

Ease of device adjustment

Forms sachets

The product is dosed manually, applied by the operator

Technical data:

Sachet dimensions:

Width: 30-200 mm US 1,18 - 7,87 in

Length: 30-200 mm US 1,18 - 7,87 in

Film width: 80-420 mm US 3,15 - 16,54 in

Capacity: 1-30 packs / min

Power supply: 230 V / 50 Hz

Dimensions: 1150 x 800 x 1350 mm US 45,28 x 31,5 x 53,15 in

Weight: 150 kg US 330,7 Ib

foil: PE

Film thickness: 0.03-0.06 mm US 0,0012 - 0,0024 in
