LINE FOR FILLING AND CLOSING CANS 2000-3000 szt/h

3000 Cans/Hour Filling Line – Carbonated Beverages

A modern, semi-automatic filling line designed for carbonated beverages, with a capacity of up to 3000 cans per hour. The system consists of high-performance, robust machines made of stainless steel, ensuring precise and hygienic rinsing, filling, and sealing of cans.

The set includes:

• BLP-1 – Semi-automatic can unscrambler

• CJ-1 – Internal can rinsing machine

• FGJ-1 – Can turnover machine

• DCGF18-6 – Can filling and seaming machine

• SSJ-1 – Belt conveyor

• Conveyor motor – Power: 0.55 kW

BLP-1 – Semi-automatic Can Unscrambler
Facilitates the proper alignment of cans for subsequent transport.
Diameter: 1200 mm

CJ-1 – Can Rinsing Machine
Designed for internal rinsing of cans. The cans are conveyed to the machine with their openings facing downward.
Material: Stainless steel SS304
Capacity: up to 3000 cans/hour
Power: 0.55 kW
Dimensions: 1600 × 600 × 1300 mm
Weight: 500 kg

FGJ-1 – Can Turnover Machine
A specialized device for flipping cans by 180° or 360°. Made of durable PE plastic, custom-formed to the shape of the cans. The integrated conveying system ensures smooth and safe flipping without risk of tipping or jamming. Ideal for processes requiring inverted positioning.

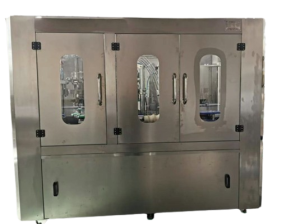

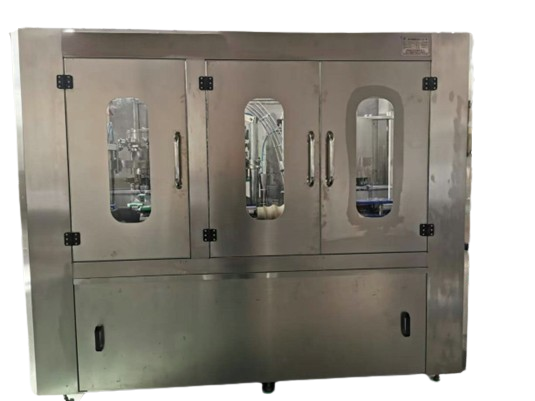

DCGF18-6 – Can Filling and Seaming Machine
An integrated unit for accurate filling and sealing of carbonated beverage cans.
Filling nozzles: 18
Seaming heads: 6
Capacity: 2000–3000 cans/hour
Power: 3 kW
Dimensions: 1800 × 1400 × 2200 mm
Weight: 2000 kg

SSJ-1 – Belt Conveyor
Transfers cans between the machines within the production line.
Conveyor motor power: 0.55 kW

Why choose this line?

• Compact design and user-friendly operation

• Durable stainless steel construction

• High efficiency and precision

• Perfect for small and medium-sized production facilities
