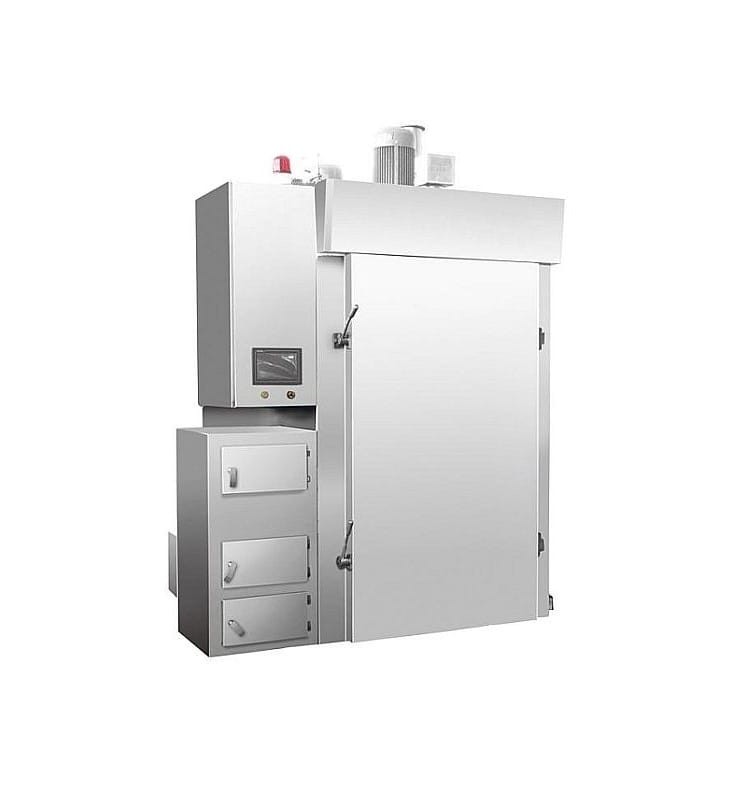

ZXL-250 INDUSTRIAL SMOKEHOUSE

Application:

A professional, industrial smokehouse made entirely of high quality stainless steel.

Swiss electrics, large, clear interface, Mitsubishi controller, solenoid valves and pneumatics of Japanese production - all this ensures stability and reliability of operation.

Functions:

The improved high temperature system allows reaching 80°C in just 15 minutes.

Double glass doors allow observation of the smoking process.

A special, proprietary smoke removal method ensures even coloring of smoked products.

Thanks to specially designed windmills, the air circulates the chamber 14 times per minute.

The device is easy to keep clean.

Technical parameters:
Power: 7.5 kW
Power supply: 380 V / 50 Hz
The pressure of hot steam: 0.4 - 0.6 MPa
Cold vapor pressure: 0.25 - 0.28 MPa
Maximum temperature: 110°C
Capacity: 250 kg / cycle  US 551 lb / cycle
The cycle is about 40 minutes depending on the type of product.

Dimensions of the smokehouse [L x W x H]: 1680 x 2165 x 3280 mm  US 66 x 85 x 129"

Dimensions of the generator [L x W x H]: 1000 x 980 x 1880 mm  US 39 x 39 x 74"

Weight: 2000 kg  US 4409 lb
