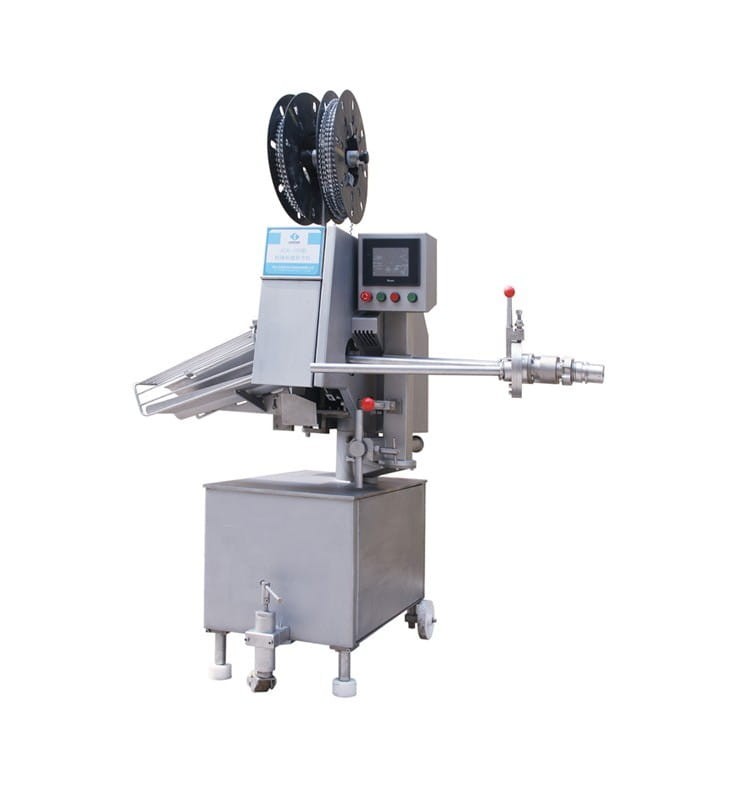

JCK-160 AUTOMATIC SAUSAGE DOUBLE CLIPPER MACHINE

Application:

Automatic double clipper JCK-160 is connected mechanically and electrically to the any vacuum stuffer or pneumatic stuffer.

Functions:

The voiding separator provides portions of precise weight, which are clipped as single sausages or rings.

Trend- setting safety standards are guaranteed with the two-handed trigger operation required to start the first clip.

Device included energy-efficient Panasonic engine, easy to use Mitsubishi control panel.

Device is made of stainless steel.

It has been designed in such a way as to avoid the risk of infection, disease, infection.

The elements can be easily cleaned before each use.

Technical data:
Power: 3.5 kW
Power supply: 380 V / 50 Hz
Working speed: 80 times / min.
Product diameter: 32 - 130 mm US 1.25 - 5.11"
Supported clips: 18-6, 18-7, 18-8, 18-9, 18-10, 18-11, 18-12
External dimensions [L x W x H]: 1300 x 1360 x 2200 mm  US 51 x 54 x 87"
Weight: 960 kg  US 2116 lb
