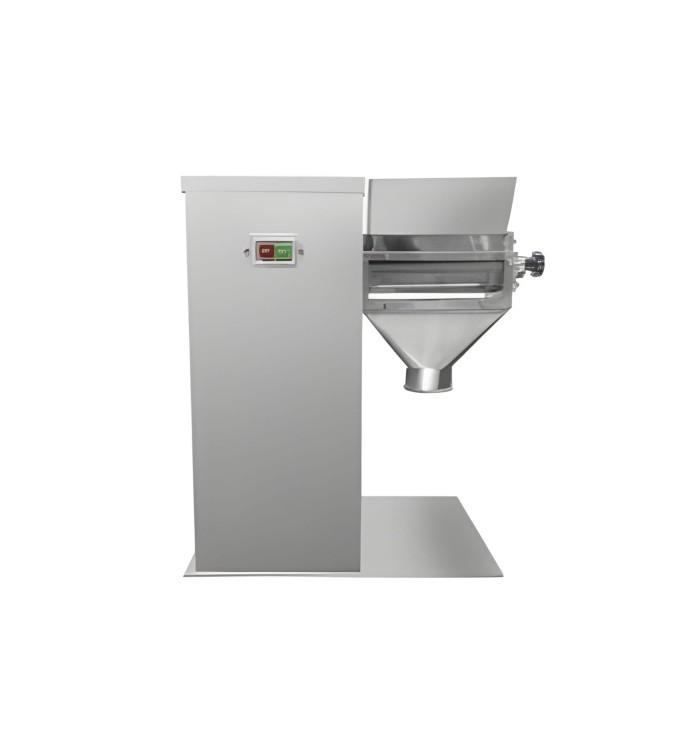

VIBRATING GRANULATOR MACHINE YK-60

Application:

The oscillating granulator is designed for rubbing - screening loose materials in dry and wet condition.

The size of the desired granulate is obtained depending on the screen installed in the device.

The granulator is not intended for wiping materials creating explosive dust.

It is used in the pharmaceutical industry (for making tablets after drying and pressing), in the chemical and food industry (it is used to process mixtures of sweets and sugars and barley milk products).

Functions:

It is characterized by a strong, stable structure and durable components.

The device is made of stainless steel.

The screens are easy to assemble and disassemble.

To work on the device, the tank must be refilled with the product.

The hopper rotates and therefore granulates the material with a sieve.

Technical data:

Power: 0.55 KW

Power supply: 220 V / 380 V / 50 Hz

Shaft diameter: 60 mm

Feeding port: 209 x 212 mm

Cycle time: >46 rpm

Capacity: 5-30 kg/h

Swivel range: 360 degrees

Dimensions: 300 x 470 x 600 mm

Weight: 46 kg
