BOTTLING LINE FOR CANS WITH DISINFECTANT

Application:
Automatic line for filling plastic containers.
Especially used for containers with foaming liquids, e.g. detergents.
Functions:

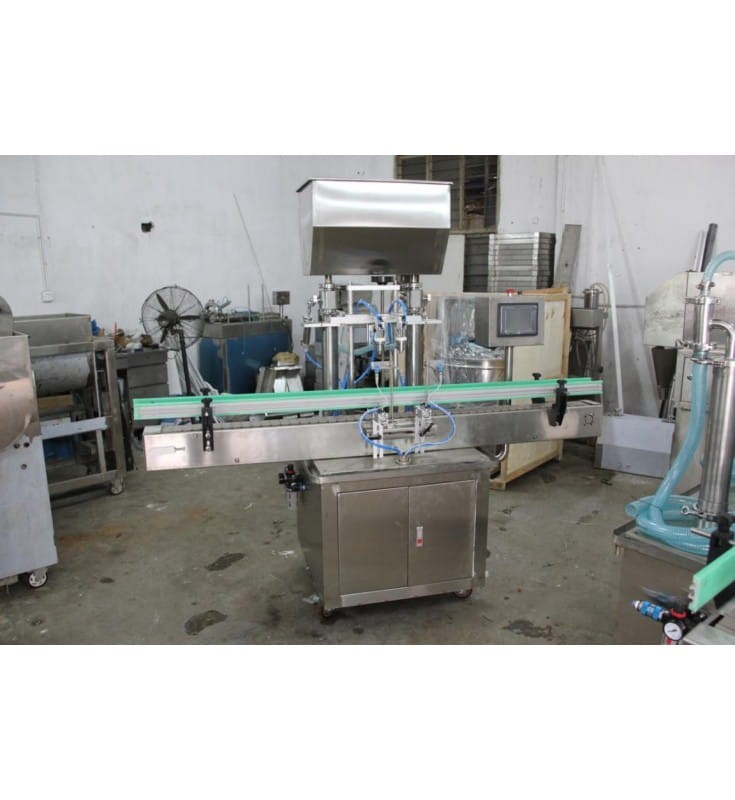

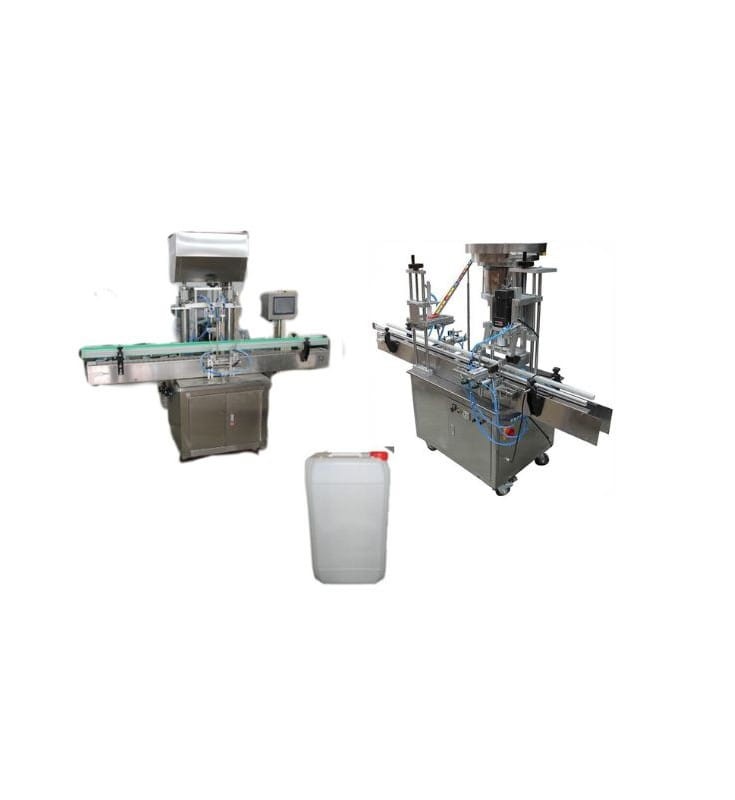

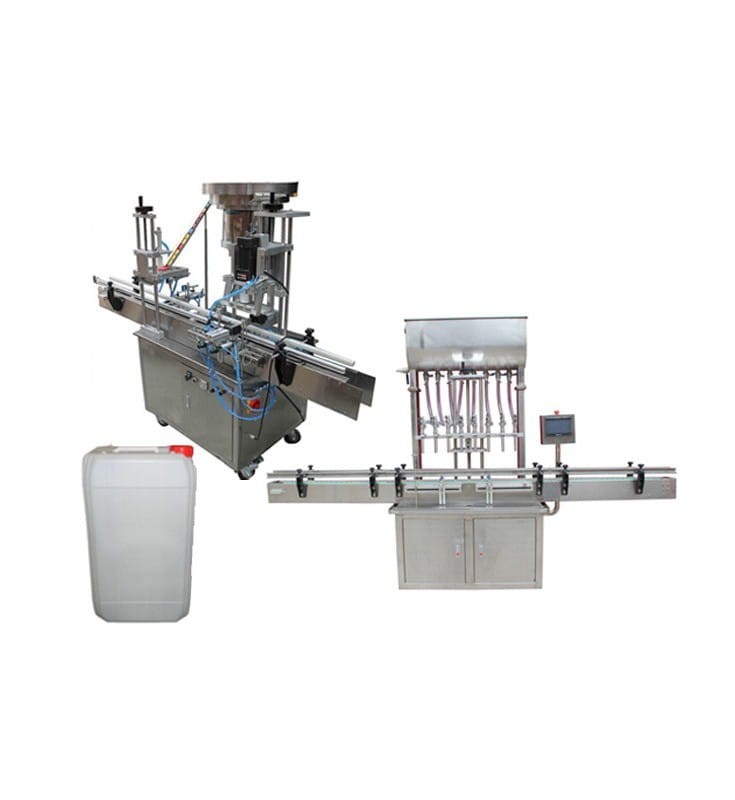

The line consists of a YT-2 filler and QDX cap machine.
Gravity pourer - liquids do not foam during dispensing.
Equipped with an anti-drip system.
Screwing machine with feeder and nut orientator.
The service takes place via a simple to use panel.
The line is very efficient and reliable.
Technical data:

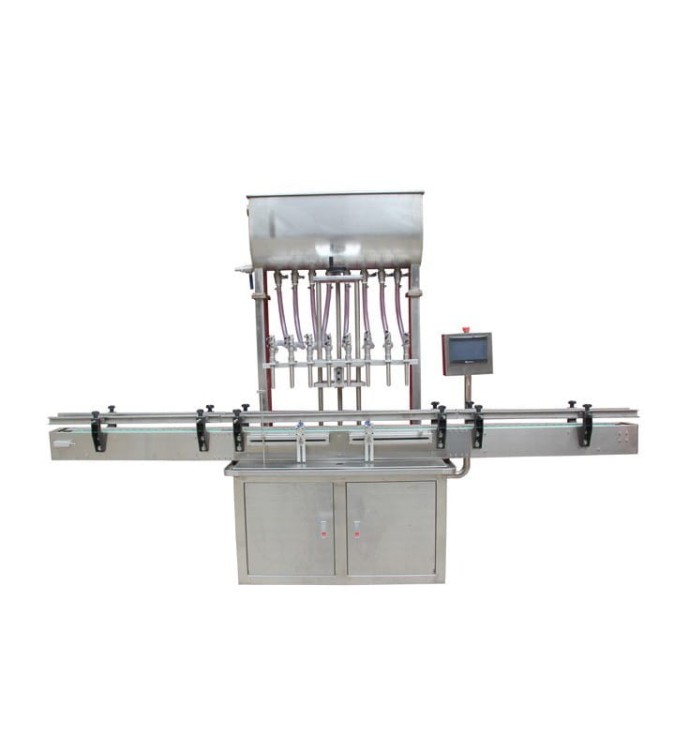

YT-2 filling machine:

Included options:

Tank

ATEX

Power: 0.5 kW
Power supply: 230V / 60Hz
The number of nozzles: 2
Range of dozes: 100-1000 ml
Accuracy: ≤ ± 1%
Air consumption: 0.5-0.7 Mpa
Belt conveyor: 2 m
Dimensions: 2000 x 800 x 1900 mm
Weight: 200 kg

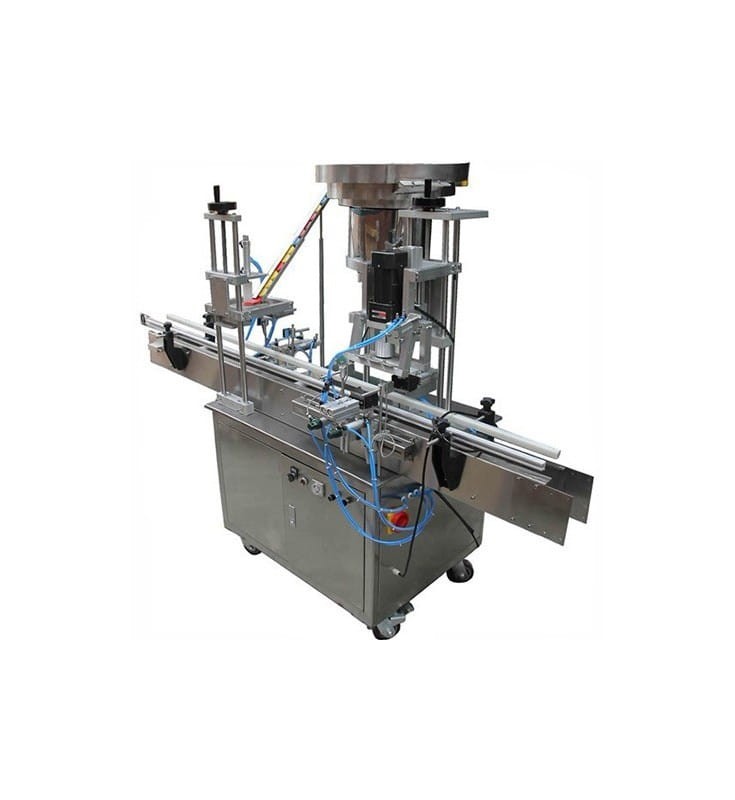

QDX closing machine:
Power supply: 230V / 60 Hz
Efficiency: 800  items / h
Air source: 0.4 Mpa
Diameter of the nut: 20 - 55 mm
Belt conveyor: 3 m (for bottles with a diameter of max. 140 mm)
