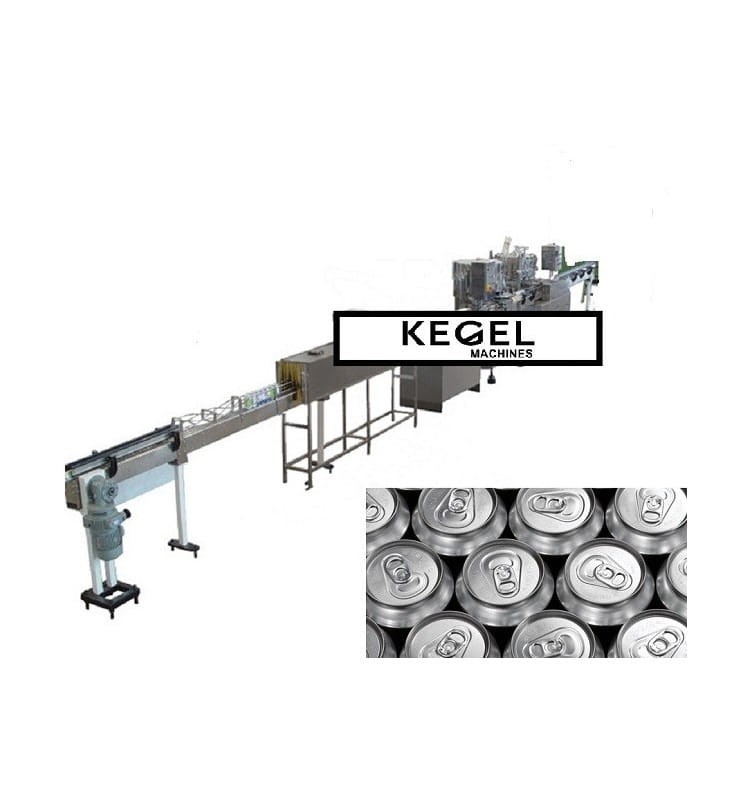

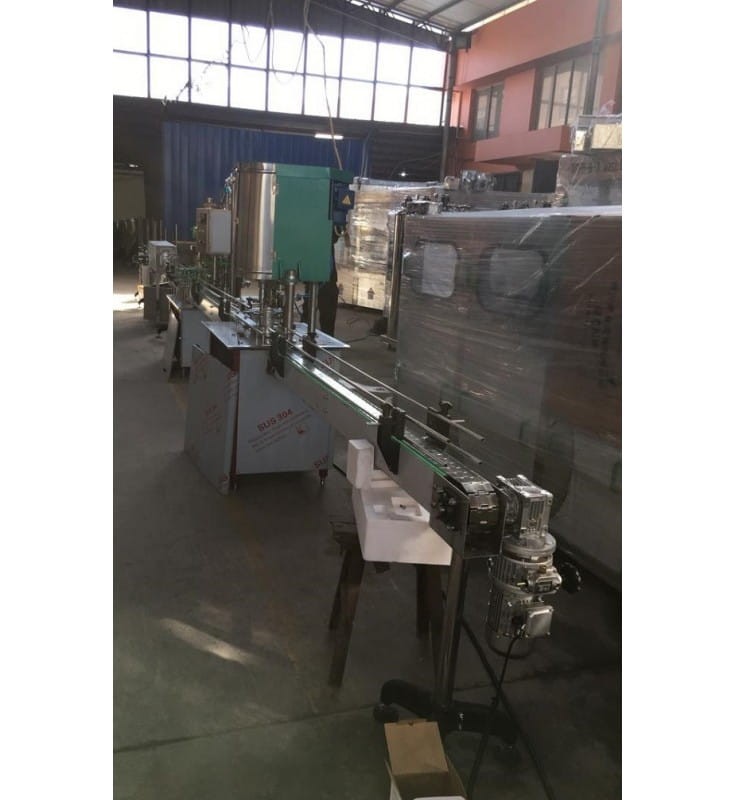

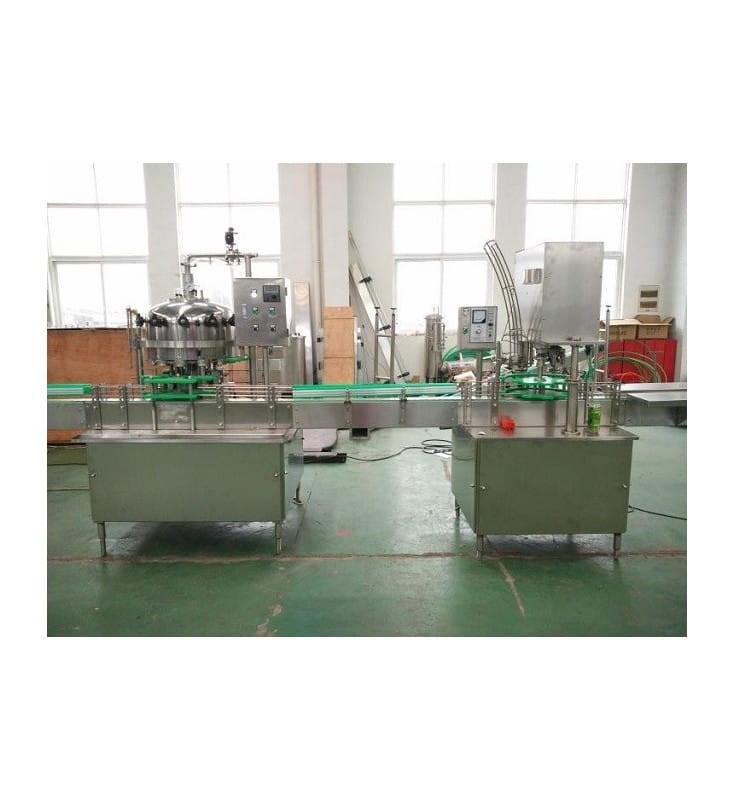

BOTTLING LINE FOR CANNED CARBONATED DRINKS

Application:
Fully automatic line designed for dispensing carbonated beverages in cans.

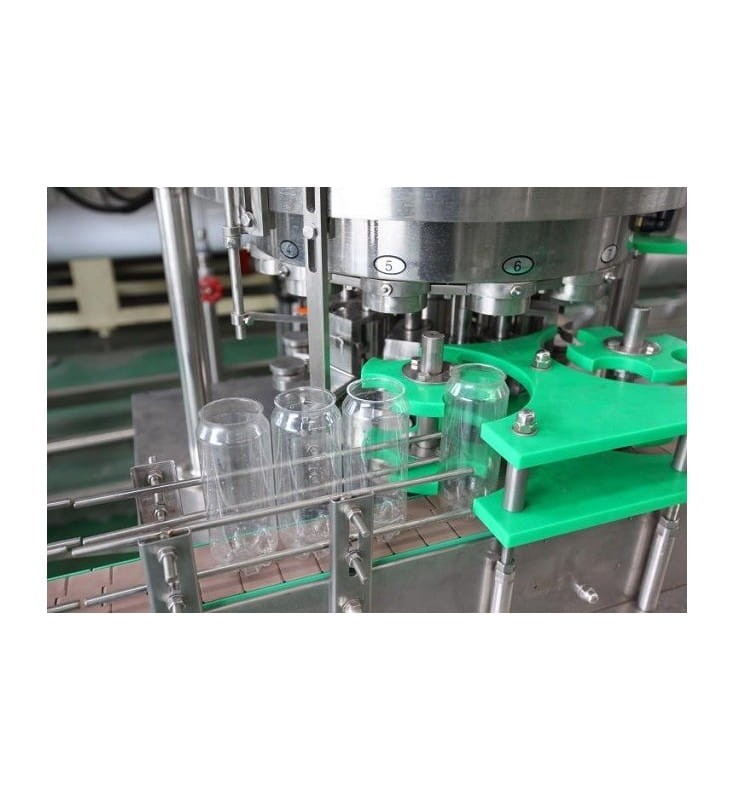

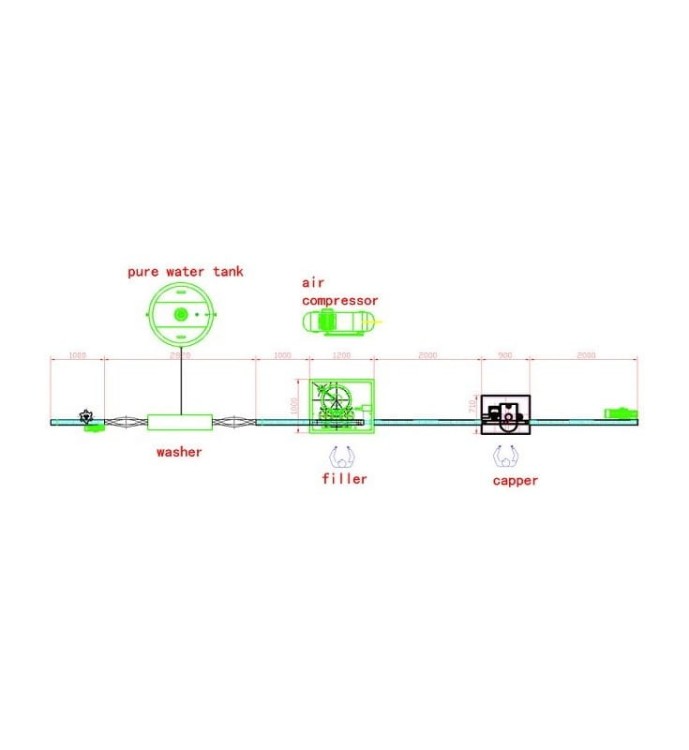

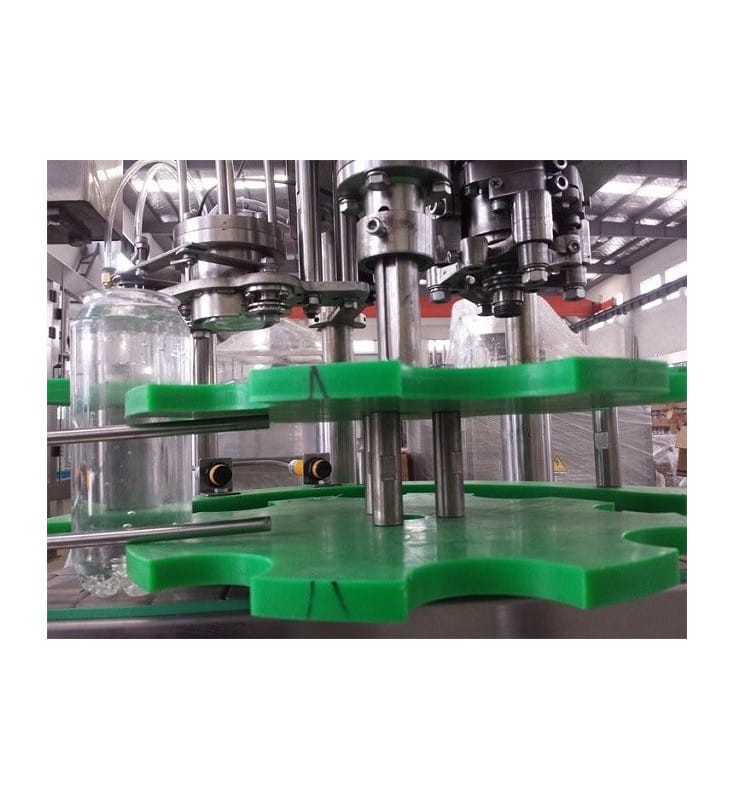

The line includes a washer, an isobaric filling machine that balances pressure to carbonated liquids, a can closing machine and conveyor belt.
Functions:
Devices made of high quality materials and components.
Easy to use and keep clean.
Capacity of production line is max. 2000 b/h.
The machine may be intended for contact with foodstuffs.
It has been designed in such a way as to avoid the risk of infection, disease, infection.
The elements can be easily cleaned before each use.
All surfaces in contact with the product have a smooth surface or are made of corrosion-resistant stainless steel.
The construction of the machine precludes the penetration of the substance into the product.
Technical parameters:

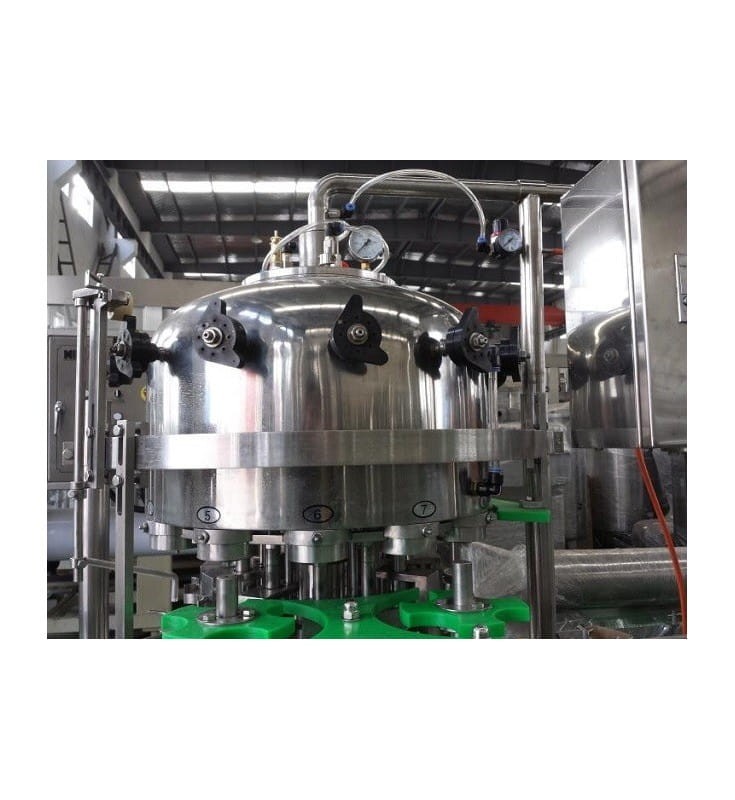

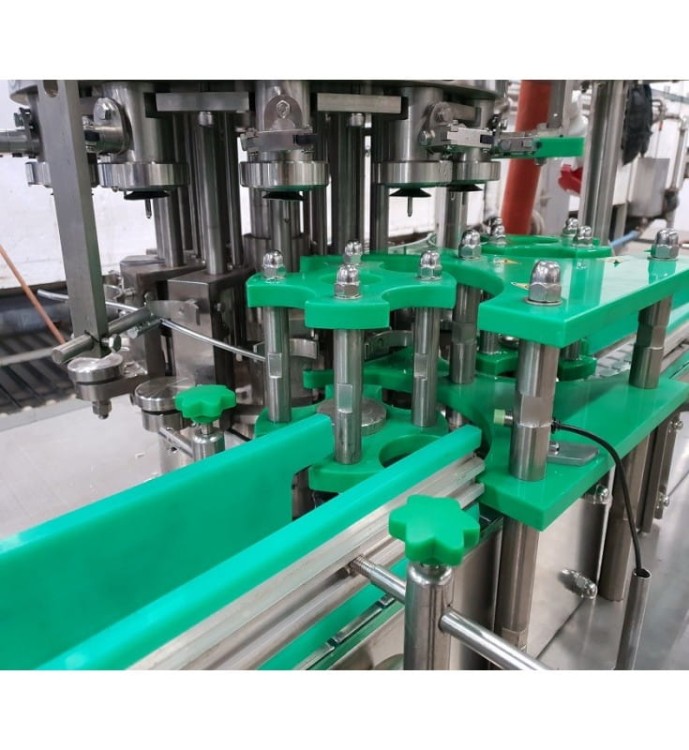

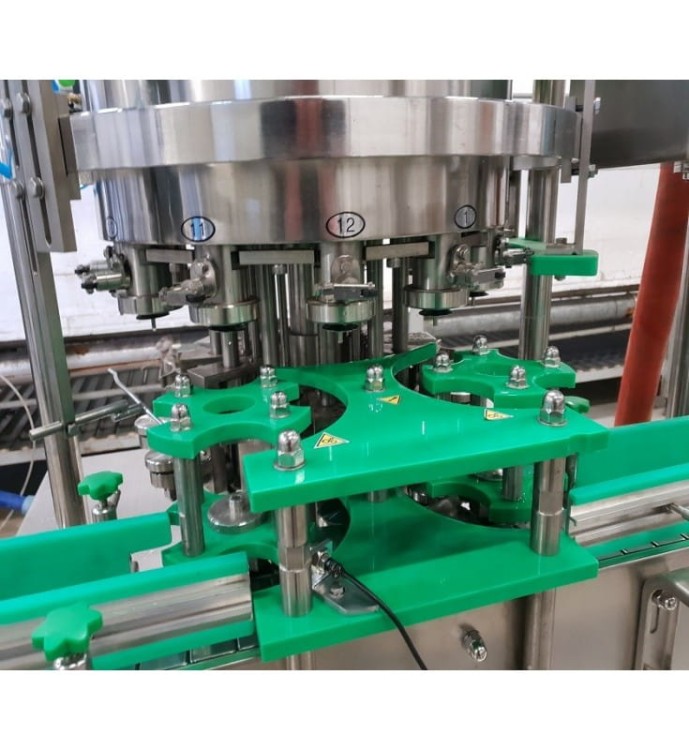

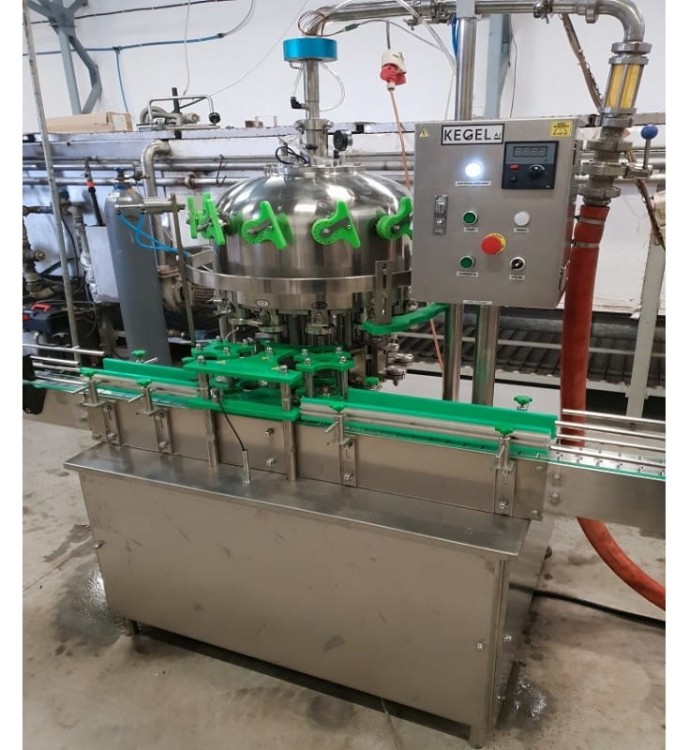

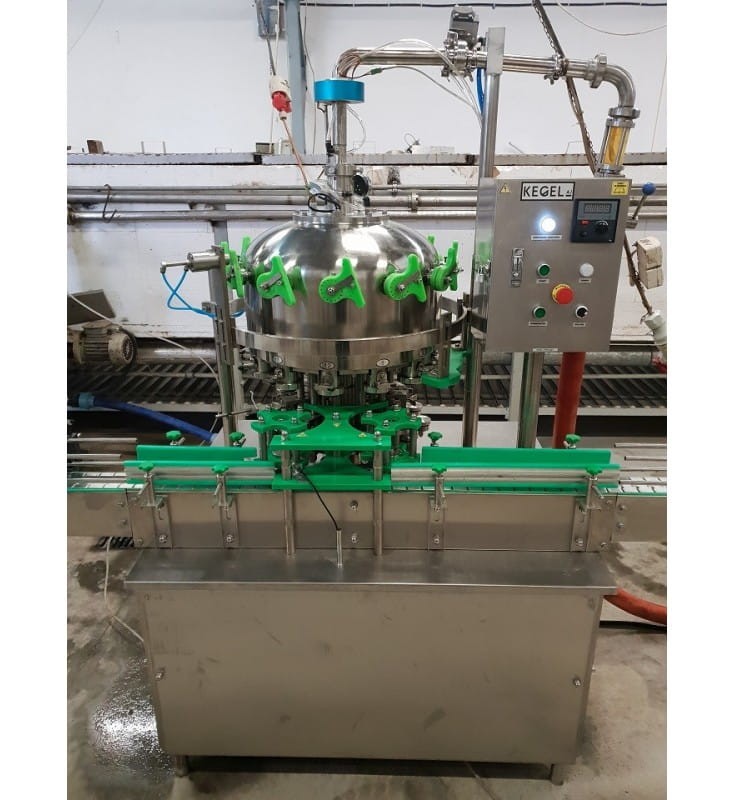

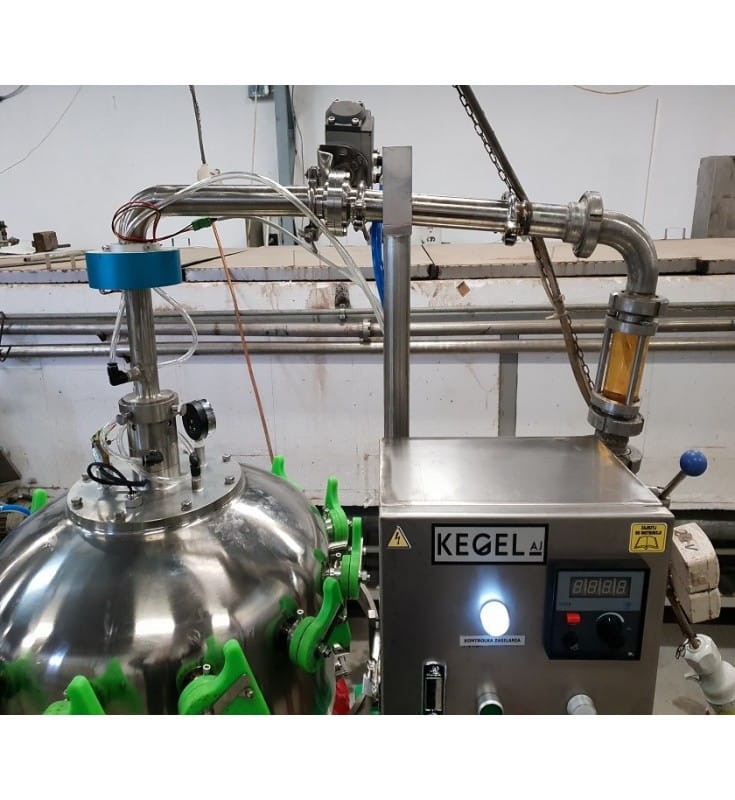

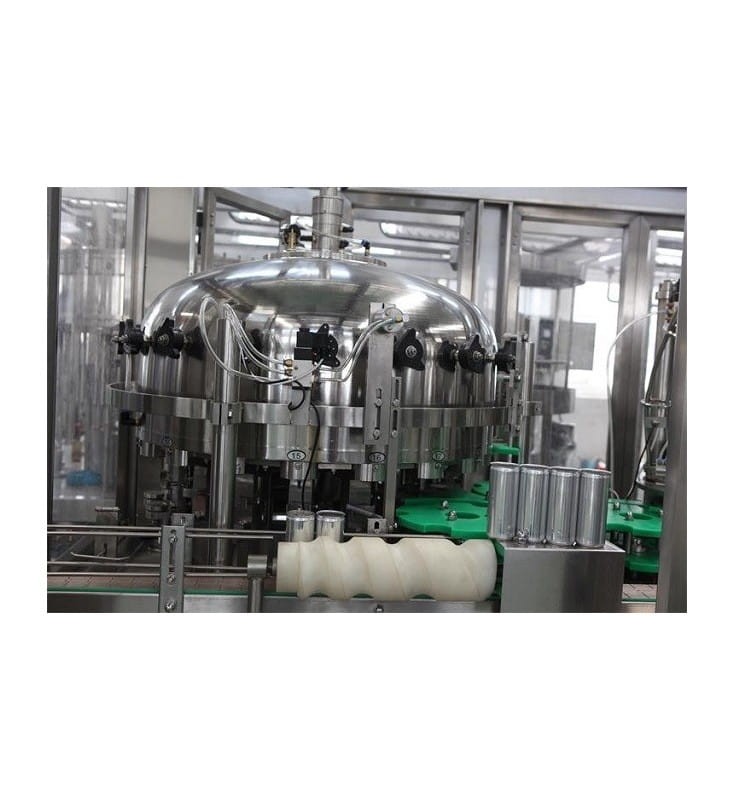

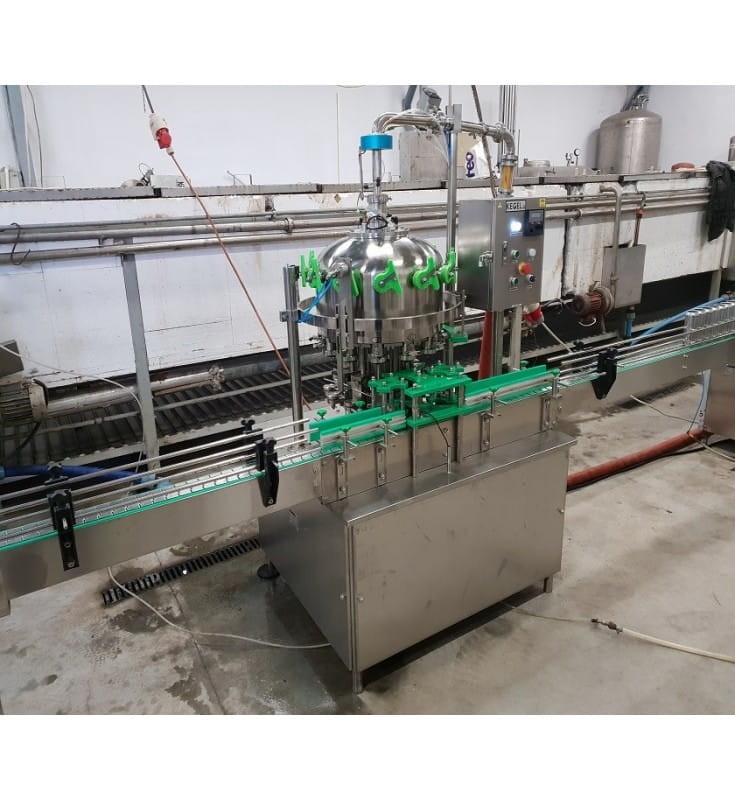

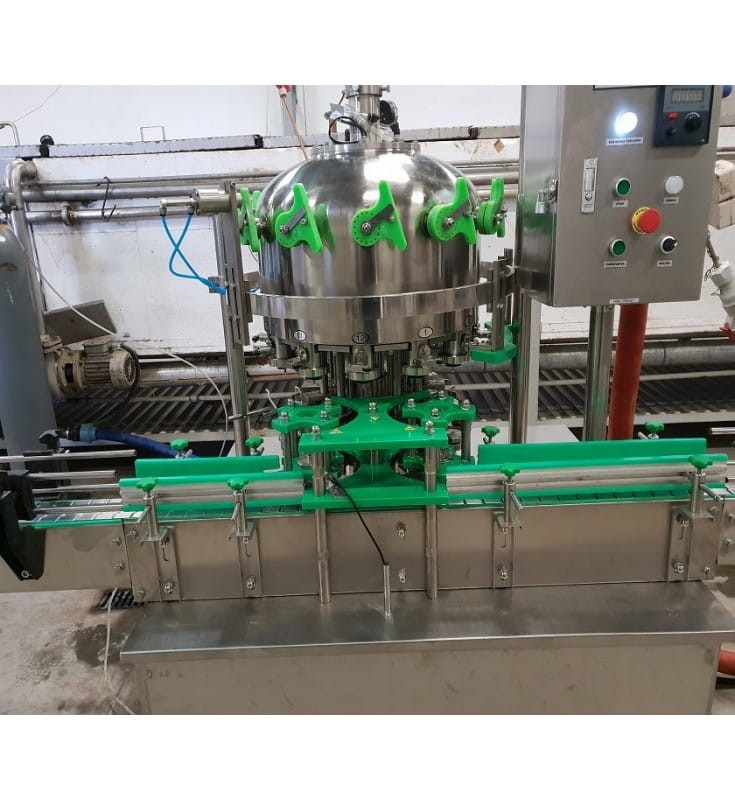

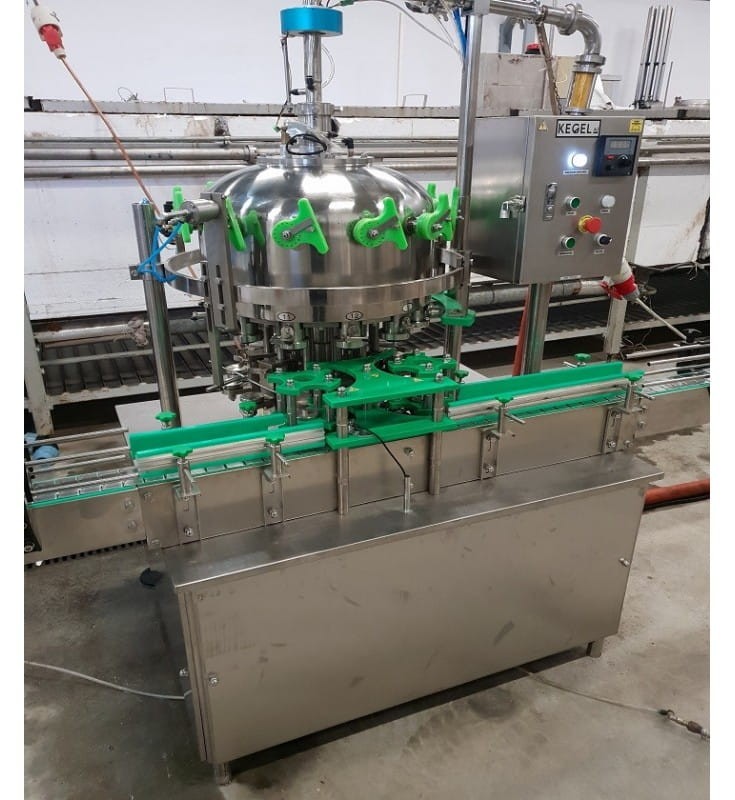

Filler DG-12:
Pouring heads: 12
Power: 1.5 kW
Power supply: 380 V / 50 Hz
Height of the can / bottle: 80 - 180 mm  US 3-7"
Diameter of the can / bottle: ≤ 70 mm  US 3"
Pouring temperature: 0 - 4°C

Capacity: 1000 - 1500 pcs / h

External dimensions [L x W x H]: 1200 x 1000 x 1900 mm  US 47 x 39 x 75"
Weight: 1000 kg  US 2204 lb

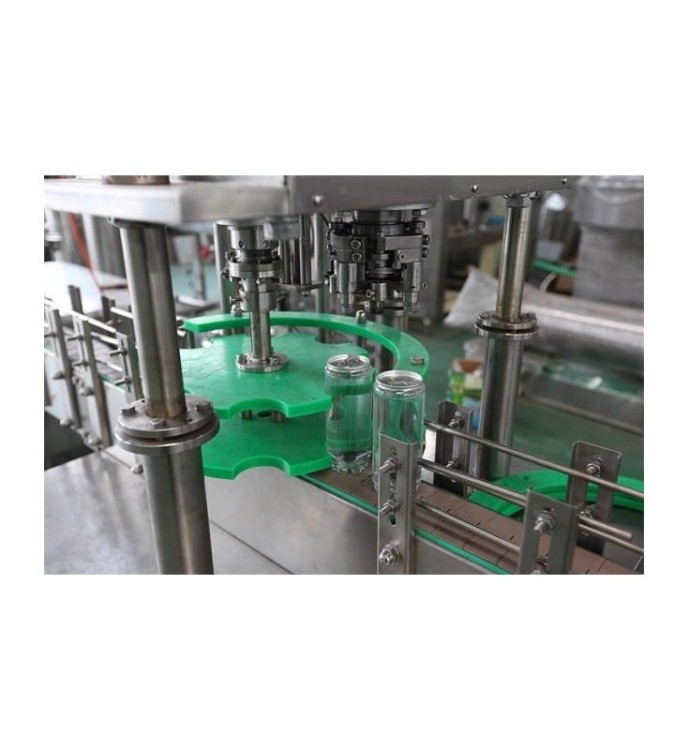

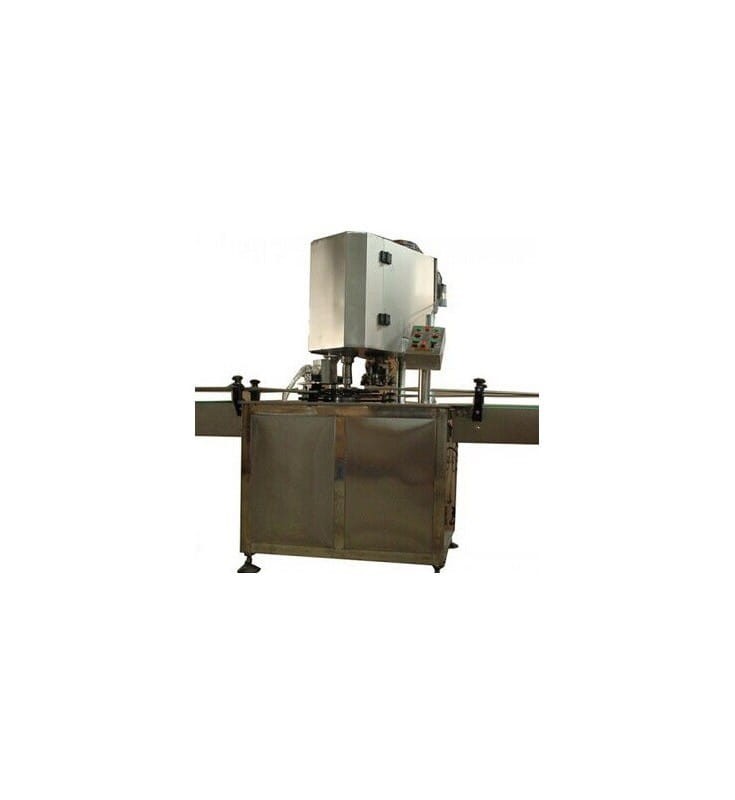

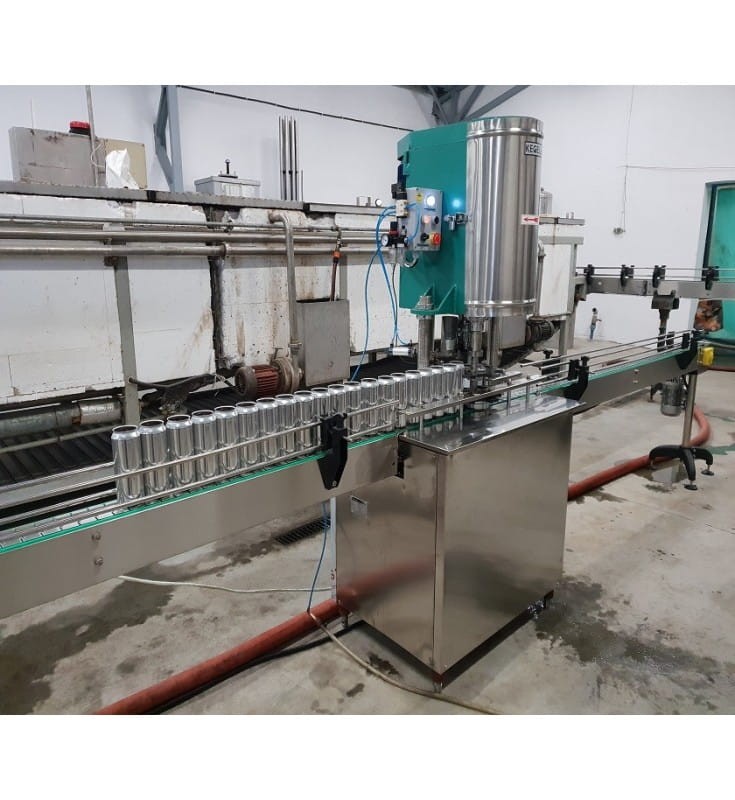

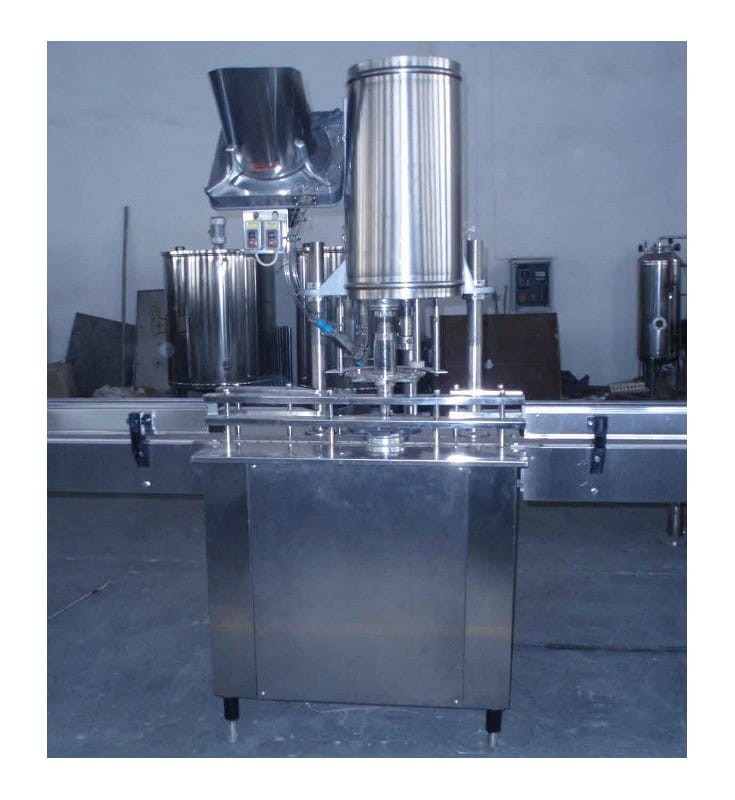

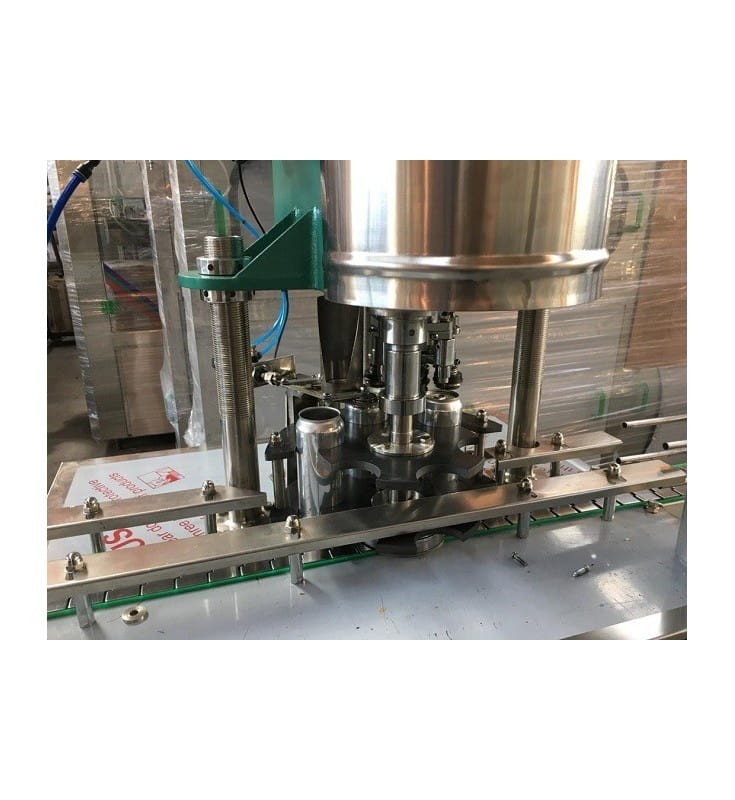

Closing machine FXZ-1:
Power: 0.75 kW
Power supply: 380 V / 50 Hz
Number of screw heads: 1
Height of the bottle / jar: 90 - 200 mm  US 3,5-8"
The diameter of the bottle jar / jar: 50 - 67 mm  US 2-2,6"
Capacity: 1000-1500 pcs / h
External dimensions [L x W x H]: 900 x 700 x 1800 mm  US 35 x 27 x 71"
Weight: 500 kg  US 1102 lb

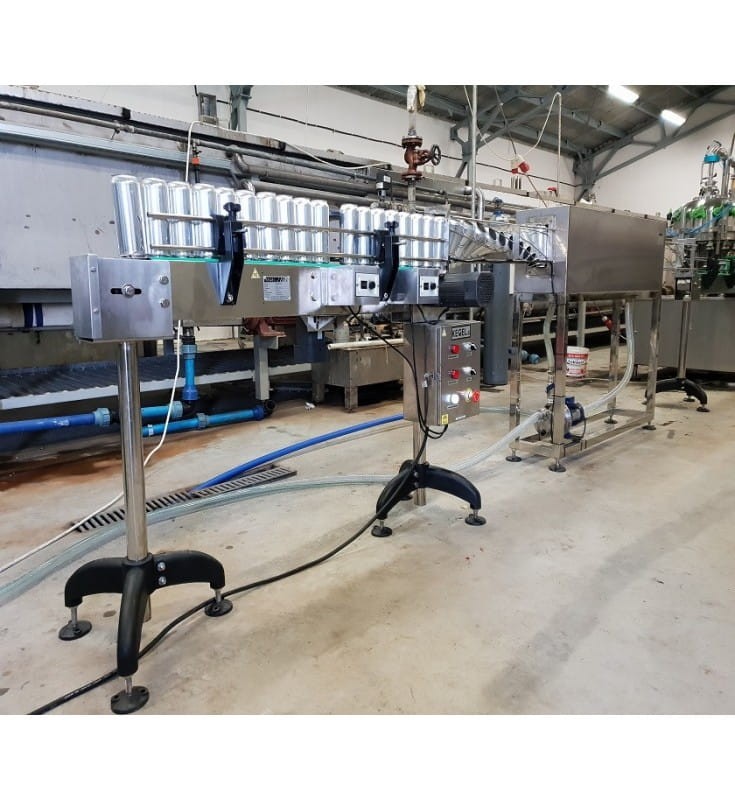

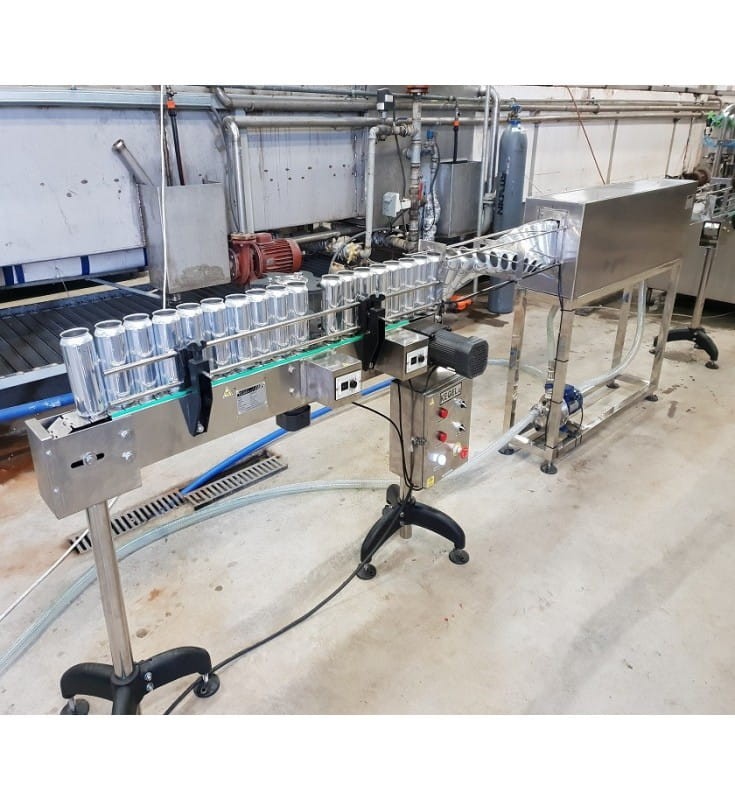

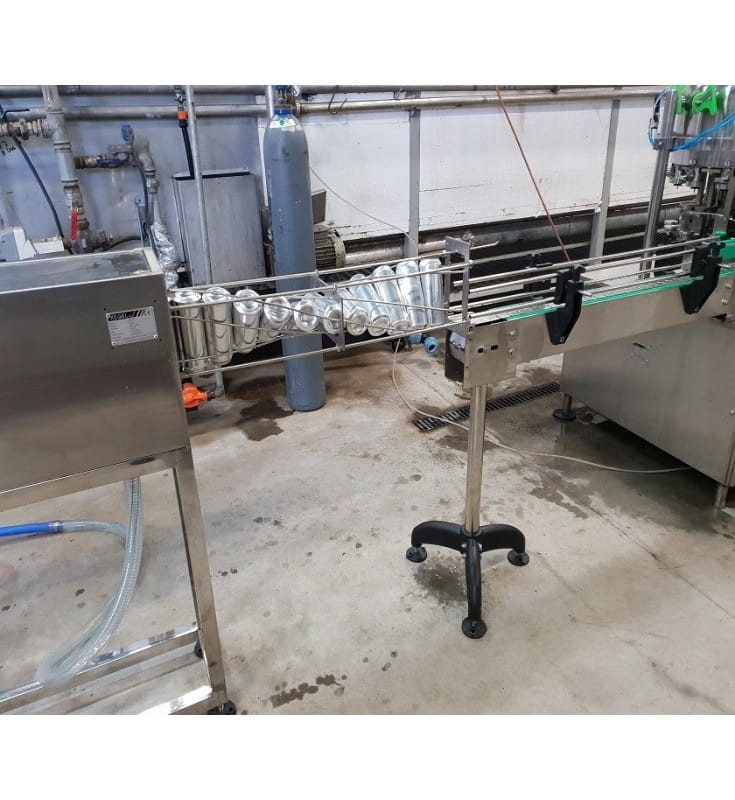

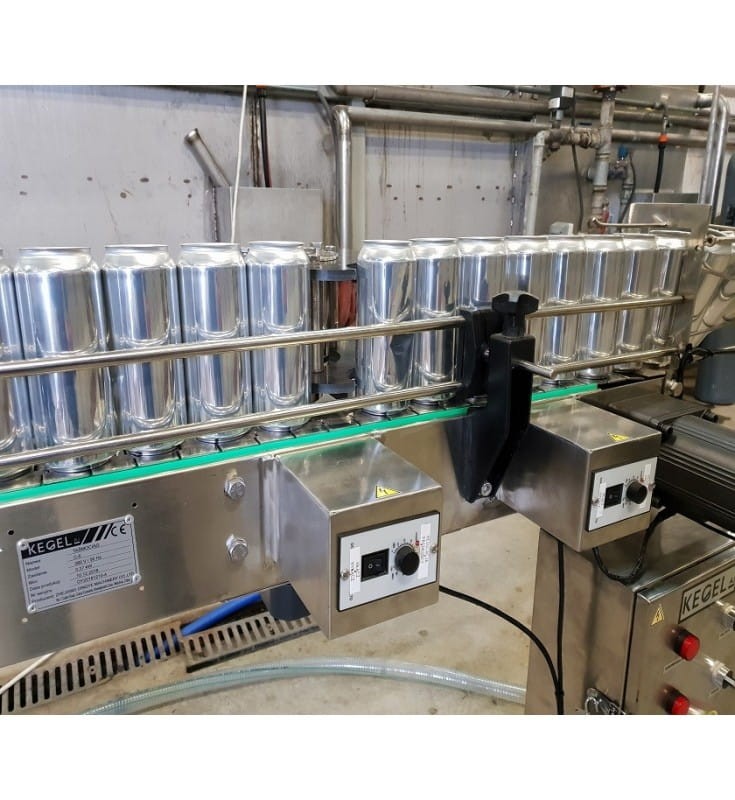

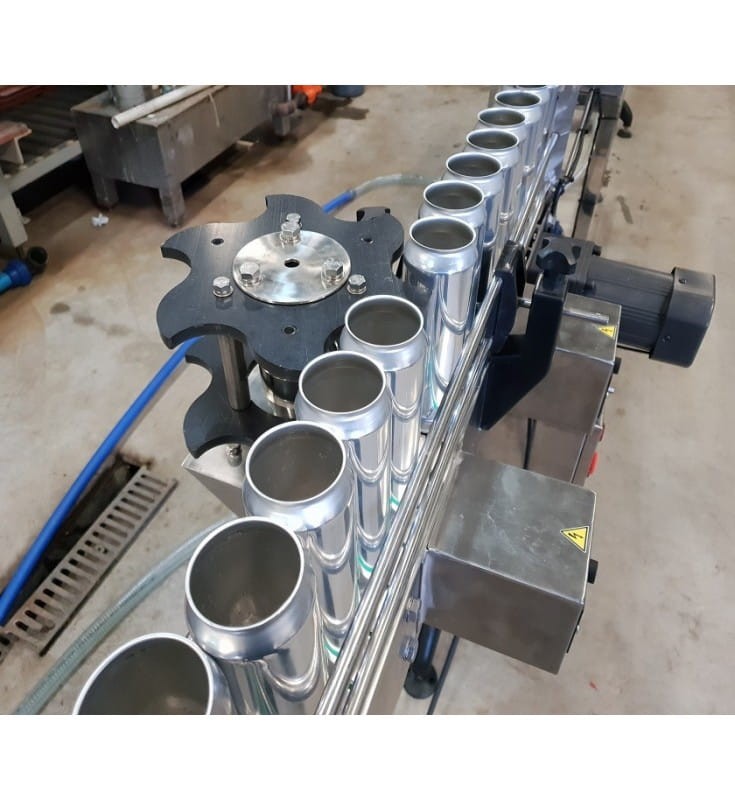

Conveyor:
Power: 0.37 kW
Power supply: 380 V / 50 Hz
Length: 6 m
Width: 150 mm  US 6"

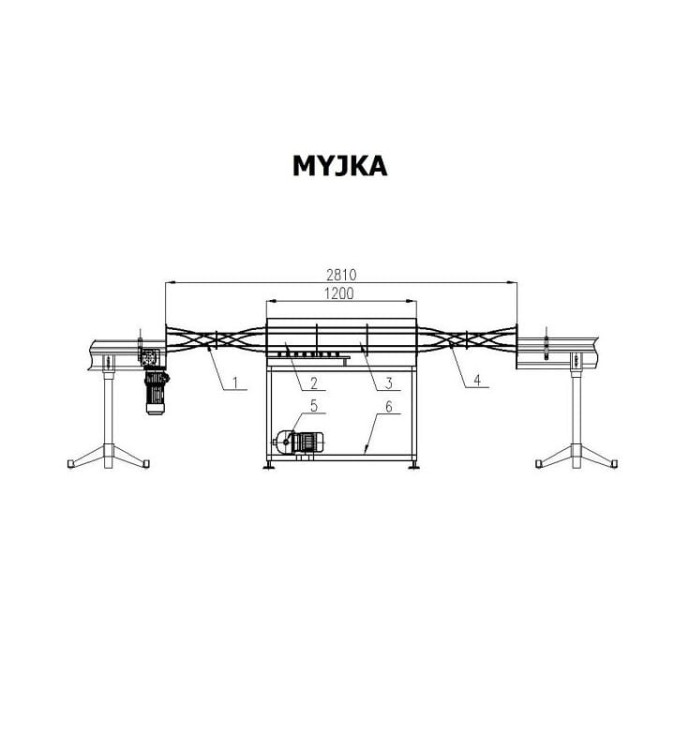

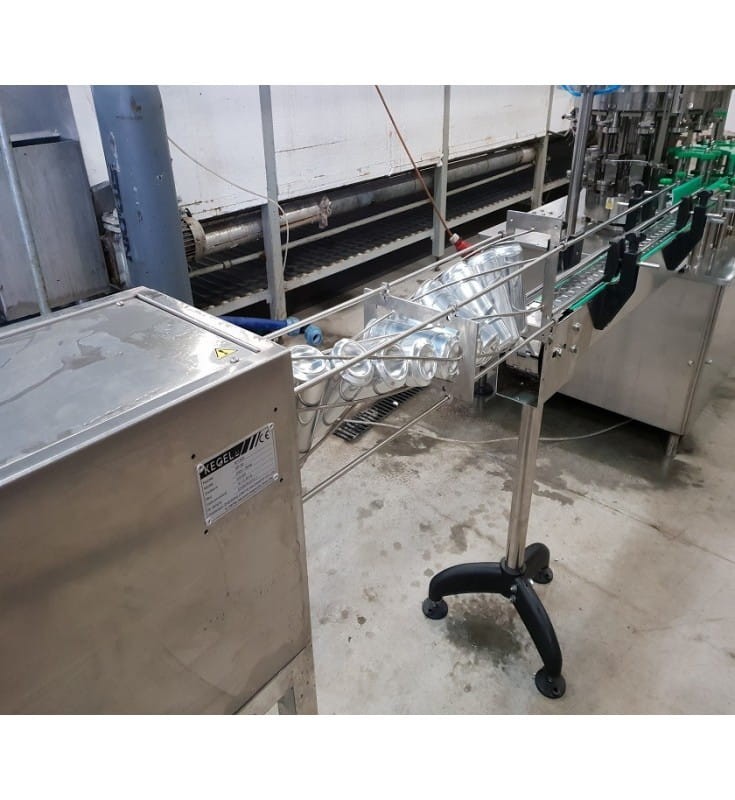

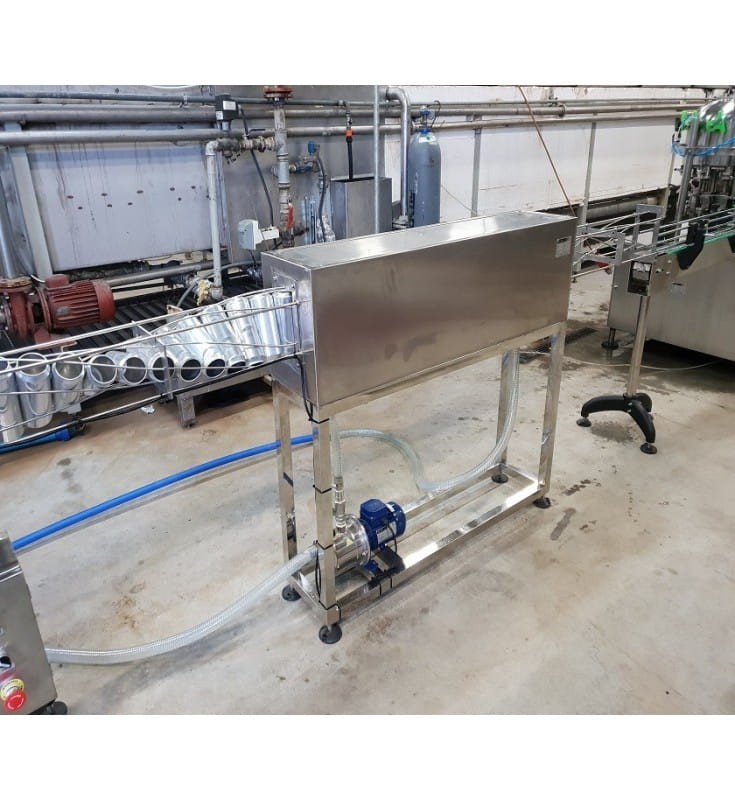

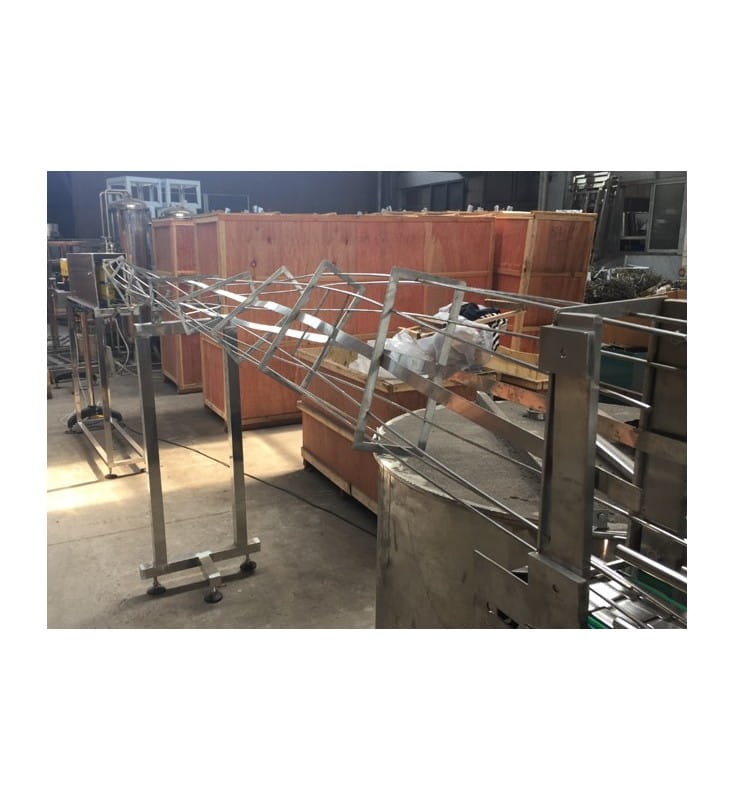

Washer machine XP-30:
Power supply: 230 V / 50 Hz  US 110 V
Power: 0.8 kW
The height of the box in the range: 150 - 350 mm  US 6-14"
Diameter of the box in the range: 50 - 100 mm  US 2-4"
Washing heads: 8 pcs

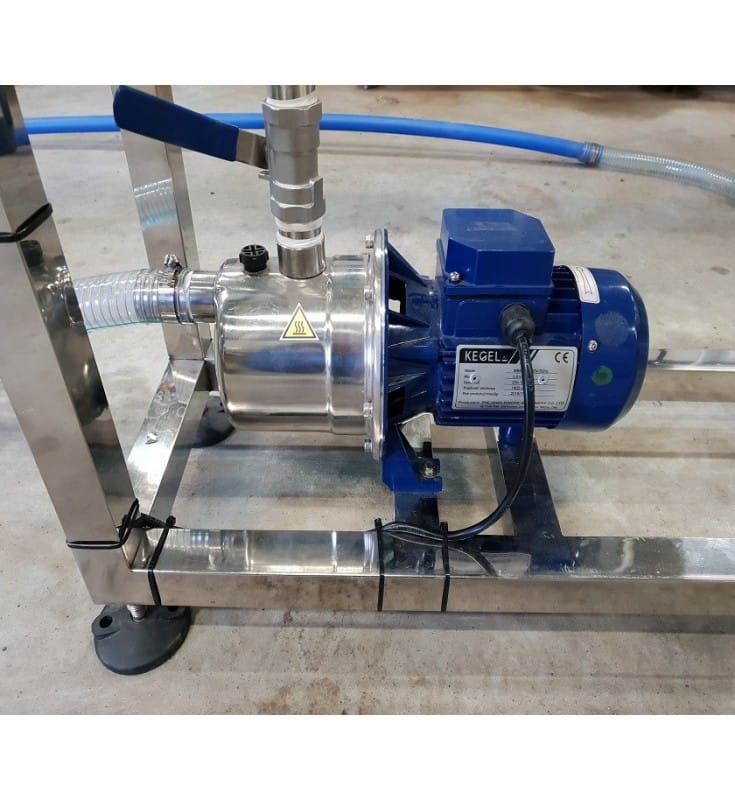

Pump model: SZ037
Weight: 40 kg  US 88 lb
External dimensions [L x W x H]: 2810 x 280 x 1200 mm  US 111 x 11 x 47"
