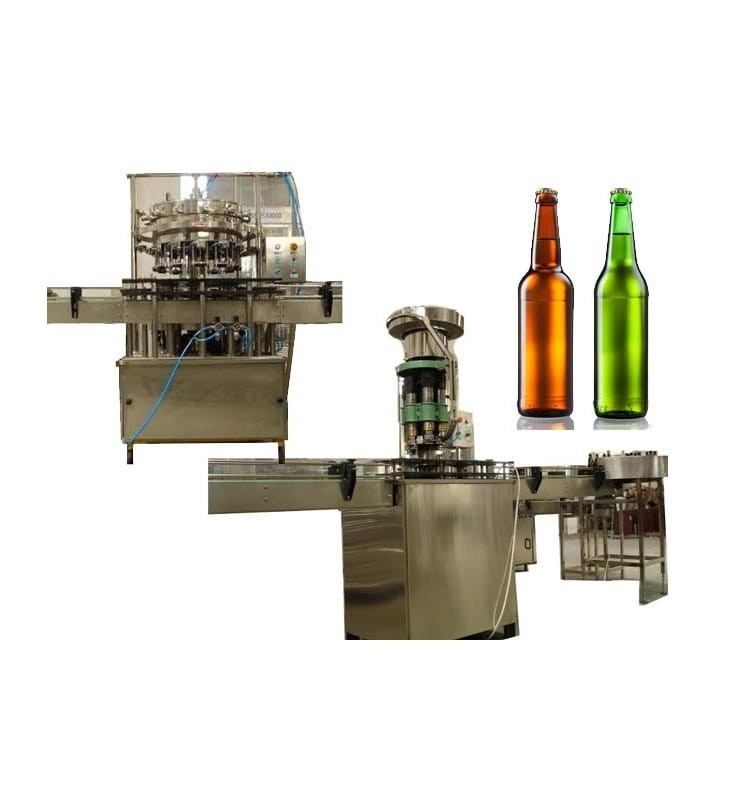

DG-12 + YG-6A LINE FOR BOTTLING BEER

Application:
A simple automatic filling line for beer consisting of a filling machine and a bottle cap.
Designed for glass bottles of various sizes.
Functions:
The price includes modules that allow you to work with 2 types of bottles, further modules additionally payable.
Devices equipped with conveyors.
The line is made of stainless steel, using high quality components.
Simple to use and maintain.
Technical parameters:

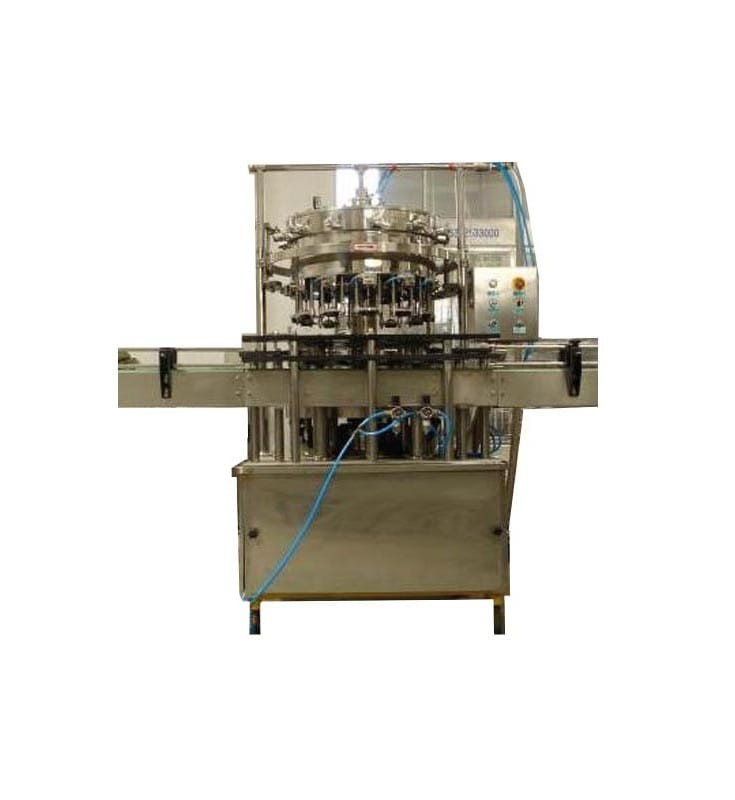

Filling machine DG-12:

Power: 1.5 kW

Power supply: 380 V / 50 Hz

Number of nozzles: 12

Bottle height: 80–180 mm  US 3.1-7.1"

Bottle diameter: ≤70 mm  US ≤2.8"

Filling temperature: 0 – 4°C

Capacity: 1000 - 1500 pcs / min.

External dimensions [L x W x H]: 1200 x 1000 x 1900 mm  US 47 x 39 x 75"

Weight: 1000 kg  US 2204 lb

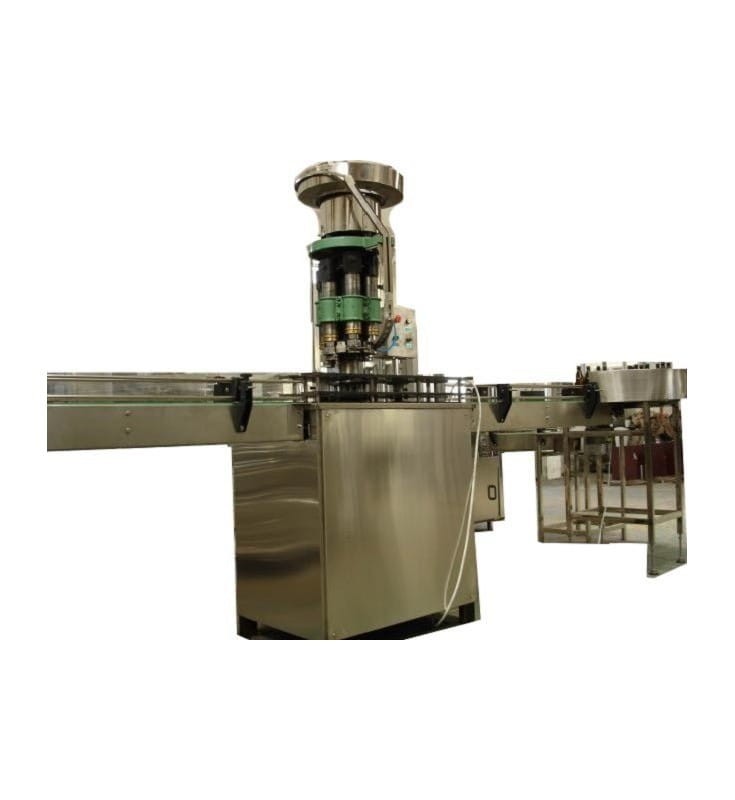

Capping machine YG-6A:
Power: 0.75 kW
The diameter of the bottle: 62 - 100 mm  US 2-4"
Bottle height: 160 - 300 mm  US 6-12"
Capacity: 2000 pcs / h
External dimensions [L x W x H]: 900 x 650 x 2200 mm  US 35 x 25 x 87"
Weight: 880 kg  US 1763 lb
