WASHING, FILLING, CAPPING, LABELING LINE FOR CARBONATED DRINKS

Application:

Complete, automatic beer packaging line.

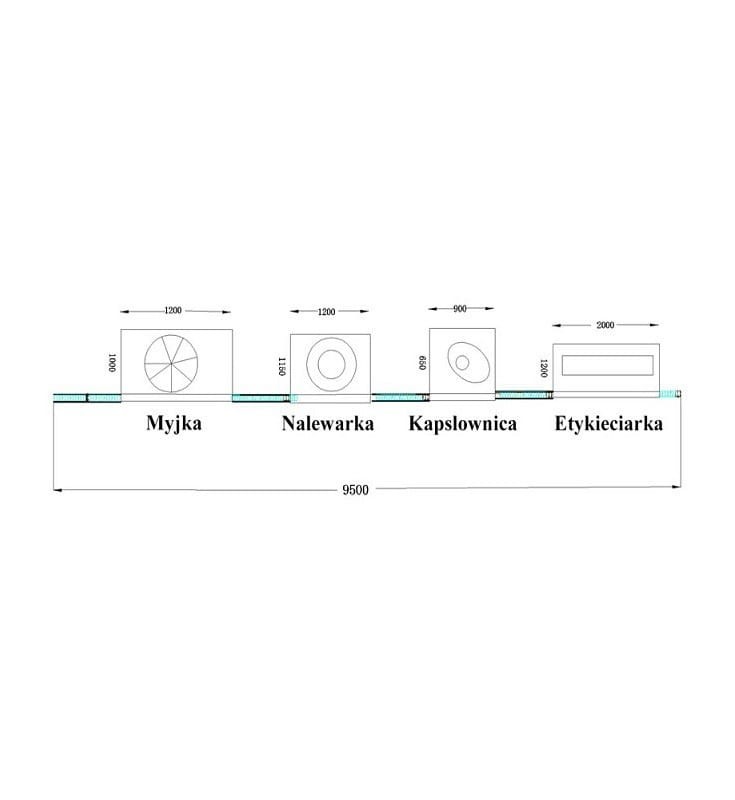

The line includes a bottle washer, pourer, capper and labeling machine, and a conveyor belt.
The capacity of the line is 1000-1500 bottles per hour.
Modern technology ensures the highest achievable level of performance.
This system provides high versatility and flexibility as well as excellent dynamics.

Functions:

Simple operation.
Easy to adjust.
Control by buttons.

European components - Weintec, Siemens, Panasonic etc.

Machines can be intended for contact with art. food.
Machine construction excludes substance penetration.
All elements in contact with the product have a smooth surface or are made of stainless steel, resistant to corrosion.
Technical data:

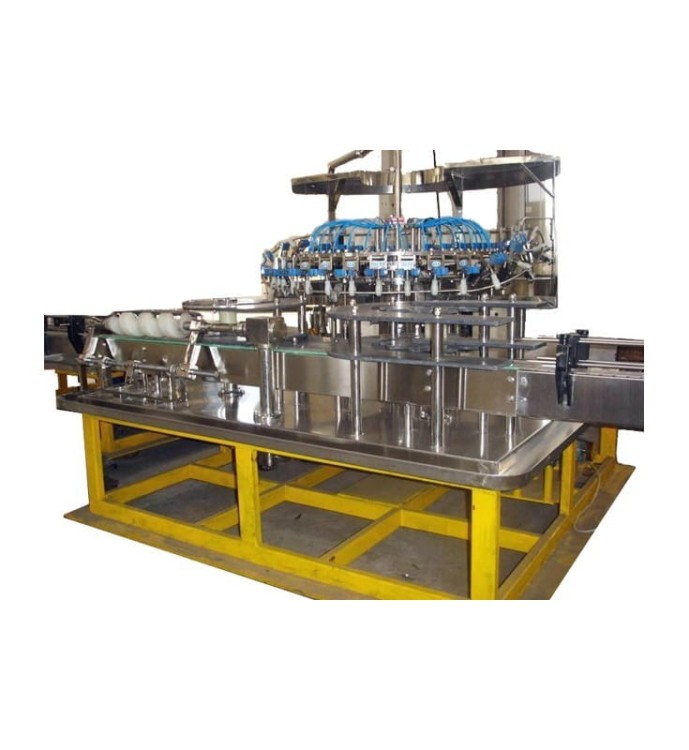

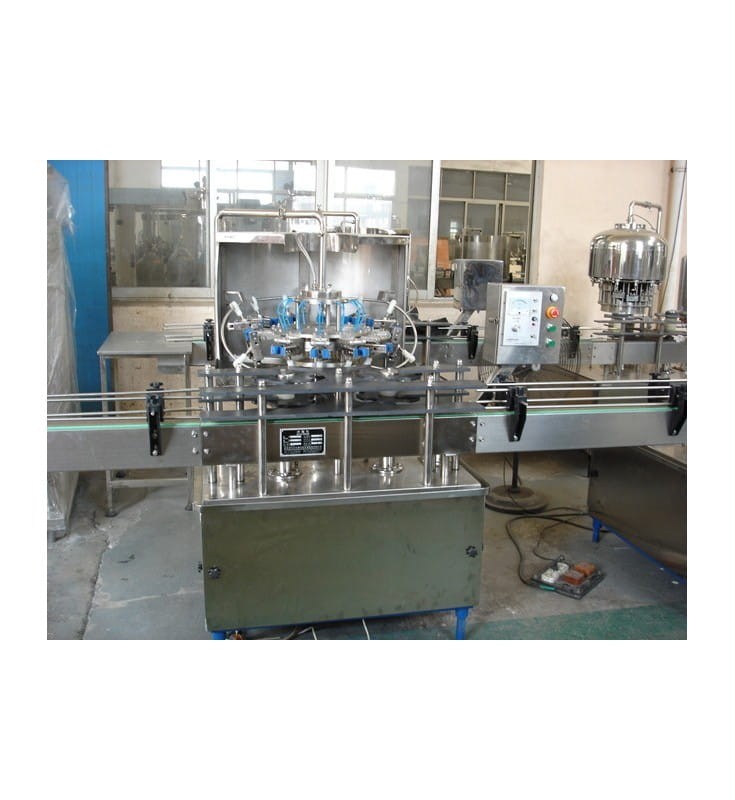

Washer:
Power: 1.12 kW

Power supply: 230 V / 50 Hz  US 110 V
Number of heads: 12
The diameter of the bottle: 55 - 100 mm  US 2-4"
Bottle height: 100 - 320 mm  US 4-12"
External dimensions [L x W x H]: 1200 x 1000 x 1800 mm  US 47 x 39 x 71"

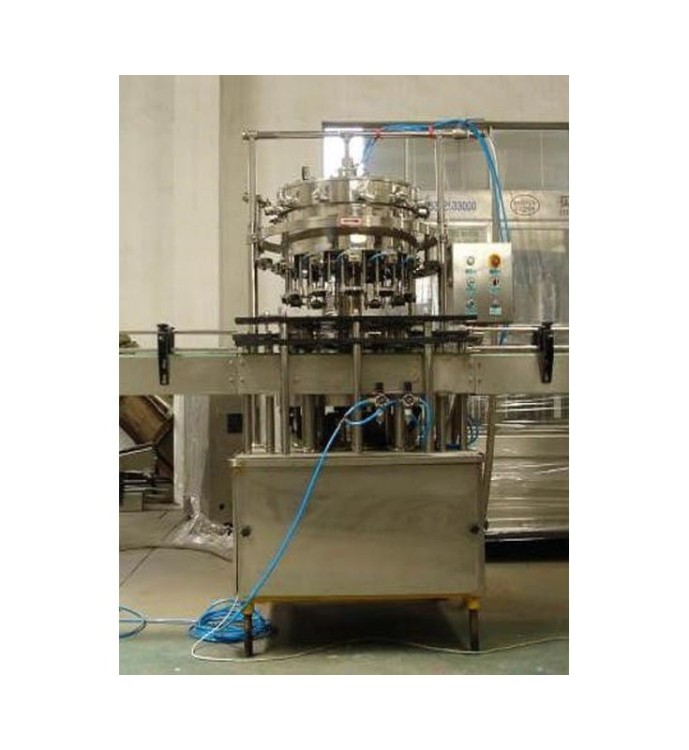

Filling machine:
Power: 0.75 kW

Power supply: 230 V / 50 Hz  US 110 V
Engine speed: 125 - 1250 r / min.
Number of dispensing nozzles: 12
The inner diameter of the bottle inlet: ≥ 16 - 18 mm US 0.63-0.71"
The diameter of the bottle: 55 - 95 mm  US 2-4"
Bottle height: 100 - 310 mm  US 4-12"
Capacity: 1000 - 1500 pcs / h (for bottles 330ml)
External dimensions [L x W x H]: 1200 x 1150 x 1850 mm  US 47 x 45 x 73"
Weight: 1000 kg US 2204 lb

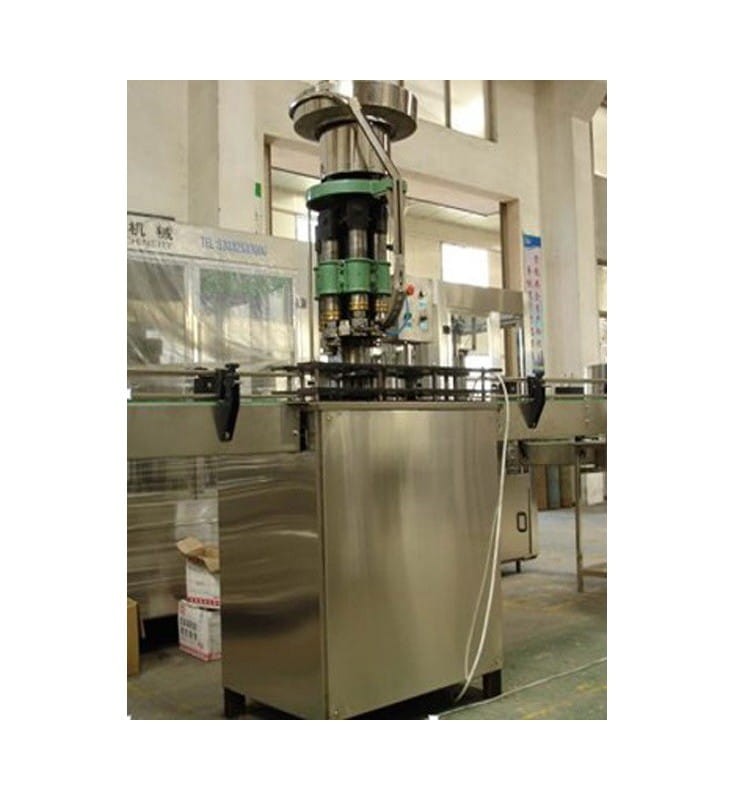

Capping machine:
Total power: 0.75 kW

Power supply: 230 V / 50 Hz  US 110 V
Number of items: 6
Bottle height: 160 - 300 mm  US 6-12"
The diameter of the bottle: 62 - 100 mm  US 2-4"
Caps: aluminum
External dimensions [L x W x H]: 900 x 650 x 2200 mm  US 35 x 25 x 87"
Weight: 880 kg  US 1940 lb

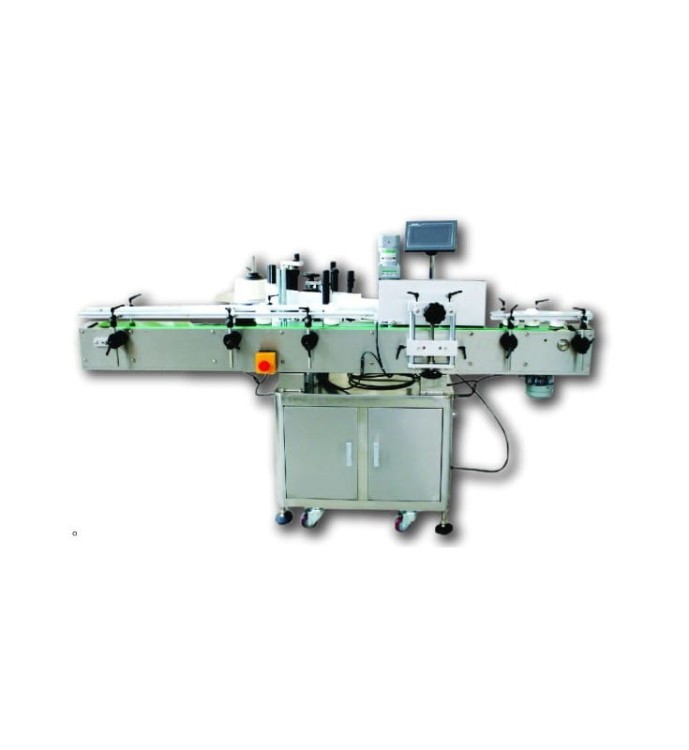

Labeling machine:
Power: 1.5 kW

Power supply: 230 V / 50 Hz  US 110 V
Bottle height: 30 - 200 mm  US 1-8"
Diameter of the bottle: 25 - 100 mm  US 1-4"
Width of labels: 15 - 180 mm  US 0,6-7"
Label length: 20 - 300 mm  US 0,8-12"
The diameter of the label's role: 380 mm  US 15"
Inner diameter of the label roll: 76 mm  US 3"
Accuracy: +/- 1 mm  US 0,04"
Distance from the ground to the conveyor belt: 950 +/- 40 mm  US 37 +/- 1,5"
The width of the conveyor belt: 112 mm  US 4"
External dimensions [L x W x H]: 2000 x 1200 x 1350 mm  US 79 x 47 x 53"
Weight: 175 kg  US 386 lb

Possibility to upload the menu in other language.

Extra paid options:
Full stainless steel version
Stamp
Alarm signaling the end of the label
