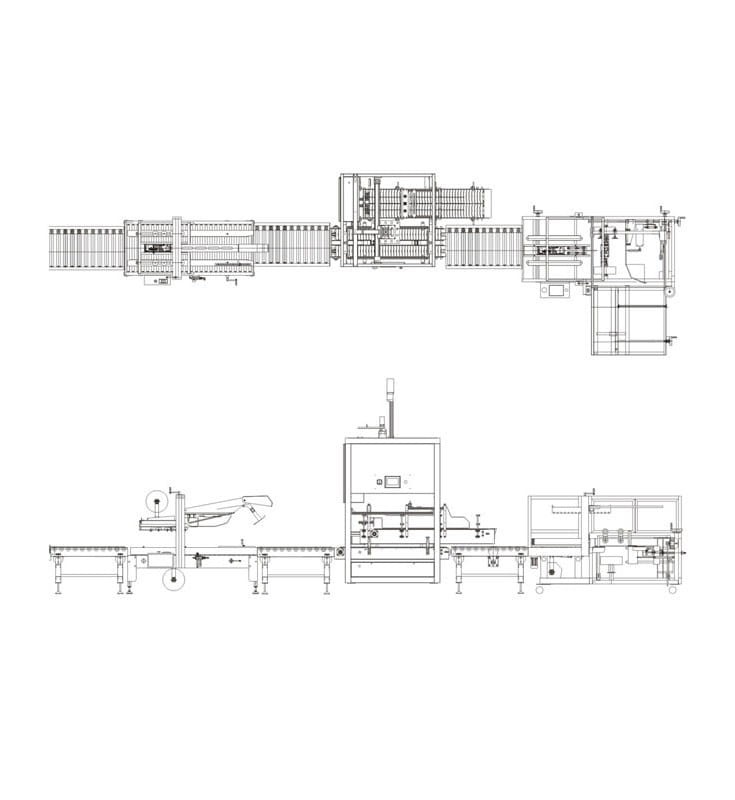

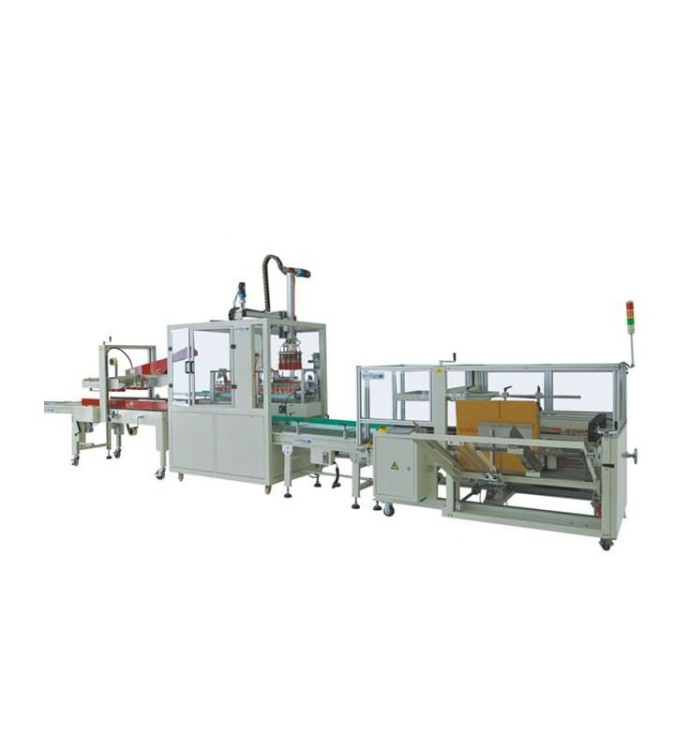

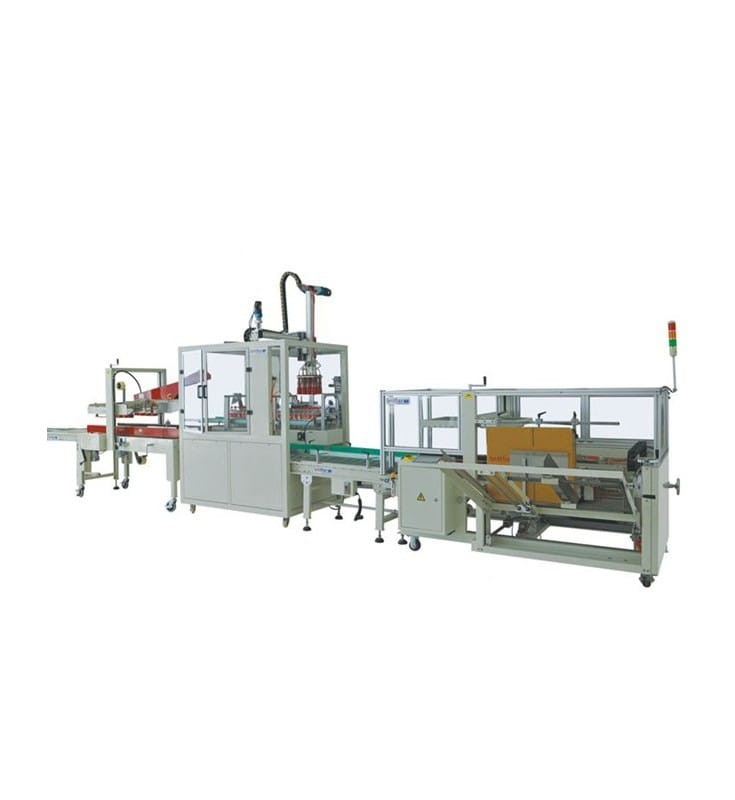

CARTON PACKING LINE

Application:
Automatic packaging line for products in cartons.

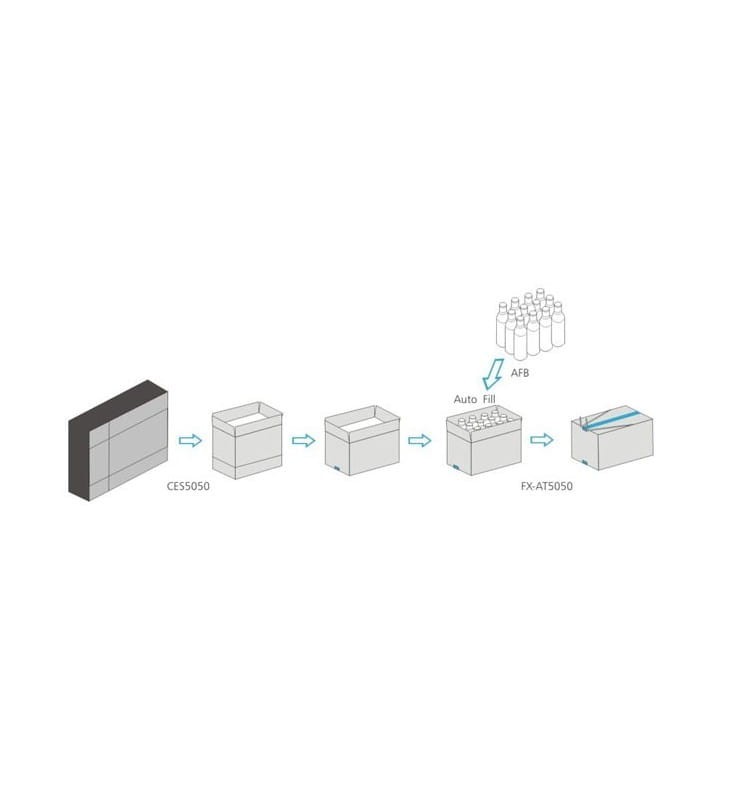

Each carton is folded, glued on the bottom and fed into the packaging machine.
Functions:

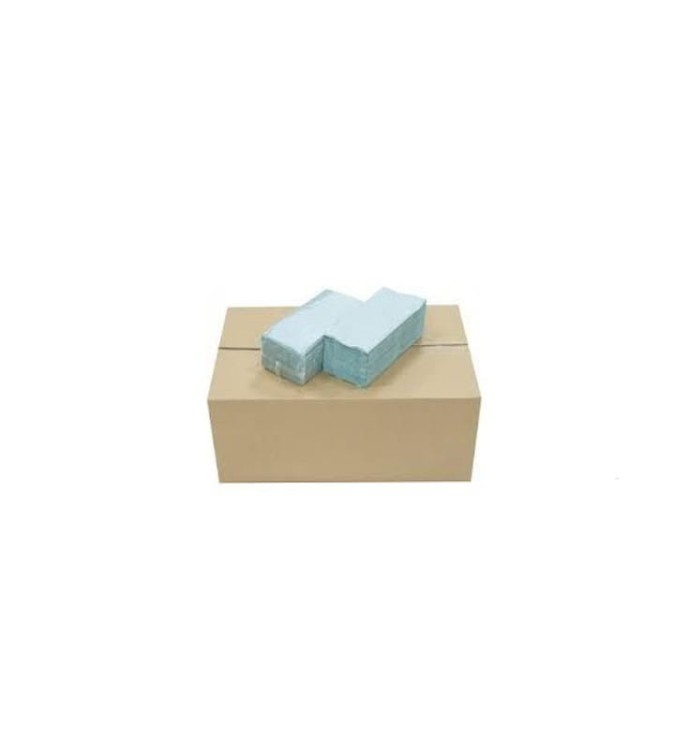

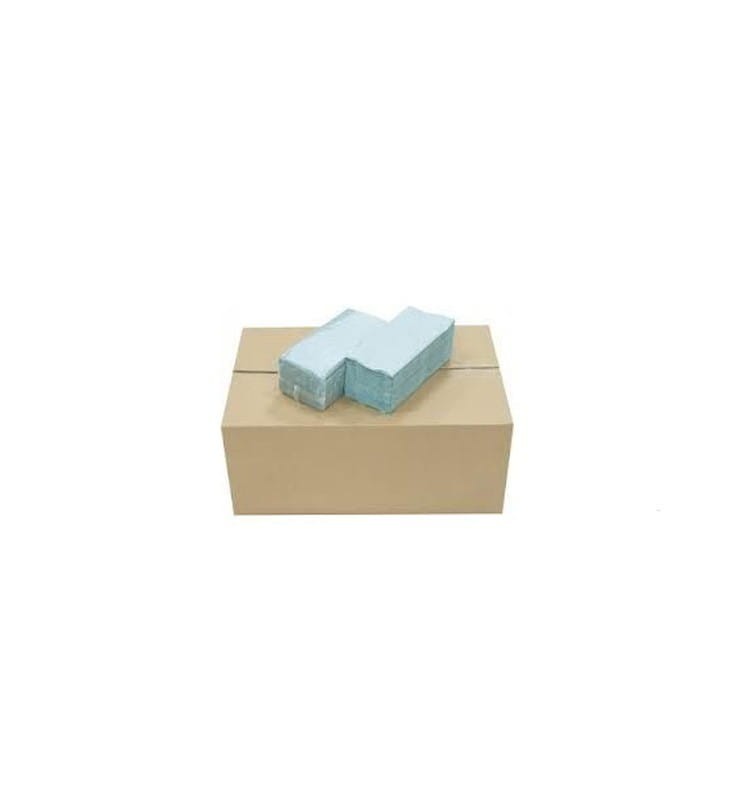

The machine fills the carton with the product (eg bottles or paper towels).
Then the next device closes and seals the cardboard box from the top.
Two roller conveyors included in the price.
A simple line to use, efficient and trouble-free.
Requires connection to the source of compressed air.
Technical data:

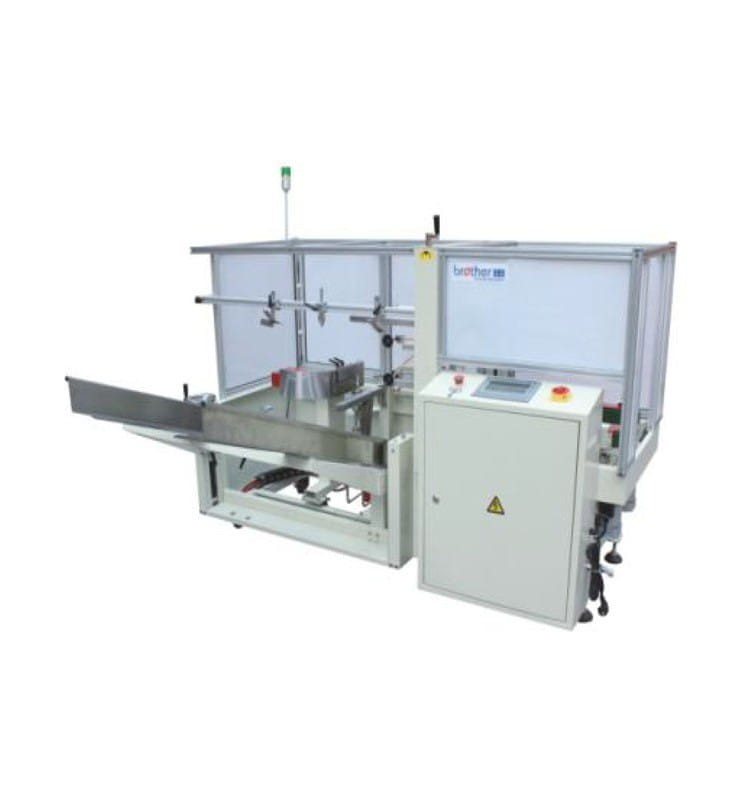

Automatic folding machine CES4035N / A:
Power supply: 380 V / 50 Hz
Air source: above 500 l/ min, 0.4 - 0.8 MPa
The length of cartons: 200 - 500 mm  US 8-20"
The width of cartons: 150 - 390 mm  US 6-15"
Height of cartons: 100 - 350 mm  US 4-14"
The height of the worktop: 650 mm  US 25"
Capacity: 1 - 10 cartons / min.
Tape width: 48, 60 or 75 mm  US 1,8", 2,3", 3"
Dimensions of the device [L x W x H]: 2000 x 1900 x 1450 mm  US 79 x 75 x 57"
Weight: 550 kg  US 1212 Ib
Automatic packaging machine for cartons AFBIII:
Power: 1.5 kW
Power supply: 230 V / 50 Hz  US 110 V / 50 Hz
Air source: 400 l/ min.
Efficiency: 5 - 10 cartons / min.
External dimensions [L x W x H]: 1500 x 1200 x 2600 mm  US 59 x 47 x 102"
Weight: 400 kg  US 881 lb

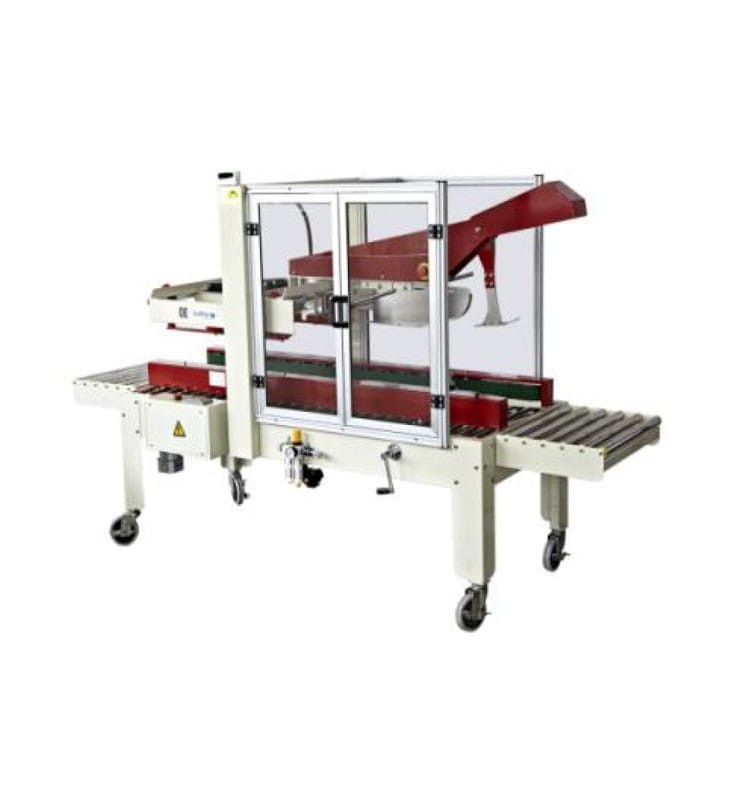

Carton sealer FX-AT5050:
Power: 0.24 kW
Travel speed: 16 m / min.  US 630" / min.
The width of cartons: 120 - 500 mm  US 5-20"
Height of cartons: 120 - 500 mm  US 5-20"
Tape width: 48, 60 or 75 mm  US 1,8", 2,3", 3"
External dimensions [L x W x H]: 1780 x 950 x 1400 mm  US 70 x 37 x 55"
Weight: 240 kg  US 529 Lb
