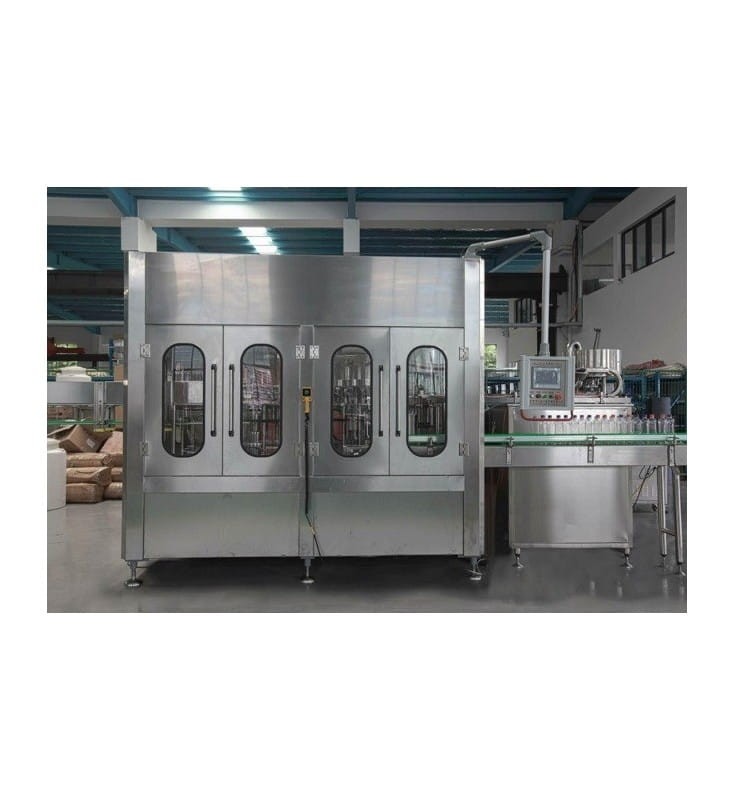

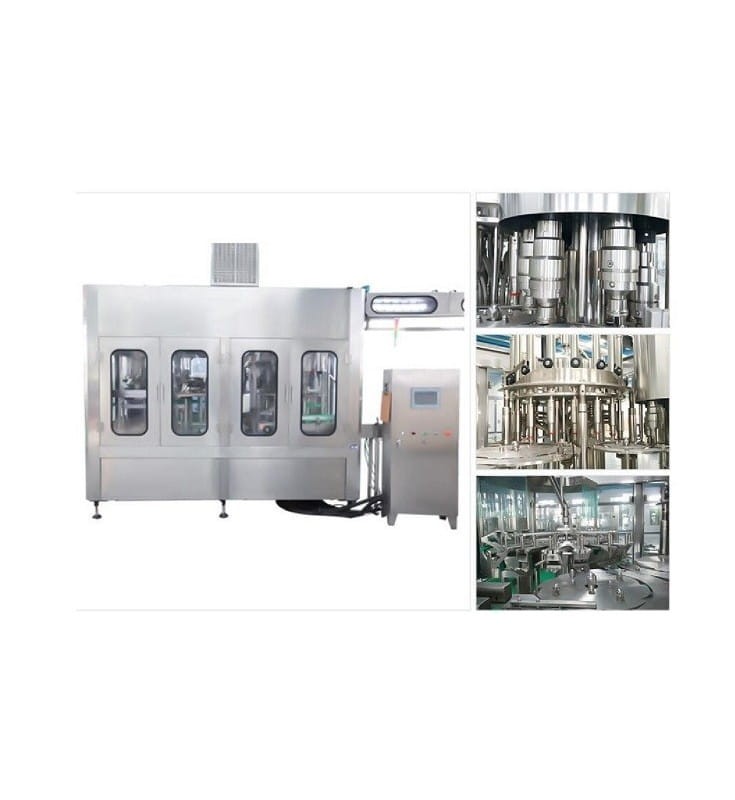

WASHER FILLER AND CAPPER 3in1 MACHINE MONOBLOCK 18/18/6

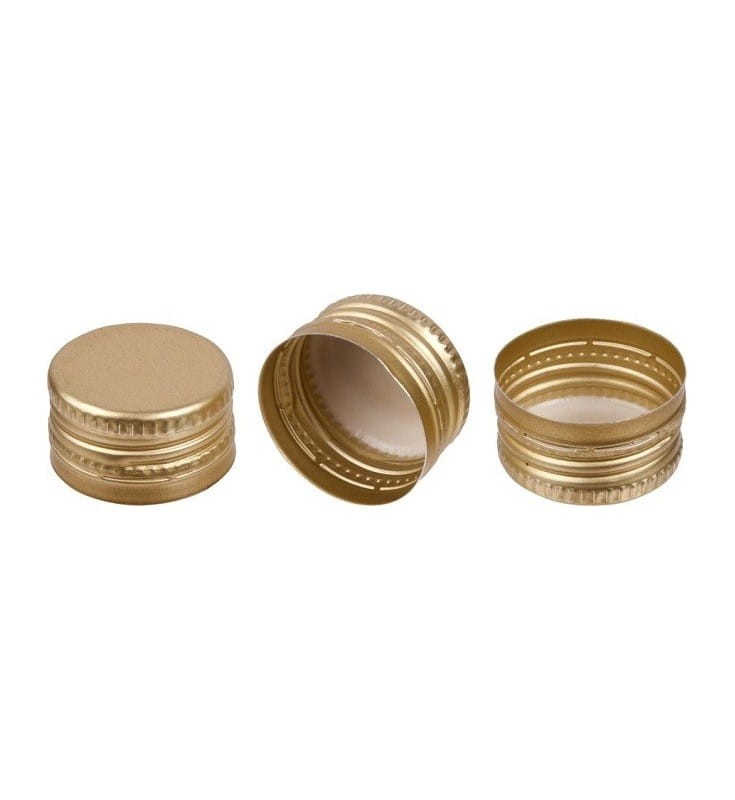

A 3-in-1 device designed for pouring non-carbonated beverages, e.g. juices into glass bottles. The machine washes bottles, fills them and seals with aluminum caps. The machine adjusts the appropriate level of pouring and also maintains the temperature of the liquid.
Technical data:
Number of filling heads: 18 pcs.
Number of closing heads: 6 pcs.
Number of cleaning heads: 18 pcs.
Performance for a given dose:
330 ml -> 3000 - 4000 bottles / h
500 ml -> 2500 - 3000 bottles / h
700 ml -> 2000 - 2500 bottles / h
The range of bottle capacity: 250-2000 ml
Range of the bottle diameter: 50 - 92 mm US 1.96" - 3.62"
The range of bottle heights: 140 - 330 mm US 5.51" - 12.99"
The inner diameter of the bottle neck: 20 - 30 mm US 0.78" - 1.18"
There is no need to change the form if the bottle neck is the same.
Main power supply: 4 kW
The power of the washer pump: 0.37 kW
Pump capacity of the filler: 0.75 kW
Curl power: 0.25 kW
The power of the air blower: 0.75 kW
Belt conveyor motor: 0.37 kW
Power supply 380 V / 50 Hz
Electronic components: the PLC display uses Omron brand components, Mitsubishi transducers, the touch screen has WEINVIEW components.
Water consumption: 1m3 / h
Water pressure: 0.2 - 0.4 MPa
Dimensions [length x width x height]: 2600 x 2100 x 2700 mm US 102.36" x 82.67" x 106"
Weight of the entire line: approx. 3500 kg US 7716 lb
