AUTOMATIC CAN FILLING AND LABELING MACHINE

Application:

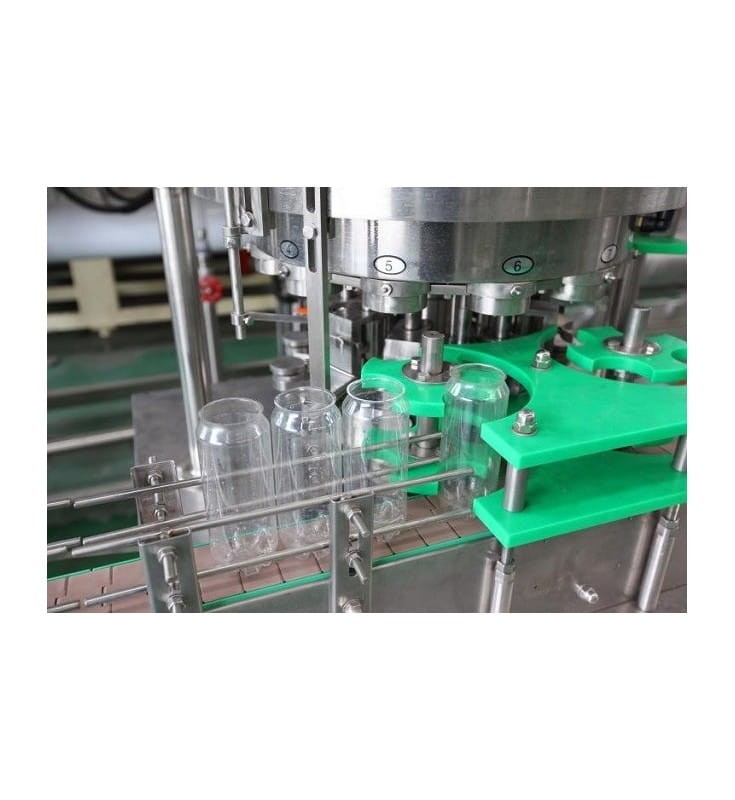

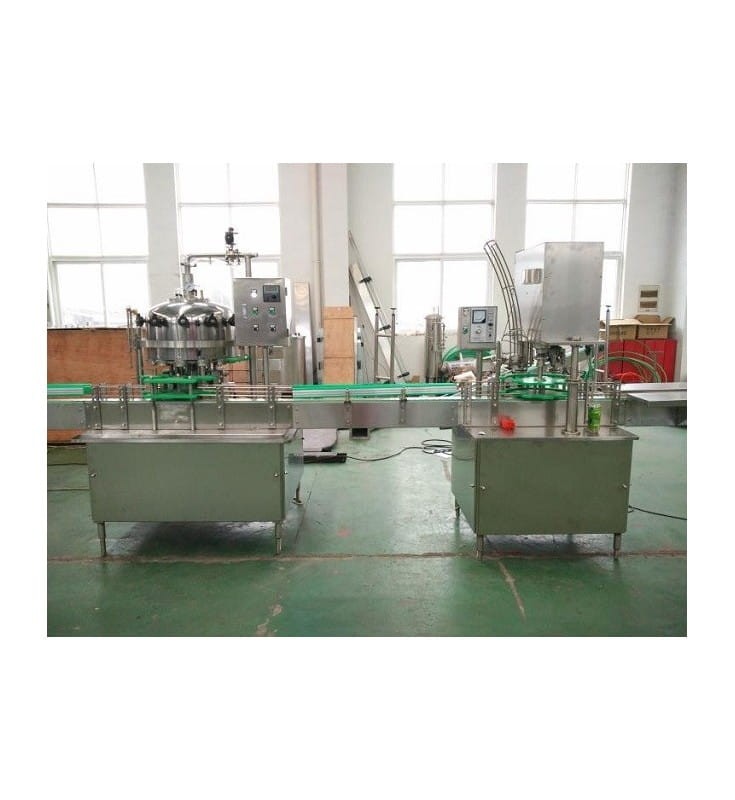

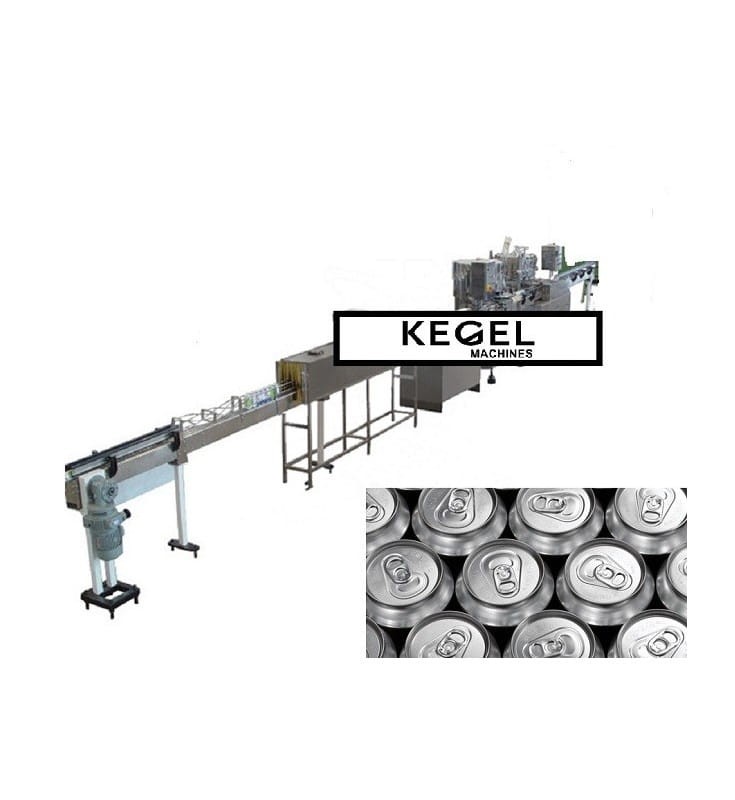

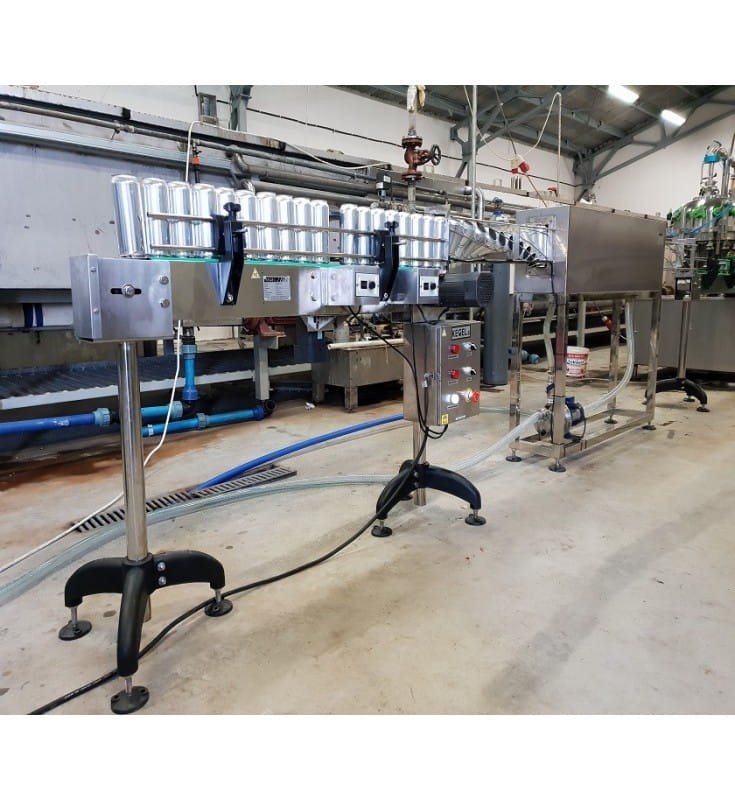

A fully automatic line for dispensing soda cans.

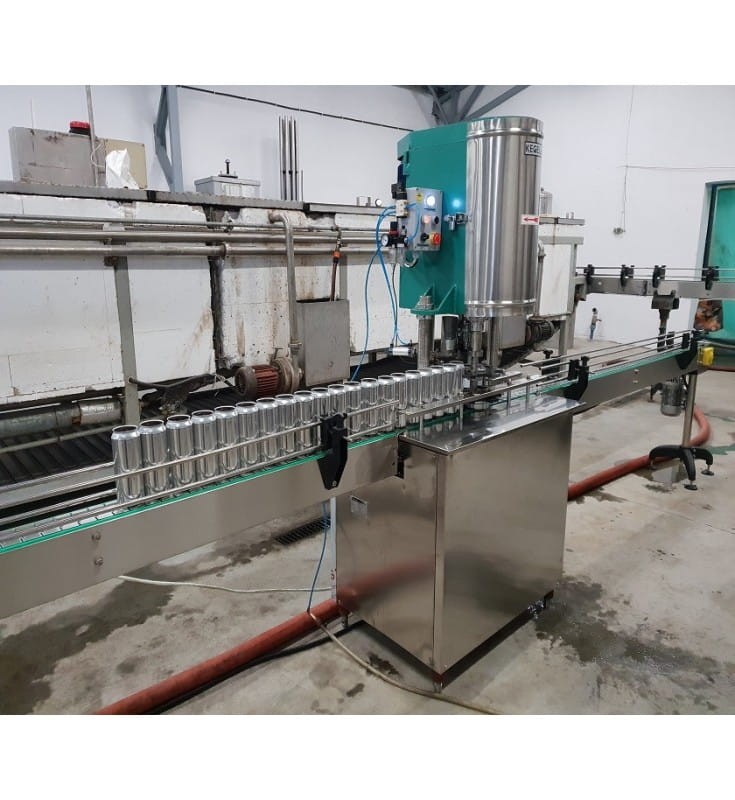

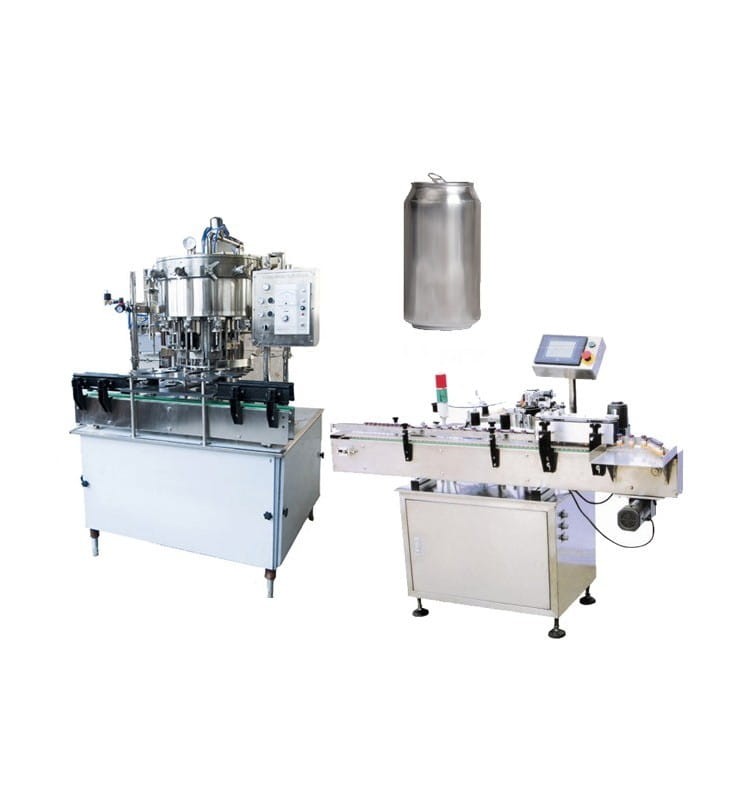

The line includes a washer, a dispenser with nozzles adapted to carbonated liquids, a can sealer, a labeling machine and a conveyor belt with an engine.
Devices made of high quality materials and components.
Modern technology achieves the highest possible level of performance.
The machine can be intended for contact with articles, food.
It has been designed in such a way as to avoid the risk of infection, illness or infection.
All surfaces in contact with the product have a smooth surface or are made of corrosion-resistant stainless steel.
The construction of the machine excludes penetration of the substance into the product.
Requires a compressor connection.
The device is used in the food industry.
Functions:
Easy to use and keep clean.
High performance.
Work improvement and acceleration.
Elements can easily be cleaned before each use.

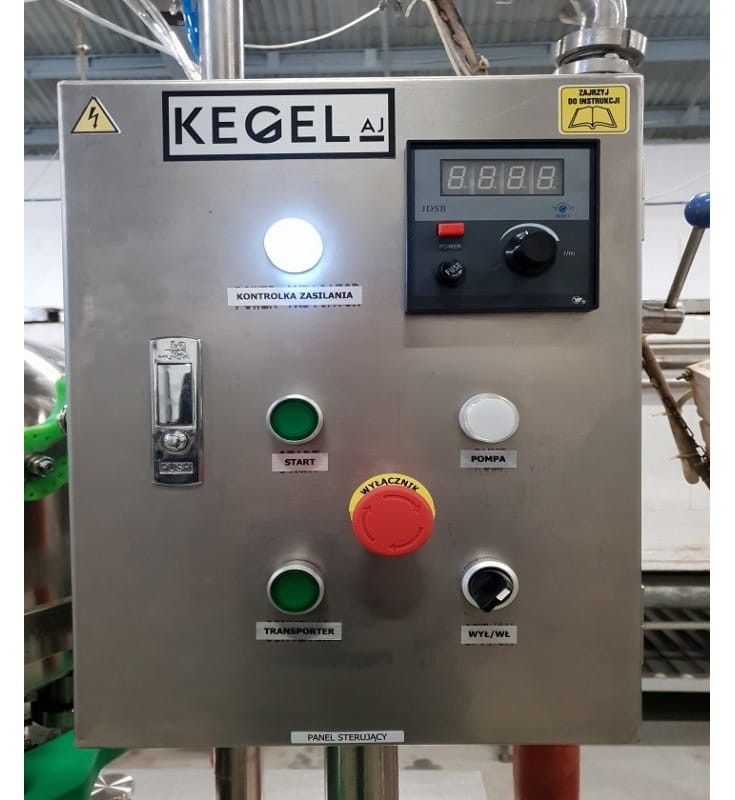

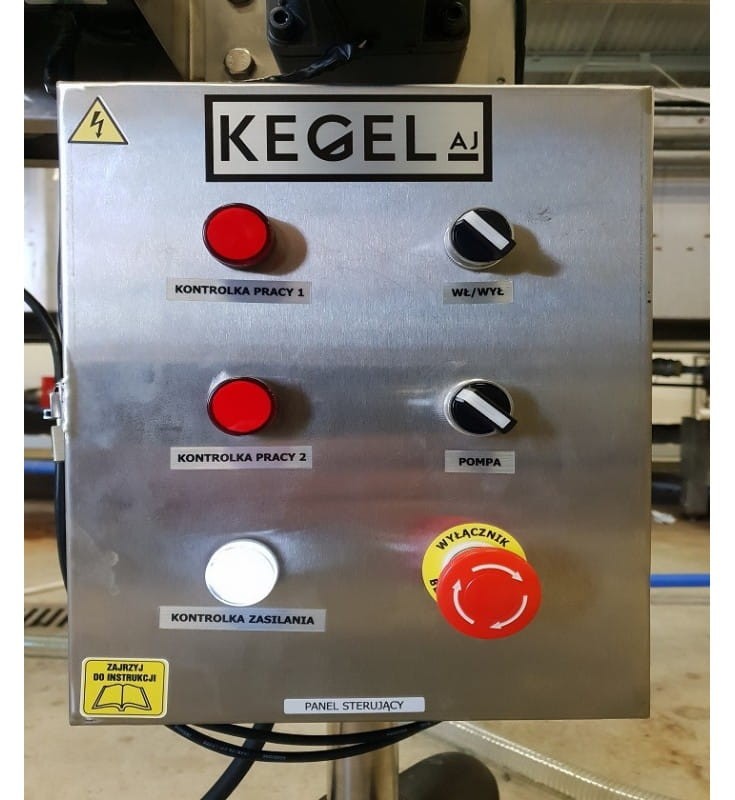

Simple control using buttons.

European components - Weintec, Siemens, Panasonic etc.
Technical parameters:

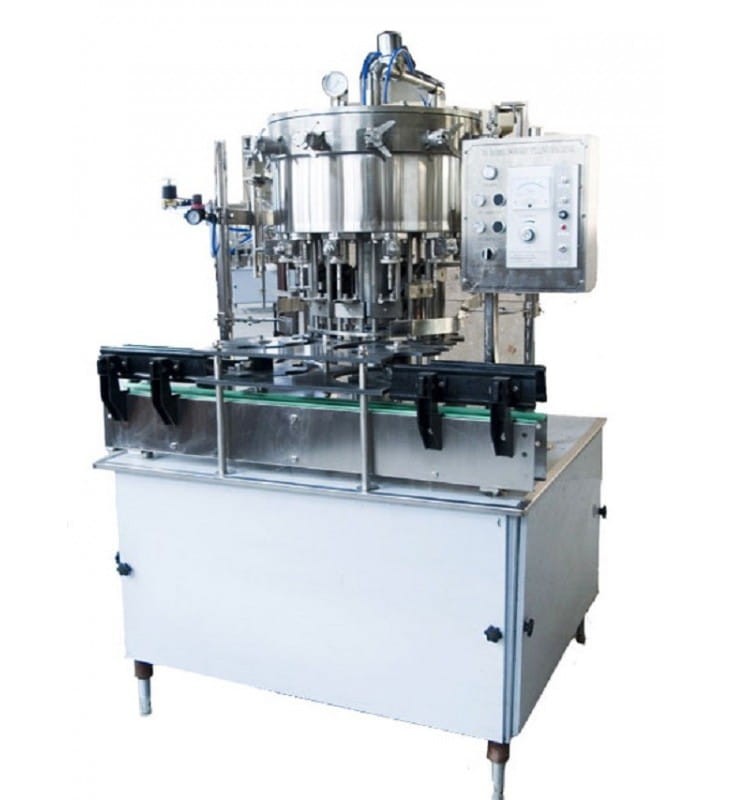

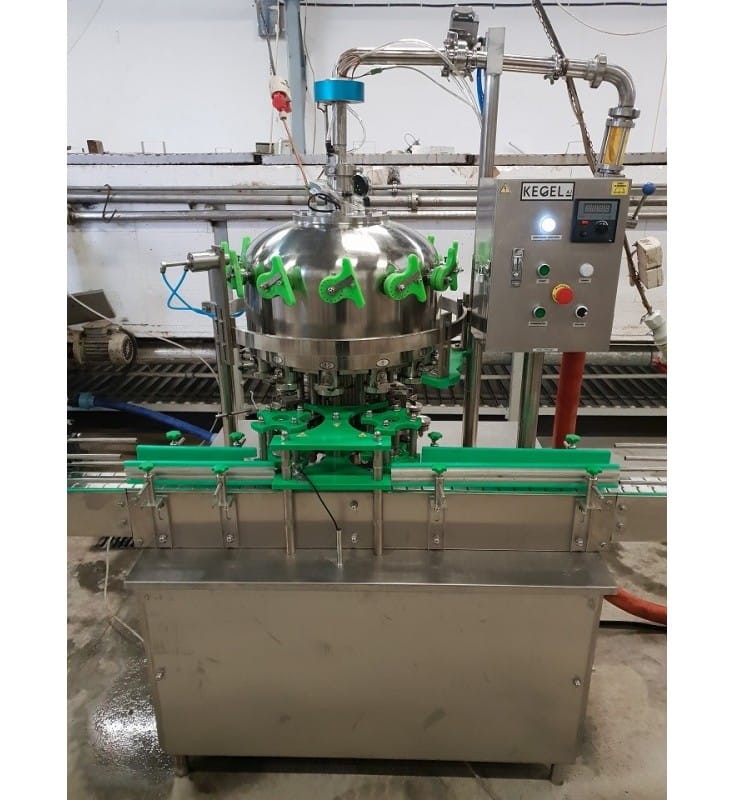

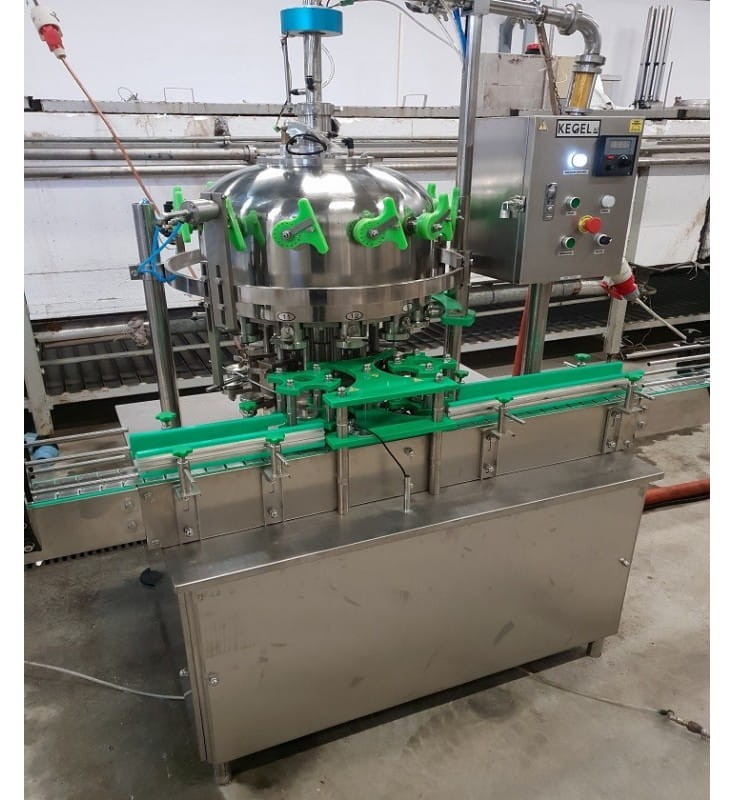

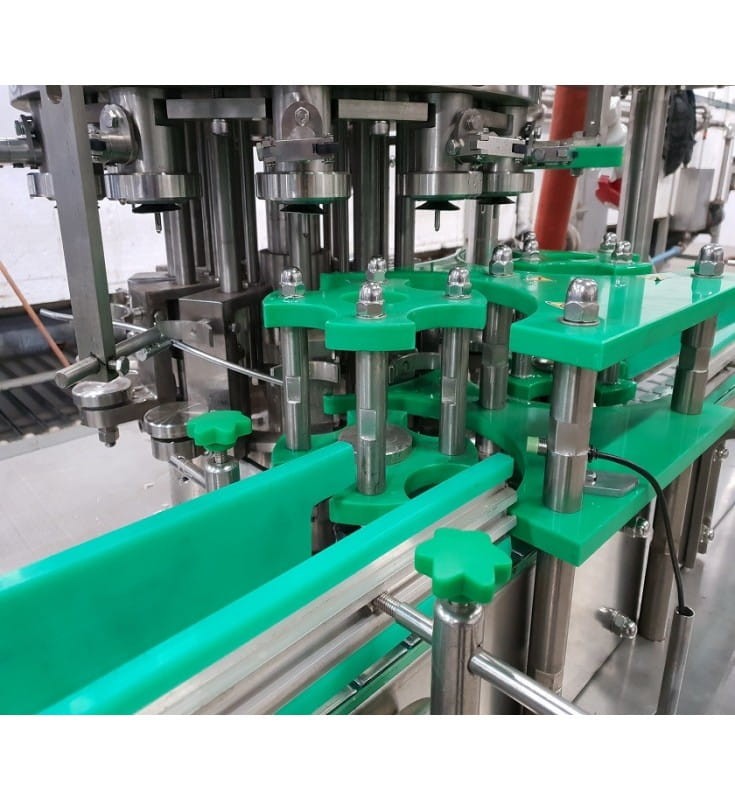

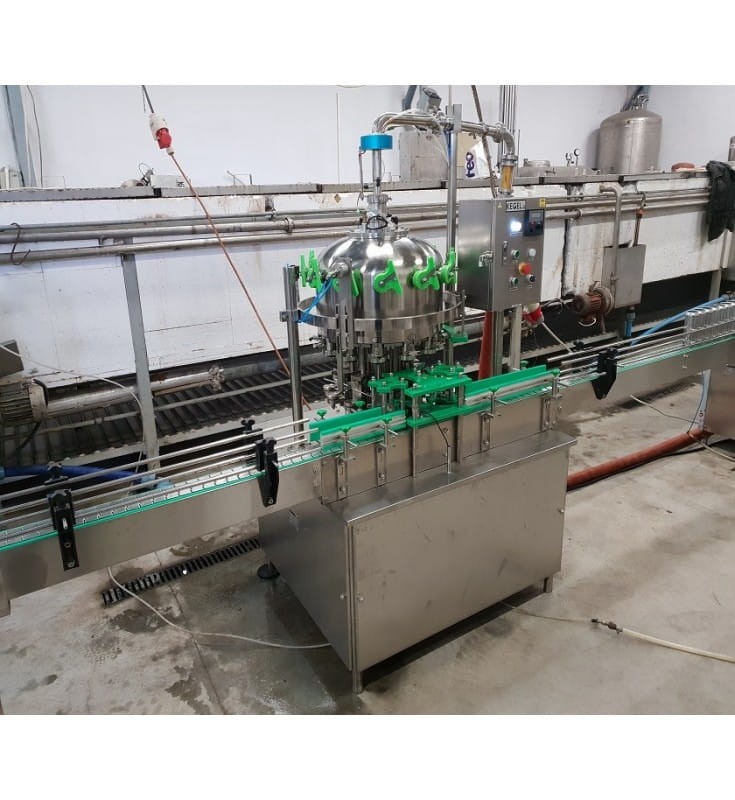

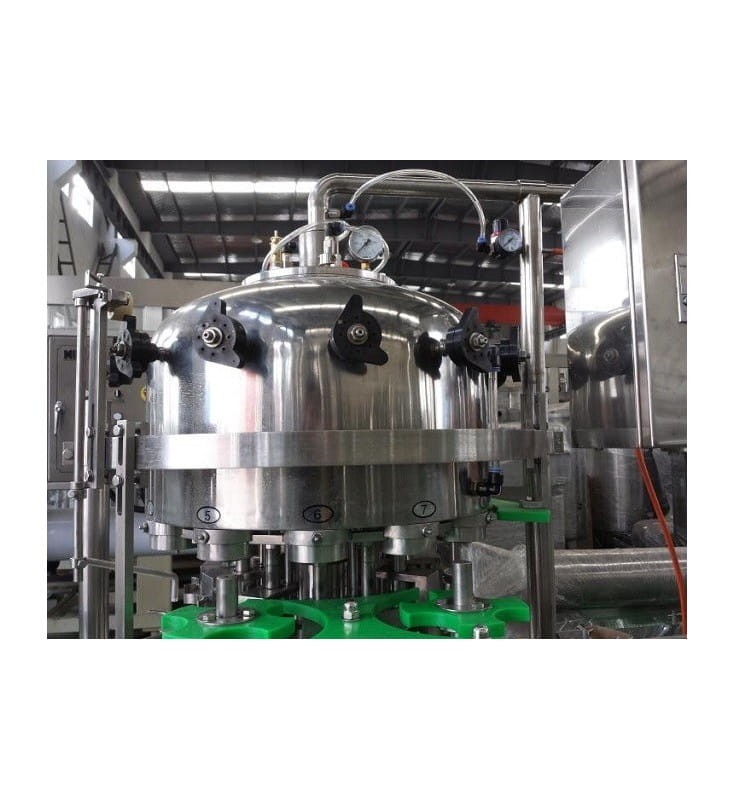

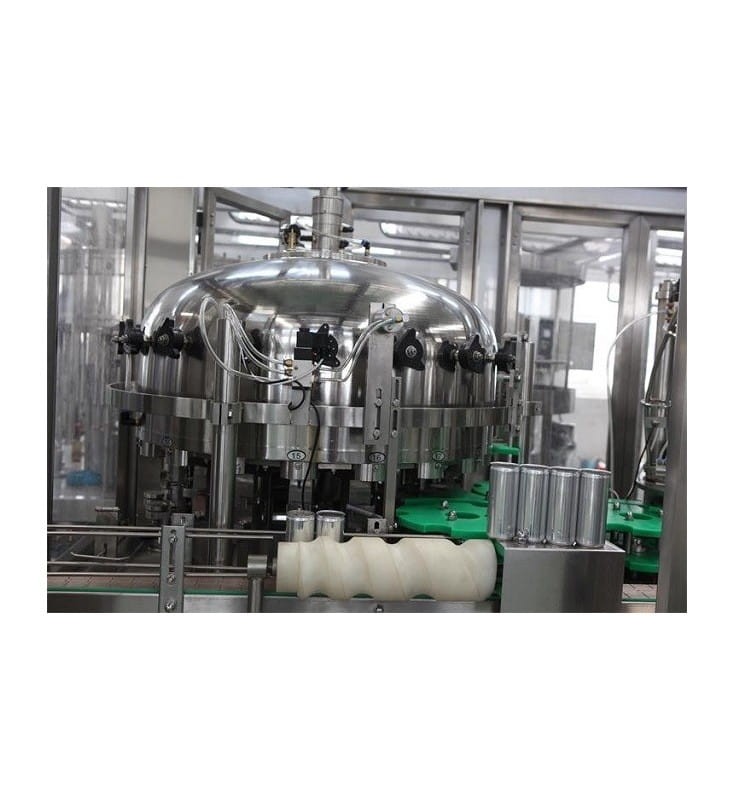

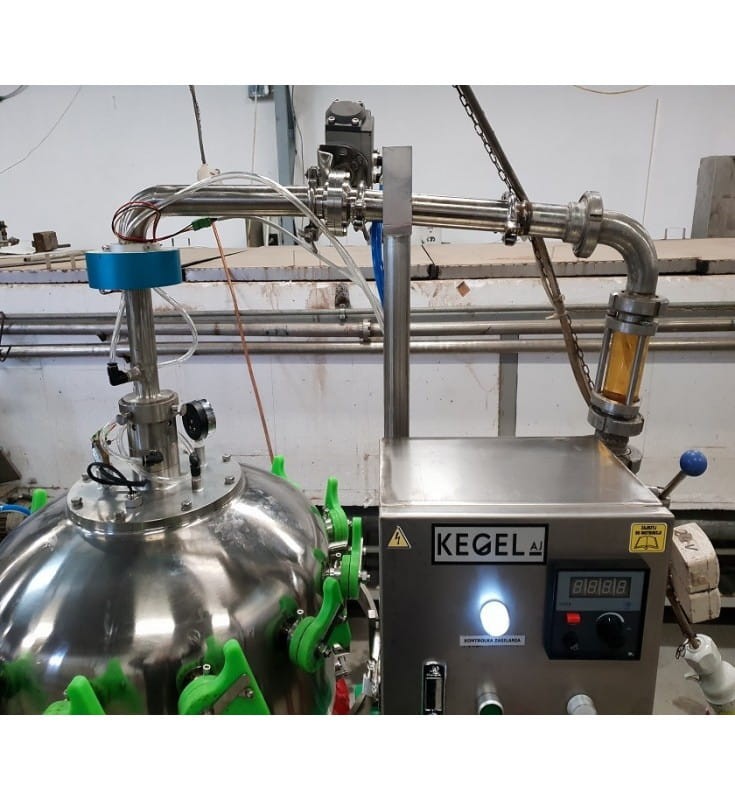

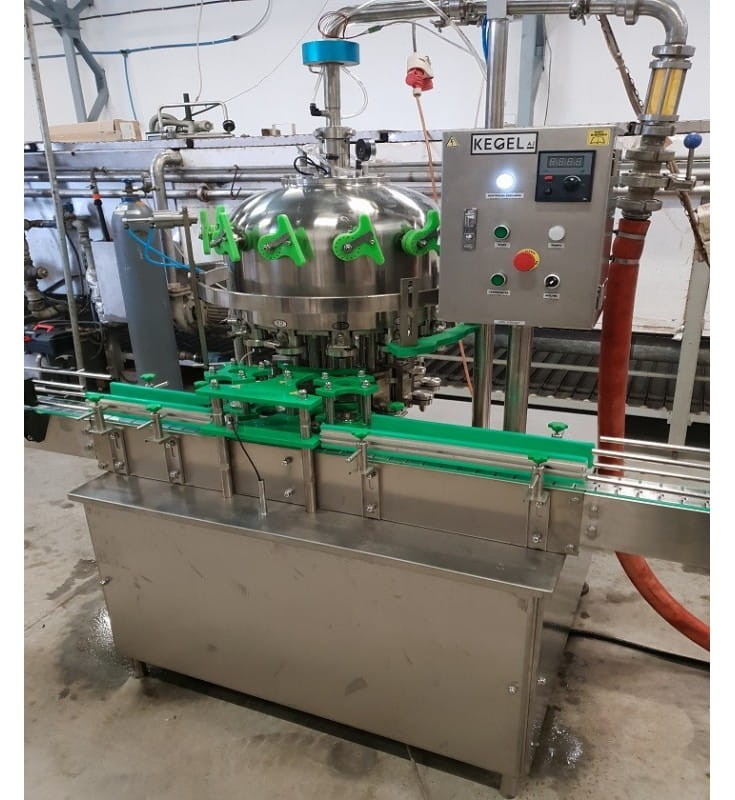

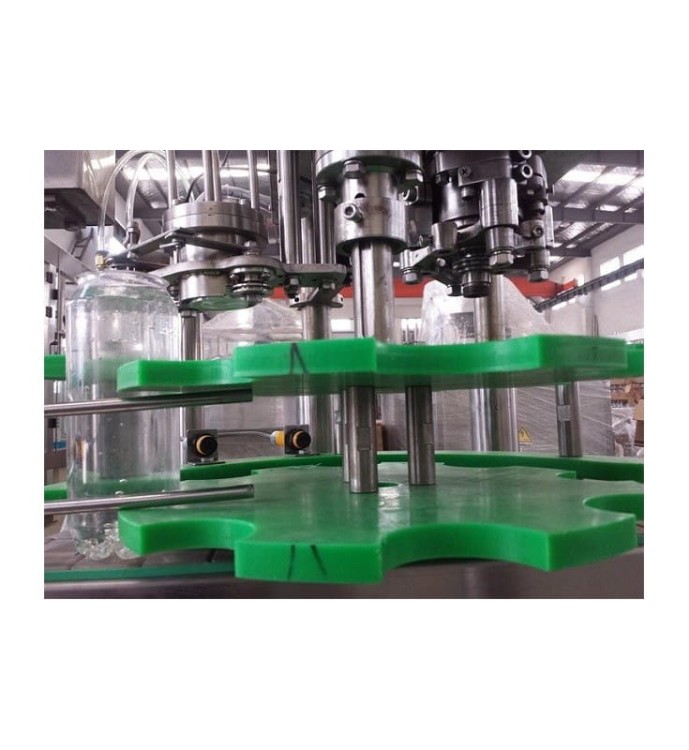

Filling machine DG-12:
Power: 1.5 kW
Power supply: 380 V / 50 Hz

Pouring heads: 12

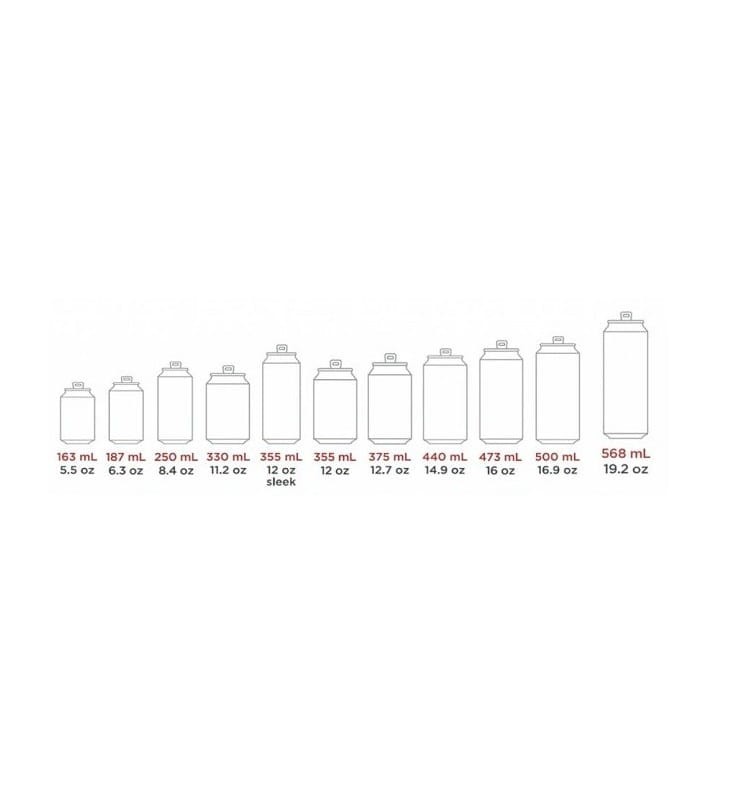

Height of the can / bottle: 80 - 180 mm  US 3-7"
Diameter of the can / bottle: ≤ 70 mm  US 3"
Pouring temperature: 0 - 4°C
Capacity: 1000 - 1500 b / h
External dimensions [L x W x H]: 1200 x 1000 x 1900 mm  US 47 x 39 x 75"
Weight: 1000 kg  US 2204 lb

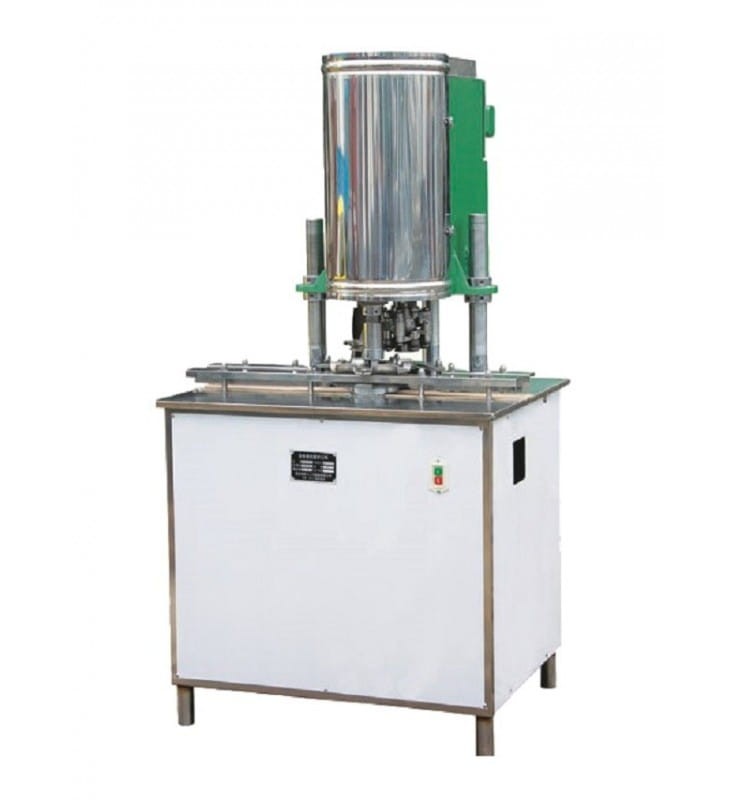

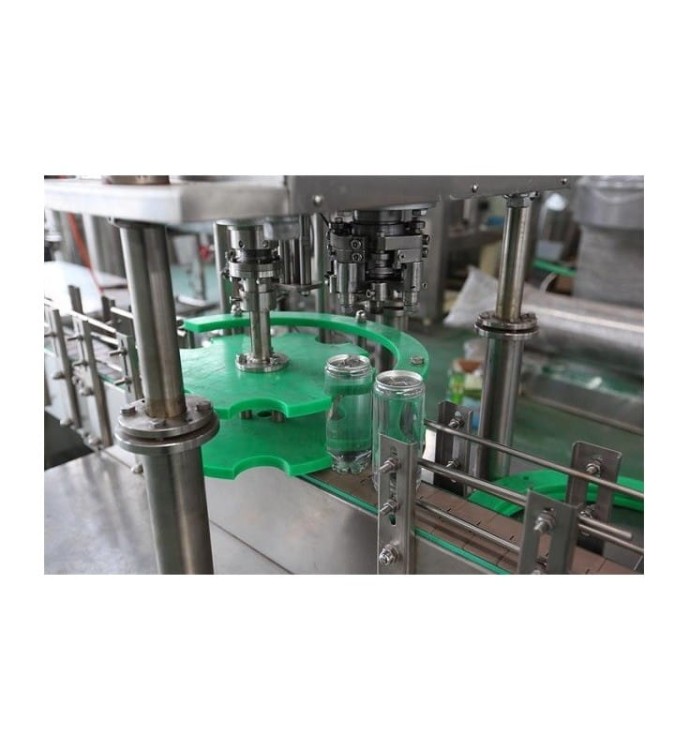

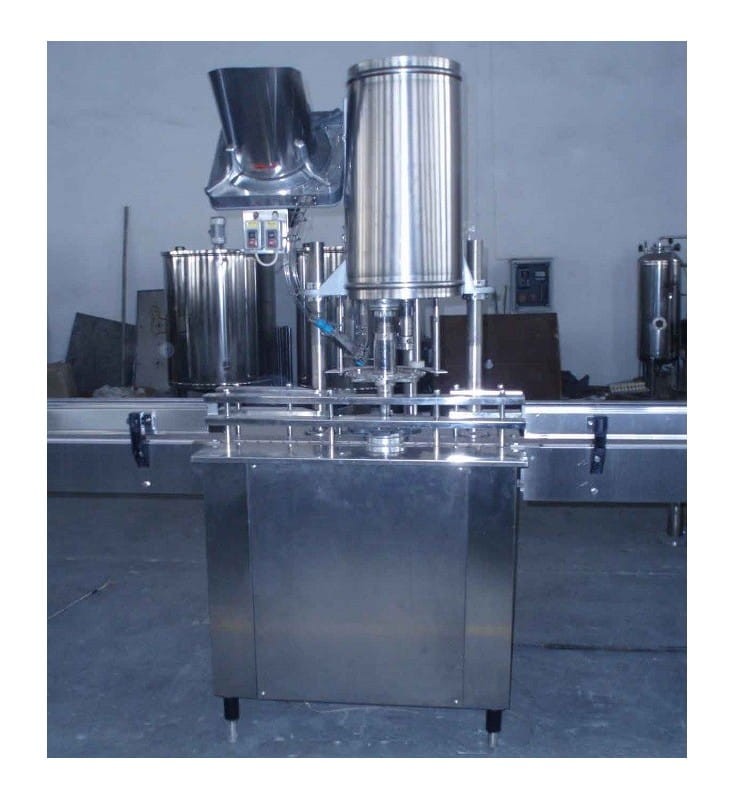

Closing machine FXZ-1:
Power: 0.75 kW
Power supply: 380 V / 50 Hz
Number of screw heads: 1
Height of the bottle / jar: 90 - 200 mm  US 3,5-8"
The diameter of the bottle jar / jar: 50 - 67 mm  US 2-2,6"
Capacity: 1000-1500 pcs / h
External dimensions [L x W x H]: 900 x 700 x 1800 mm  US 35 x 27 x 71"
Weight of the device: 500 kg US 1102 lb

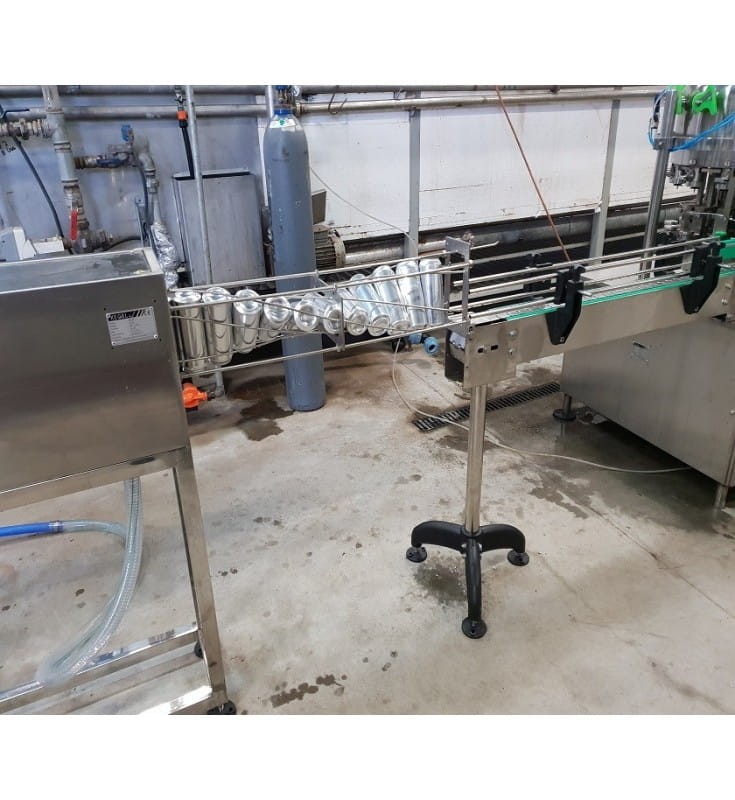

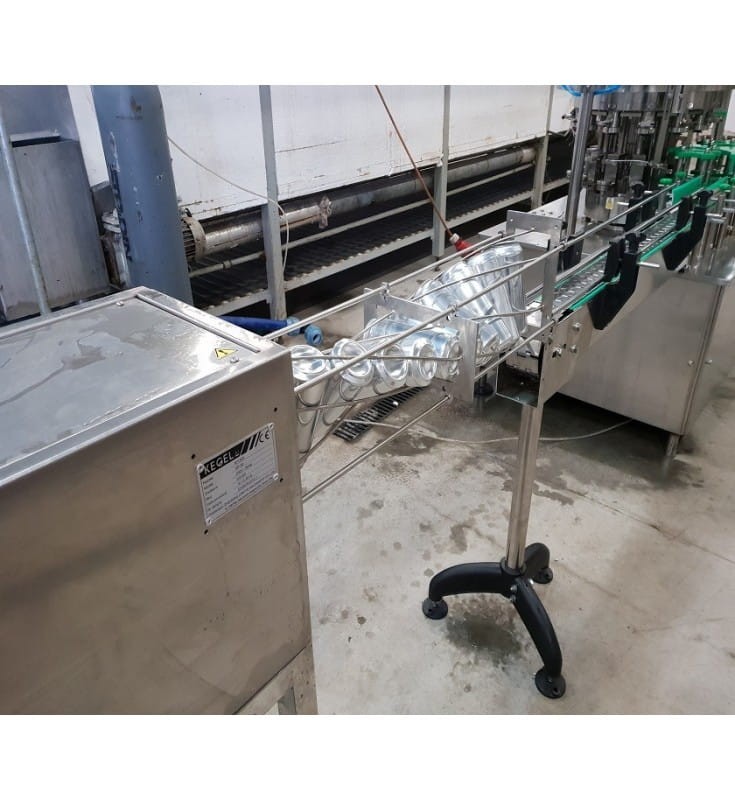

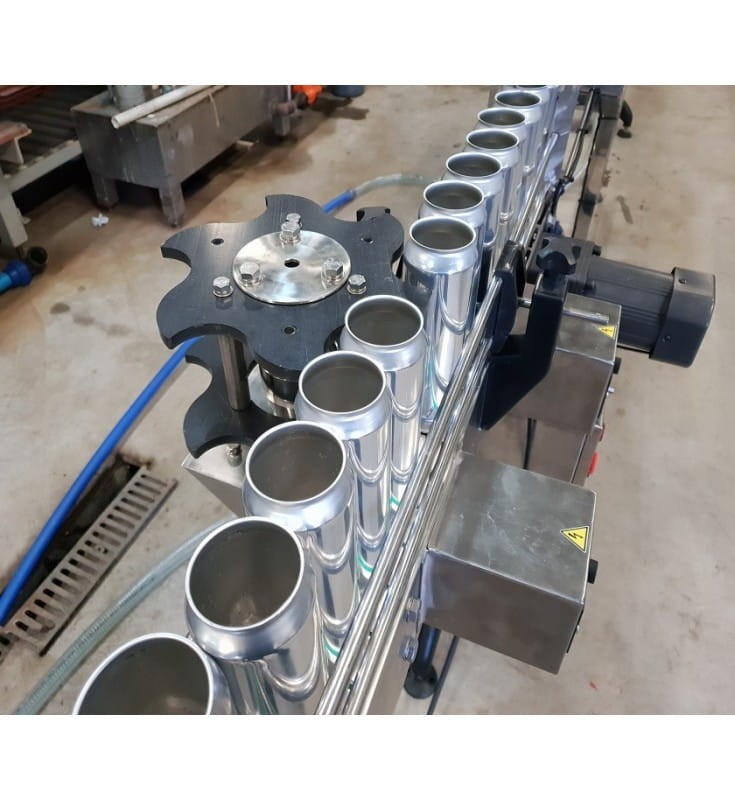

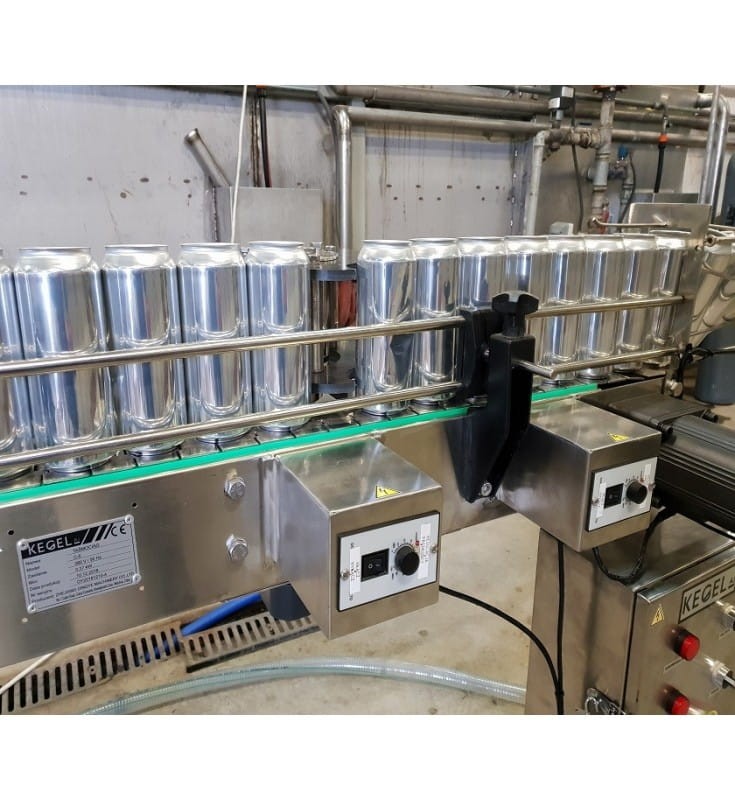

Conveyor:
Power: 0.37 kW
Power supply: 380 V / 50 Hz
Length: 6 m  US 236"
Width: 150 mm  US 6"

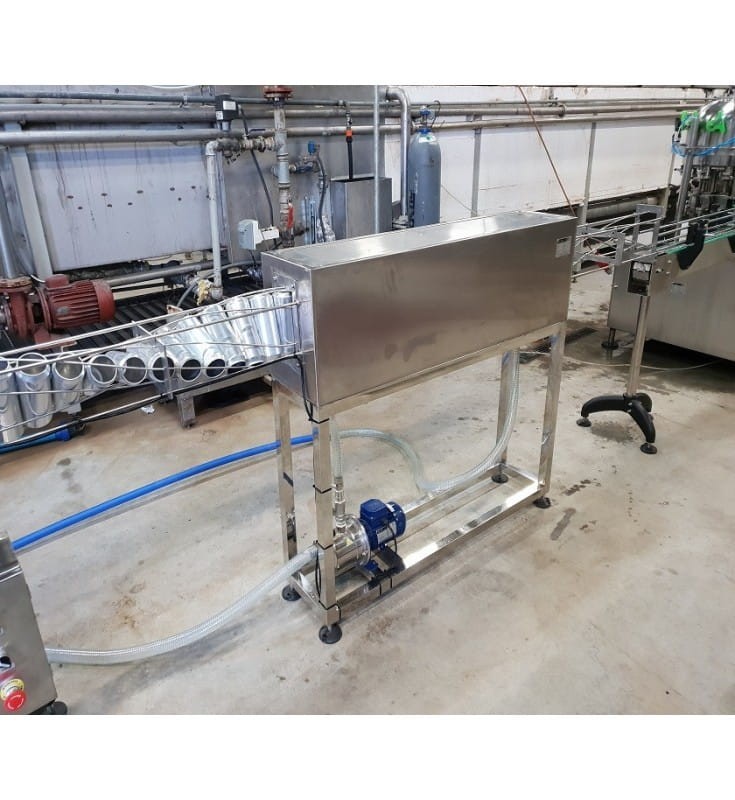

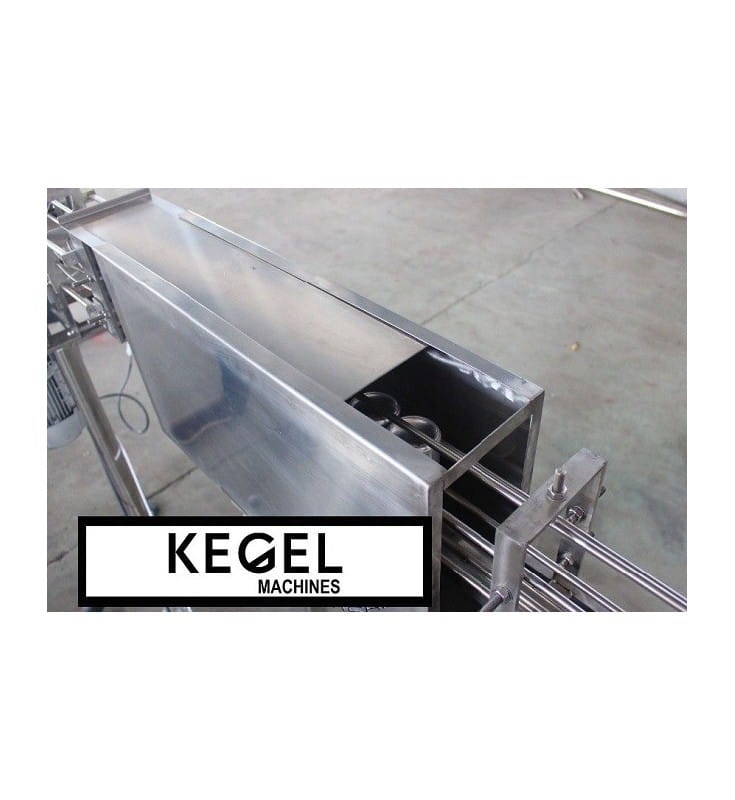

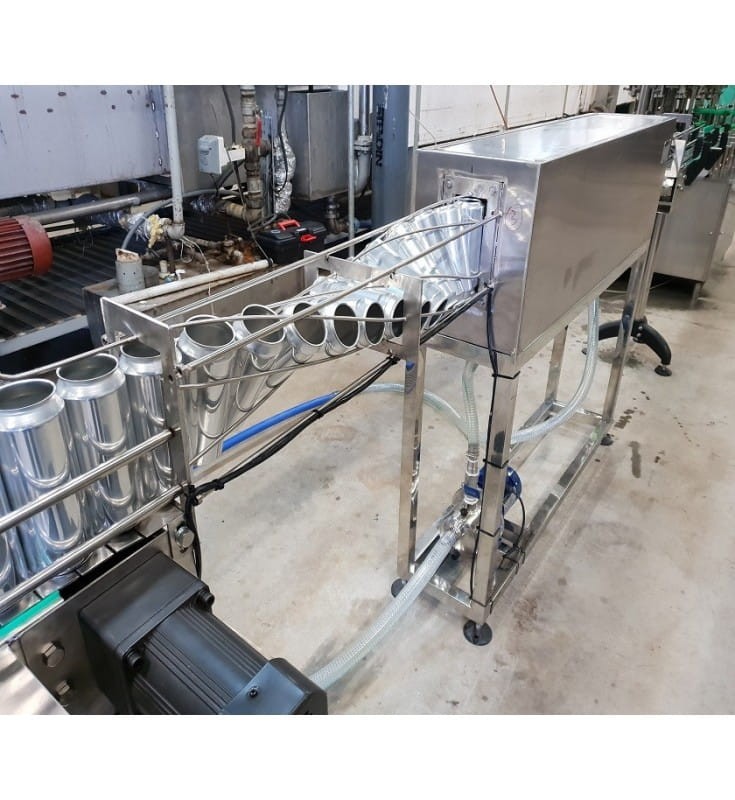

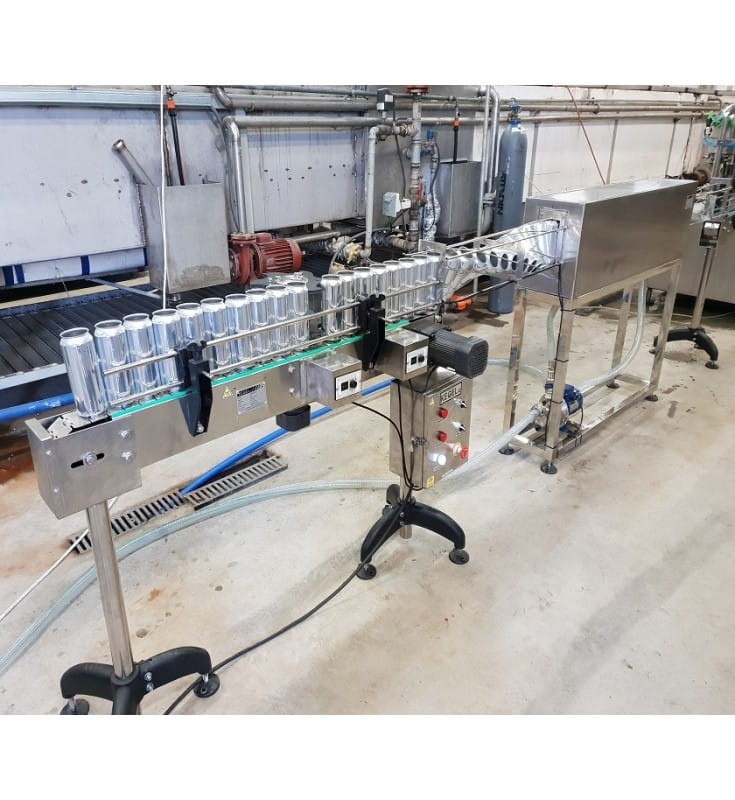

Washer machine:
Power: 0.8 kW

Power supply: 230 V / 50 Hz  US 110 V
The height of the box in the range: 150 - 350 mm  US 6-14"
Diameter of the box in the range: 50 - 100 mm  US 2-4"
Washing heads: 8 pcs

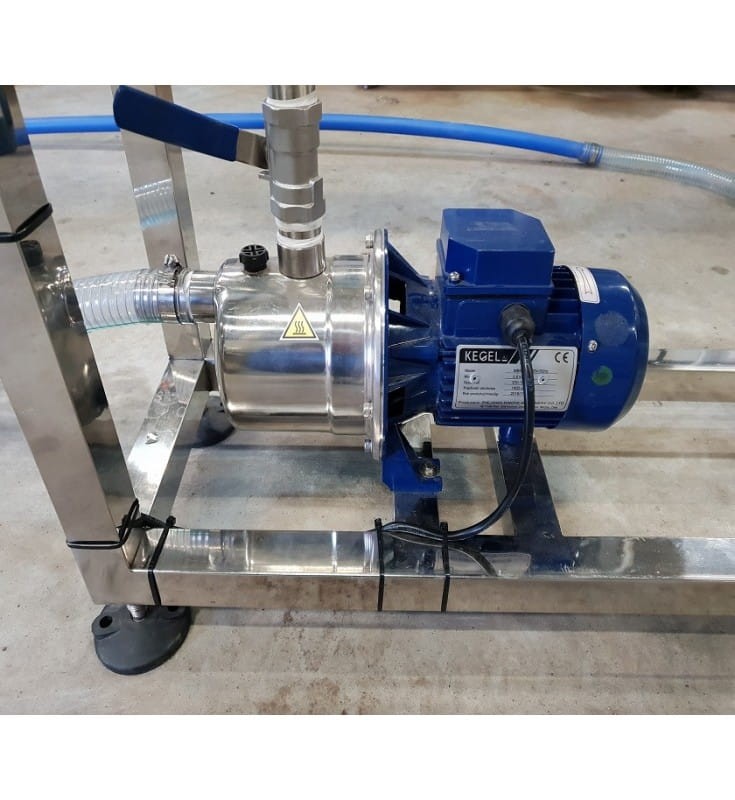

Pump model: SZ037
Weight of the device: 40 kg  US 88.18 lb
The dimensions of the device without cans transporters [L x W x H]: 1200 x 280 x 1200 mm  US 47 x 11 x 47"
Dimensions of the device with can carriers [L x W x H]: 2810 x 280 x 1200 mm  US 111 x 11 x 47"

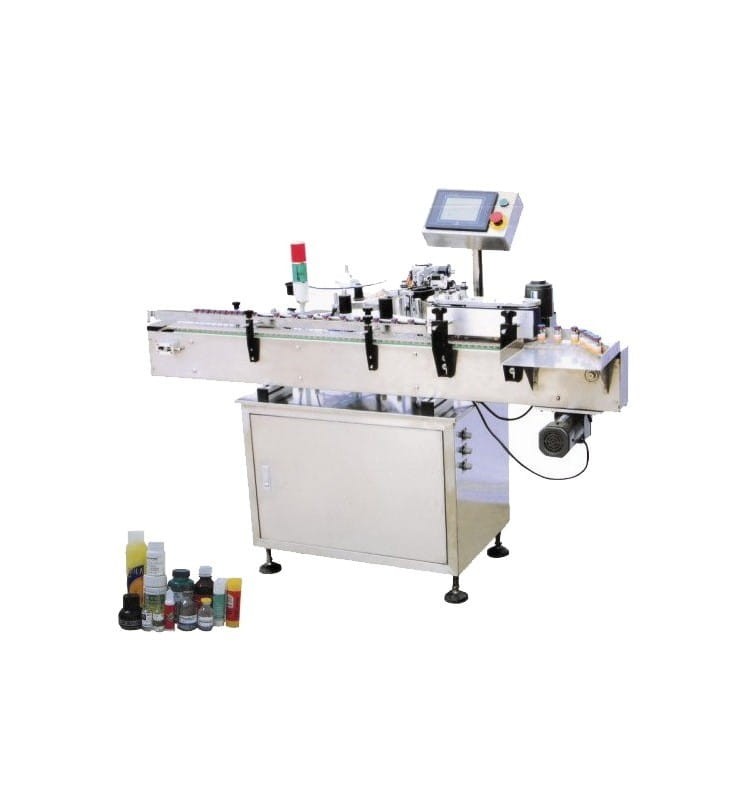

Labeling machine:
Power: 0.75 kW
Power supply: 230 V / 50 Hz  US 110 V

Possibility to upload the menu in other language.

Extra paid options:
Stamp
Full stainless steel version
