HARD CANDY PRODUCTION LINE SEC-150

Application:

A complete line for the production of hard candy.

Functions:

It covers all the equipment necessary for production - from tanks through machines that dispense mass and cooling the finished product.

The line is made of high quality materials and reliable components guaranteeing stable operation.

The surfaces in contact with the product are made of stainless steel.

Technical parameters:

Power: 25KW

Power supply: 380 V / 50 Hz

Air consumption: 0.6-0.8MPa (1.6m³/min)

Capacity: 50-150kg/h (depends on the size of the candy)

The line includes:

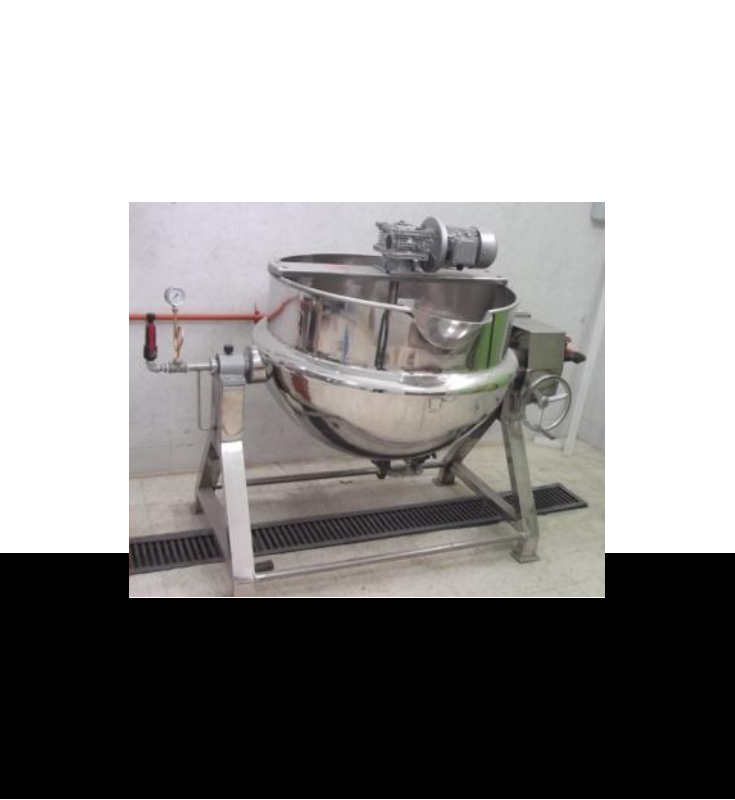

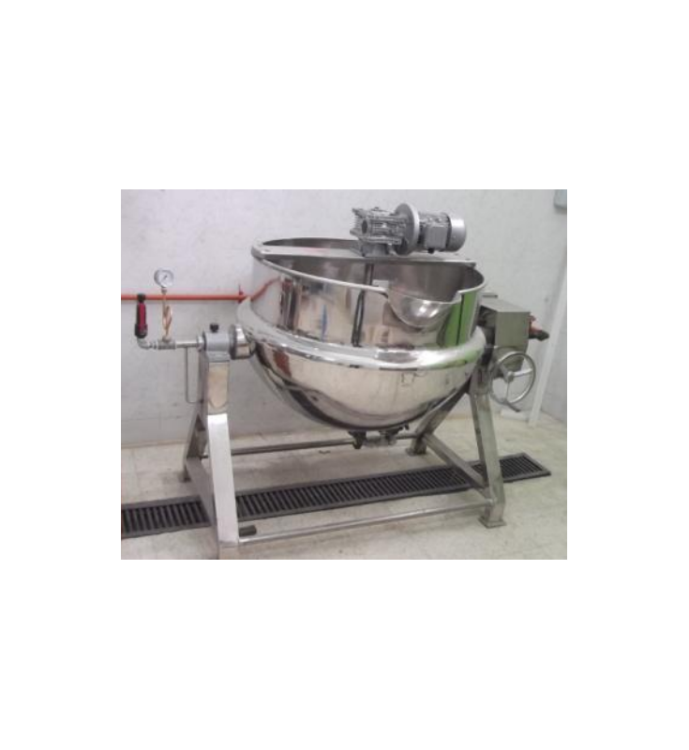

Mass tank - the tank is heated, with automatic temperature control, electric heating. The use of a mixer prevents sugar from sticking to the bottom. It is used for melting materials, mixing and compaction processing.

Technical parameters:

Heating power: 15 KW

Maximum capacity: 200 L

Dimension: 900x1450 mm

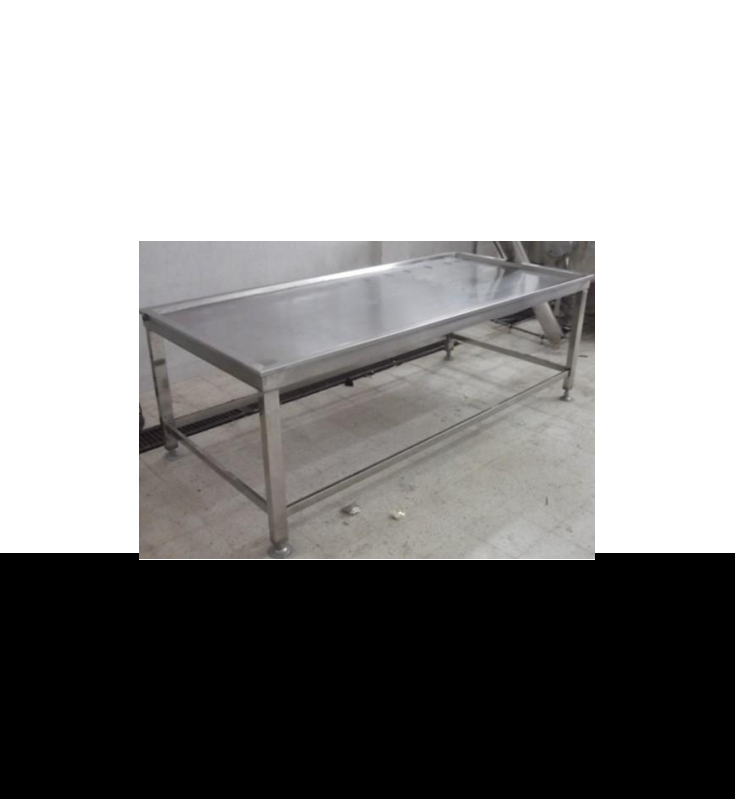

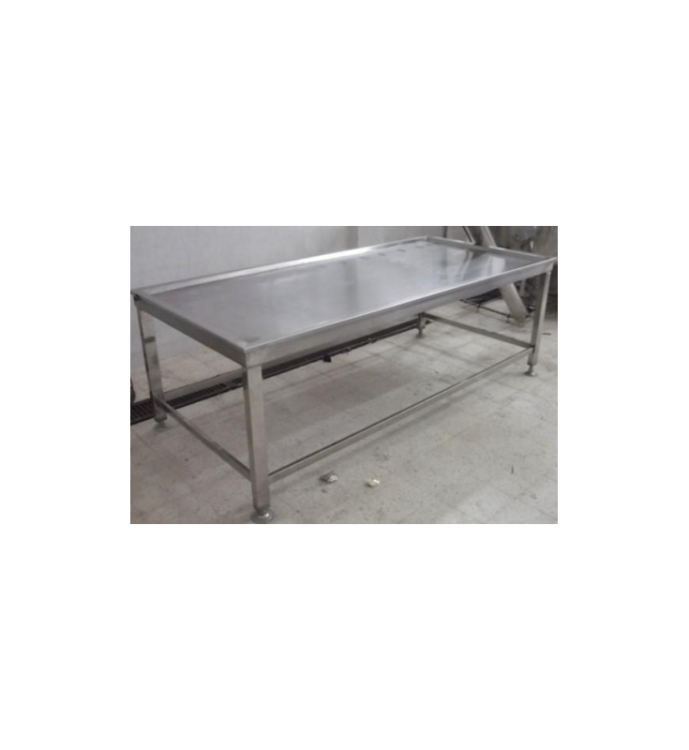

Cooling table - the table uses a water cycle to cool the mass. It is made of stainless steel.

Technical parameters:

Dimensions: 1800 × 1000 × 600 mm

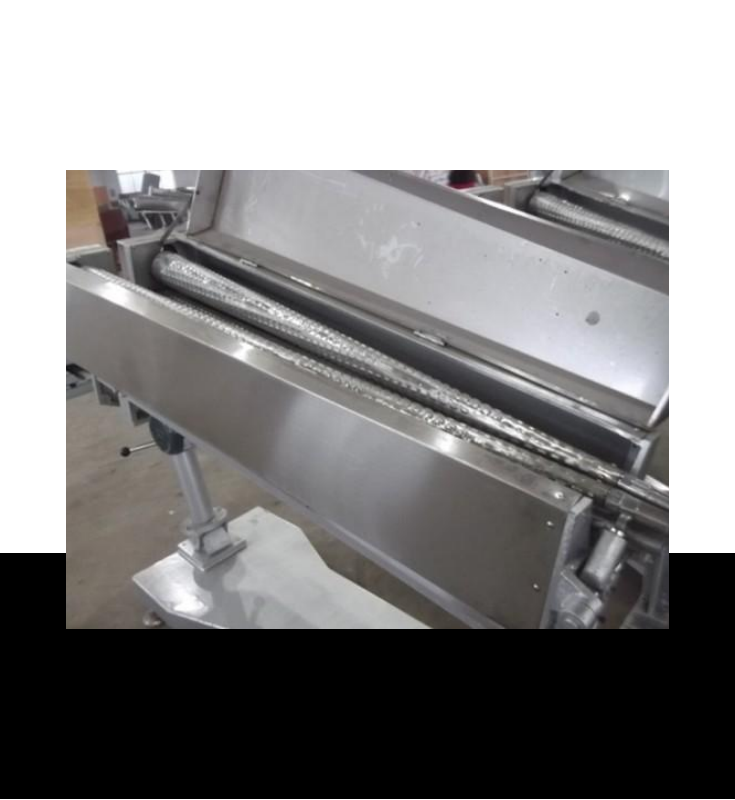

The device for squeezes the mass - the device is designed for rolling the mass and preparing it for processing in a rolling press.

Technical parameters:

Power: 4.75 KW

Dimensions: 2200 × 600 × 1150 mm

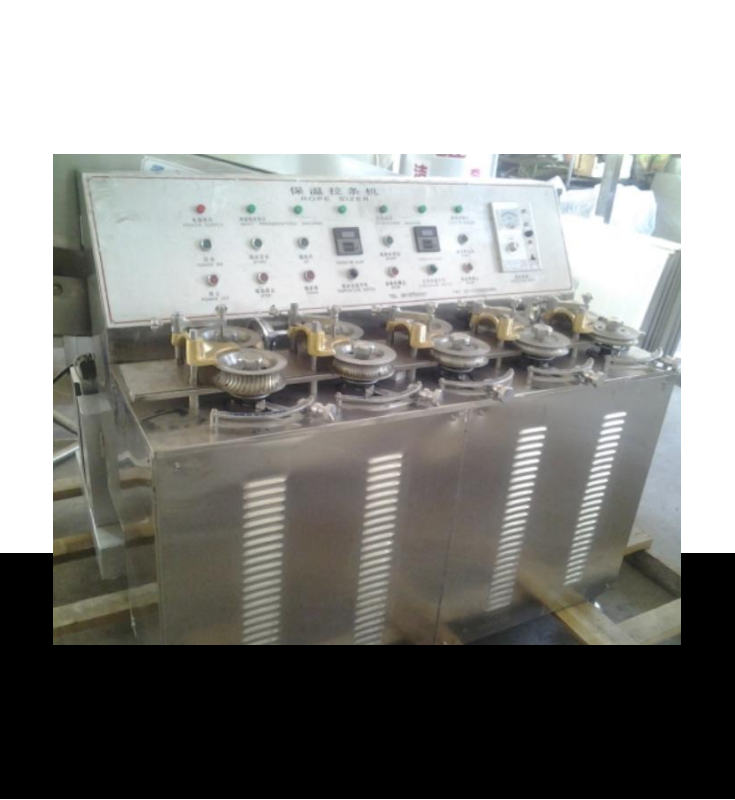

Round baler - the round baler creates a long symmetrically equal mass in the form of a long belt from the produced mass.

Technical parameters:

Power: 2.7 KW

Dimensions: 1150 × 800 × 1300 mm

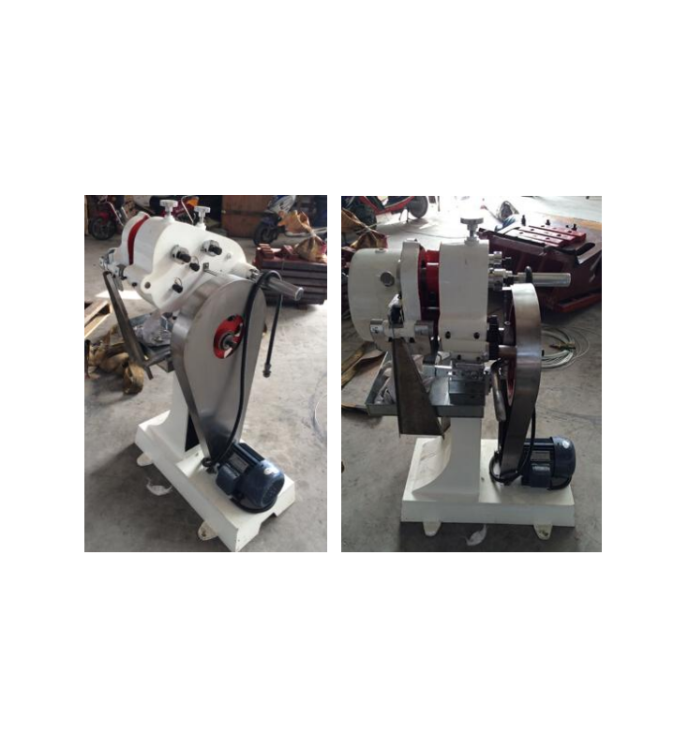

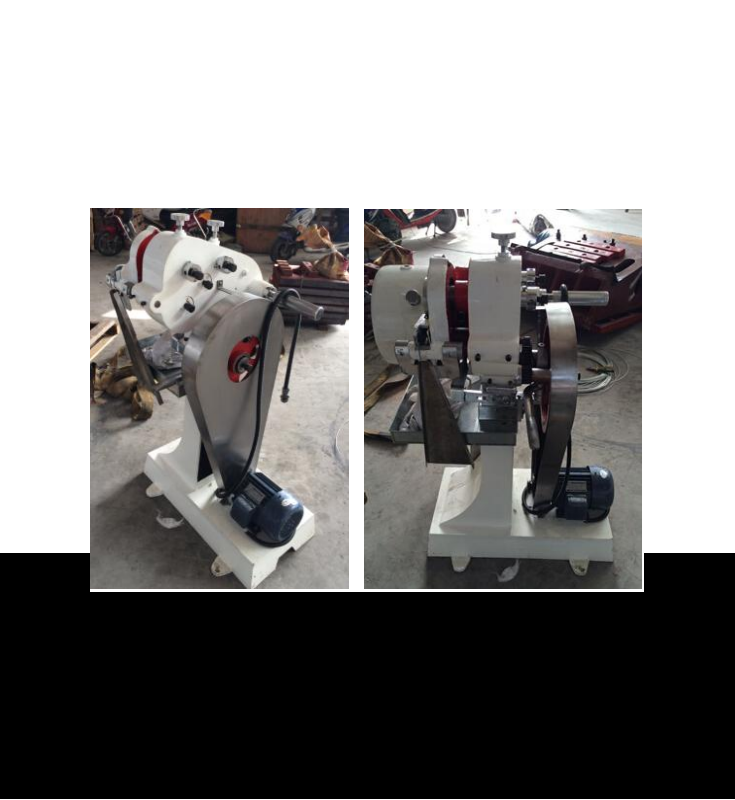

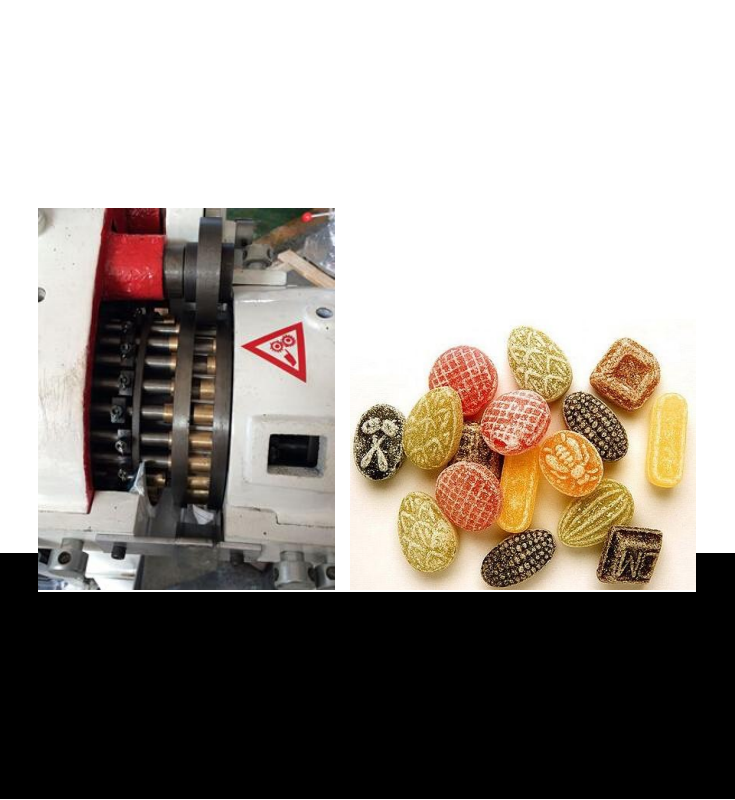

Candy molding machine - the machine is designed to create sweets from pre-rolled mass and to cut out sweets of a specific shape.

Technical parameters:

Power: 1.1 KW

Dimensions: 890 × 800 × 1300 mm

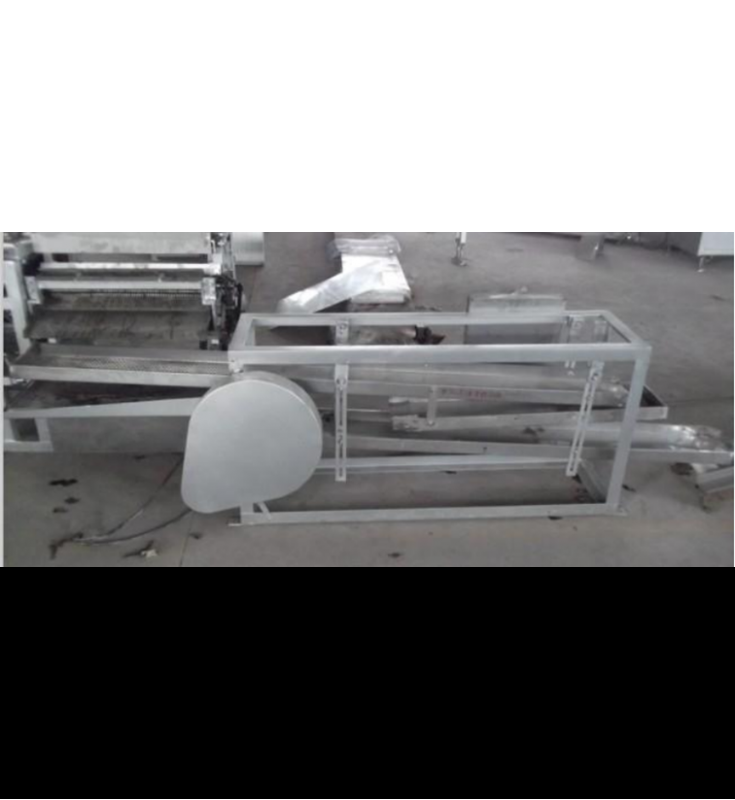

Cooling device - a device used to cool the mass, and thus to harden candy.

Technical parameters:

Dimensions: 3000 × 500 × 400 mm / 118" x 20" x 16"

Voltage: 380 V / 110 V

Power: 0.75 kW

Weight: 160 kg/ 353 Ib

Automatic sachet wrapping machine for sweets - I pack the candy into sachets and the seal is on both sides.

Technical parameters:

Power: 1.5KW

Dimensions: 2600 × 500 × 700 mm
