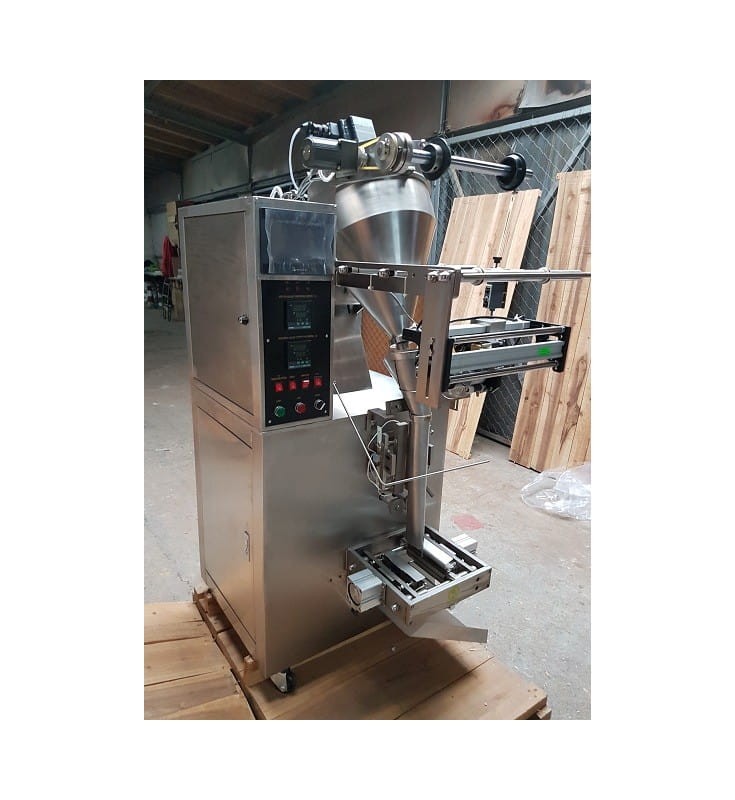

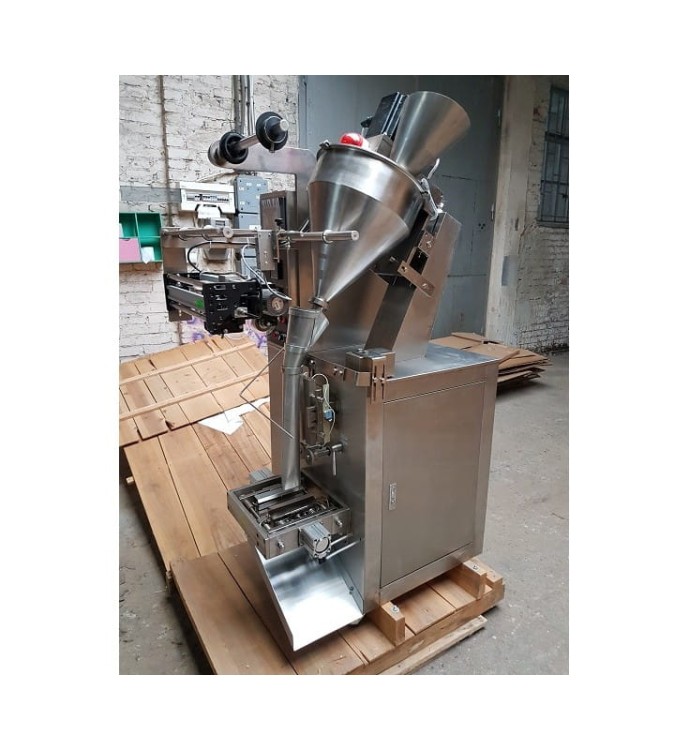

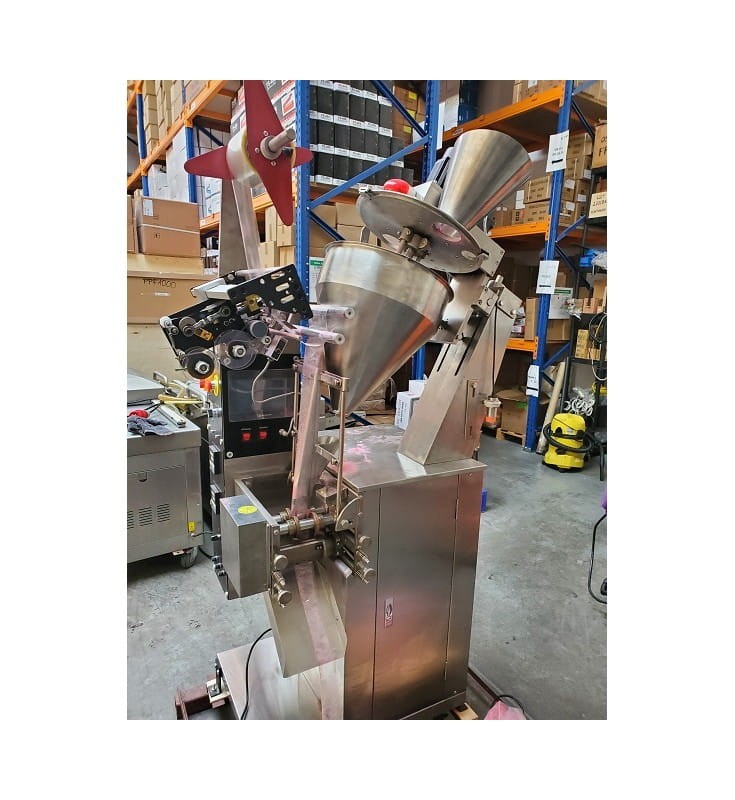

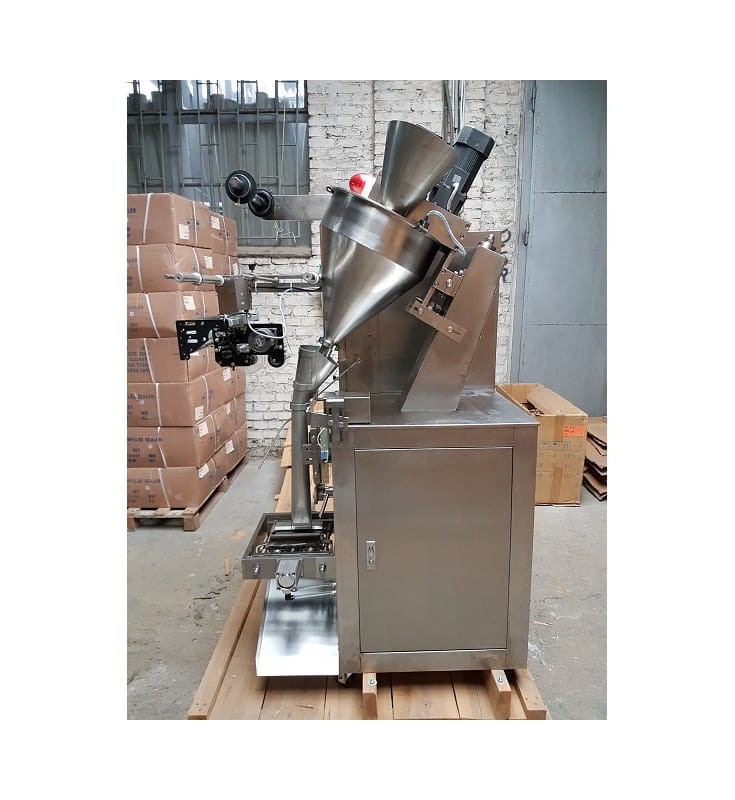

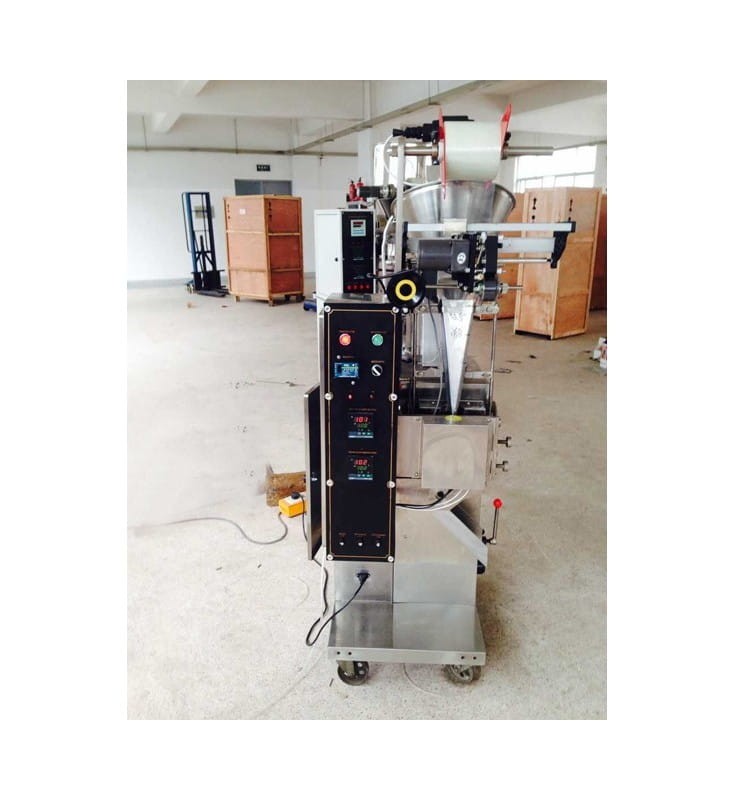

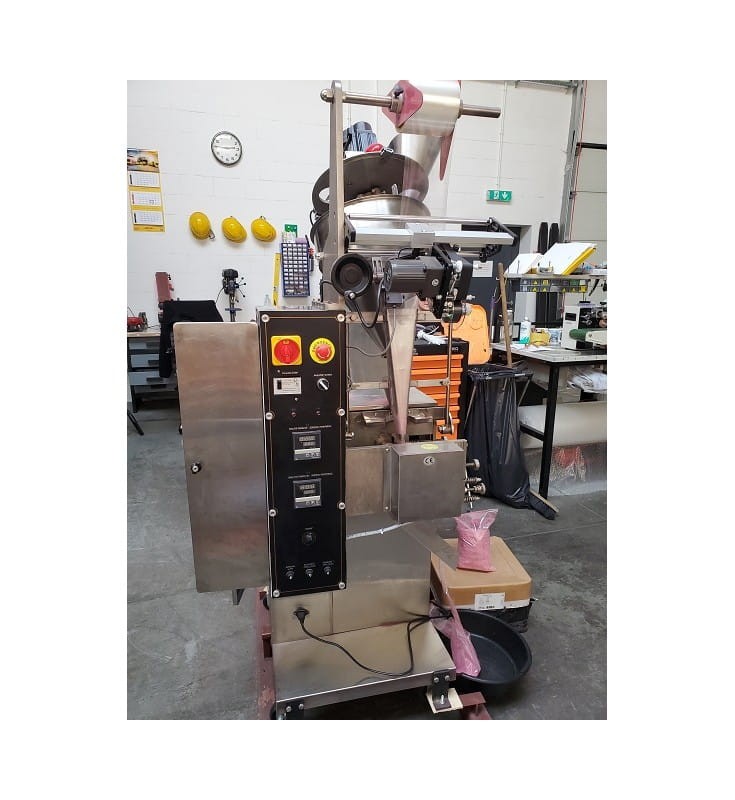

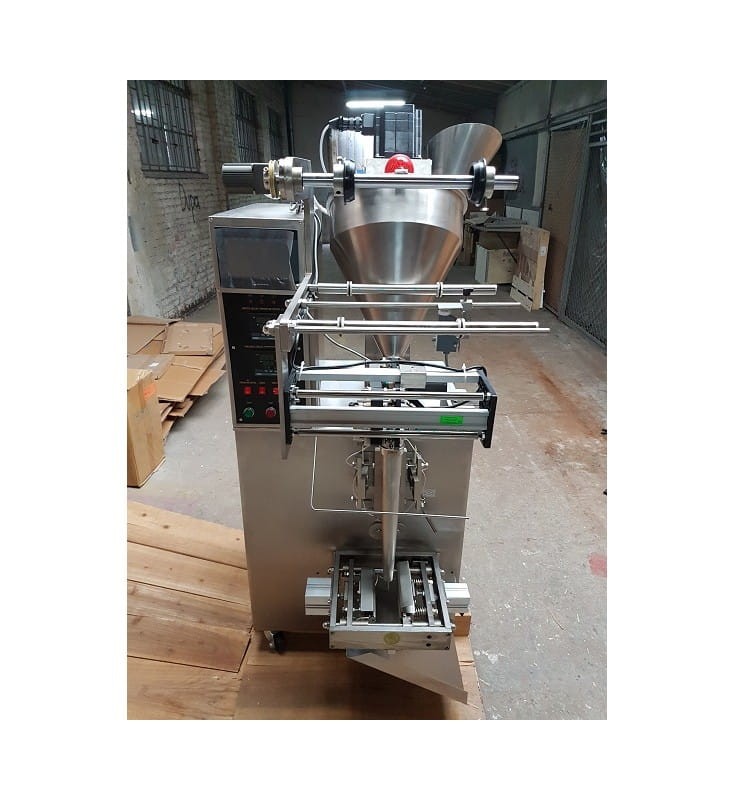

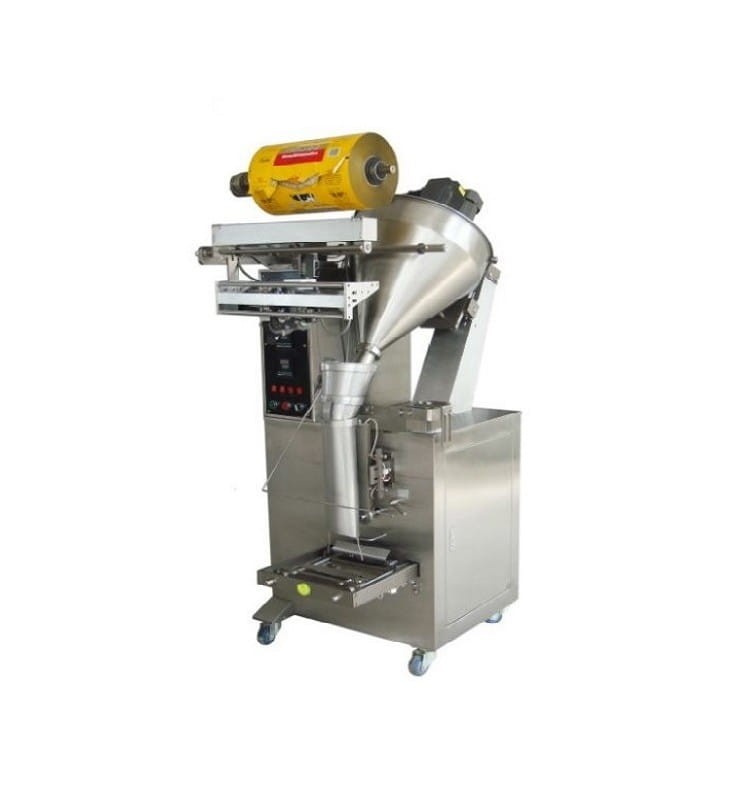

AUGER FILLER PACKAGING MACHINE DXDF-50AX

Application:

Volumetric sachet machine designed for packaging loose products, especially powder consistency.

DXDF-AX series is suitable for those material with poor liquidity, like wheat flour, milk powder.

It can be intended for contact with food.

The device is used in the food, chemical and pharmaceutical industries.

Functions:

It can work on various types of foil: PE, laminates, foil + aluminum, foil + paper, nylon, BOPP.

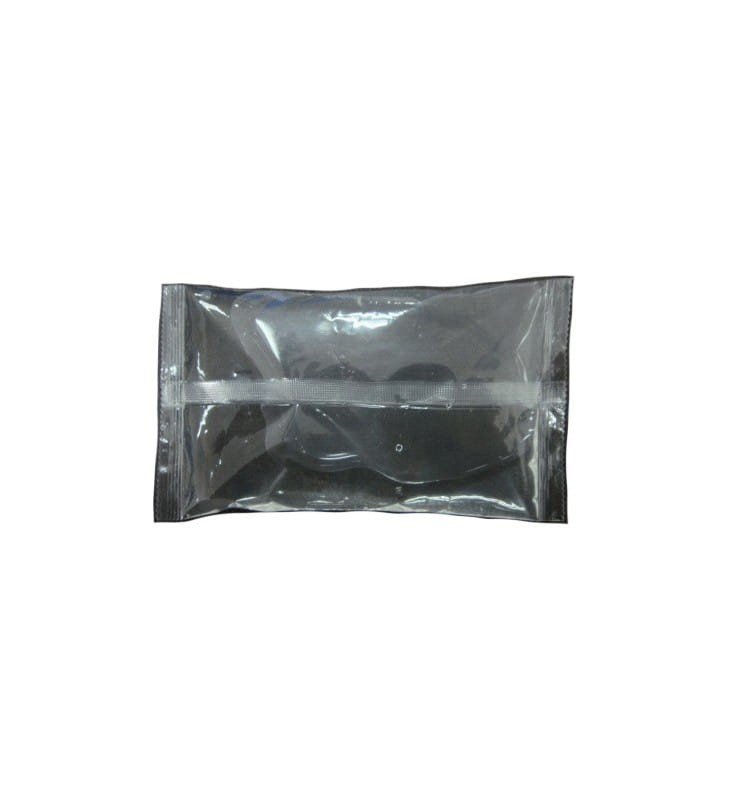

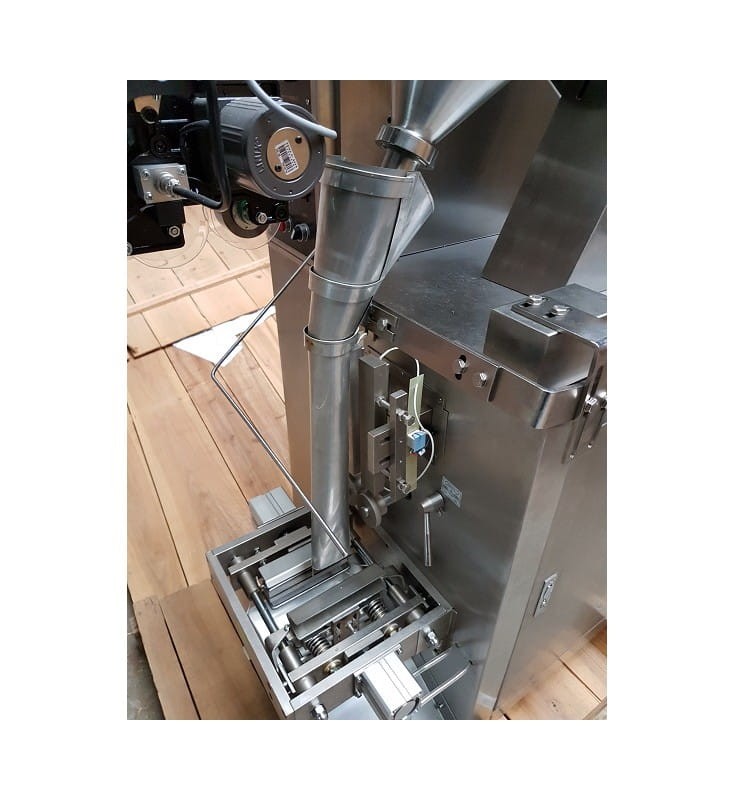

The sachet machine seals the sachet from three sides - transversely at the top, bottom and longitudinally (the seal forms at the back, in the middle) - pillow type bag.

Modern technology ensures the highest achievable level of performance.

The electronic control system synchronizes the work of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

All elements in contact with the product have a smooth surface or are made of 304 steel, resistant to corrosion.

The length of the sachet is adjustable through a simple panel.

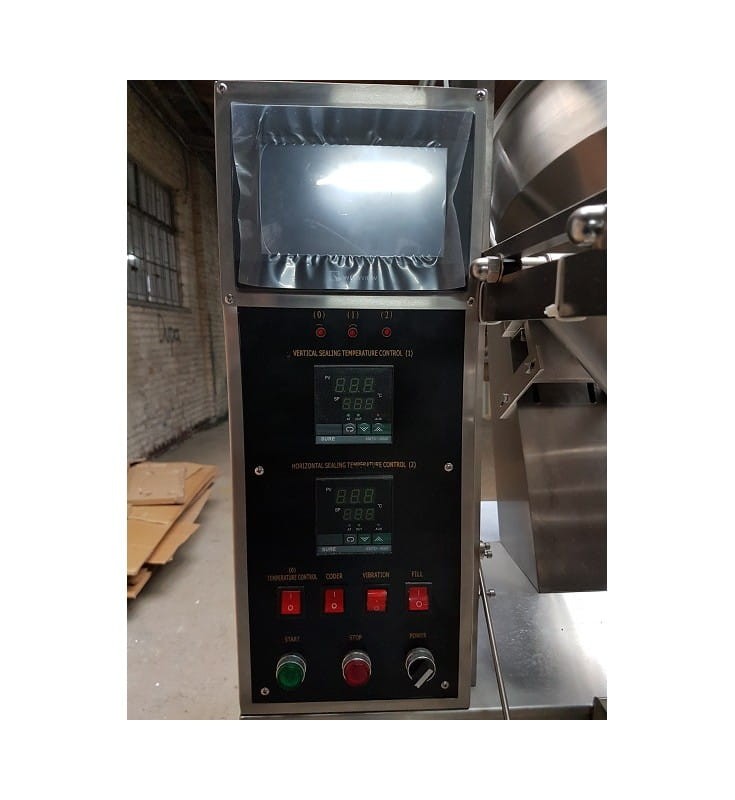

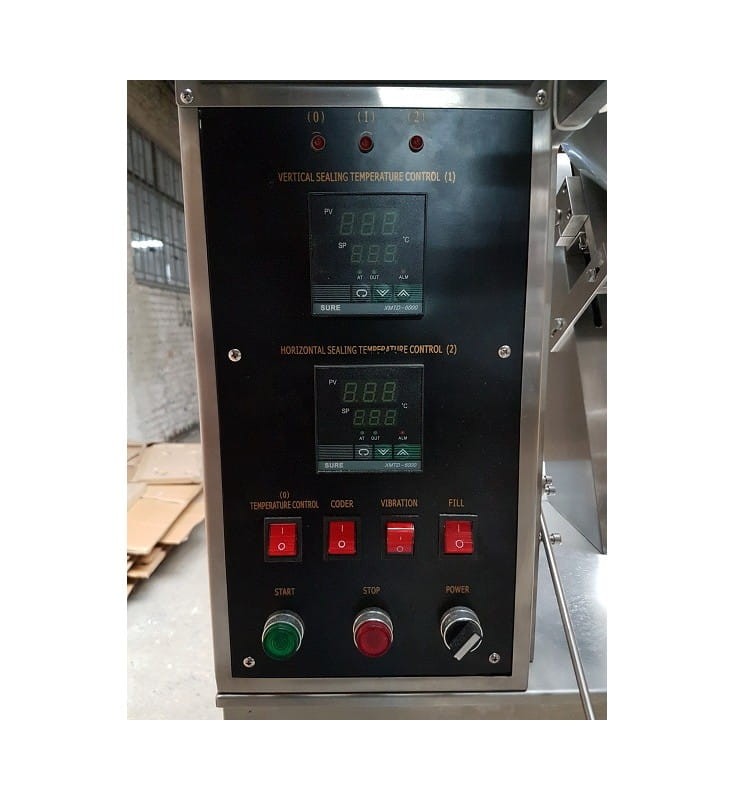

Independent temperature control.

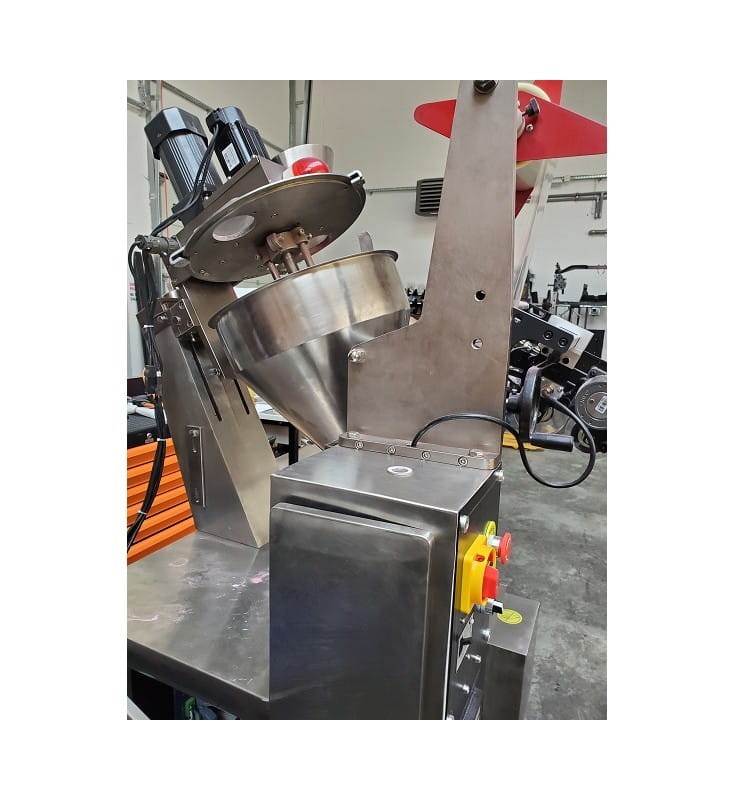

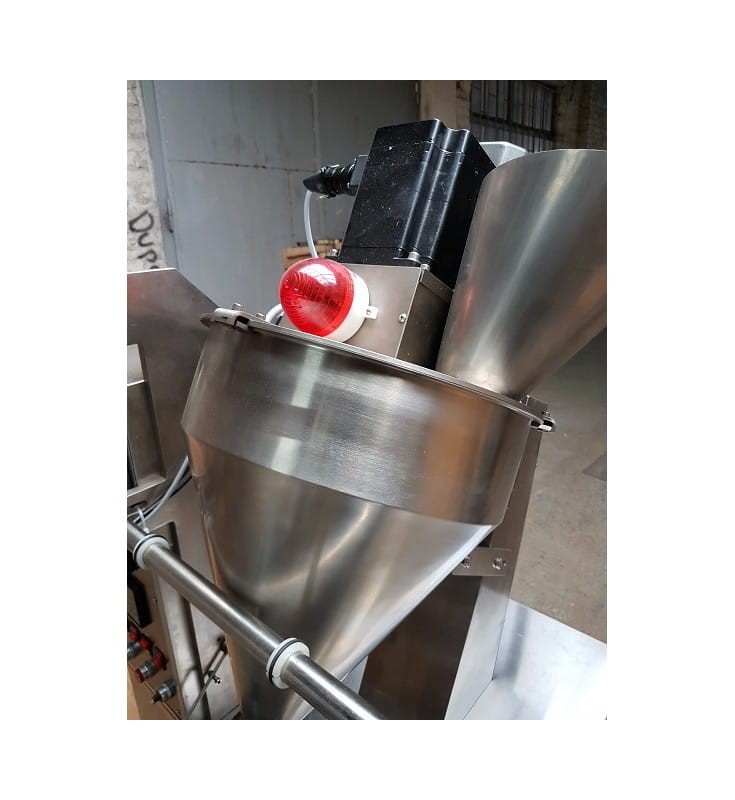

Inclined hopper screw.

It adopts high-precision auger filling system.

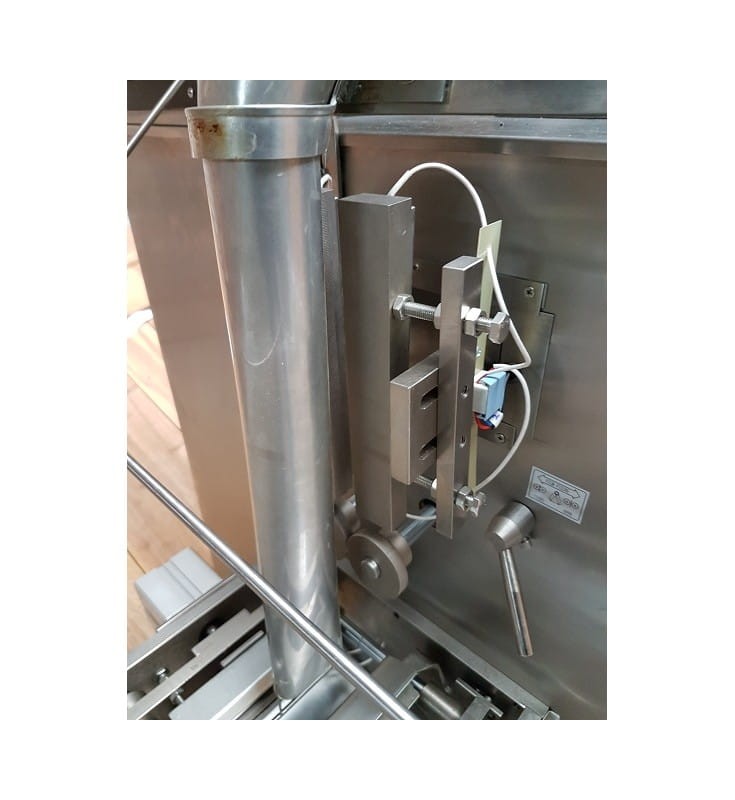

The sachet machine is equipped with a photocell and allows you to create sachets from smooth or printed foil.

Simple operation.

Technical data:

The device requires a compressor

Power: 1.5 kW

Power supply: 230 V / 50 Hz

Capacity 25-50 pcs./min. (depending on the size of the dose)

Dosage 5 - 50 ml

Length of sachets: 80-150 mm

Width of sachets: 70-100 mm

External dimensions: [L x W x H]: 1060 x 720 x 1800 mm

Weight: 340 kg

Included:

Shield

Date

304 steel version

Extra paid options:

Gassing

Tank vibration

Tube for different width of the sachet

Notch for easy opening of sachets

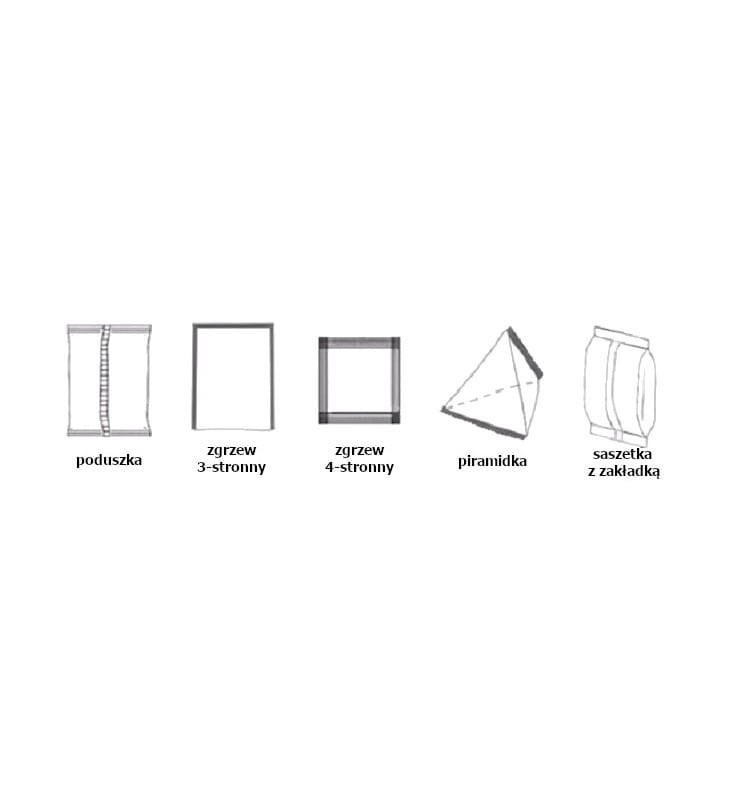

Other type of sachet: 3-sided, 4-sided, overlapped or pyramid seal

Version with elements in contact with the product made of 316 steel
