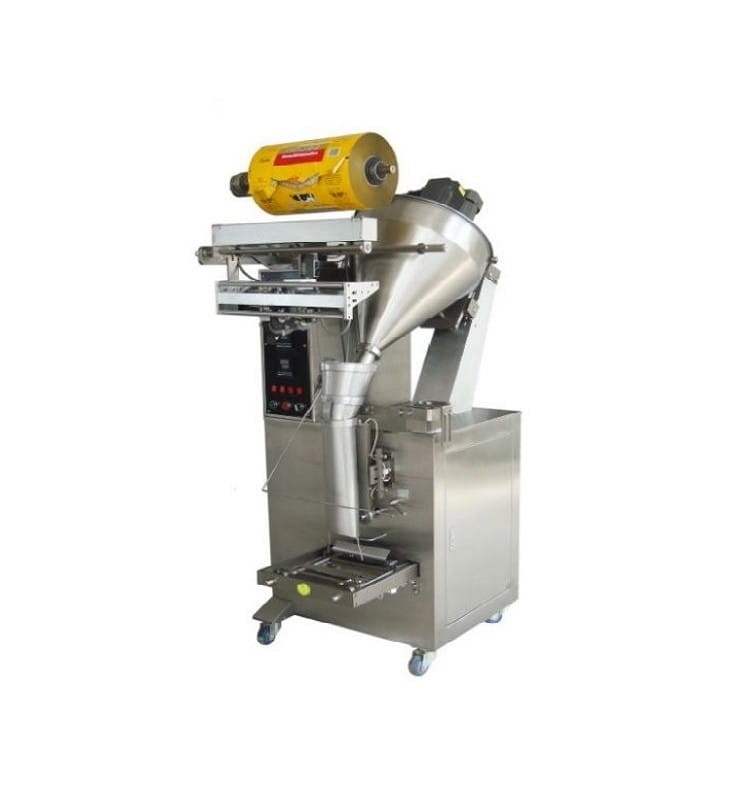

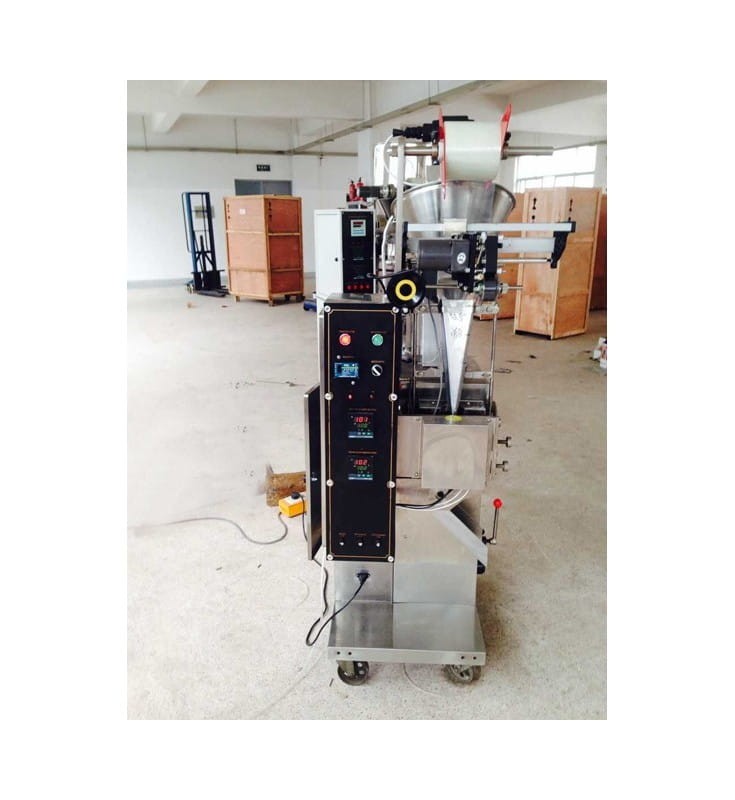

AUGER FILLER PACKAGING MACHINE DXDF-1000AX

Application:

Volumetric sachet machine designed for packaging loose products, especially powder consistency.

DXDF-AX series is suitable for those material with poor liquidity, like wheat flour, milk powder.

It can be intended for contact with food.

The device is used in the food, chemical and pharmaceutical industries.

Functions:

It can work on various types of foil: PE, laminates, foil + aluminum, foil + paper, nylon, BOPP.

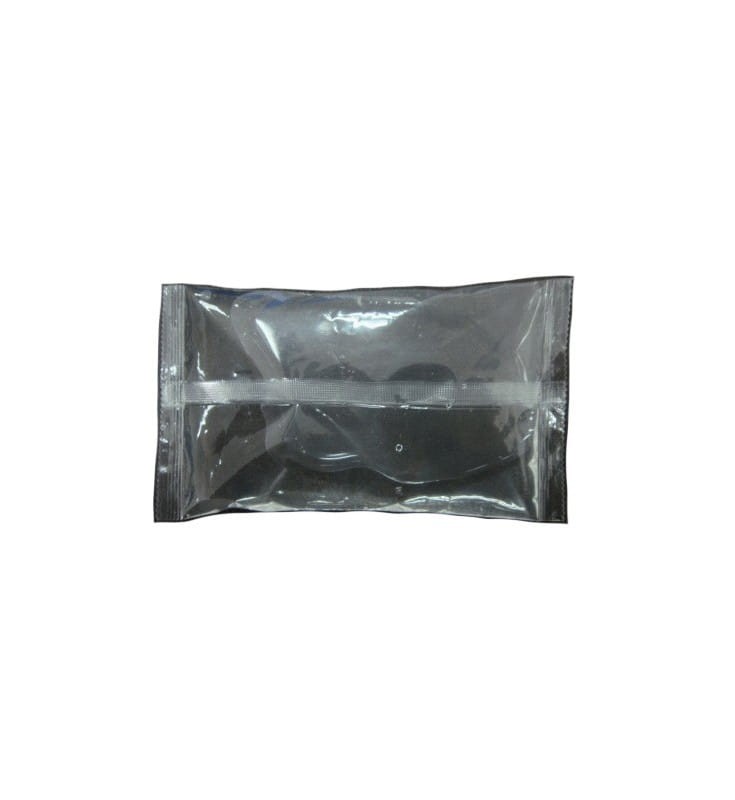

The sachet machine seals the sachet from three sides - transversely at the top, bottom and longitudinally (the seal forms at the back, in the middle) - pillow type bag.

Modern technology ensures the highest achievable level of performance.

The electronic control system synchronizes the work of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

All surfaces  in contact with the product have a smooth surface or are made of 304 steel, resistant to corrosion.

The length of the sachet is adjustable through a simple panel.

Independent temperature control.

The sachet machine is equipped with a photocell and allows you to create sachets from smooth or printed foil.

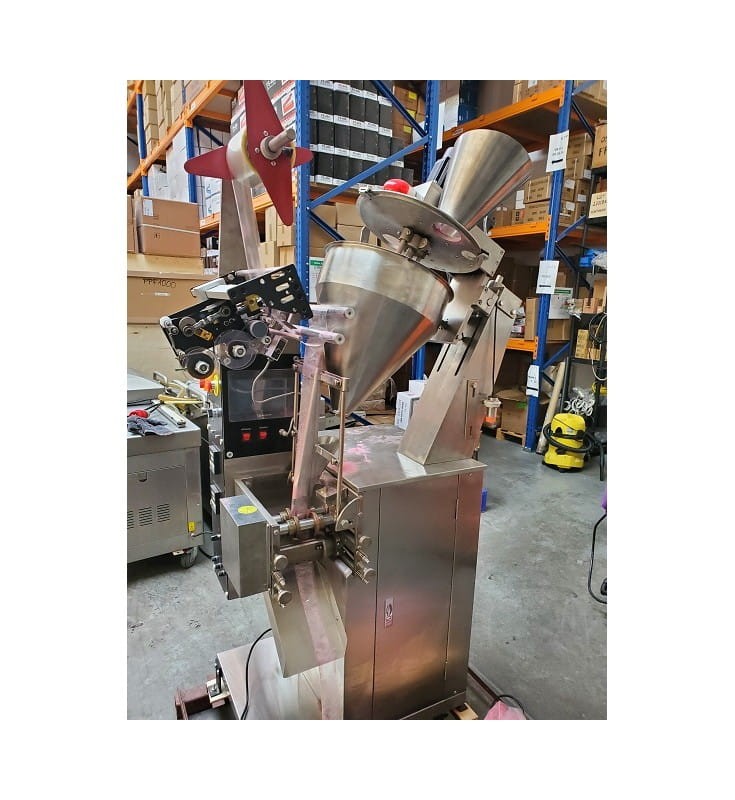

It adopts high-precision auger filling system.

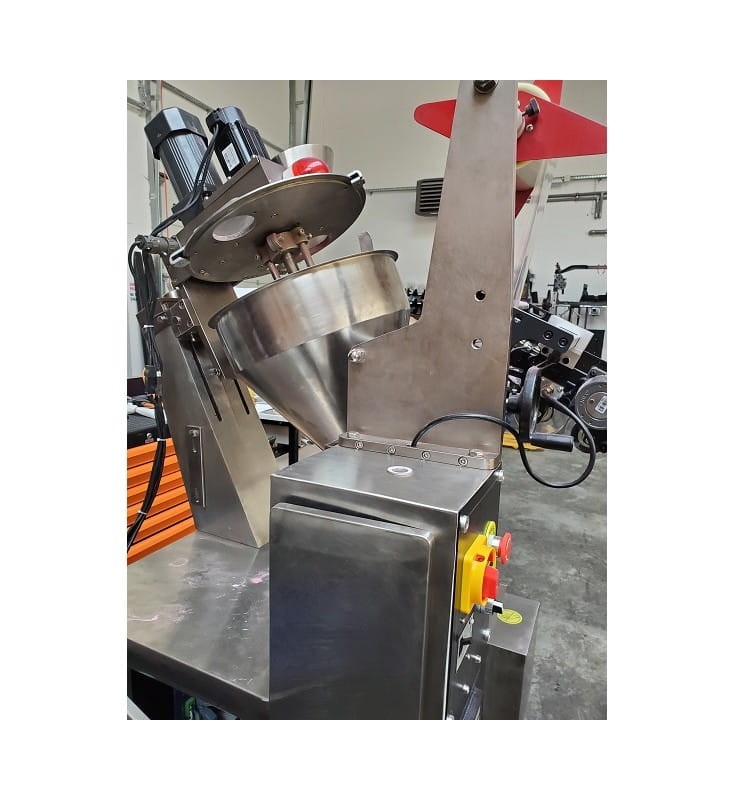

Inclined hopper screw.

Simple operation.

Technical data:

Requires compressor connection

Power: 2.4 kW

Power supply: 230 V / 50 Hz

Efficiency: 5-30 pcs. / min. (depending on the size of the dose)

Dosing: 100-1000 ml

Length of sachets: 50-290 mm

Width of sachets: 50-200 mm

Dimensions of the machine [length x width x height]: 1260 x 860 x 2170 mm

Weight: 550 kg

Included:

Shield

Date

304 steel version

Extra paid options:

Gassing

Tank vibration

Tube for different width of the sachet

Notch for easy opening of sachets

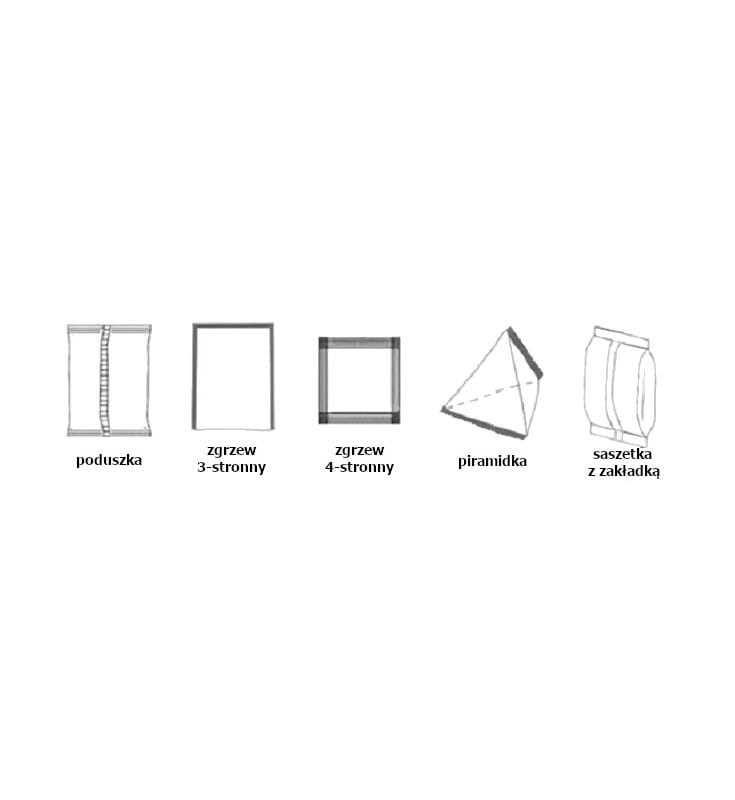

Other type of sachet: 3-sided, 4-sided, overlapped or pyramid seal

Version with elements in contact with the product made of 316 steel
