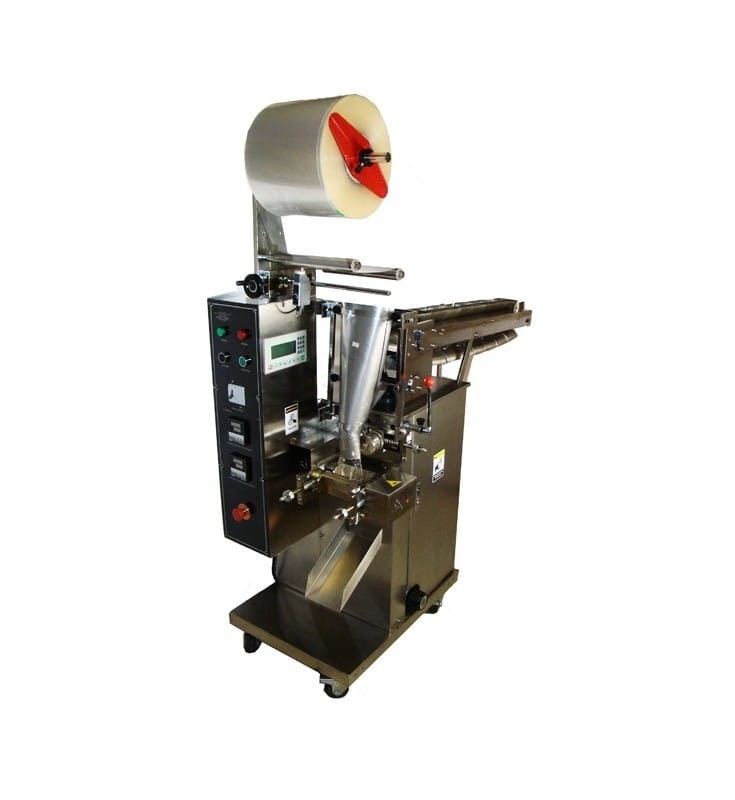

AUTOMATIC PACKING MACHINE DXDK 800

A wagon sachet machine designed for automatic packing of solid objects, e.g. screws and other parts (individual pieces or specific quantities) in foil sachets.

The products previously placed in the wagons fall successively to the sealing section, where they are packed in foil-formed bags in the form of a web.

It can work on various types of foil: PE, laminates, foil + aluminum, foil + paper, nylon, BOPP.

Modern technology ensures the highest achievable level of performance.

The electronic control system synchronizes the work of the machine.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

It has been designed to avoid the risk of infection, illness or infection.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

Application:

The device is used in the chemical, pharmaceutical and cosmetics industries.

Functions:

High precision and reliability.

Independently controlled temperature of transverse and longitudinal welding.

The length of the sachet is adjustable through a simple control panel.

The sachet is equipped with a photocell and allows you to create sachets of smooth or printed foil.
The sachet machine seals the sachet from three sides - transversely at the top, bottom and longitudinally

Technical data:

Power supply: 230 V / 50 Hz
Power: 1.8 kW
Productivity (pcs / min): 28-60
Dosage (ml): 200-1000
Max dimension of the sachet:
length: 100 - 300 mm US 3.93" - 11.81"
width: 40 - 175 mm US 1.57" - 6.88"
Dimensions of the machine (length x width x height): 1200 x 800 x 2000 mm US 47.24" x 31.49" x 78.74"
Weight: 400 kg US 881.84"
The ability to upload the menu in Polish or other.

Extra paid options:

Gas

Tube under a different width of the sachet

Stamp

Incision for easy opening of the sachets

4-sided welding
Full stainless steel version
