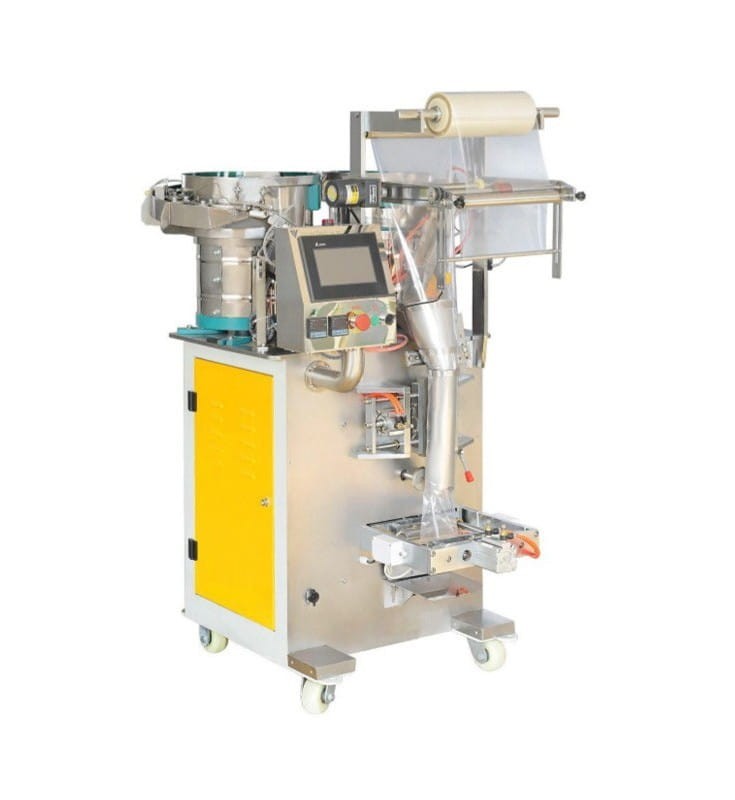

SCREW PACKING MACHINE WITH SOLID-INK CODING MACHINE FY Z240A

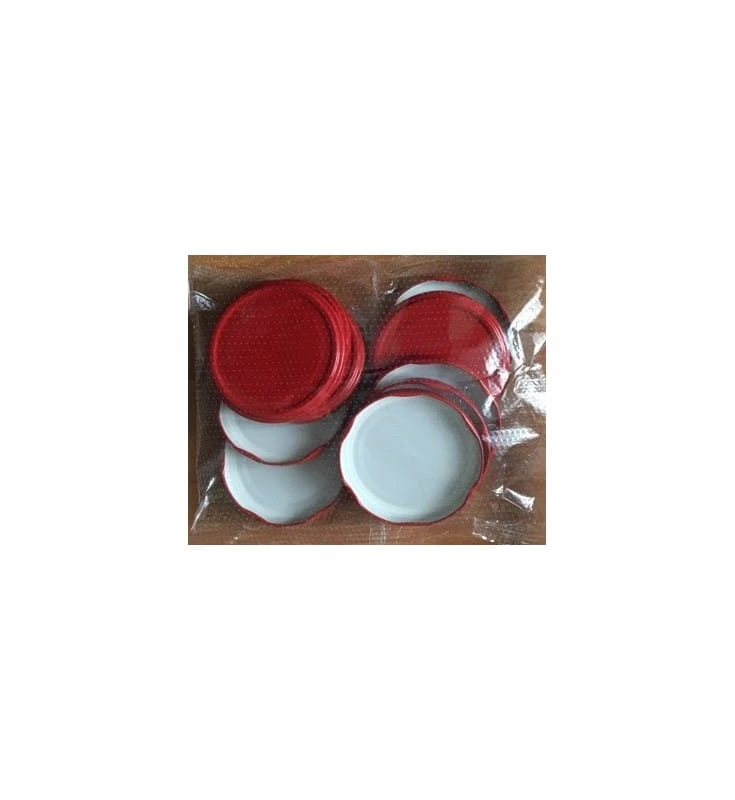

Sacheting machine designed for packing larger products, e.g. jar caps in foil sachets (individual pieces or specific quantities).

The products placed in the vibrating hopper fall into the sealing section, where they are packed in sachets formed there.

Bags are made of foil in the form of a web.

It can work on various types of foil: PE, laminates, foil + aluminum, foil + paper, nylon, BOPP.

High-quality components, production, among others German, guarantee high precision and reliability of the device.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

This system provides high versatility and flexibility as well as excellent dynamics.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

Requires a compressor connection.

Application:

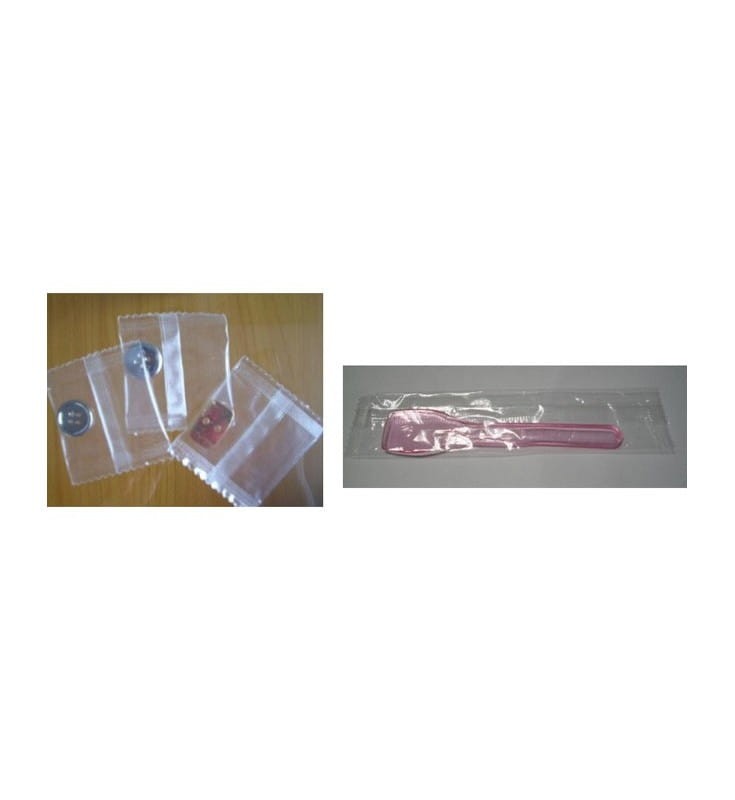

The device is suitable for packing solid products.

Functions:

Simple operation

Easy to adjust

Low noise level.

The sachet is equipped with a photocell and allows you to create sachets of smooth or printed foil.

The device has a counting system.

Operation is via a touch screen.

Model equipped with a graphic printer.

Loads graphics from pen drive - date, text, graphics, photo, text, bar codes, QR codes etc.

Technical data:

Eficciency: 7-9 pcs./min
Dimensions of the sachet:
Length: 50 - 300 mm US 1.96" - 11.81"
Width: 50 - 200 mm US 1.96" - 7.87"
Max. width of the film: 420 mm US 16.53"
Supported film: PP / CPP, PA / PE, PET / PE etc.
Dimensions of the machine (length x width x height): 810 x 800 x 2000 mm US 31.88" x 31.49" x 78.74"
Weight: 260 kg US 573.2 lb
The ability to upload the menu in Polish or other.

Extra paid options:

Labeling

Tank vibrations

Tube under a different width of the sachet

Stamp

Incision for easy opening of the sachets

4-sided welding
Full stainless steel version
