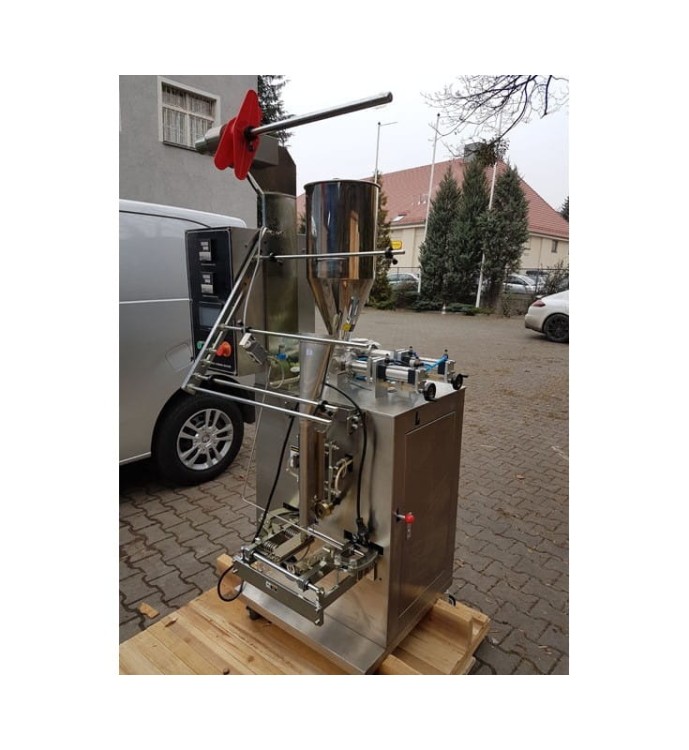

TOMATO PASTE PACKING MACHINE DXDG 20II

Volumetric sachet machine for packing liquids, especially thick ones, e.g. sauces, mayonnaise, ketchup etc.

The device forms foil bags in the form of a web.

Modern technology ensures the highest achievable level of performance.

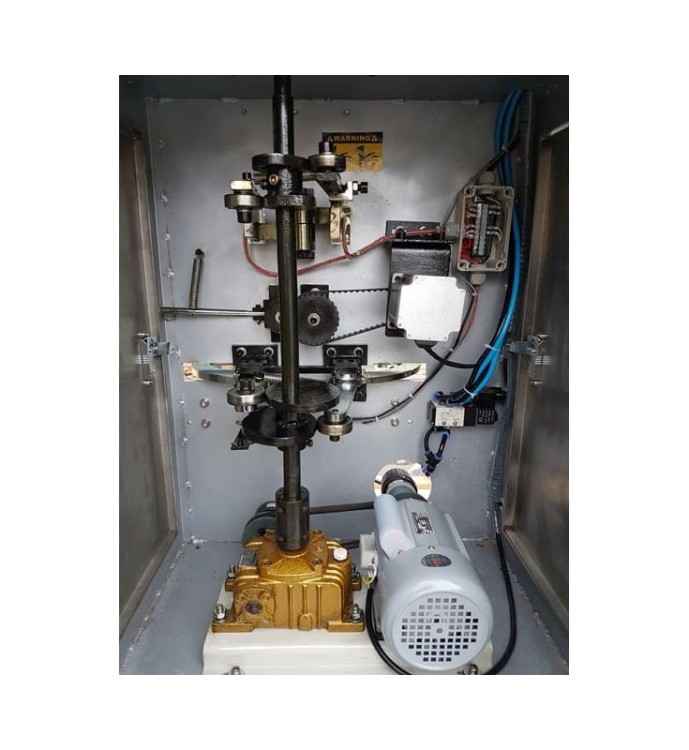

The electronic control system synchronizes the work of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

The machine can be intended for contact with art. food.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

It can work on various types of composite foil: foil + aluminum, foil + paper, nylon, BOPP + PE.

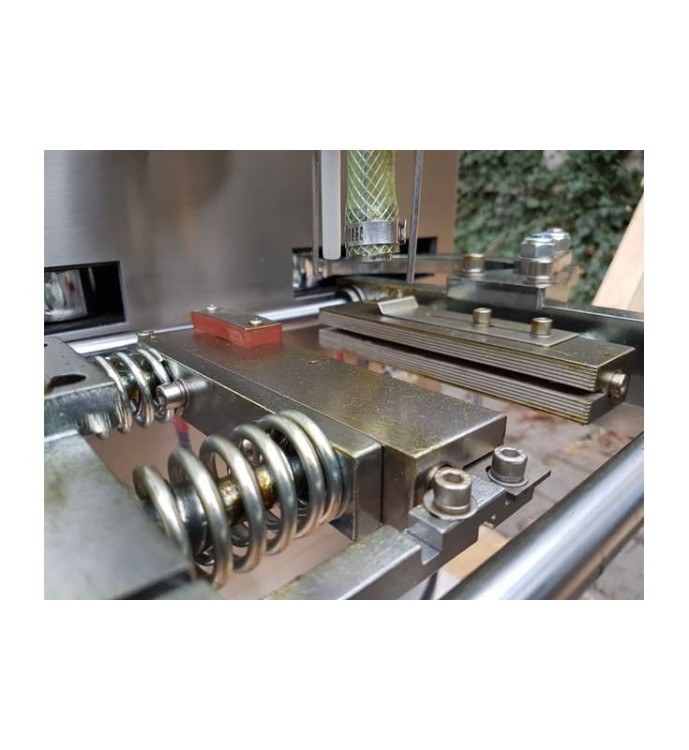

The sachet machine seals the sachet from three sides - transversely at the top, bottom and longitudinally.

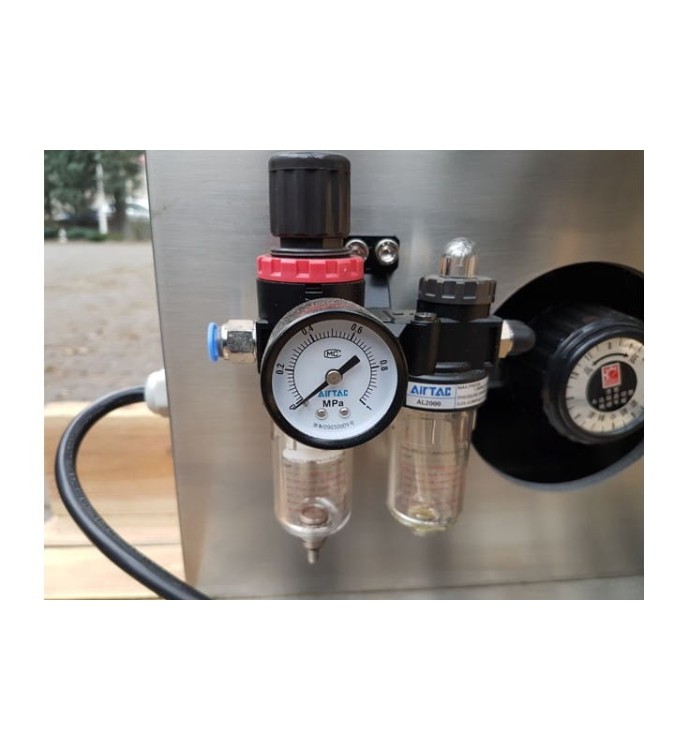

The device requires a compressor connection.

Application:

The device is used in the food, chemical, pharmaceutical and chemical industries.

Functions:

Simple operation

High precision and reliability

Independently controlled temperature

The length of the sachet is adjustable

The device is equipped with a photocell, which allows you to create sachets from plain and printed foil

Technical data:

Power: 1.7 kW

Power supply: 230 V / 50 Hz

Efficiency: 50 - 80 pcs./min. (depending on the size of the dose)

Dosage: 5 - 20 ml

The length of the sachet: 50 - 110 mm US 1.96" - 4.33"

The width of the sachet: 30 - 90 mm US 1.18" - 3.54"

Dimensions of the machine: 790 x 600 x 1780 mm US 31.1" x 23.62" x 70.07"

Weight: 350 kg US 771.61 lb

The ability to upload the menu in Polish or other.

Extra paid options:

Gas

Tube under a different width of the sachet

Heated tank

Pump for a different dose

Stamp

Incision for easy opening of the sachets

4-sided welding
Full stainless steel version
