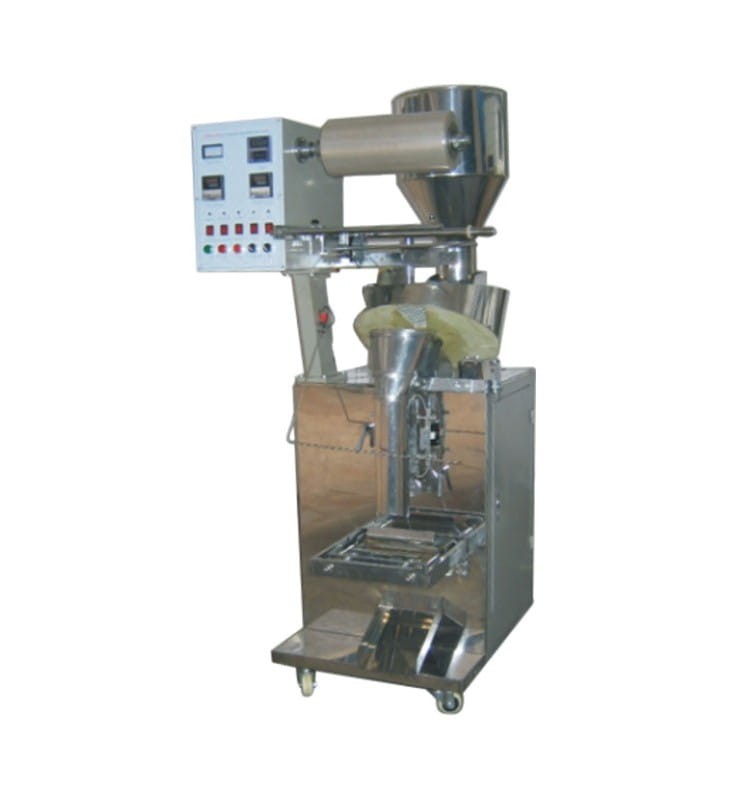

DXDP 40II AUTOMATIC TABLET PACKING MACHINE

Application:

Automatic, vertical machine designed for packaging tablets, pills, capsules, etc. in sachets.

The device is used in the food, pharmaceutical, chemical and cosmetics industries.

Functions:

The device forms foil bags in the form ribbon.

It can work on various types of composite film: laminates foil + aluminum, foil + paper, nylon + PE, BOPP + PE.

Modern technology ensures the highest achievable level of performance.

The electronic control system synchronizes the work of the machine.

This system provides high versatility and flexibility as well as excellent dynamics.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

The sachet machine seals the sachet from three sides - transversely at the top, bottom and longitudinally.

Simple operation.

High precision and reliability.

Independently controlled temperature.

The length of the sachet is adjustable by buttons.
Technical data:

Power: 1.5 kW
Power supply: 230 V / 50 Hz  US 110 V
Efficiency: 50-90 pcs. / min. (depending on the size of the dose)
Dosage: 5-40 ml  US 0.2 - 1.4 oz
Length of sachets: 50-110 mm  US 2 - 4.3"
Width of sachets: 30-80 mm  US 1.2 - 3.1"
External dimensions [L x W x H]: 930 x 720 x 1870 mm  US 37 x 28 x 74"
Weight: 350 kg  US 772 lb

Possibility to upload the menu in other language.

Extra paid options:

Gas flushing

Tank vibrations

Tube under a different width of the sachet

Stamp

Product counting module

Incision for easy opening of the sachets

4-sided welding
Full stainless steel version
