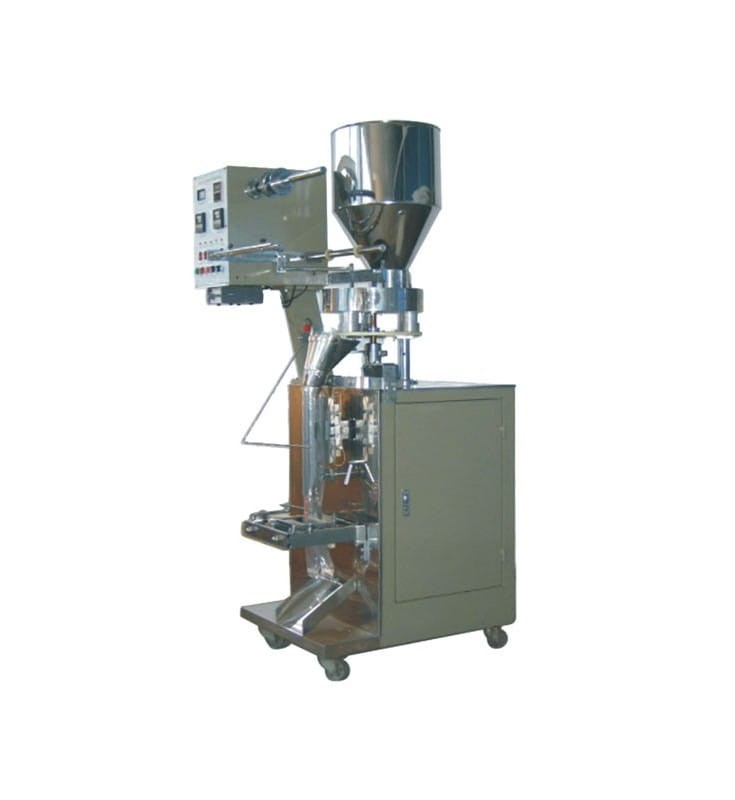

AUTOMATIC M FOLD PACKAGING MACHINE DXDK 500MII

Volumetric sachet cutter designed for packaging loose products, in the form of granules or grains, e.g. rice, pepper, peas, etc.

The device forms foil bags in the form of a web.

It can work on various types of foil: PE, laminates, foil + aluminum, foil + paper, nylon, BOPP.

Modern technology ensures the highest achievable level of performance.

The electronic control system synchronizes the work of the machine.

Modern technology together with reliability, ergonomic design and easy cleaning allows for convenient use.

The machine can be intended for contact with art. food.

It has been designed in such a way as to avoid the risk of infection, illness or infection.

All surfaces in contact with the product have smooth surfaces or are made of corrosion-resistant stainless steel.

The construction of the machine excludes penetration of the substance into the product.

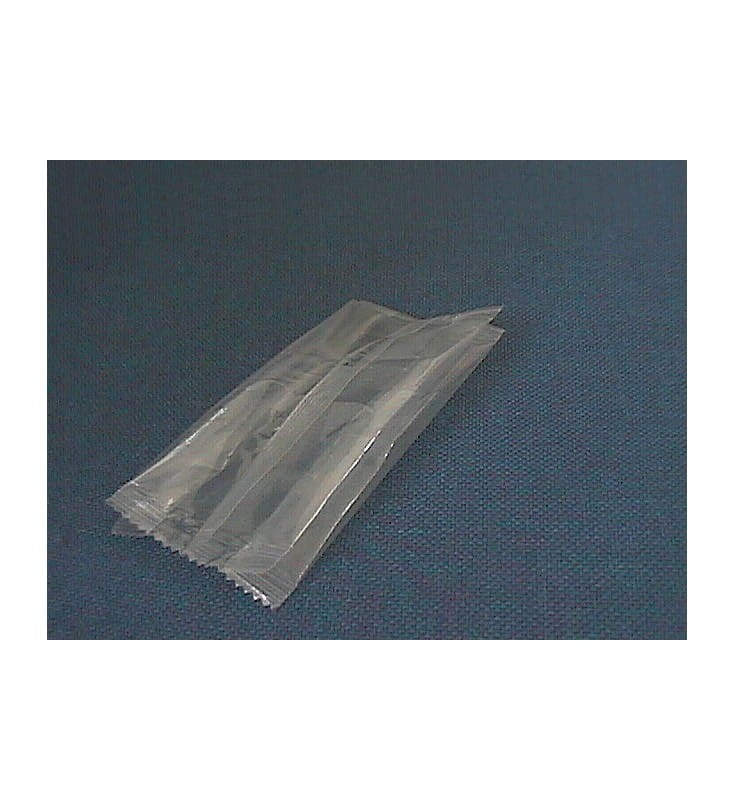

The model is adapted to create "M" type sachets, i.e. lateral fold.

Application:

The device is used in the food, chemical and pharmaceutical industries.

Functions:

Simple operation

High precision and reliability

Independently controlled temperature of transverse and longitudinal welding

The machine is equipped with a photocell that allows you to create sachets of smooth or printed foil

Technical data:

Power: 1.75 kW
Power supply: 230 V / 50 Hz
Efficiency: 30-70 pcs / min. (depending on the size of the dose)
Dosage: 50 - 500 ml
The length of the sachets is adjustable in the range: 50 - 220 mm
Width of sachets: 30 - 150 mm
Dimensions of the machine length x width x height: 1120 x 900 x 1950 mm
Weight: 400 kg

Extra paid options:

Gas
Tank vibrations
Tube under a different width of the sachet
Stamp
Incision for easy opening of the sachets
4-sided welding
Full stainless steel version
